Symptom Chart

NOTE: Refer to SYSTEM WIRING DIAGRAMS for connector numbers stated in the Pinpoint Tests.

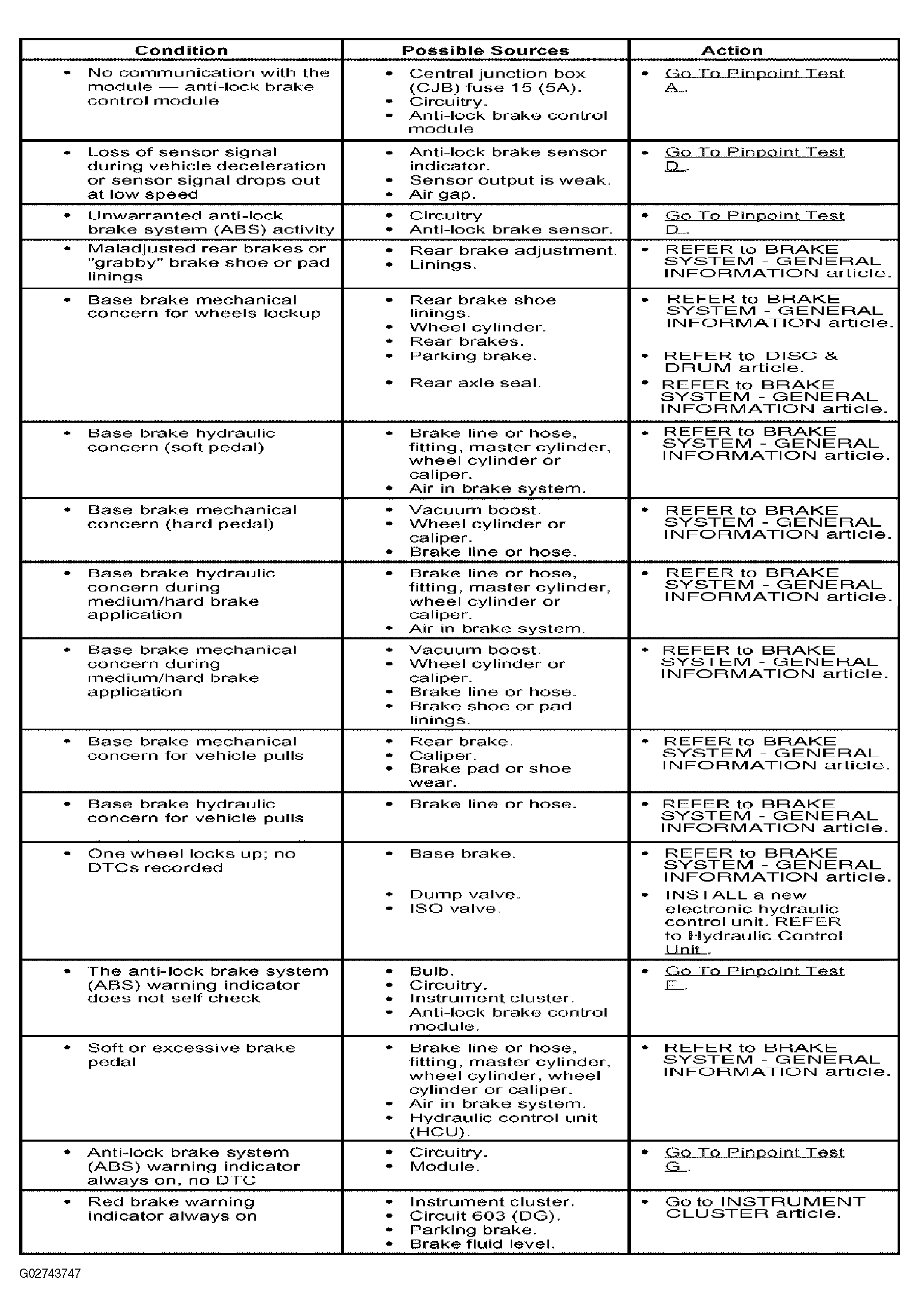

Fig 1: Identifying Symptom Specification Chart

Courtesy of FORD MOTOR CO.
