Removal and Installation

Disconnect the battery negative cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the electrical connectors.

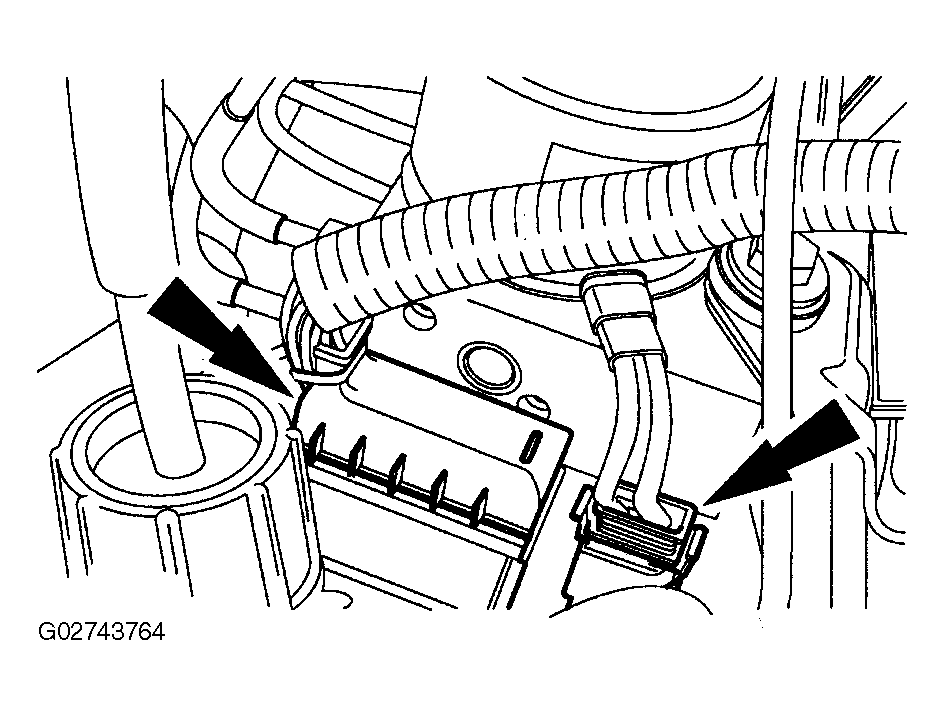

Fig 1: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the screws and the control module.

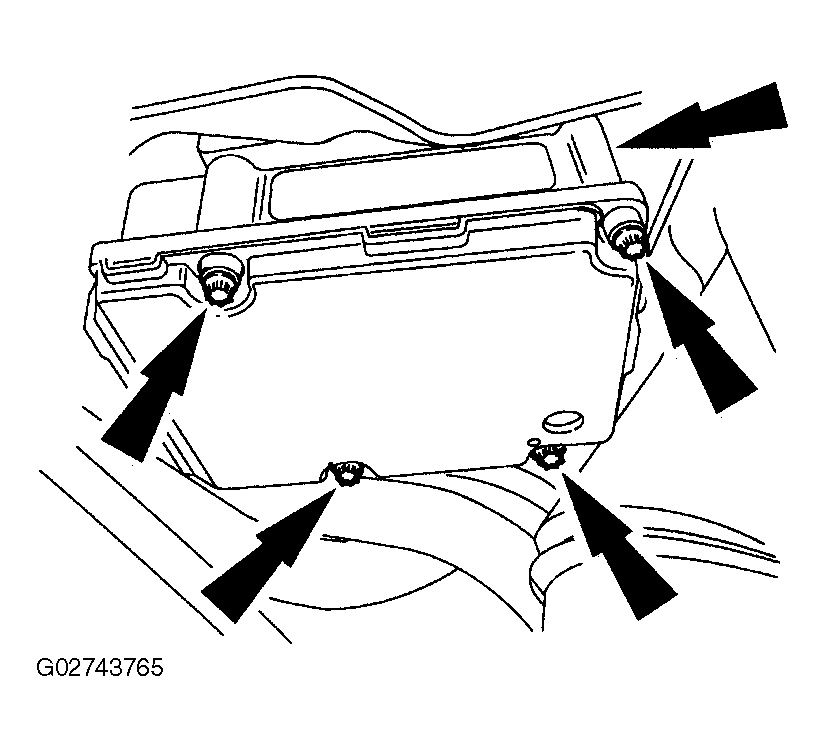

Fig 2: Removing Screws And Control Module
Courtesy of FORD MOTOR CO.

NOTE: The 4x2 module cannot be interchanged with the 4x4 module. The 4x4 module is interchangeable with the 4x2 module.
