Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

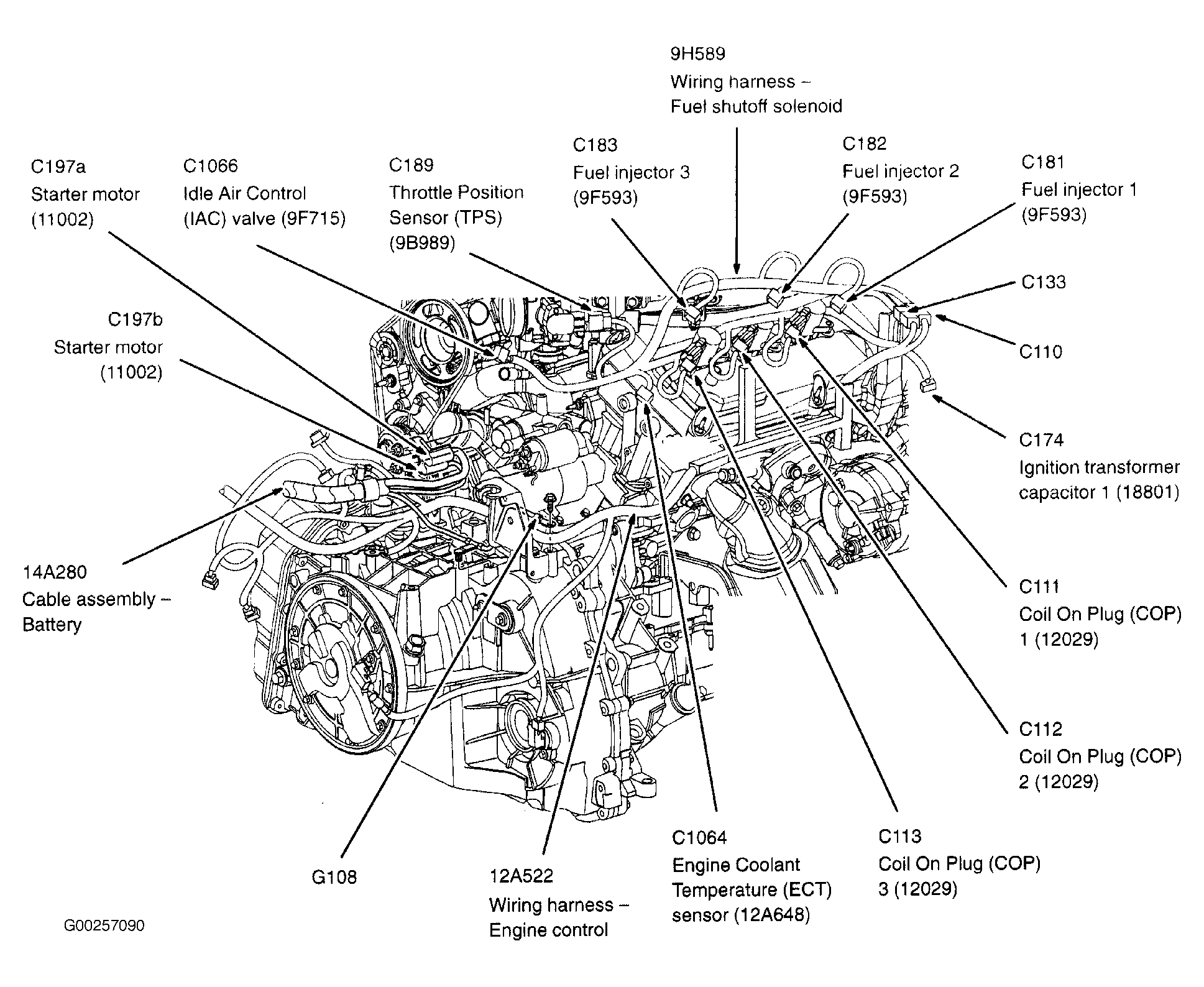

Fig 1: Right Rear Of Engine (3.0L)

G00257090

Courtesy of FORD MOTOR CO.

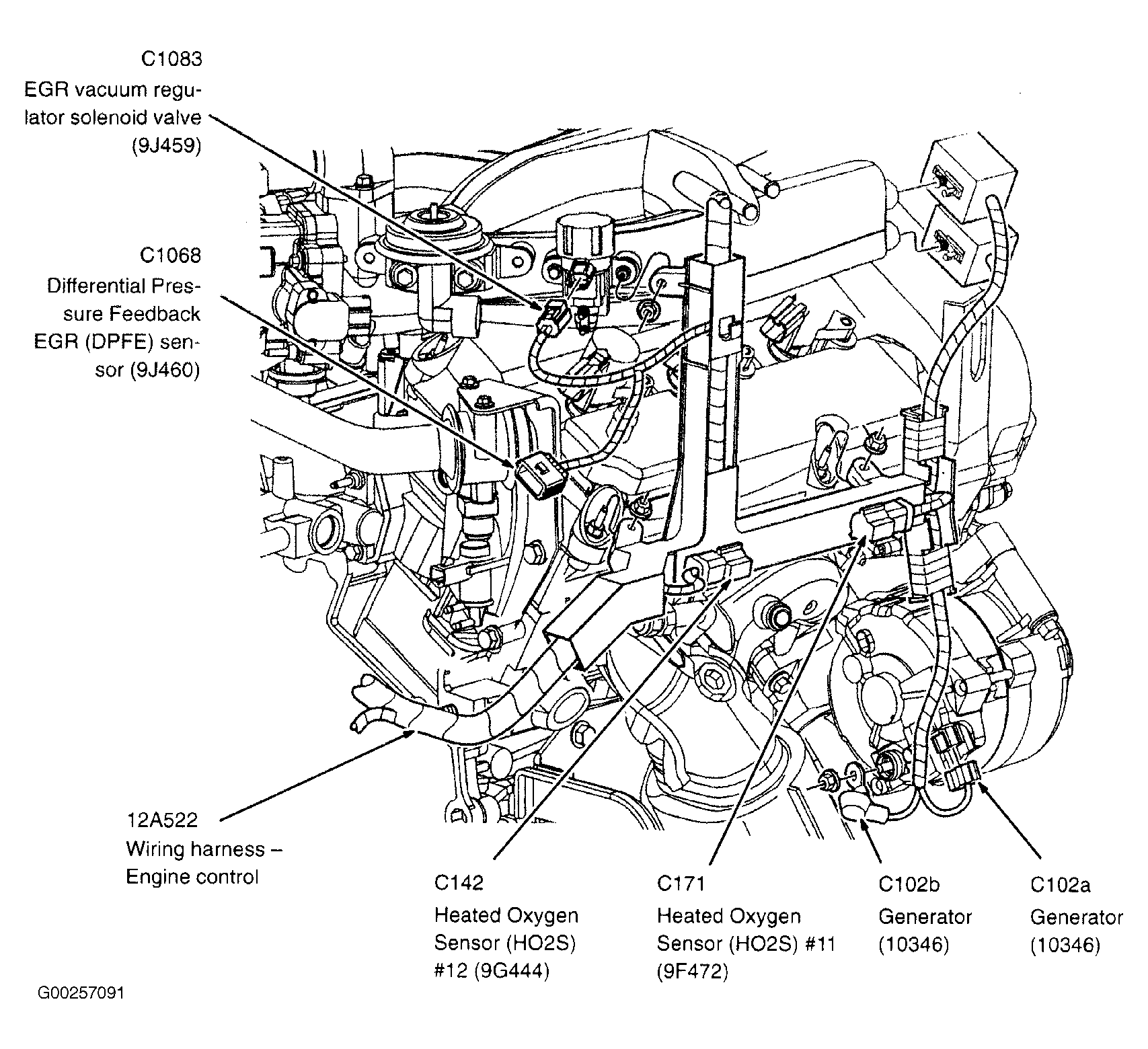

Fig 2: Right Side Of Engine (3.0L)

G00257091

Courtesy of FORD MOTOR CO.

Fig 3: Top Front Of Engine (3.0L)

G00257092

Courtesy of FORD MOTOR CO.

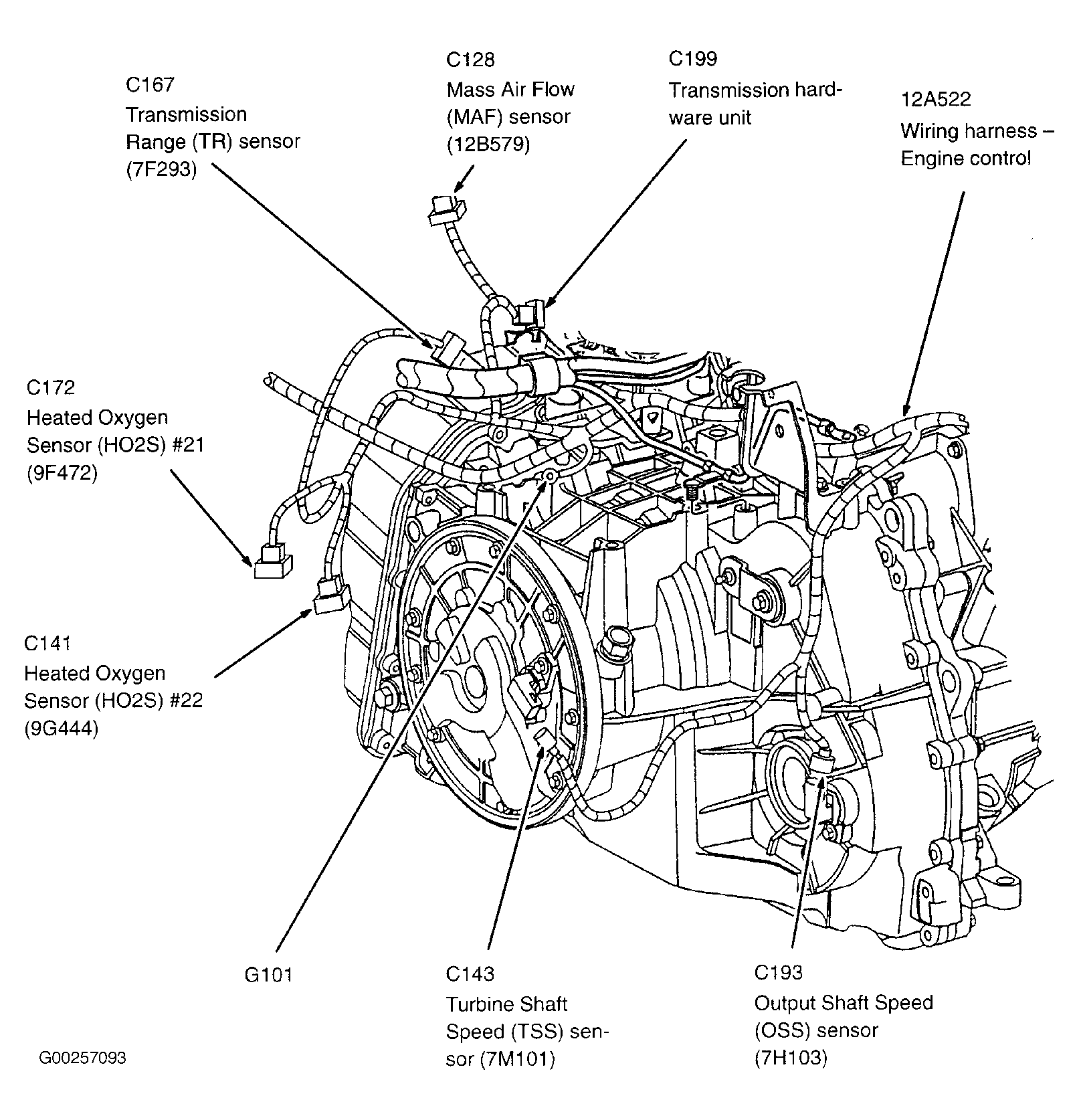

Fig 4: Rear Of Engine (3.0L)

G00257093

Courtesy of FORD MOTOR CO.

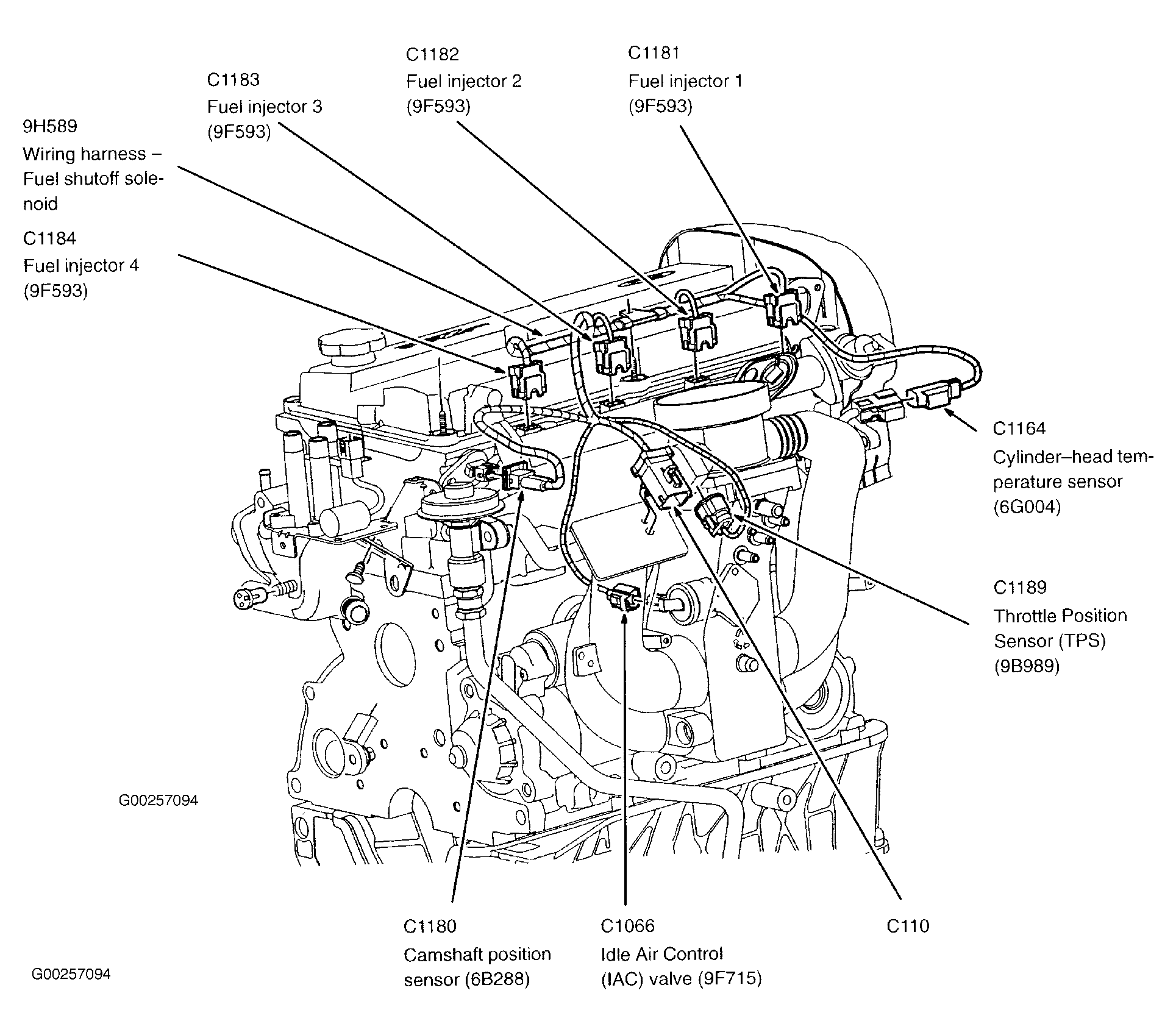

Fig 5: Right Side Of Engine (2.0L)

G00257094

Courtesy of FORD MOTOR CO.

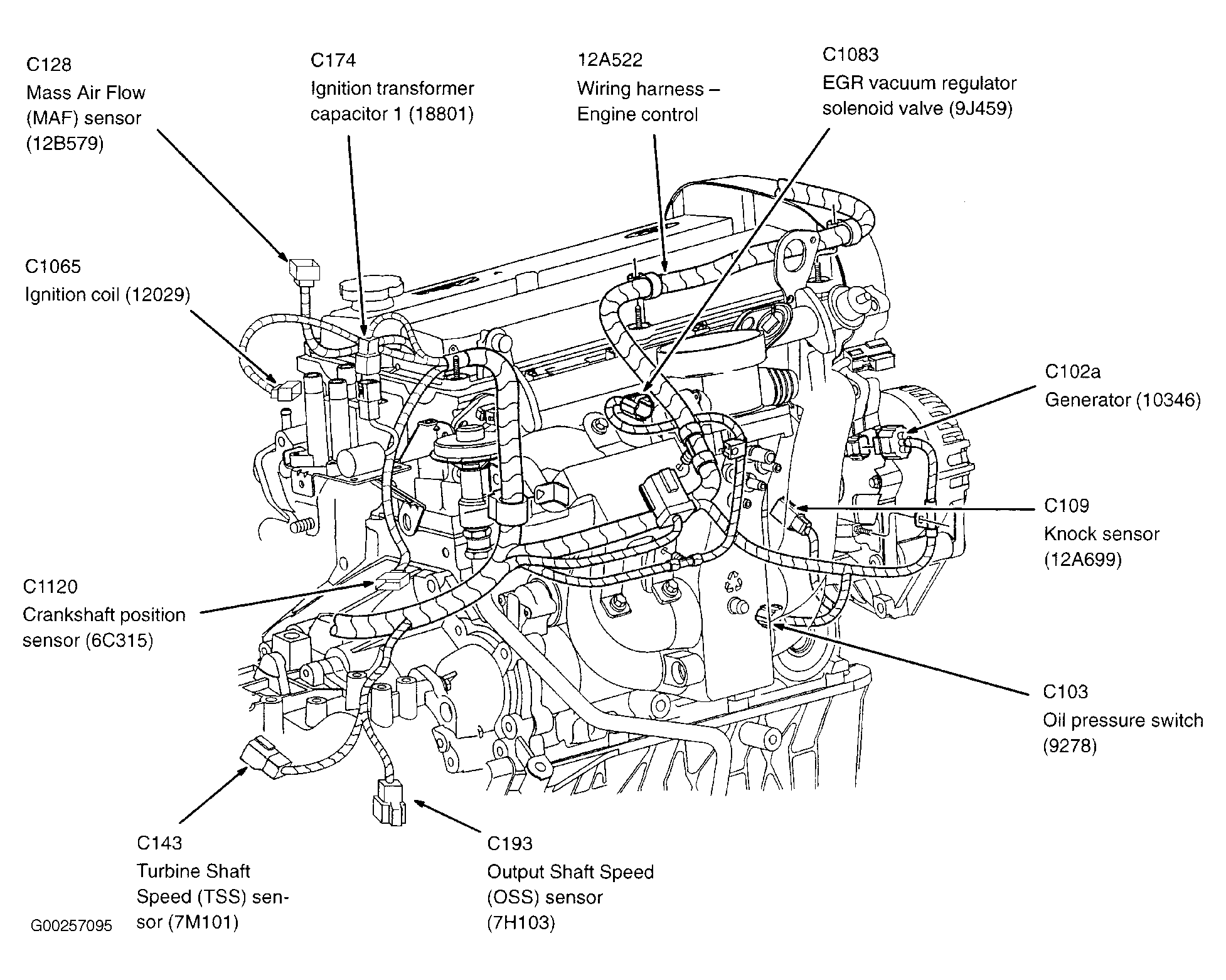

Fig 6: Right Side Of Engine (2.0L)

G00257095

Courtesy of FORD MOTOR CO.

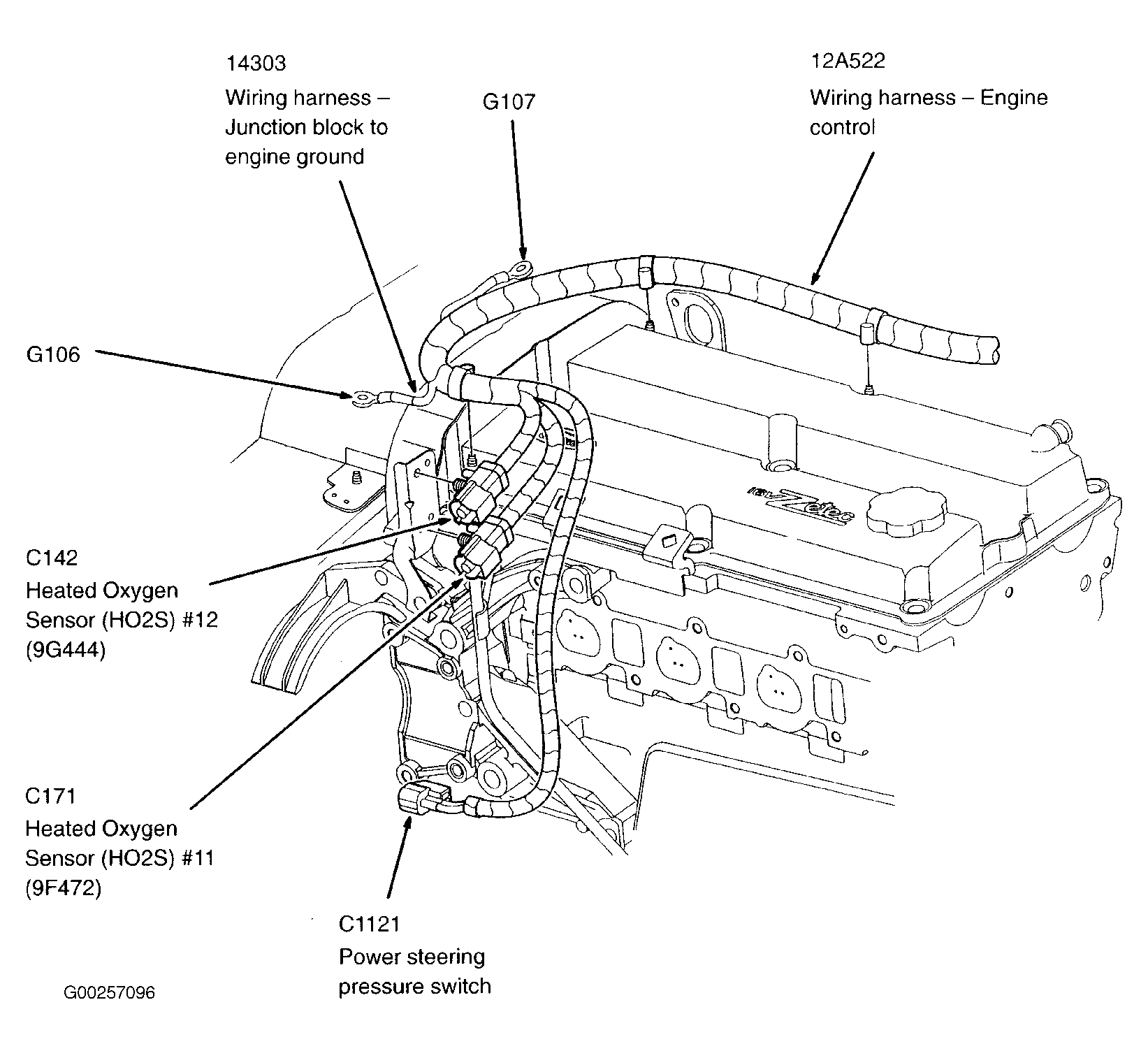

Fig 7: Front Of Engine (2.0L)

G00257096

Courtesy of FORD MOTOR CO.

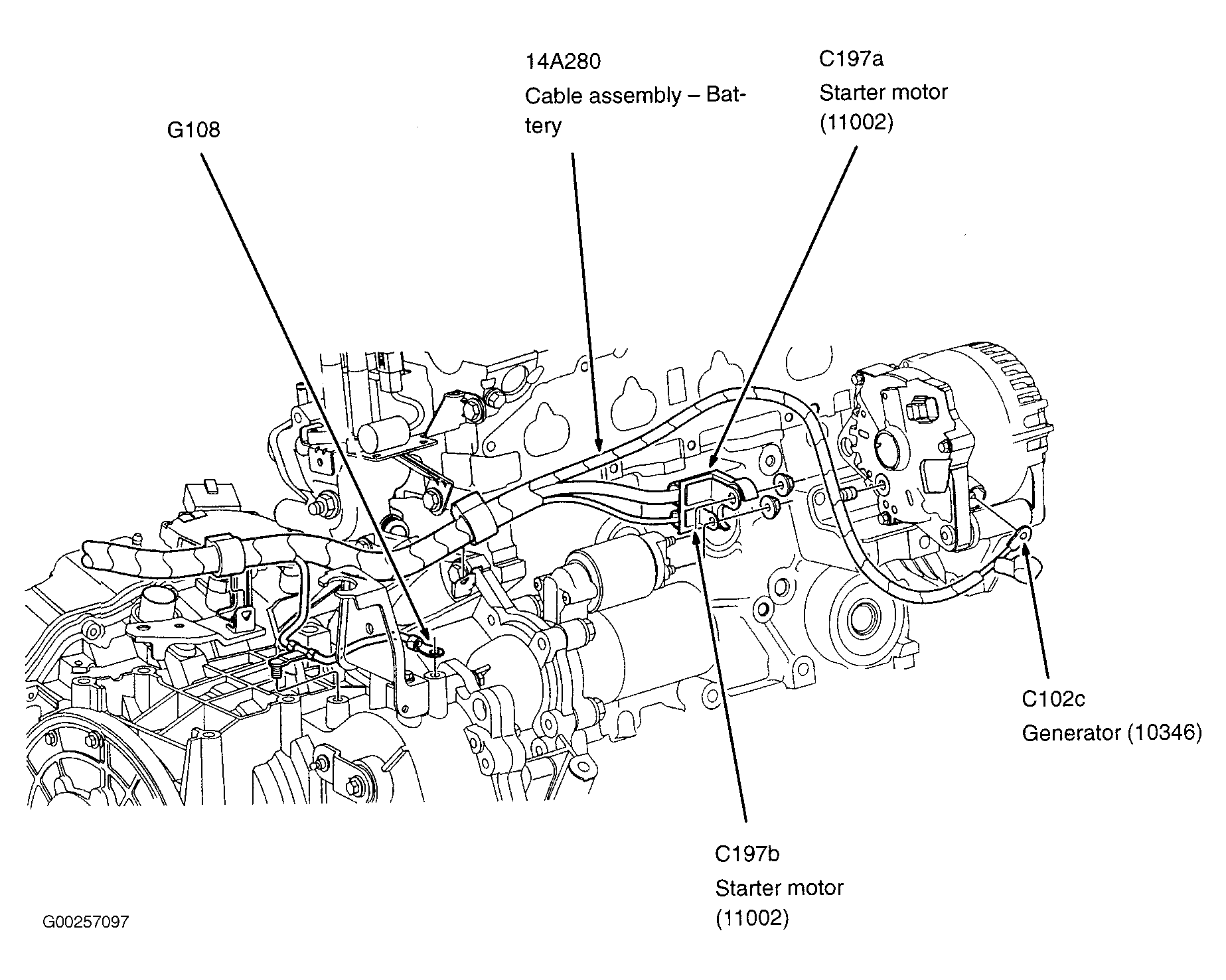

Fig 8: Right Side Of Engine (2.0L)

G00257097

Courtesy of FORD MOTOR CO.

Fig 9: Front Of Automatic Transmission

G00257098

Courtesy of FORD MOTOR CO.

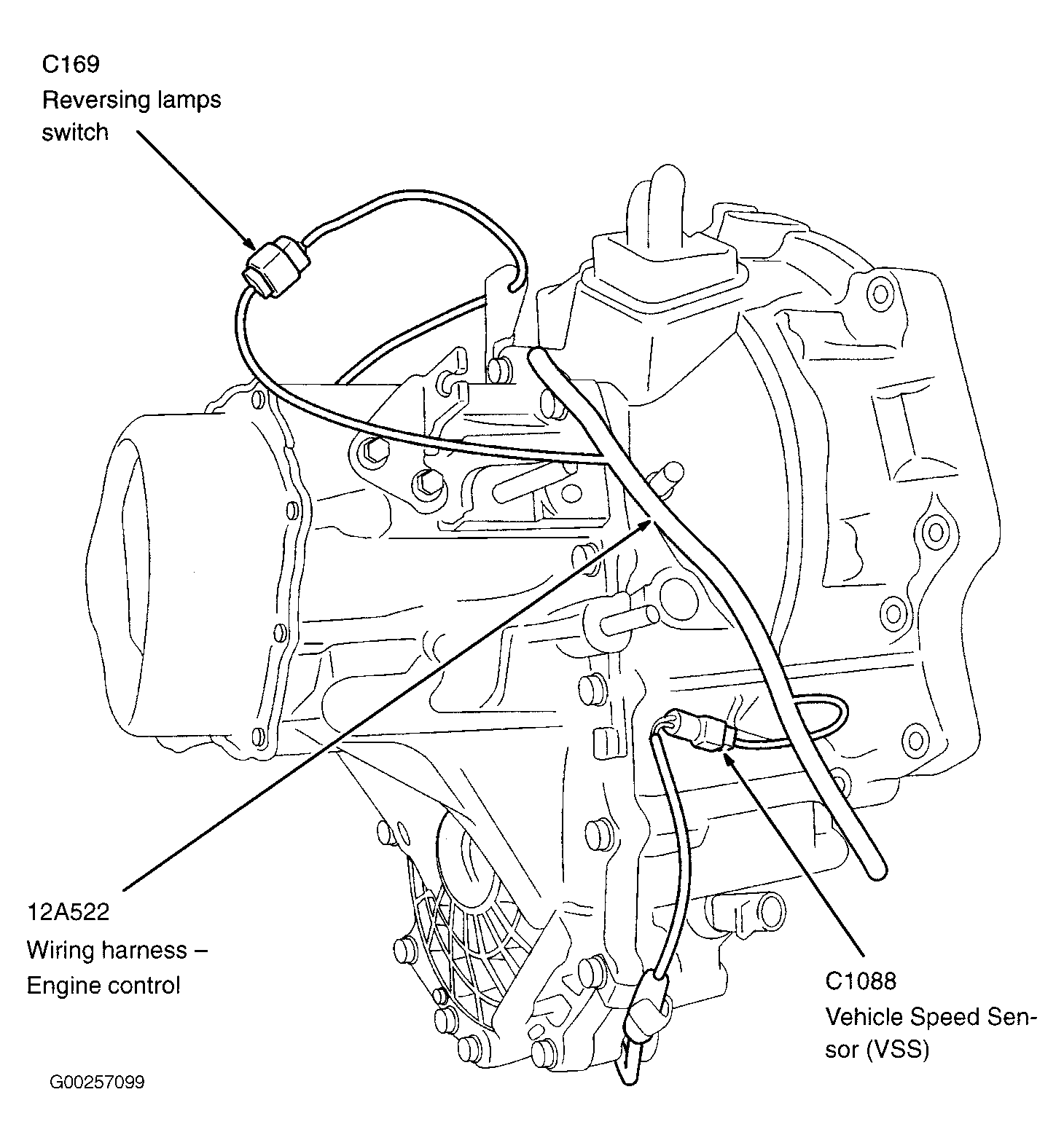

Fig 10: Front Of Manual Transmission

G00257099

Courtesy of FORD MOTOR CO.

Fig 11: Center Rear Of Engine Compartment

G00257100

Courtesy of FORD MOTOR CO.

Fig 12: Left Front Corner Of Engine Compartment

G00257101

Courtesy of FORD MOTOR CO.

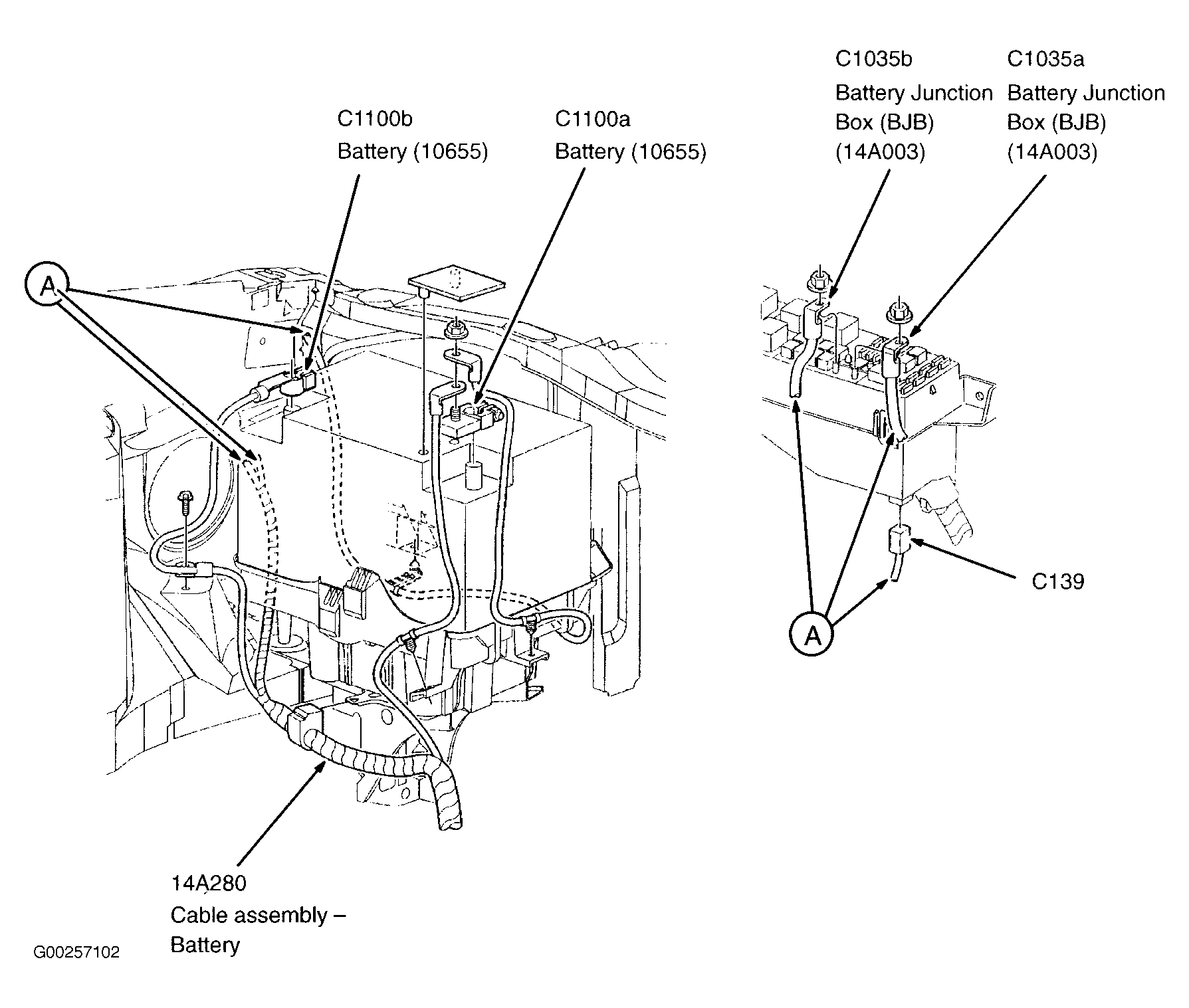

Fig 13: Left Front Corner Of Engine Compartment

G00257102

Courtesy of FORD MOTOR CO.

Fig 14: Left Rear Corner Of Engine Compartment

G00257103

Courtesy of FORD MOTOR CO.

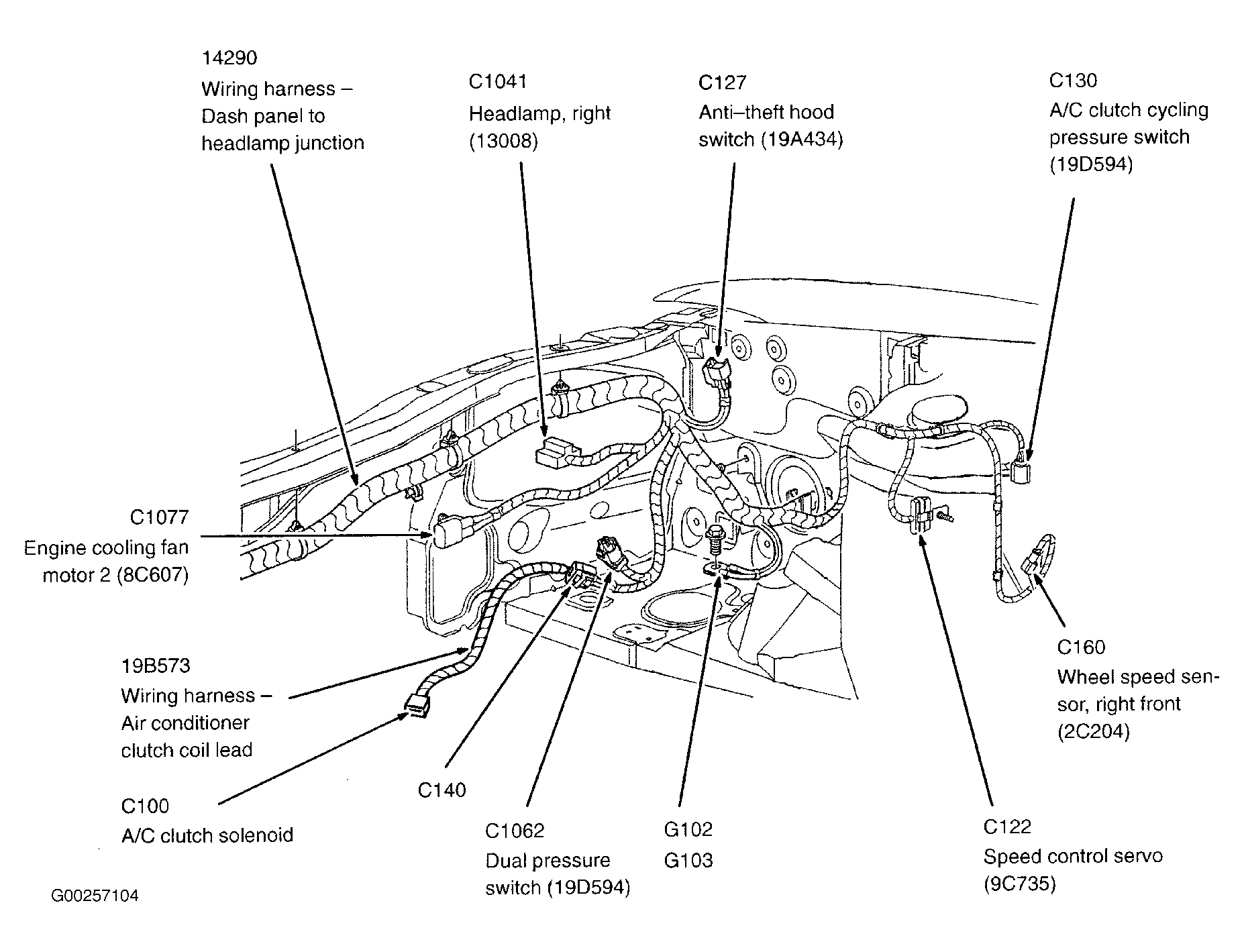

Fig 15: Right Front Corner Of Engine Compartment

G00257104

Courtesy of FORD MOTOR CO.

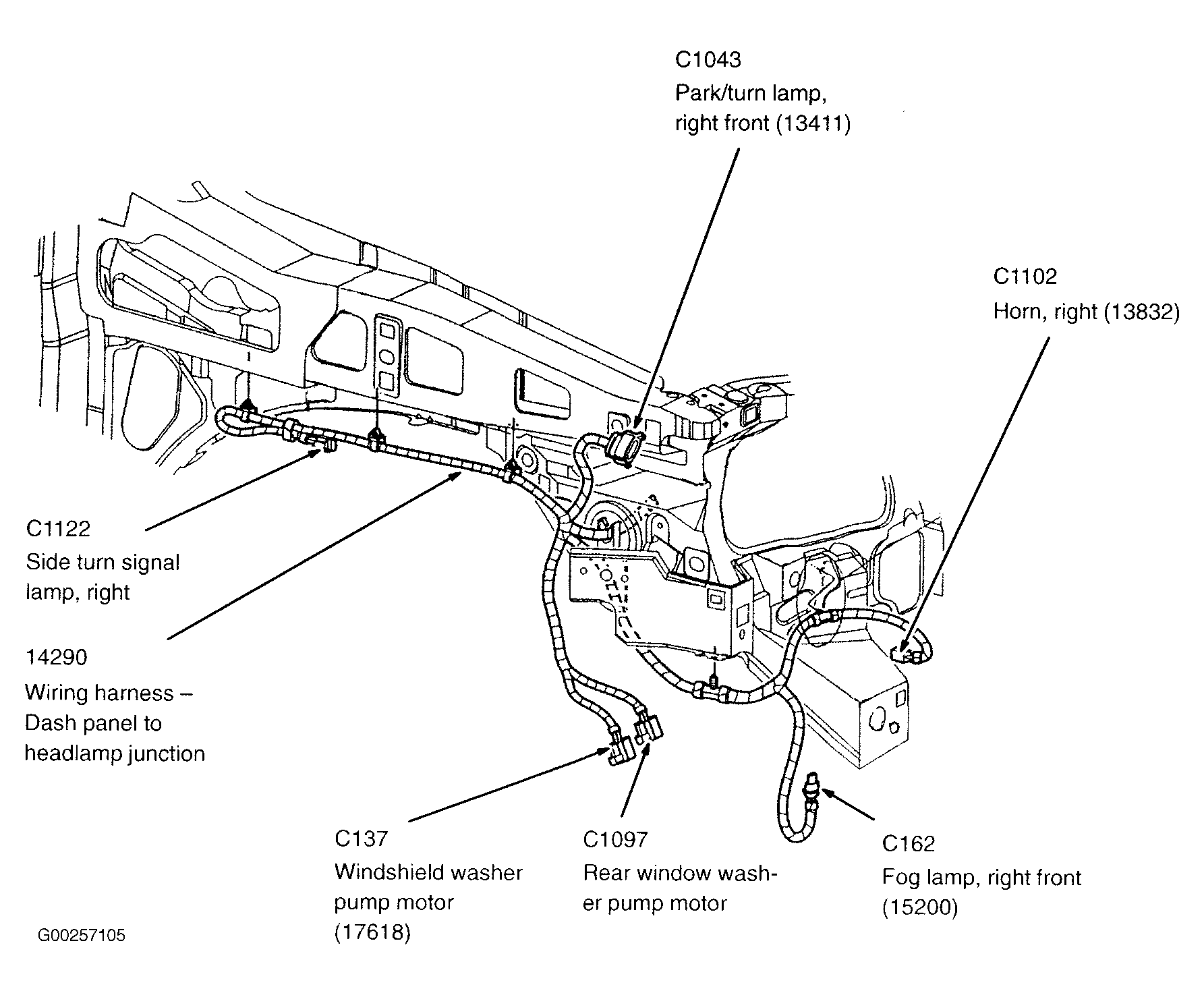

Fig 16: Right Front Side Of Engine Compartment

G00257105

Courtesy of FORD MOTOR CO.

Fig 17: Left Side Of Dash

G00257106

Courtesy of FORD MOTOR CO.

Fig 18: Center Of Dash

G00257107

Courtesy of FORD MOTOR CO.

Fig 19: Right Side Of Dash

G00257108

Courtesy of FORD MOTOR CO.

Fig 20: Steering Column

G00257109

Courtesy of FORD MOTOR CO.

Fig 21: Front Of Roof (W/ Roof Opening Panel)

G00257110

Courtesy of FORD MOTOR CO.

Fig 22: Left Kick Panel

G00257112

Courtesy of FORD MOTOR CO.

Fig 23: Left Front Floor

G00257113

Courtesy of FORD MOTOR CO.

Fig 24: Right Front Floor

G00257114

Courtesy of FORD MOTOR CO.

Fig 25: Right Side Of Floor

G00257115

Courtesy of FORD MOTOR CO.

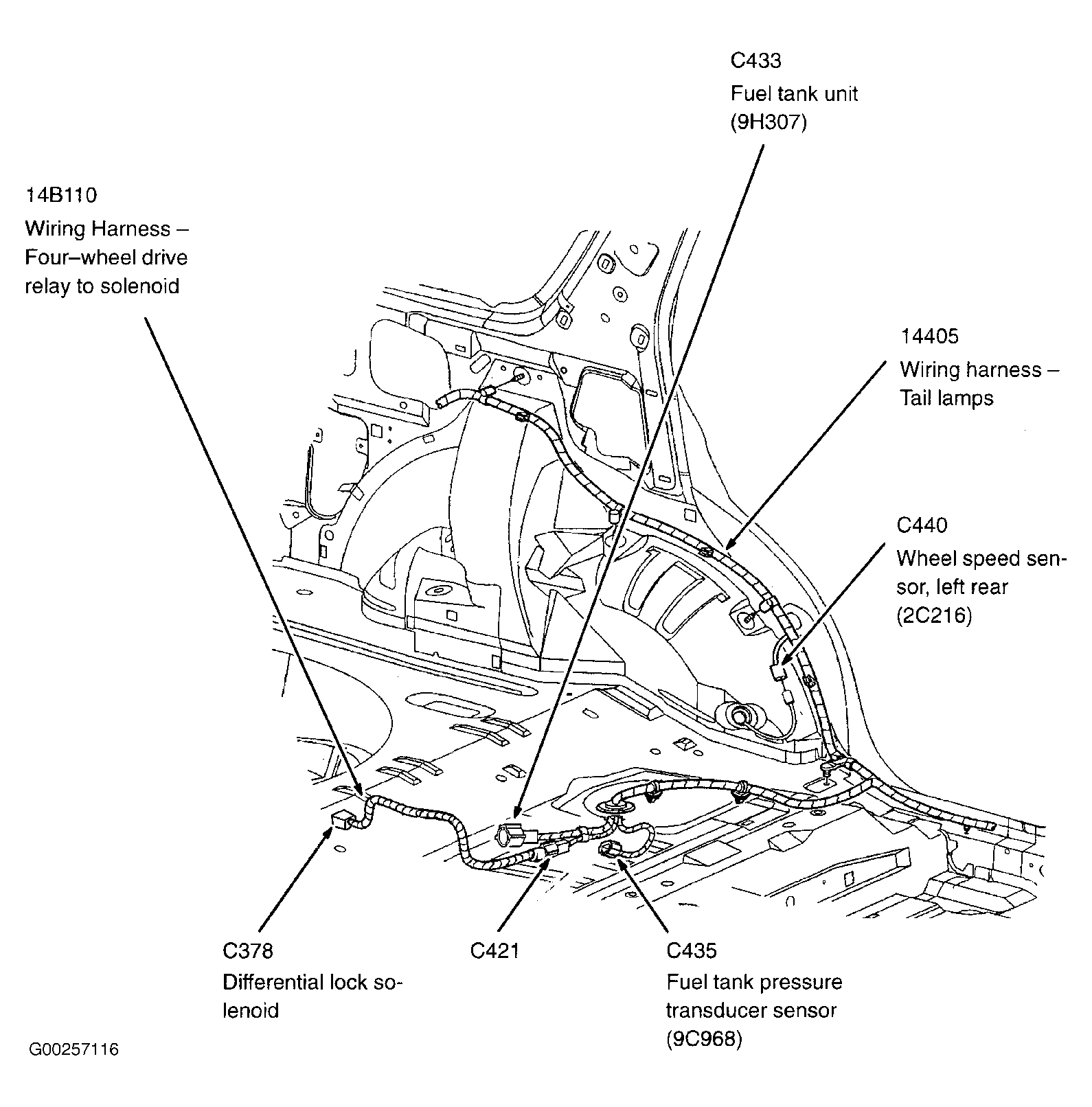

Fig 26: Left Rear Floor

G00257116

Courtesy of FORD MOTOR CO.

Fig 27: Right Rear Floor

G00257117

Courtesy of FORD MOTOR CO.

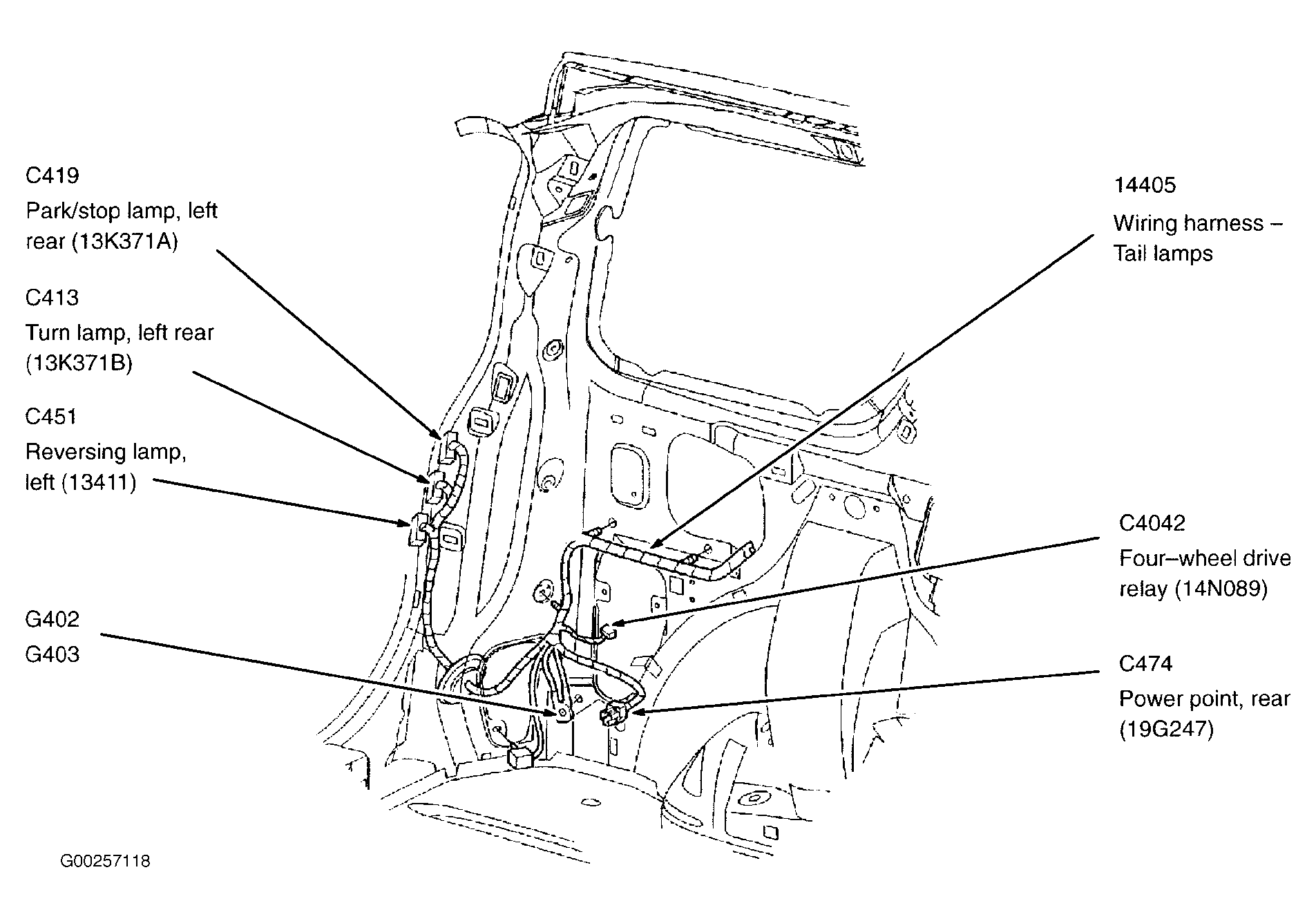

Fig 28: Left Rear Side Of Vehicle

G00257118

Courtesy of FORD MOTOR CO.

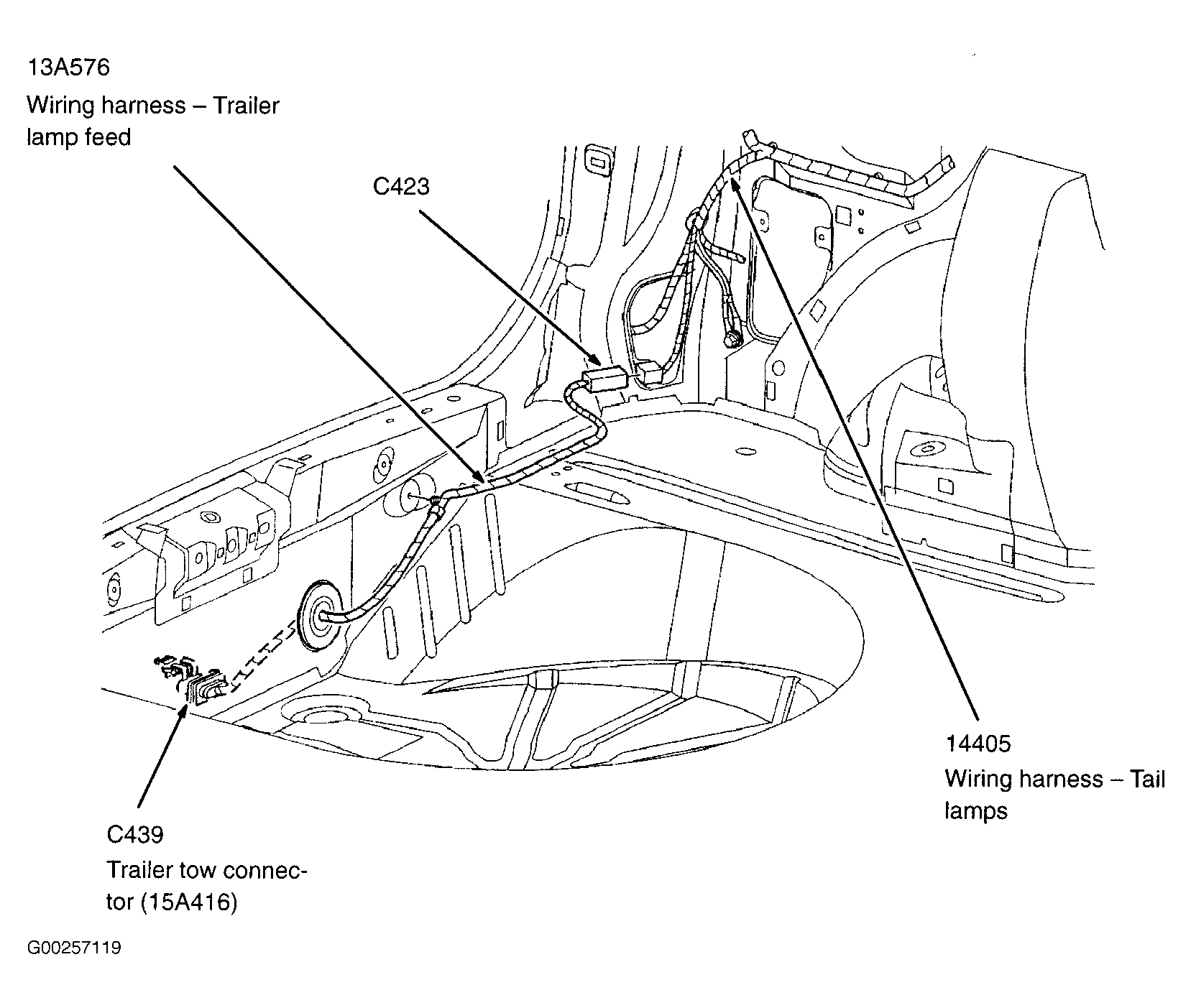

Fig 29: Center Rear Of Vehicle

G00257119

Courtesy of FORD MOTOR CO.

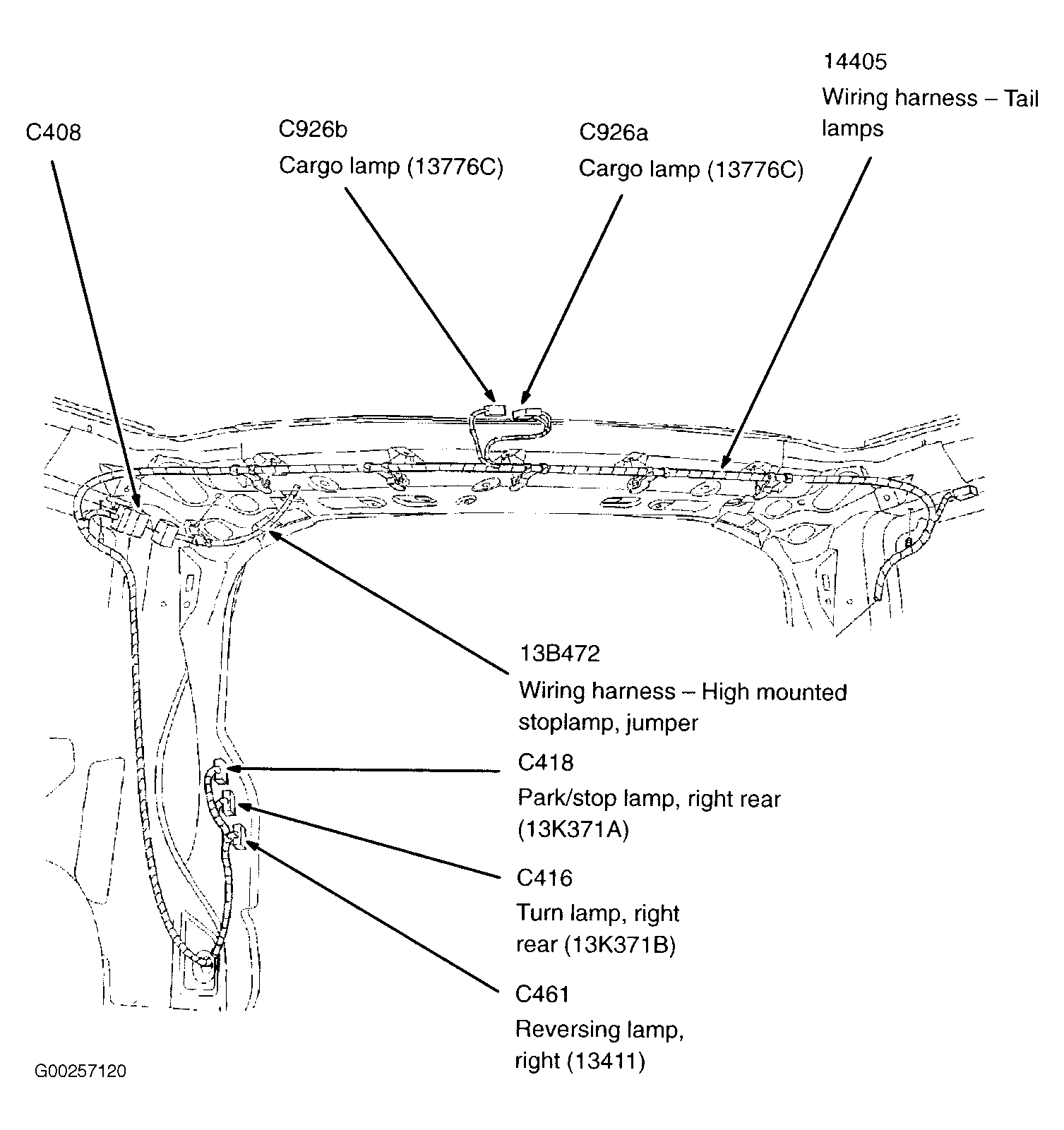

Fig 30: Center Rear Of Vehicle

G00257120

Courtesy of FORD MOTOR CO.

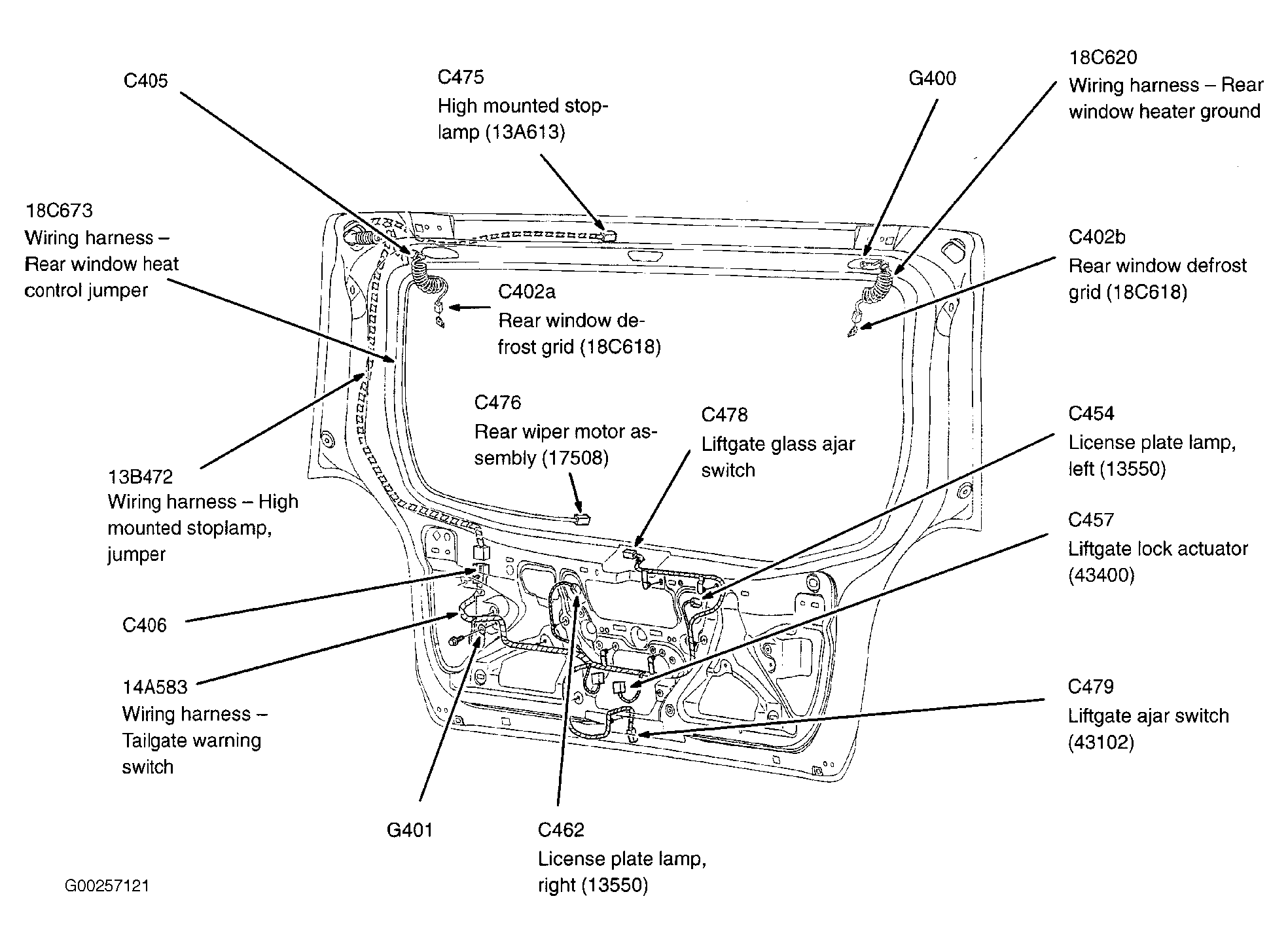

Fig 31: Liftgate

G00257121

Courtesy of FORD MOTOR CO.

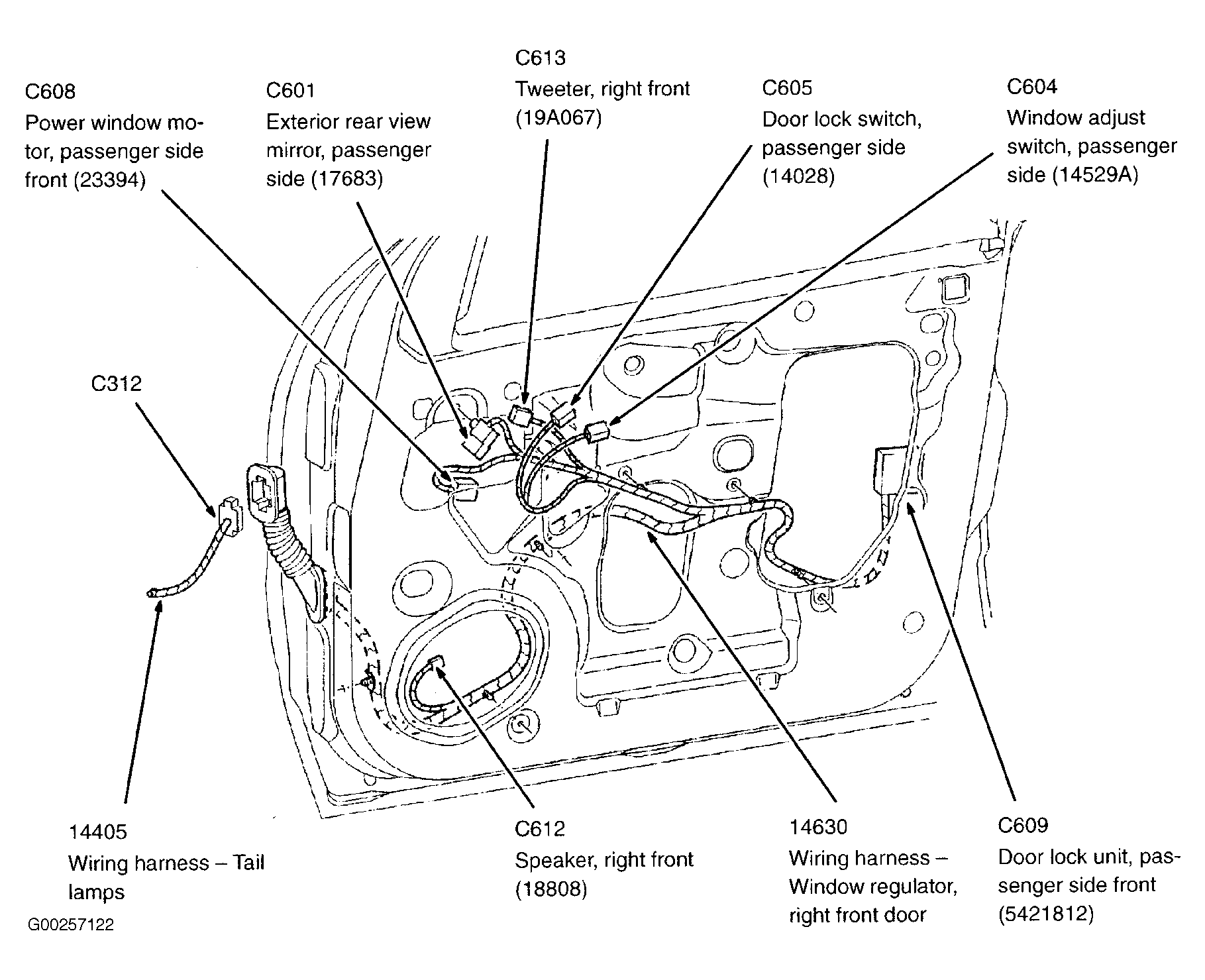

Fig 32: Right Front Door

G00257122

Courtesy of FORD MOTOR CO.

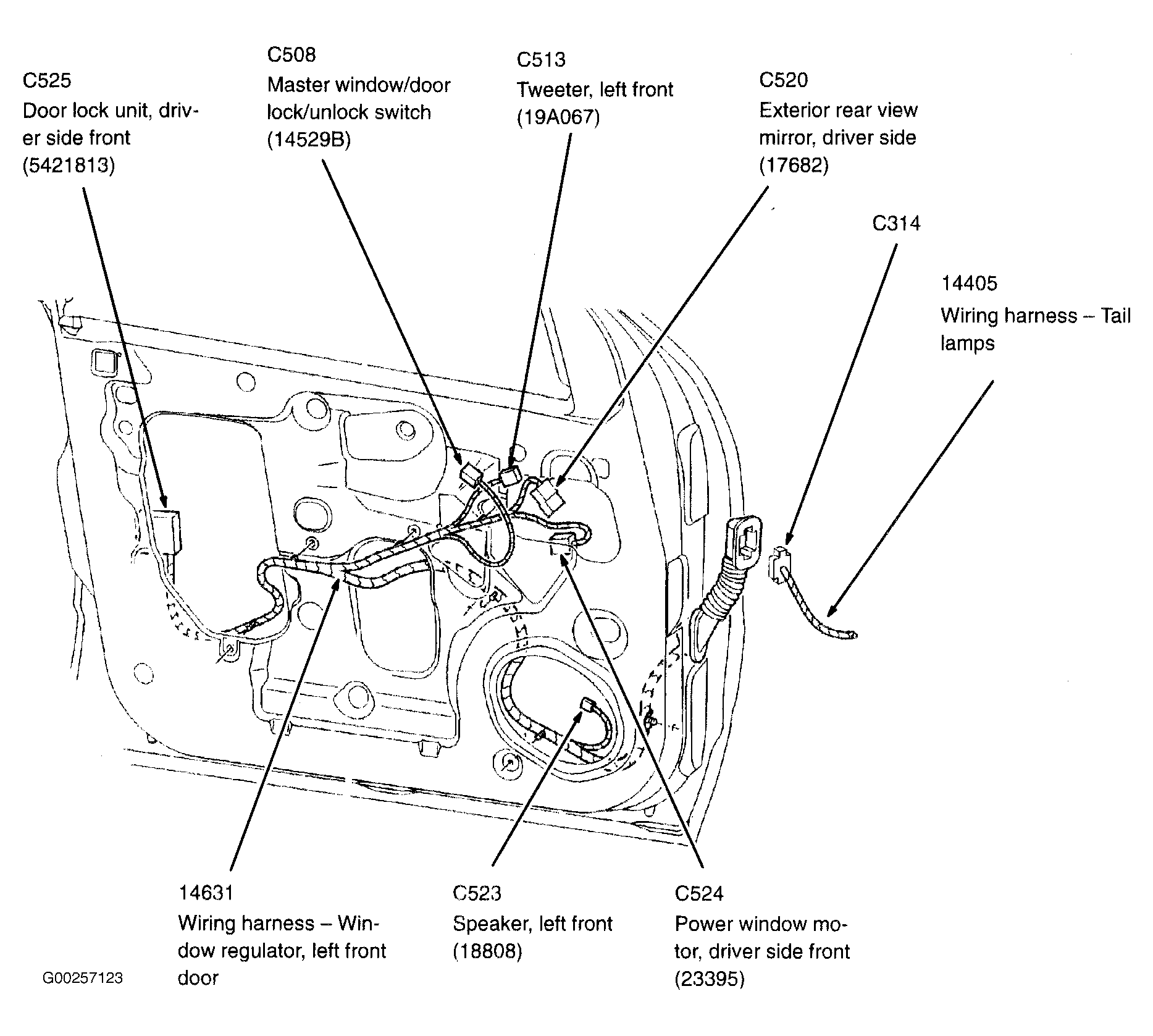

Fig 33: Left Front Door

G00257123

Courtesy of FORD MOTOR CO.

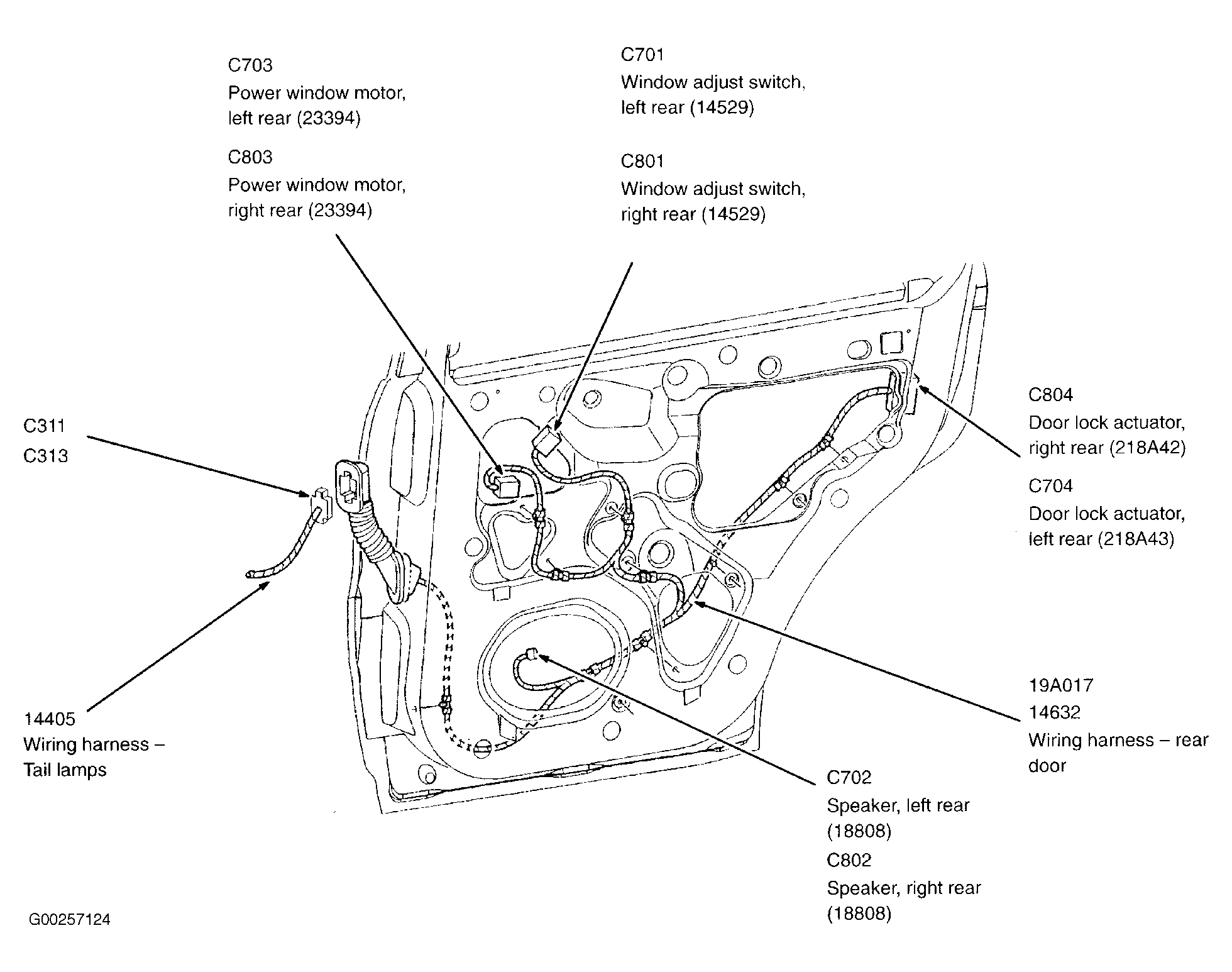

Fig 34: Right Rear Door

G00257124

Courtesy of FORD MOTOR CO.

Fig 35: Driver's Seat

G00257125

Courtesy of FORD MOTOR CO.

Fig 36: Passenger's Seat

G00257126

Courtesy of FORD MOTOR CO.

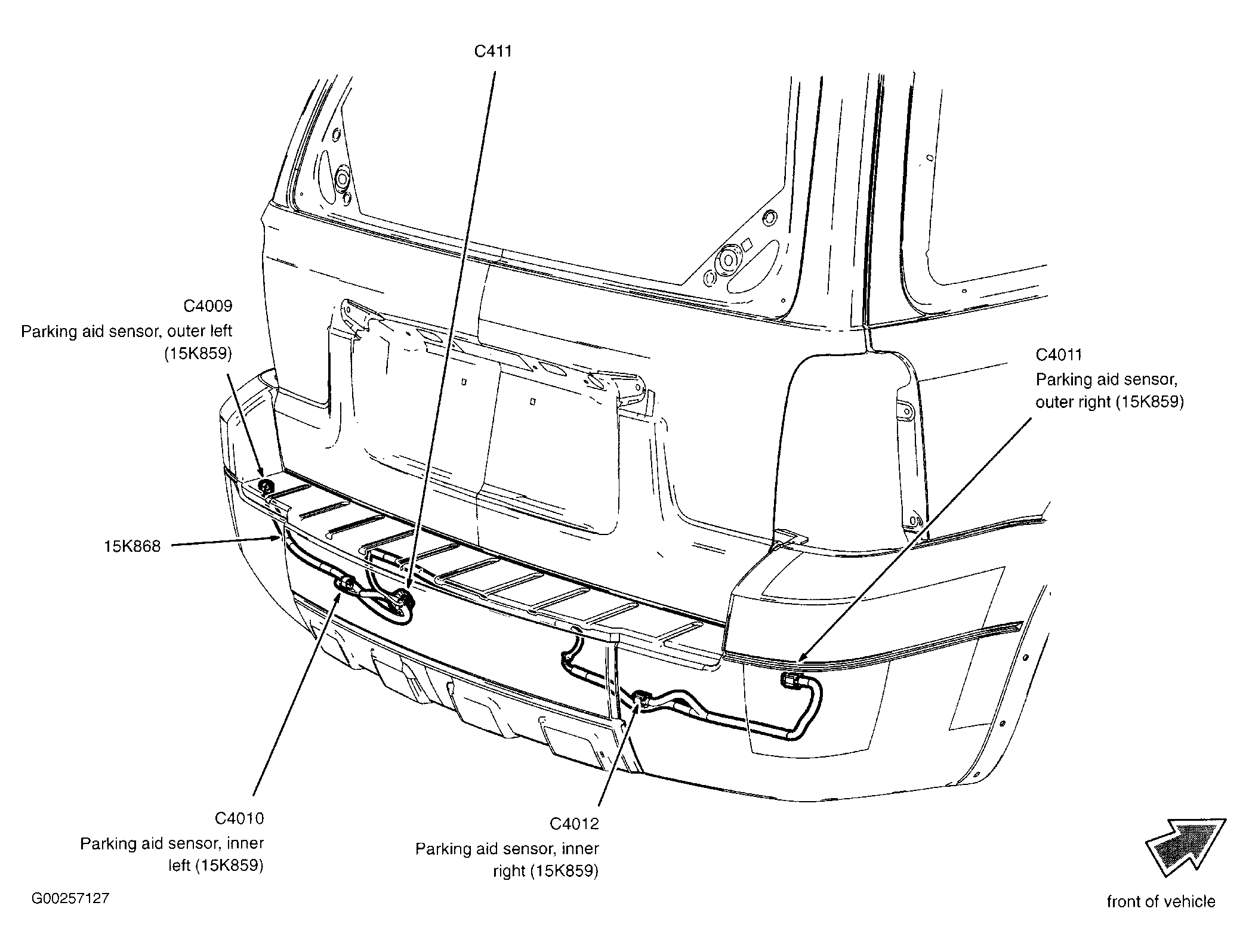

Fig 37: Rear Of Vehicle

G00257127

Courtesy of FORD MOTOR CO.

Fig 38: Battery Junction Box (BJB) (3.0L)

G00262487

Courtesy of FORD MOTOR CO.

Fig 39: Battery Junction Box (BJB) (2.0L)

G00262489

Courtesy of FORD MOTOR CO.

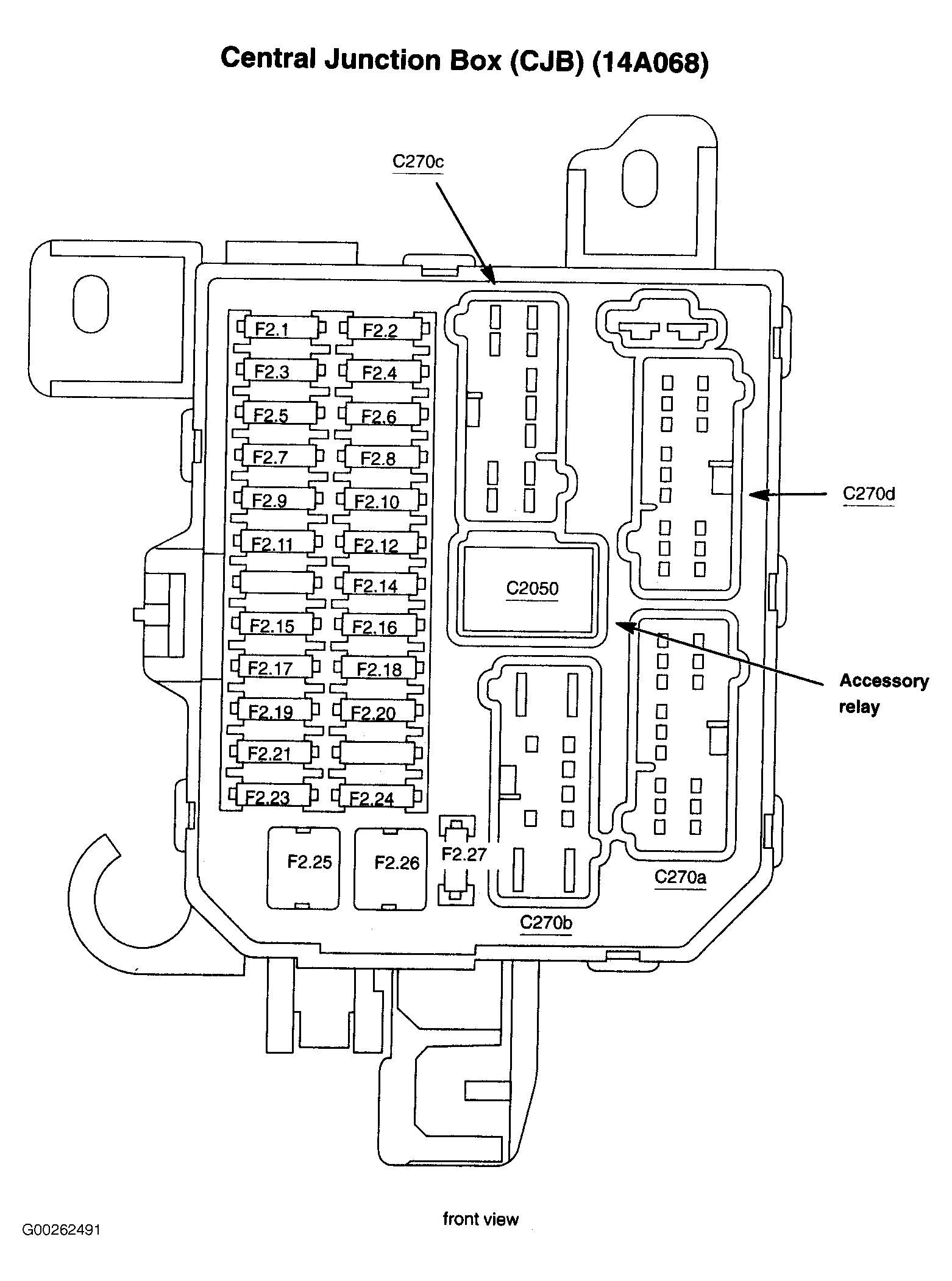

Fig 40: Central Junction Box (CJB)

G00262491

Courtesy of FORD MOTOR CO.

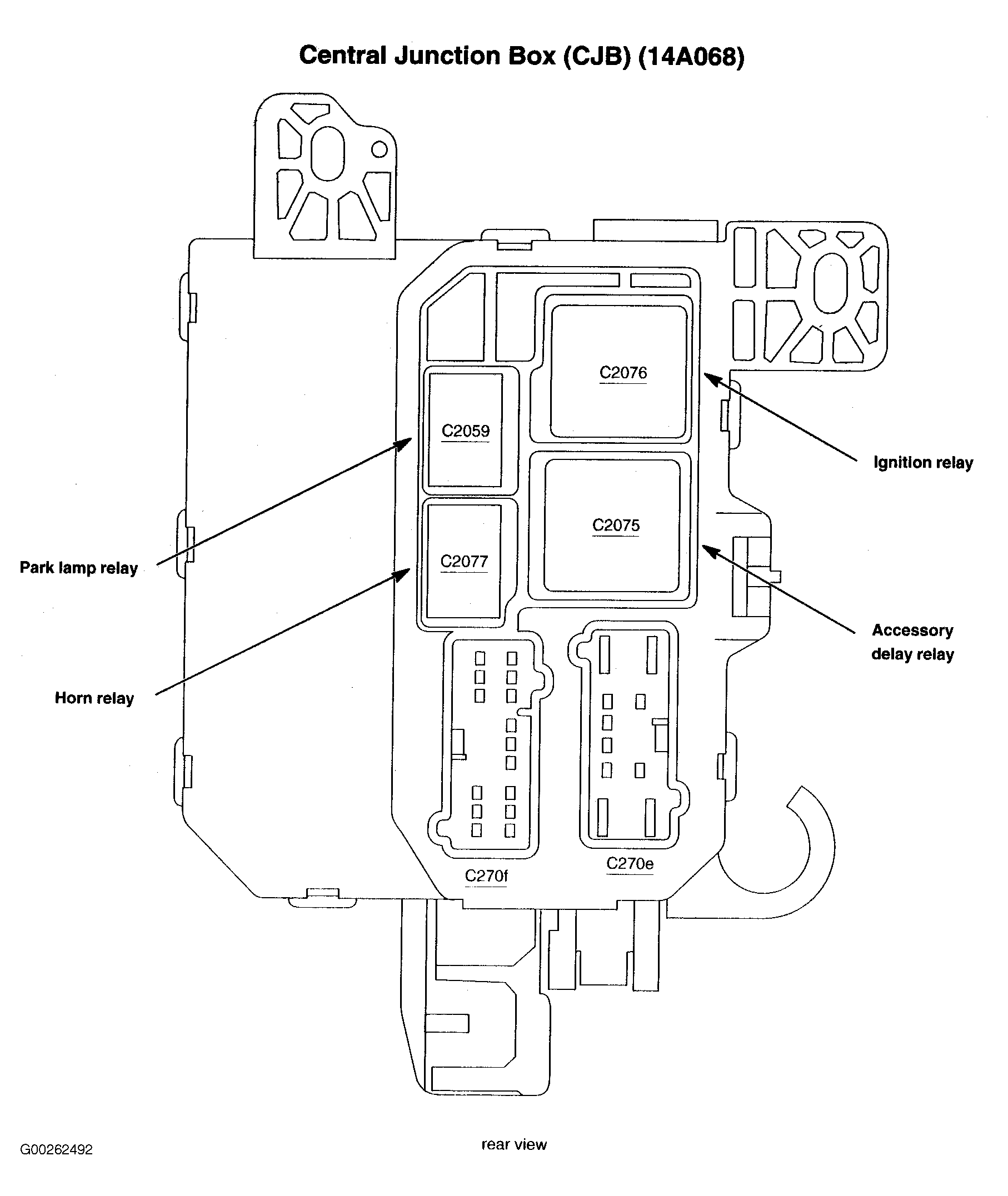

Fig 41: Central Junction Box (CJB)

G00262492

Courtesy of FORD MOTOR CO.
