Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G100 | Center rear of engine compartment. See Figure . |
| G101 (2.0L) | Top center of transmission. |
| G101 (3.0L) | Top center of transmission. See Figure . |

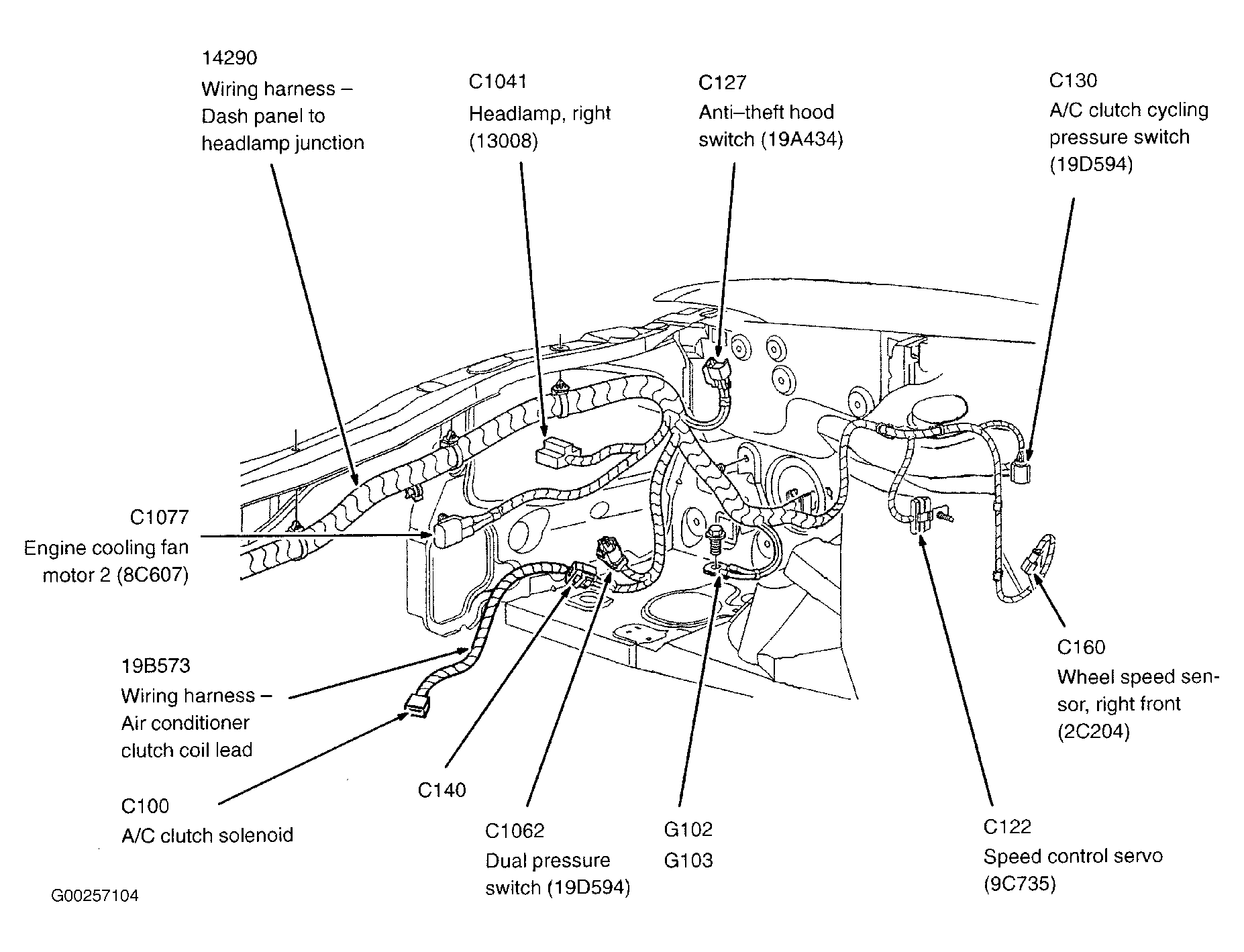

| G102 | Right front of engine compartment. See Figure . |
| G103 | Right front of engine compartment. See Figure . |
| G104 | Left front of engine compartment. See Figure . |
| G105 | Left front of engine compartment. See Figure . |

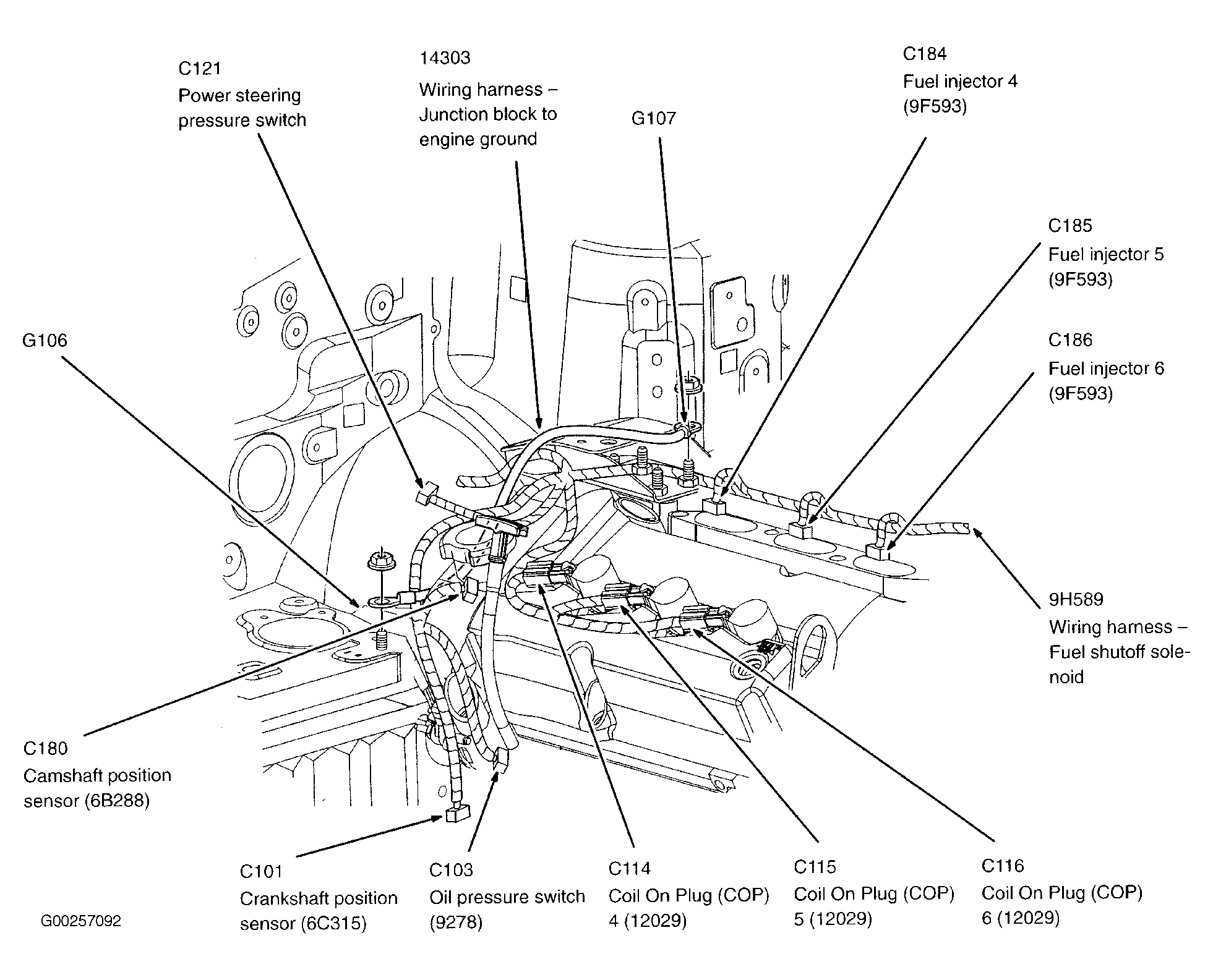

| G106 (2.0L) | Right front of engine. See Figure . |
| G106 (3.0L) | Right front of engine. See Figure . |
| G107 (2.0L) | Right front of engine. See Figure . |
| G107 (3.0L) | Right front of engine. See Figure . |

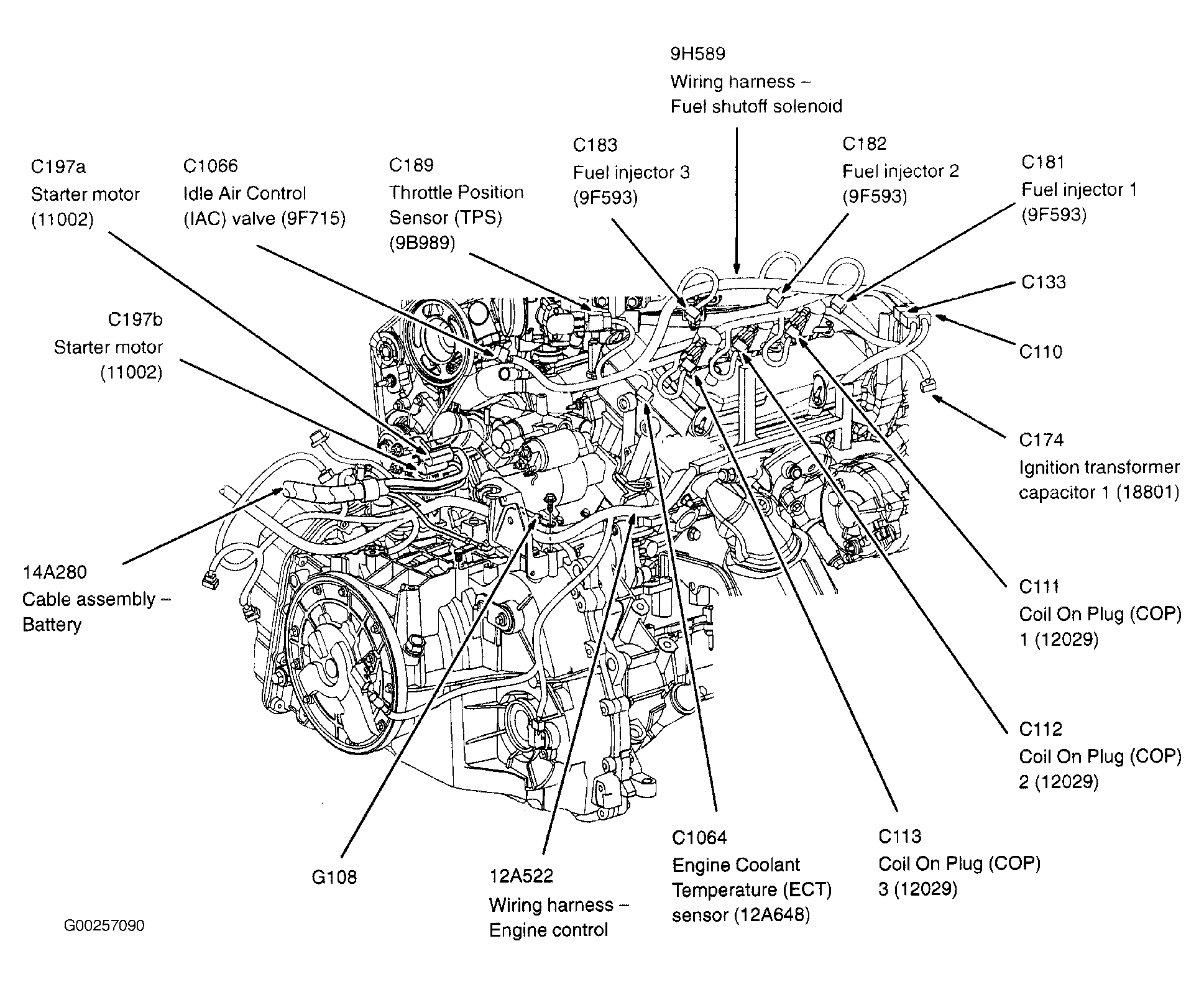

| G108 (2.0L) | Right rear of engine. See Figure . |
| G108 (3.0L) | Right rear of engine. See Figure . |
| G200 | Behind center of dash. See Figure . |
| G201 | Behind center of dash. See Figure . |
| G202 | Behind left side of dash. See Figure . |
| G203 | Behind left side of dash. See Figure . |
| G205 | Behind center of dash. See Figure . |
| G300 | Left front floor. See Figure . |
| G301 | Left front floor. See Figure . |

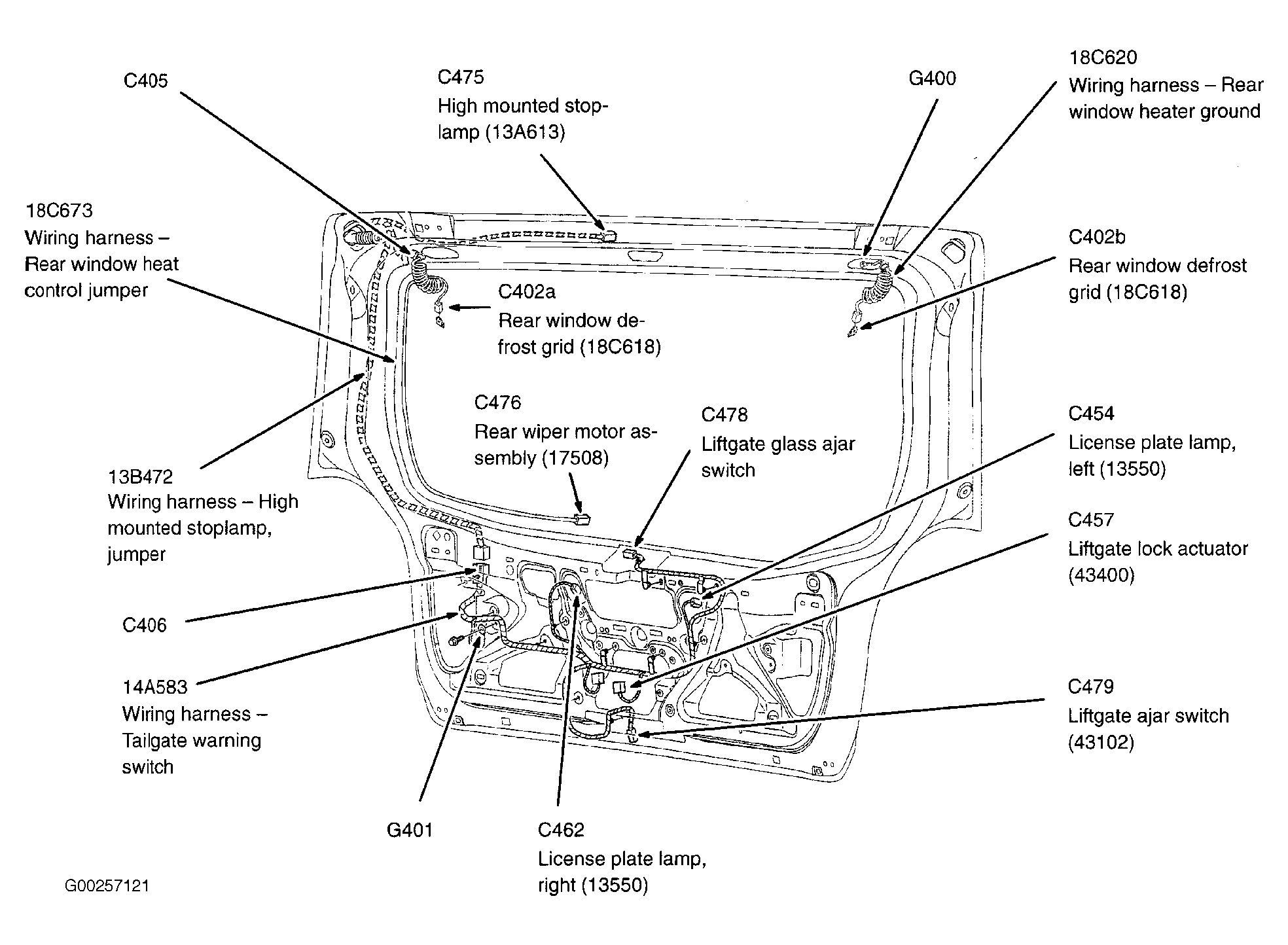

| G400 | In liftgate. See Figure . |
| G401 | In liftgate. See Figure . |
| G402 | Left rear end of vehicle. See Figure . |
| G403 | Left rear end of vehicle. See Figure . |
| G404 | Right rear floor. See Figure . |
