Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Door Lock Actuator (Left Rear) | In left rear door. |
| Door Lock Actuator (Right Rear) | In right rear door. See Figure . |
| Door Lock Unit (Driver Side Front) | In left front door. See Figure . |
| Door Lock Unit (Passenger Side Front) | In right front door. See Figure . |
| Driver Seat Front Height Motor | In driver's seat. See Figure . |
| Driver Seat Horizontal Motor | In driver's seat. See Figure . |
| Driver Seat Rear Height Motor | In driver's seat. See Figure . |
| Engine Cooling Fan Motor 1 | On left side of engine compartment, behind radiator. See Figure . |
| Engine Cooling Fan Motor 2 | On right side of engine compartment, behind radiator. See Figure . |
| Front Blower Motor | Behind right side of dash. See Figure . |
| Fuel Tank Unit | Beneath left rear of vehicle, in fuel tank. See Figure . |
| Idle Air Control Valve | At rear center of engine. |
| Liftgate Lock Actuator | In liftgate. See Figure . |
| Power Window Motor (Driver Side Front) | In left front door. See Figure . |
| Power Window Motor (Left Rear) | In left rear door. |
| Power Window Motor (Passenger Side Front) | In right front door. See Figure . |
| Power Window Motor (Right Rear) | In right rear door. See Figure . |
| Rear Window Washer Pump Motor | On right front of engine compartment, below reservoir. See Figure . |
| Rear Wiper Motor Assembly | On center of liftgate. See Figure . |
| Roof Opening Panel Motor Assembly | At front center of roof, behind trim. See Figure . |
| Speed Control Servo | On right side of engine compartment. See Figure . |

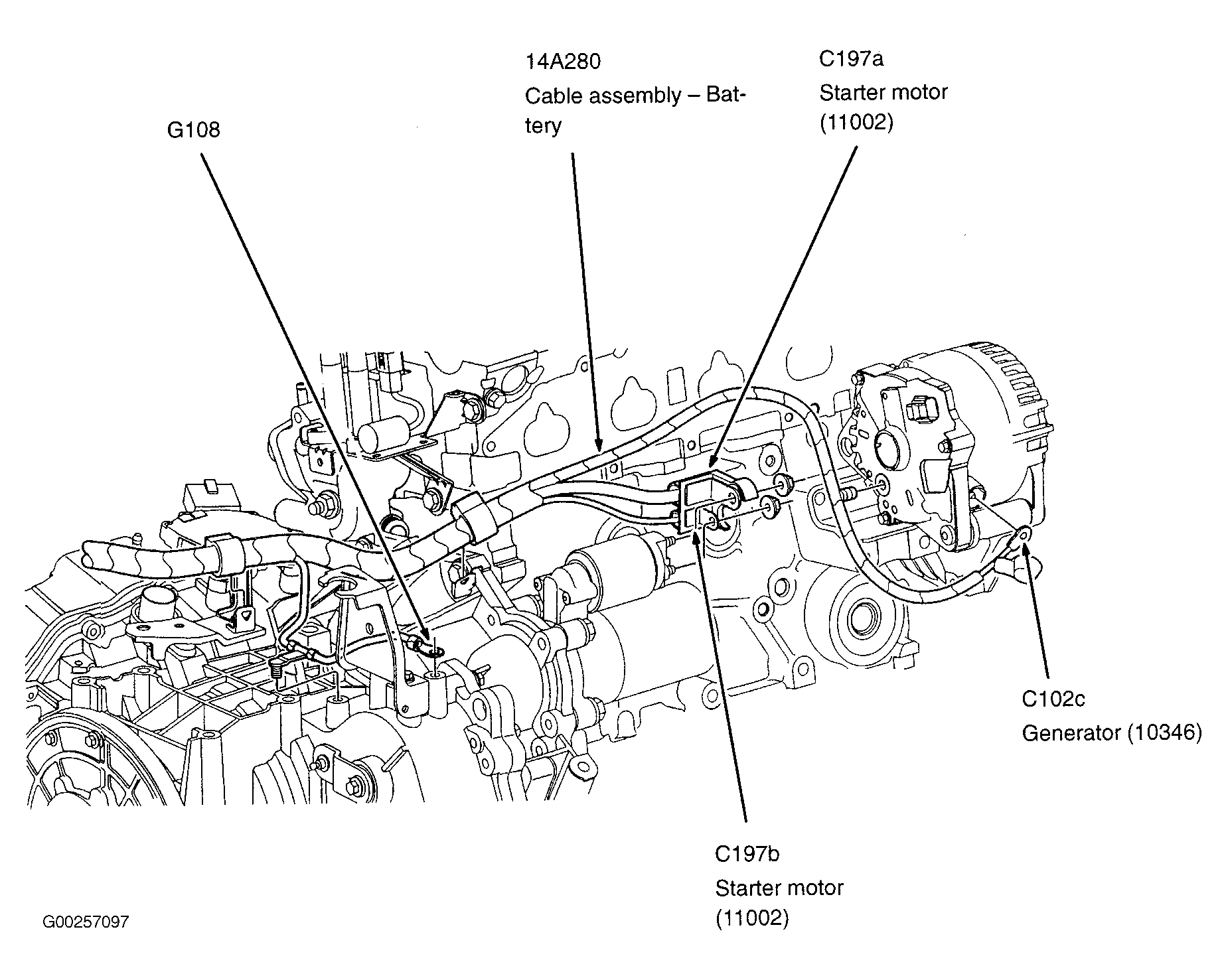

| Starter Motor (2.0L) | On right side of engine. See Figure . |
| Starter Motor (3.0L) | On rear of engine. See Figure . |
| Windshield Washer Pump Motor | On right front of engine compartment, below reservoir. See Figure . |
| Windshield Wiper Motor | On left rear of engine compartment, beneath windshield. See Figure . |
