Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| ABS Test Connector | On left side of engine compartment, near strut tower. See Figure . |
| Air Bag Sliding Contact | On steering column. See Figure . |
| Battery | At left front corner of engine compartment. See Figure . |
| Coil On Plug (COP) 1 | On top of engine. See Figure . |
| Coil On Plug (COP) 2 | On top of engine. See Figure . |
| Coil On Plug (COP) 3 | On top of engine. See Figure . |
| Coil On Plug (COP) 4 | On top of engine. See Figure . |
| Coil On Plug (COP) 5 | On top of engine. See Figure . |
| Coil On Plug (COP) 6 | On top of engine. See Figure . |
| Data Link Connector (DLC) | On lower left side of dash. See Figure . |
| Front Blower Motor Resistor Assembly | Behind right side of dash. See Figure . |
| Generator (2.0L) | On right front of engine. See Figure . |

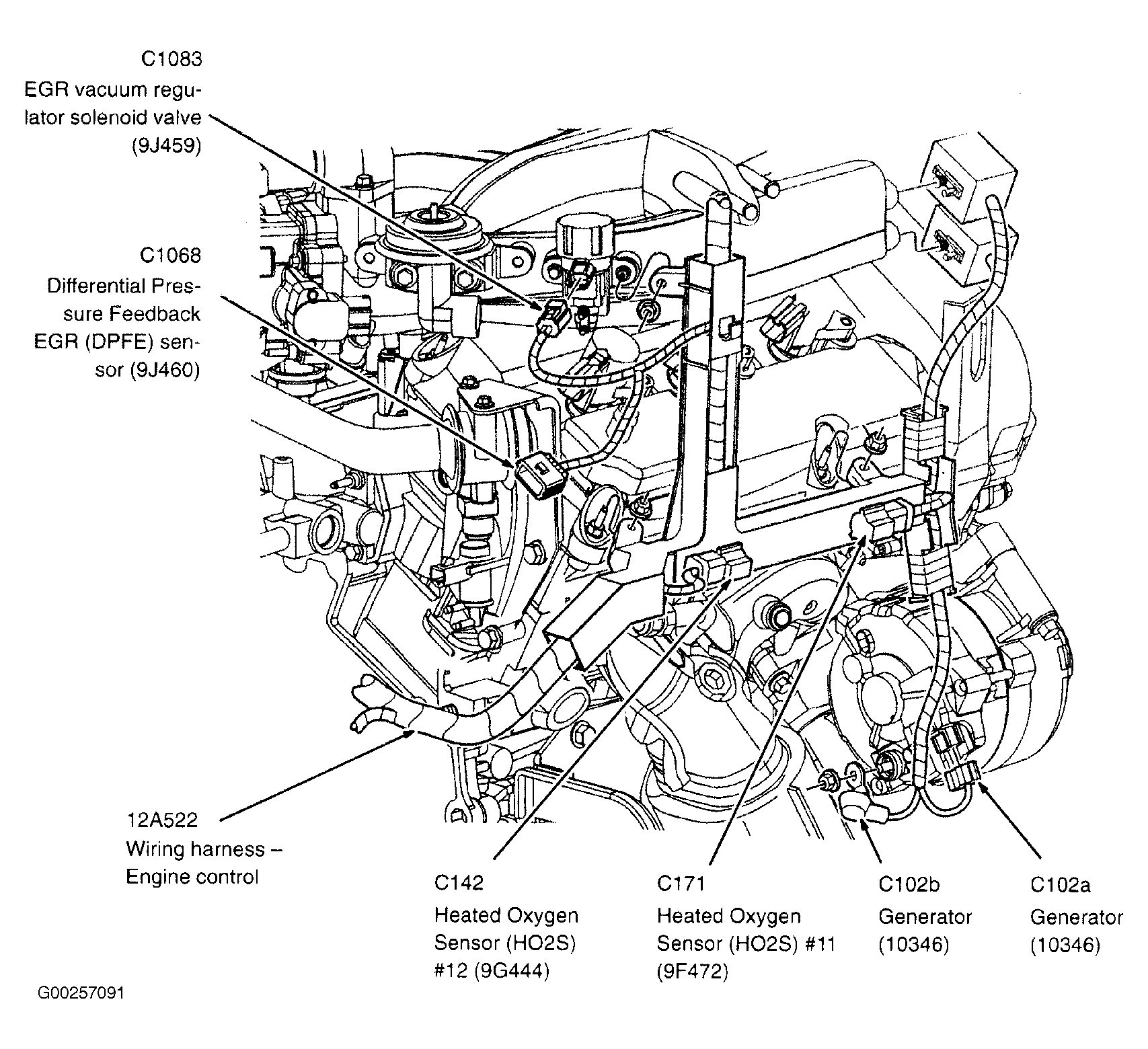

| Generator (3.0L) | On lower right side of engine. See Figure . |
| Horn (Left) | At left front corner of engine compartment. See Figure . |

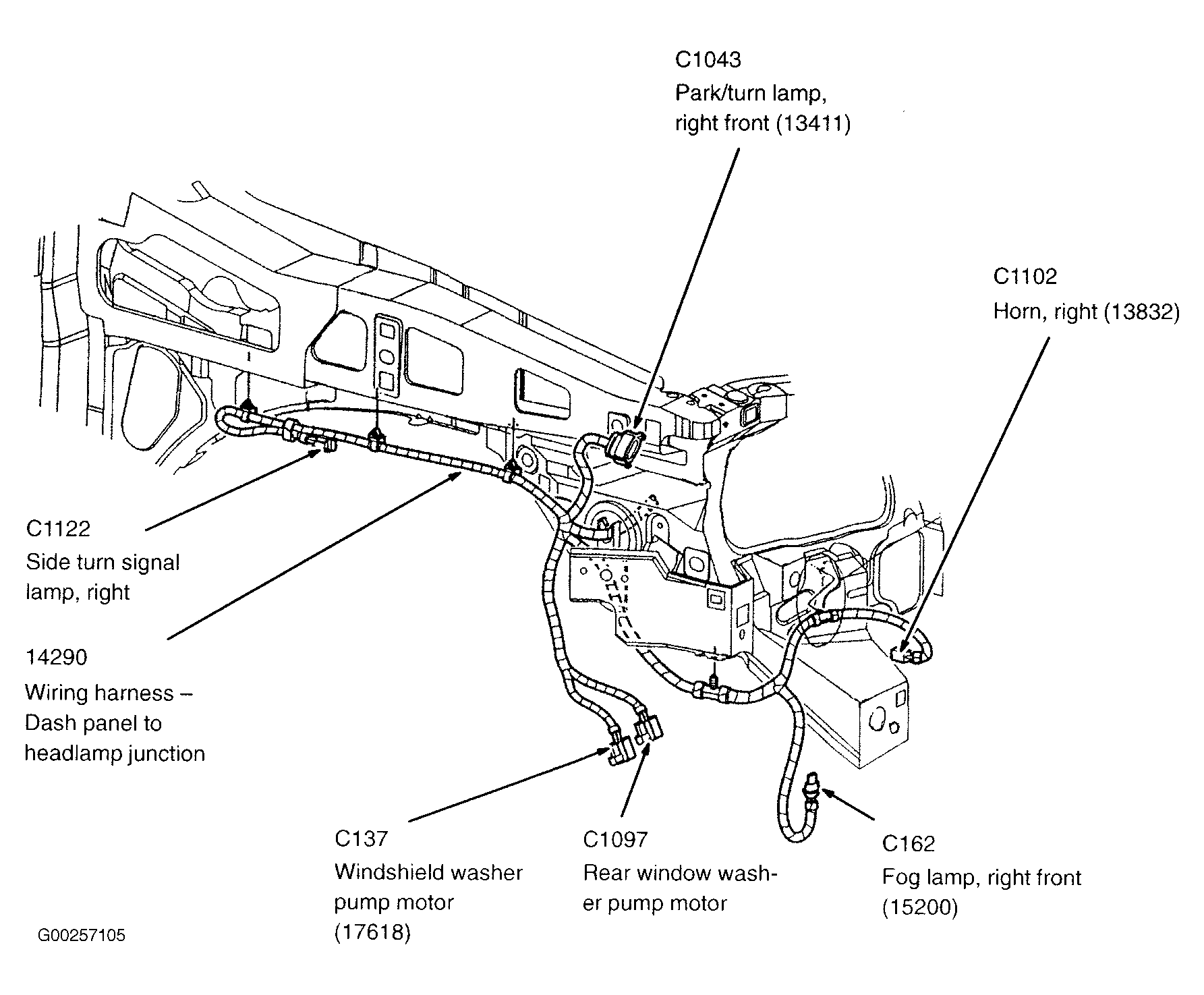

| Horn (Right) | At right front side of engine compartment. See Figure . |

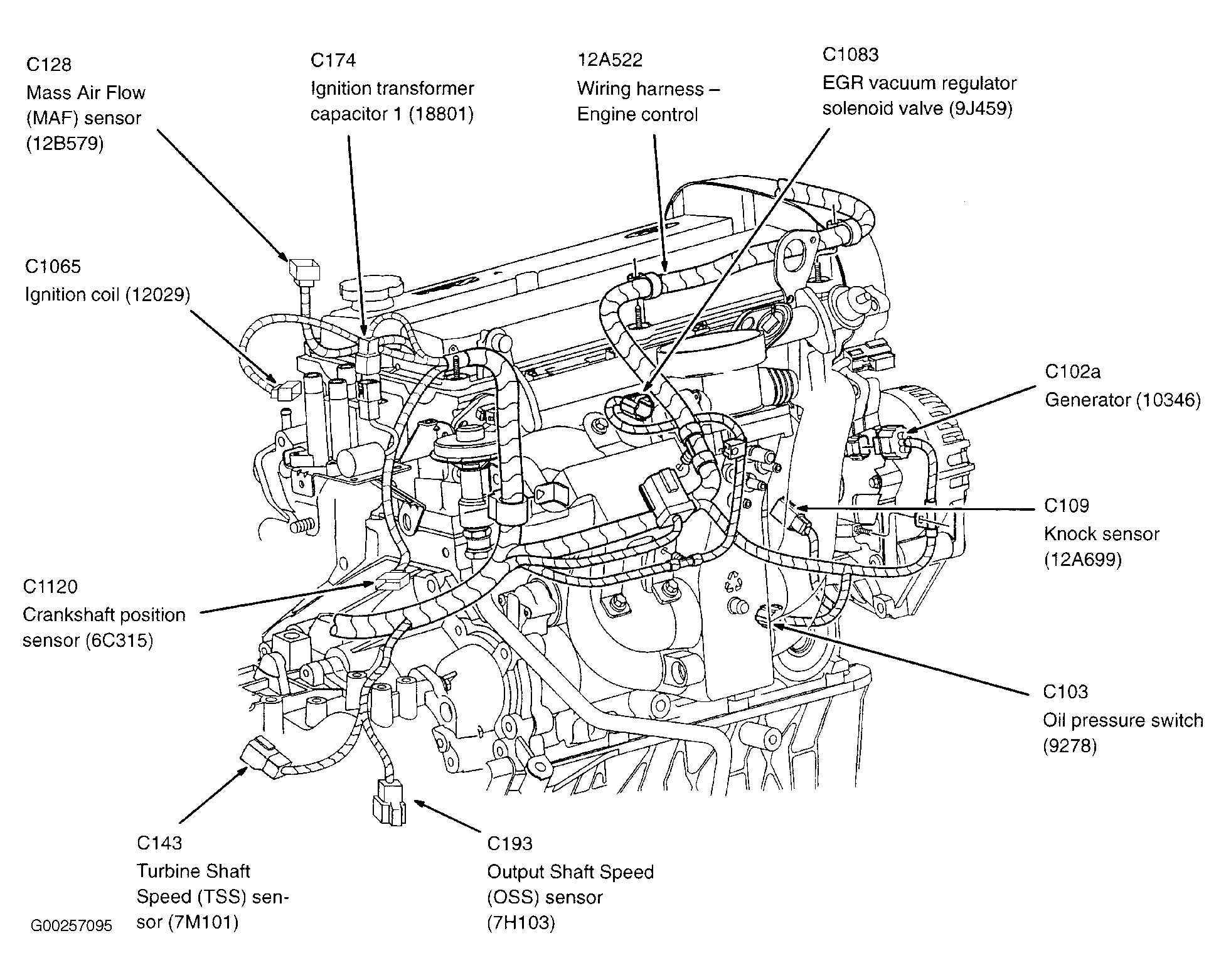

| Ignition Coil | On left side of engine. See Figure . |
| Ignition Transformer Capacitor 1 (2.0L) | On rear of cylinder head. See Figure . |
| Ignition Transformer Capacitor 1 (3.0L) | On right front of engine. See Figure . |
| Parking Aid Speaker | At right rear side of vehicle floor. See Figure . |

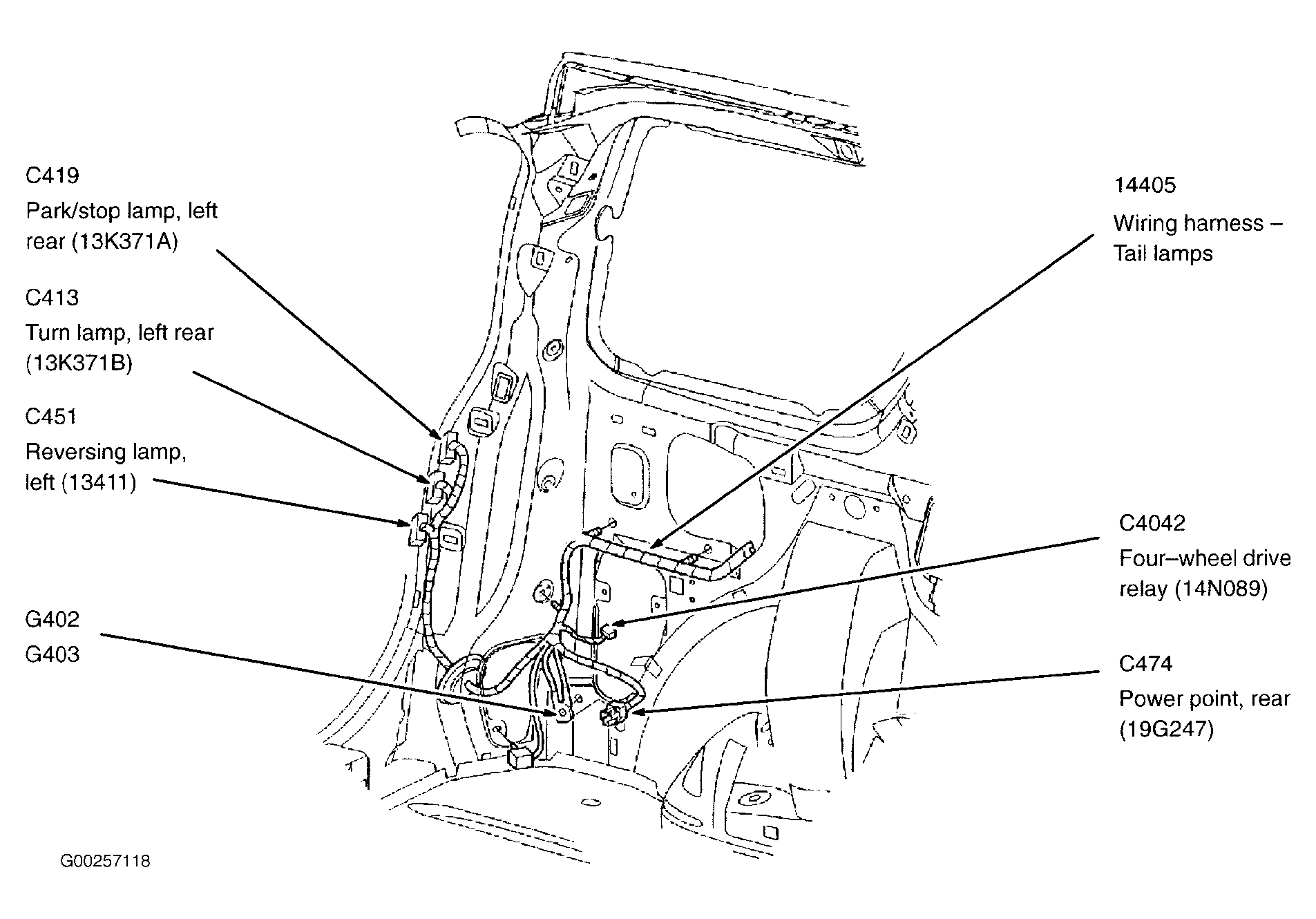

| Power Point (Rear) | On left side of cargo compartment. See Figure . |
| Power Point | Behind center of dash. See Figure . |
| Seat Back Heater (Left Front) | In driver's seat. See Figure . |
| Seat Back Heater (Right Front) | In passenger's seat. See Figure . |
| Seat Beltensioner (Driver Seat) | Beneath left front seat, near transmission tunnel. See Figure . |
| Seat Beltentioner (Passenger Seat) | Beneath right front seat, near transmission tunnel. See Figure . |
| Seat Cushion Heater (Left Front | In driver's seat. See Figure . |
| Seat Cushion Heater (Right Front) | In passenger's seat. See Figure . |
| Subwoofer Amplifier | On right side of cargo compartment, behind trim. See Figure . |
| Trailer Tow Connector | At center rear of vehicle. See Figure . |
