Steering Wheel: Installation

  1. Install the steering wheel.
    1. Connect the electrical connector.
    2. Position the steering wheel onto the steering column shaft.

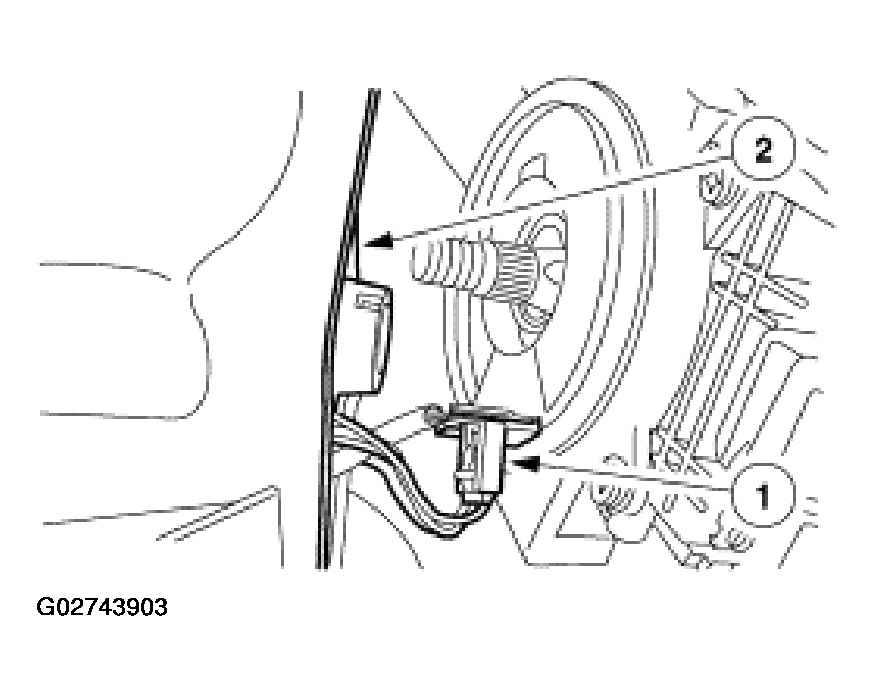

    Fig 1: Installing Steering Wheel
    G02743903Courtesy of FORD MOTOR CO.
  2. Tighten the pinion shaft.

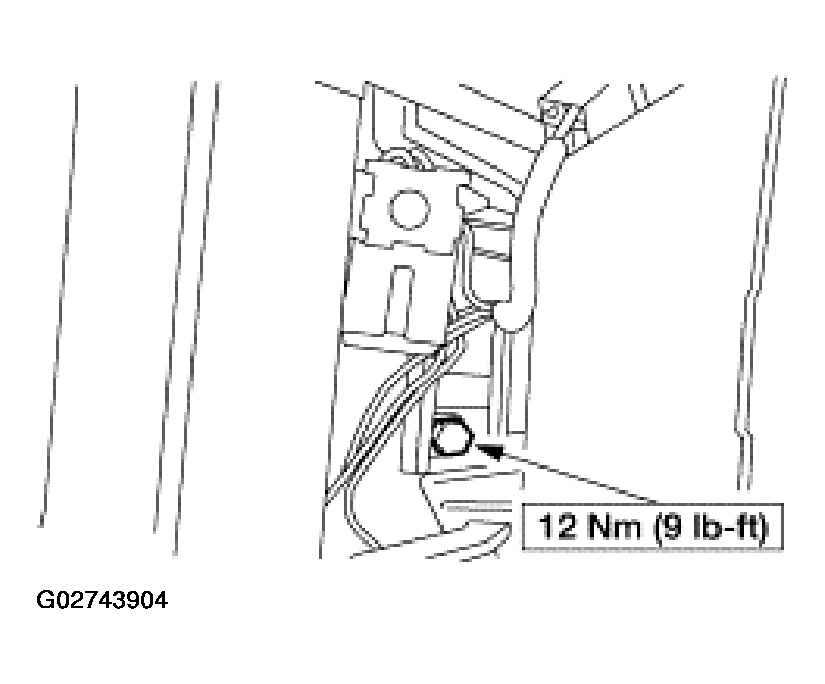

    Fig 2: Tightening Pinion Shaft
    G02743904Courtesy of FORD MOTOR CO.
  3. Close the steering wheel air bag connector access cover.

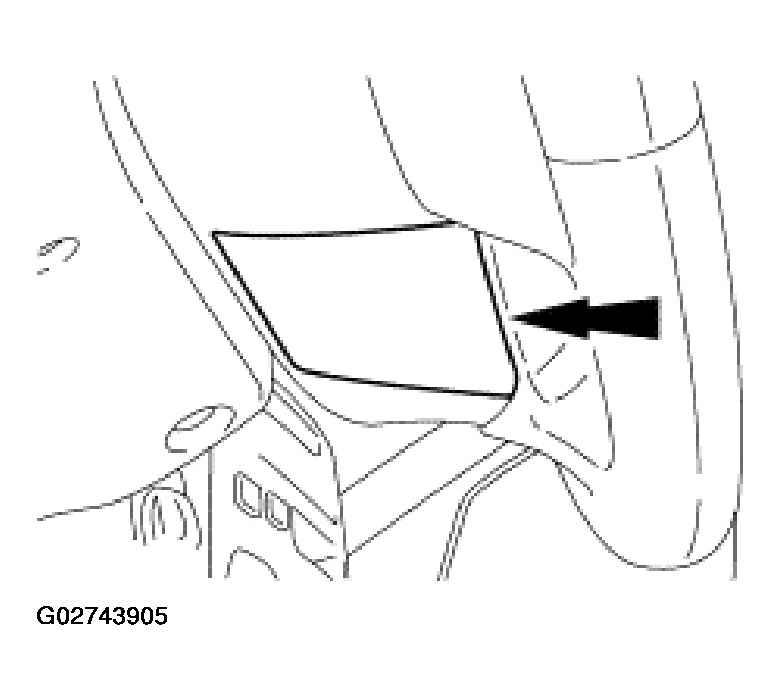

    Fig 3: Closing Steering Wheel Air Bag Connector Access Cover
    G02743905Courtesy of FORD MOTOR CO.
  4. Activate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
