Removal and Installation

Remove the wheel and tire.

CAUTION: Care must be taken during the removal of the plug to prevent damage. If the plug is damaged, a new sensor may need to be installed even though the sensor is functional in all other aspects.

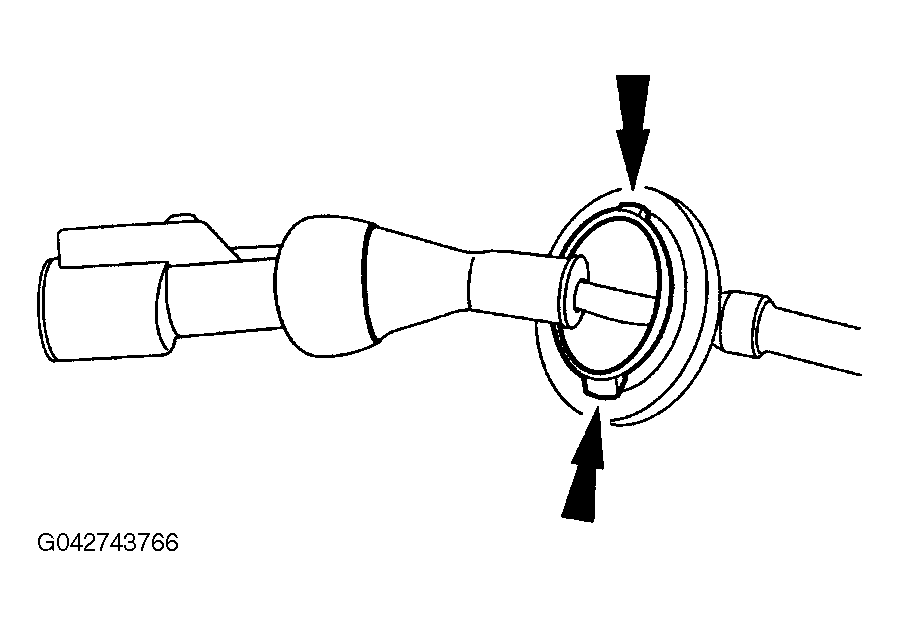

Fig 1: Removing Grommet From Body

Courtesy of FORD MOTOR CO.

Remove the grommet from the body.
- When removing the body plug, rotate the plug into a position which allows the use of a small screwdriver to release the tabs on the underside of the body plug. These 2 tabs are located at right angles to the sensor wire.
Disconnect the sensor wiring.

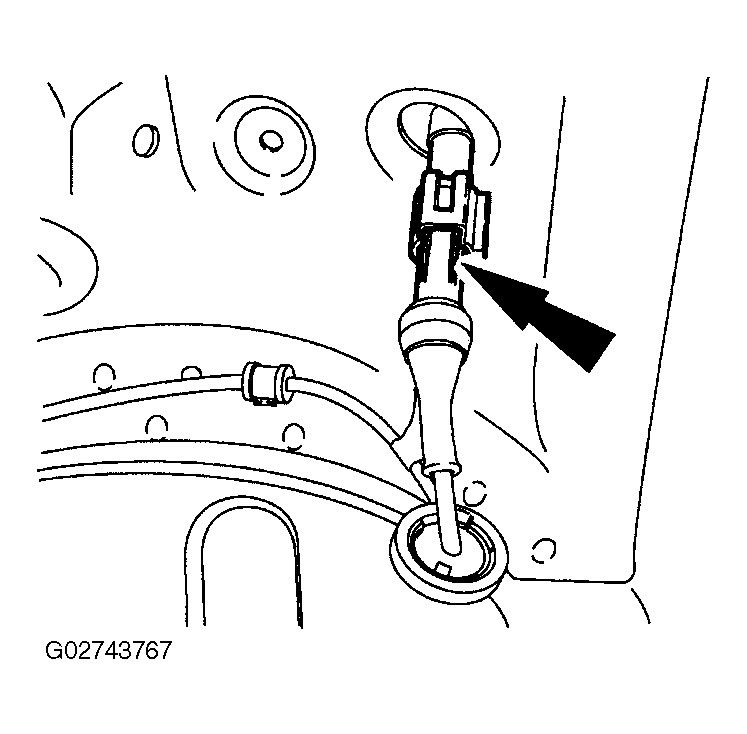

Fig 2: Disconnecting Sensor Wiring
Courtesy of FORD MOTOR CO.
Detach the retainer.

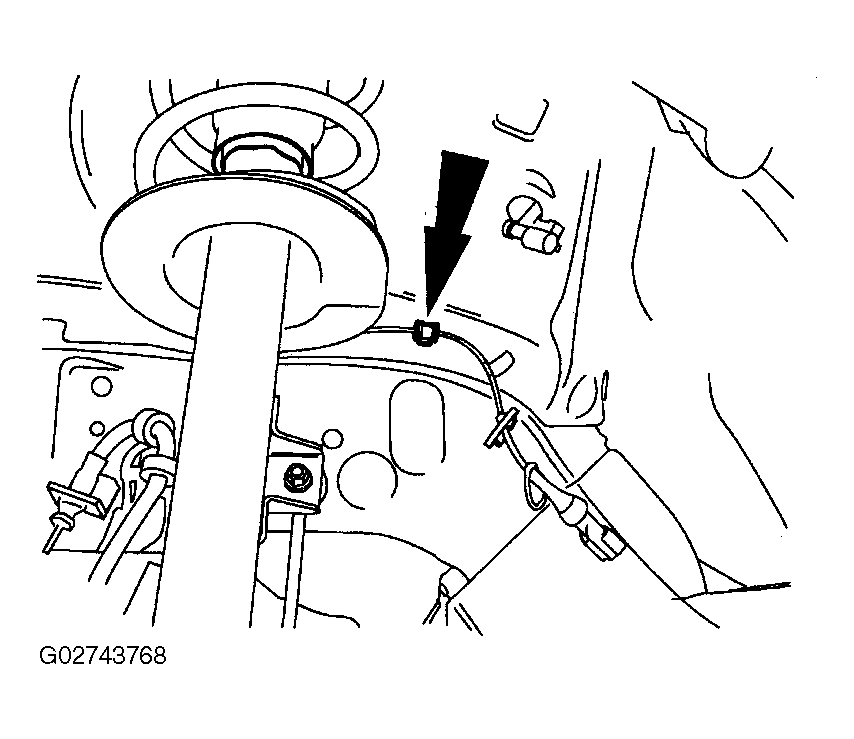

Fig 3: Detaching Retainer
Courtesy of FORD MOTOR CO.
Remove the bolts.

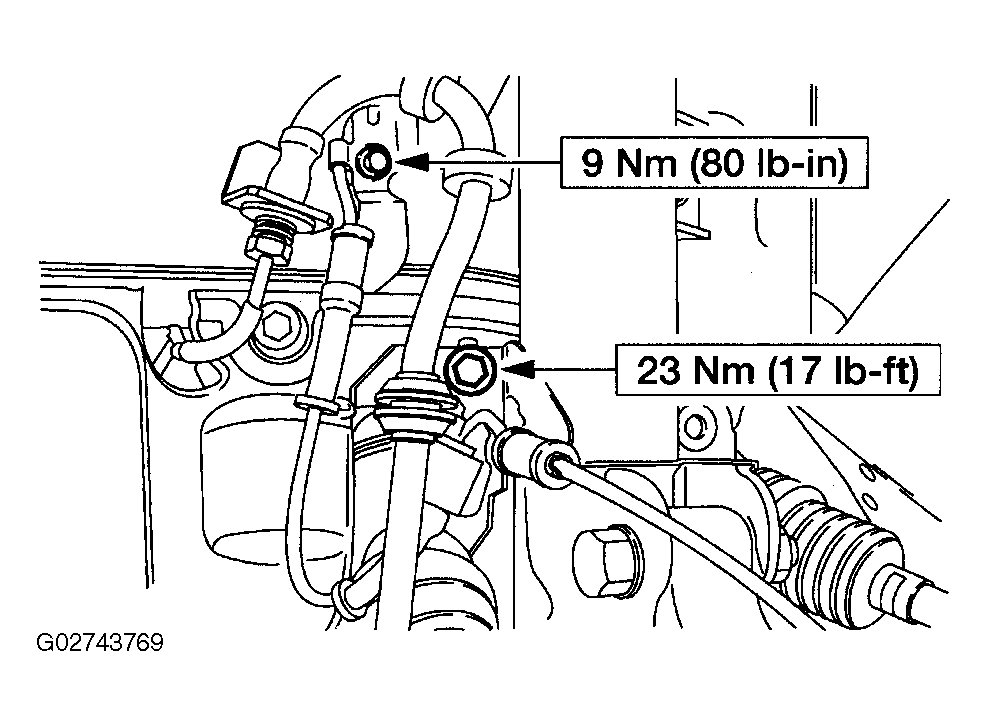

Fig 4: Removing Bolts
Courtesy of FORD MOTOR CO.

NOTE: Clean off any dirt that may have collected around the sensor before removal.

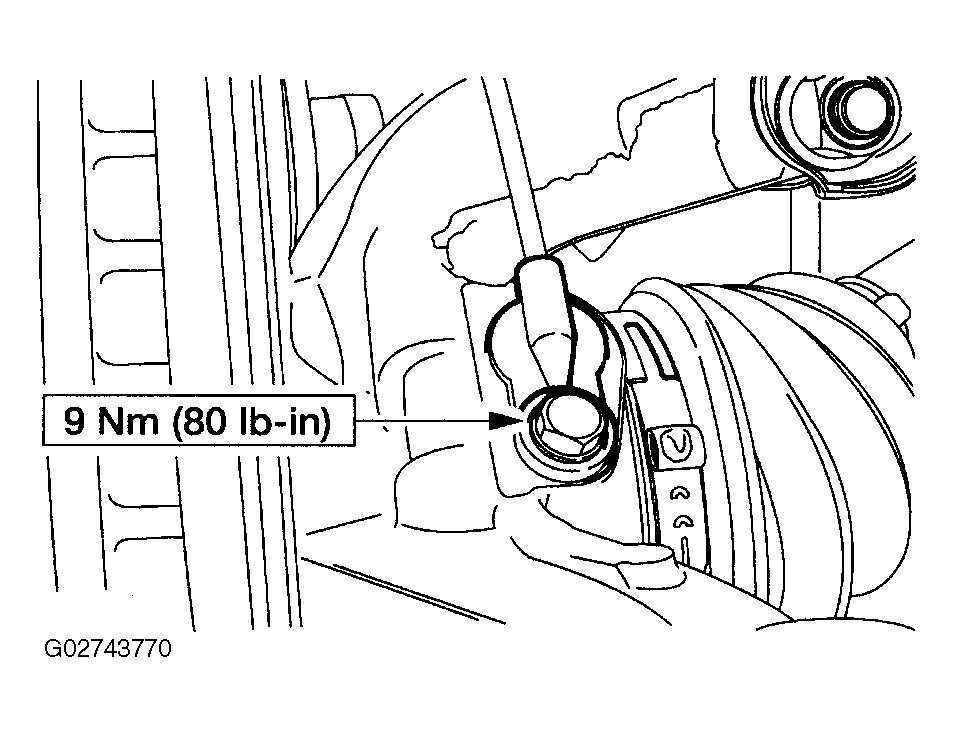

Fig 5: Removing Bolt And Sensor

Courtesy of FORD MOTOR CO.

Remove the bolt and the sensor.

NOTE: Thoroughly clean the mounting surface.

To install, reverse the removal procedure.
