Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the powertrain control module (PCM) cover.
    1. Loosen the bolt and disconnect the electrical connector.
    2. Remove the nuts and the cover.

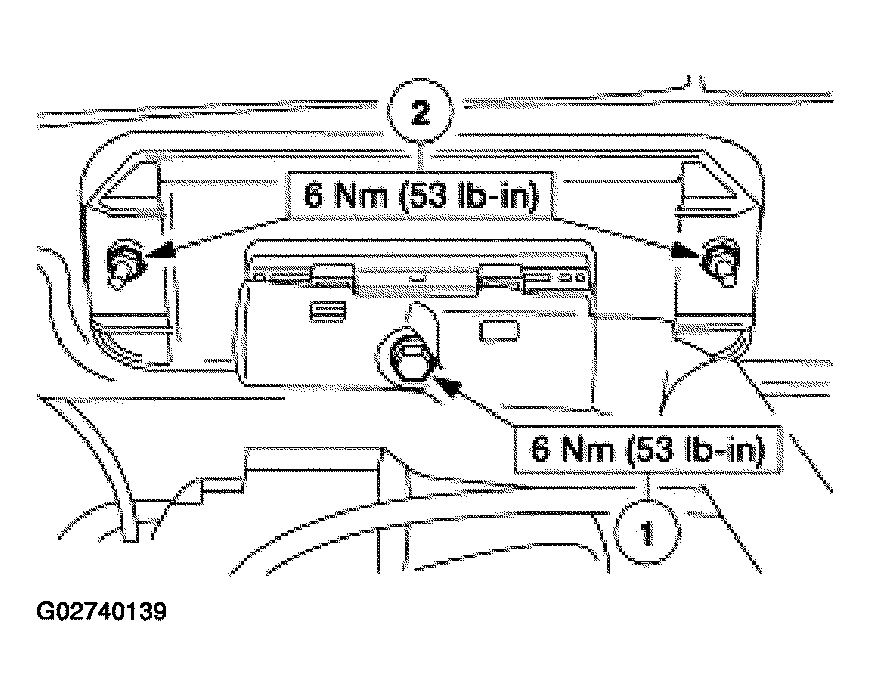

    Fig 1: Removing Powertrain Control Module Cover
    G02740139Courtesy of FORD MOTOR CO.
  3. Remove the PCM.

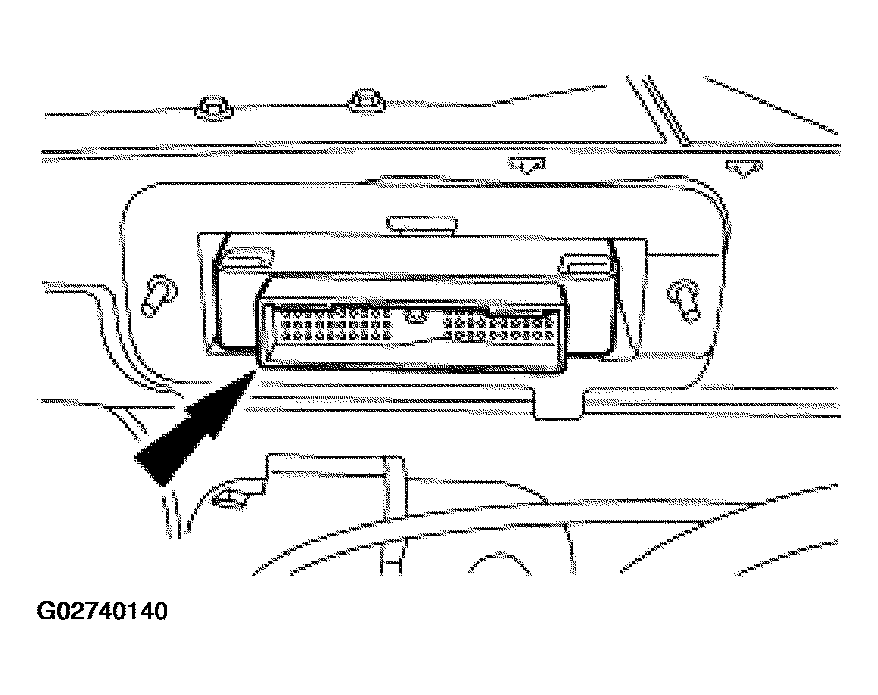

    Fig 2: Removing PCM
    G02740140Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
