Test E

PINPOINT TEST E: A SINGLE/MORE THAN ONE DOOR LOCK IS INOPERATIVE

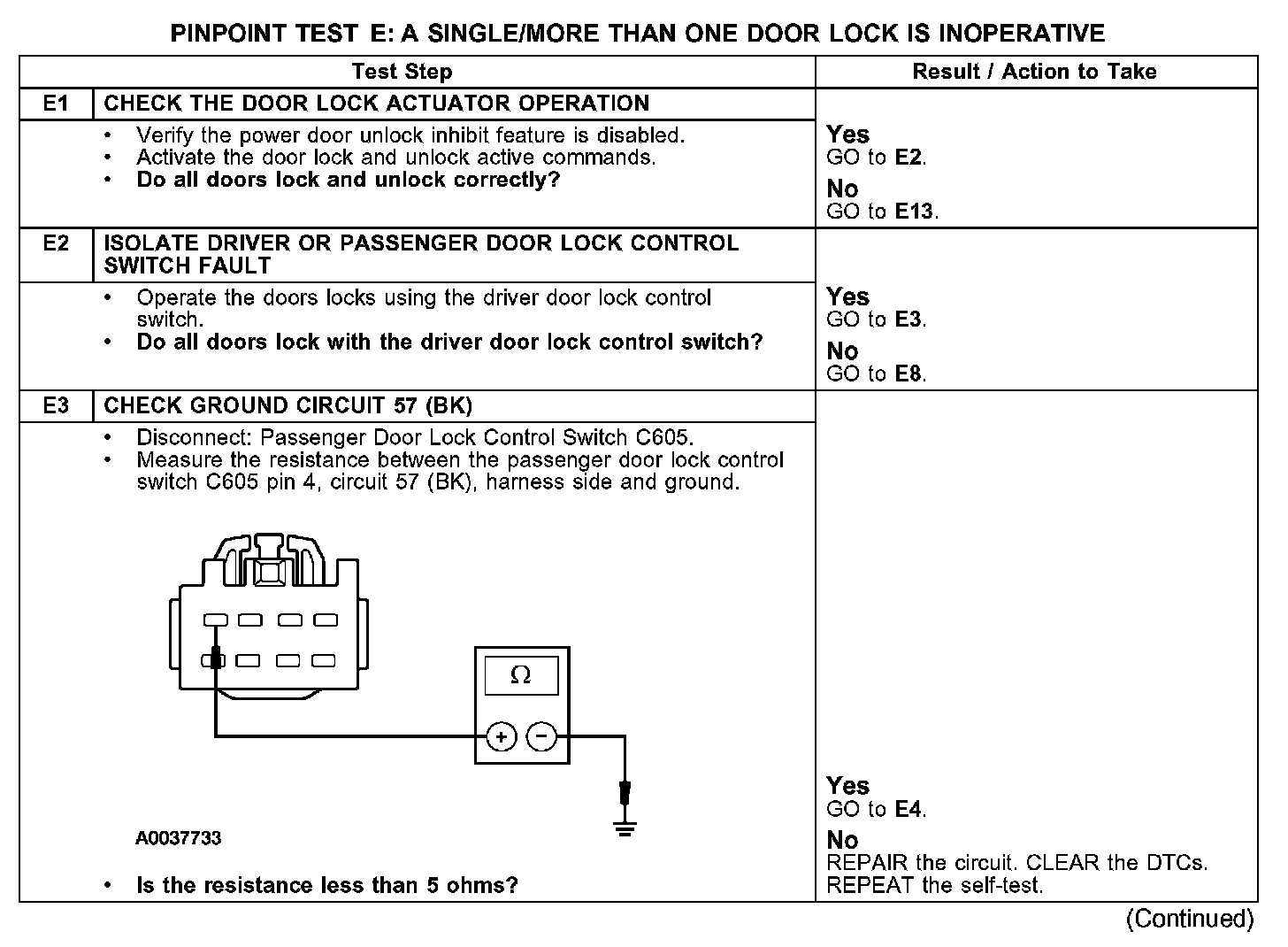

Test E1-E3:

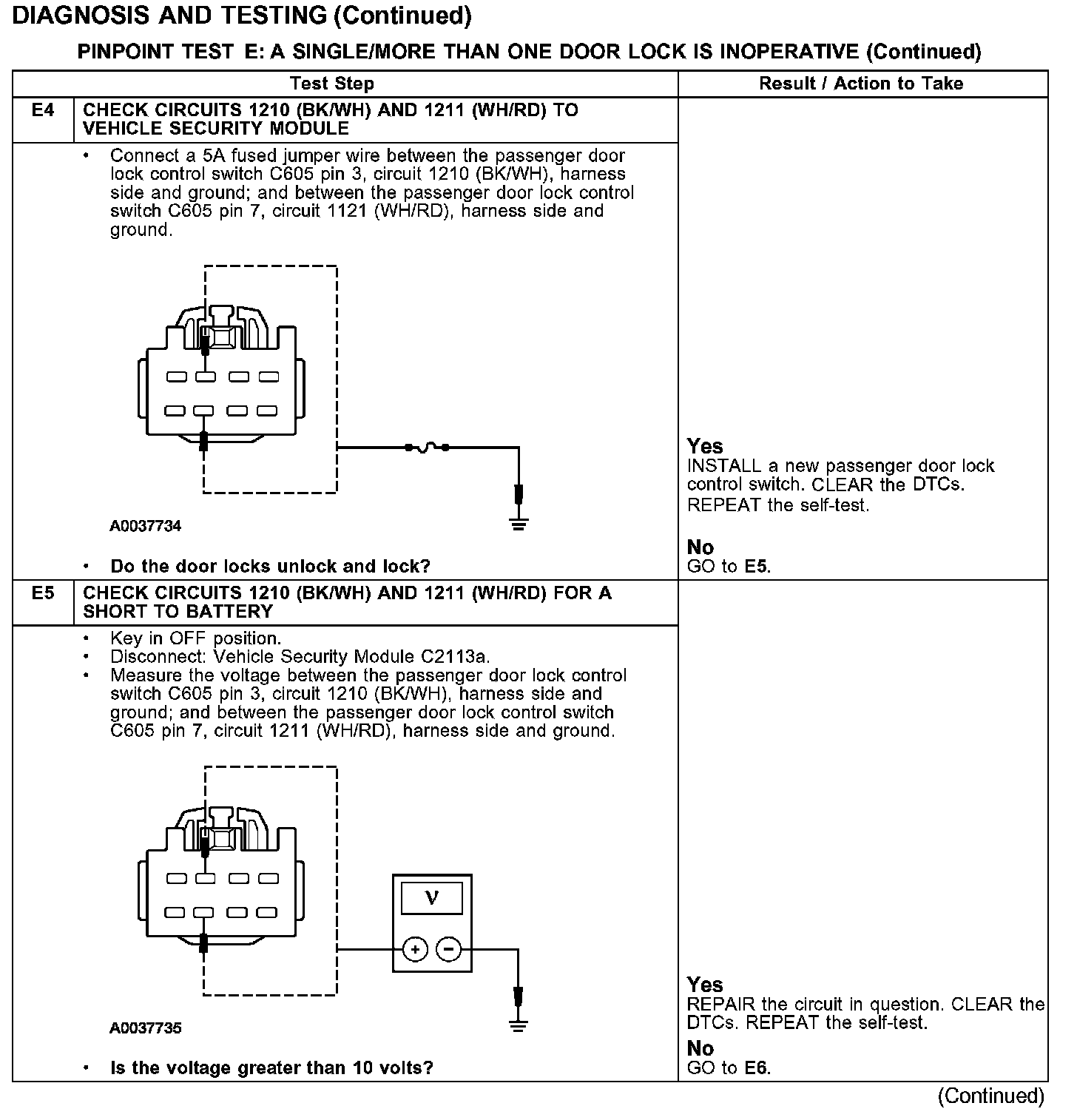

Test E4-E5:

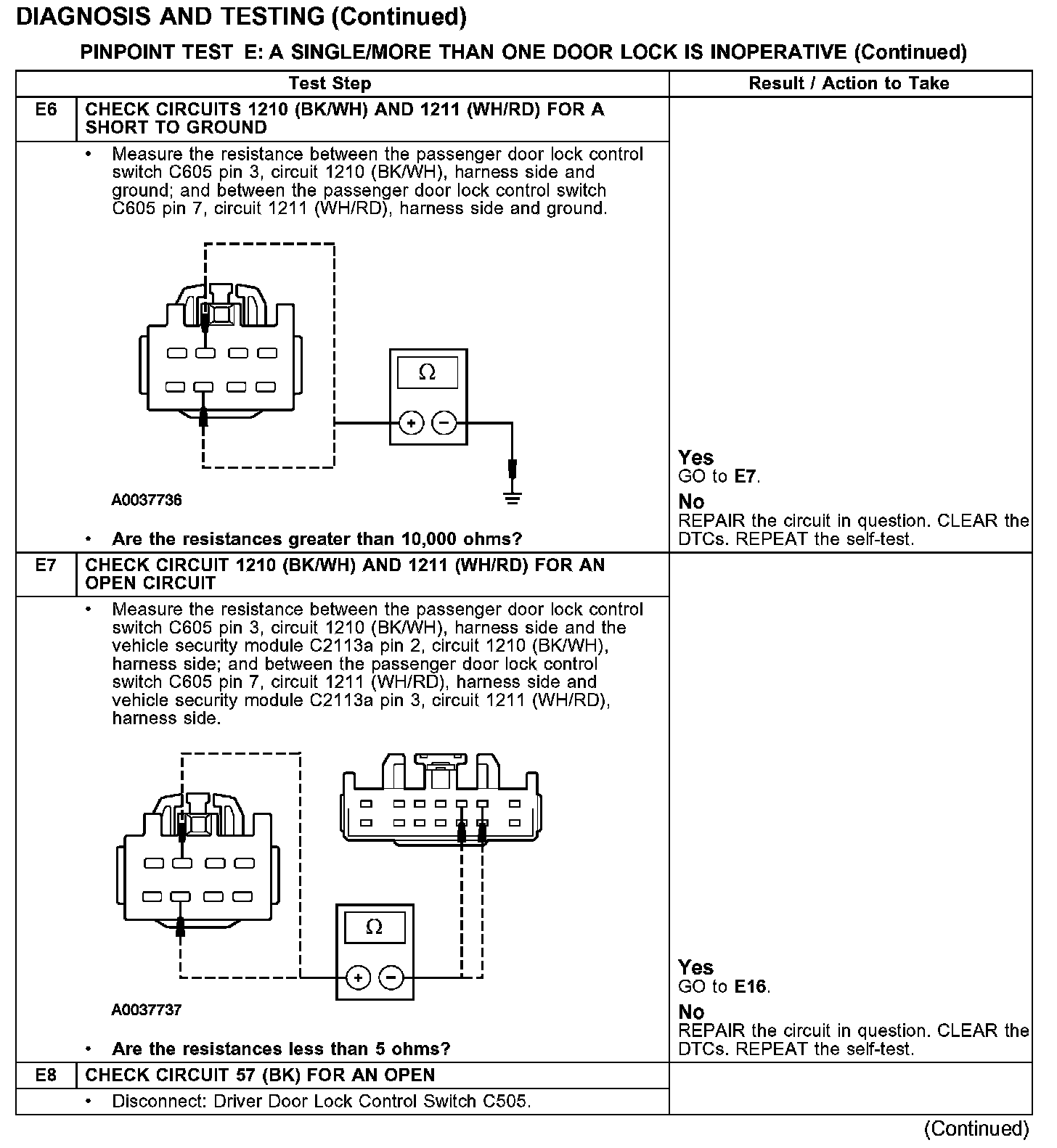

Test E6-E8:

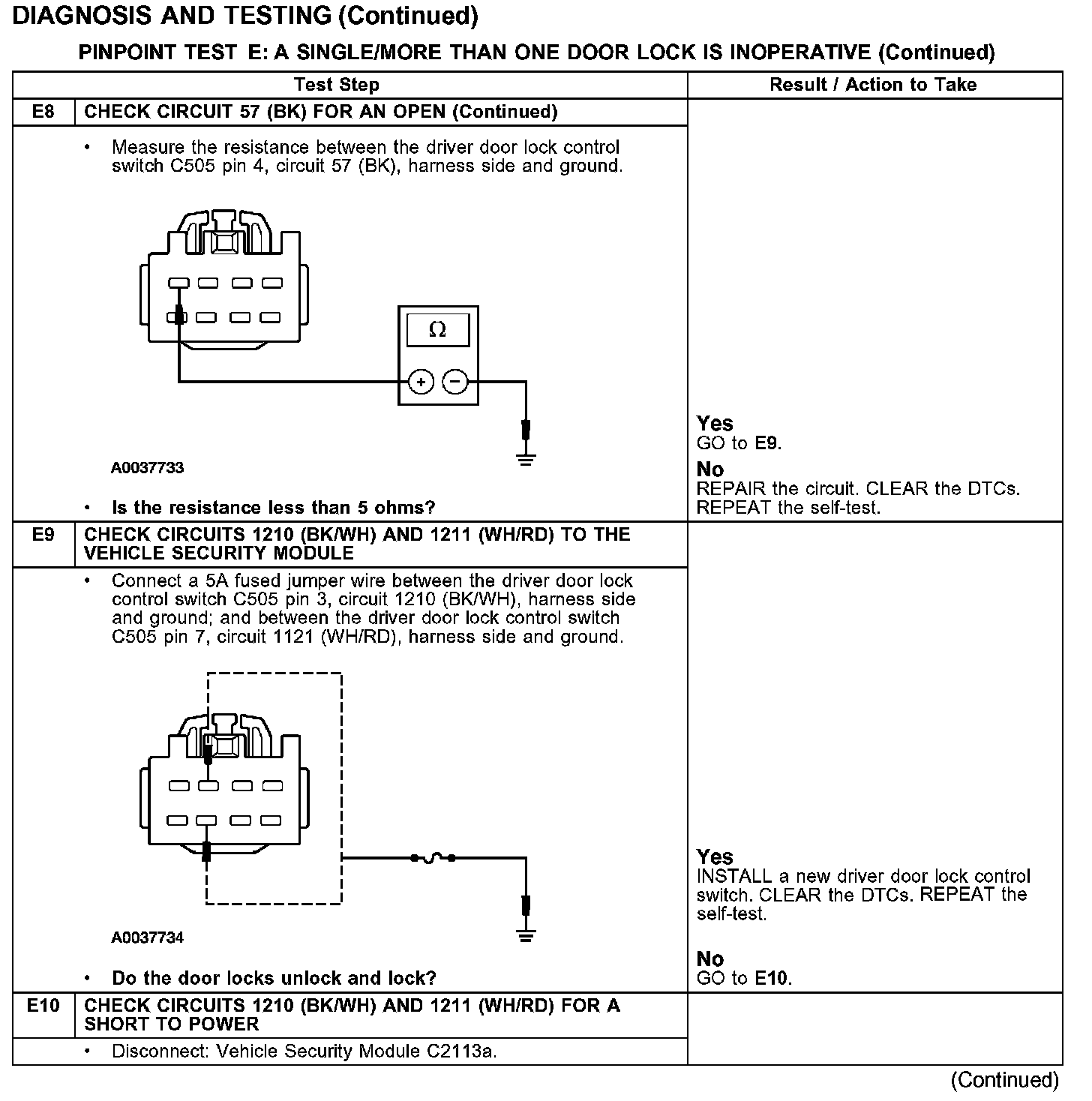

Test E8-E10:

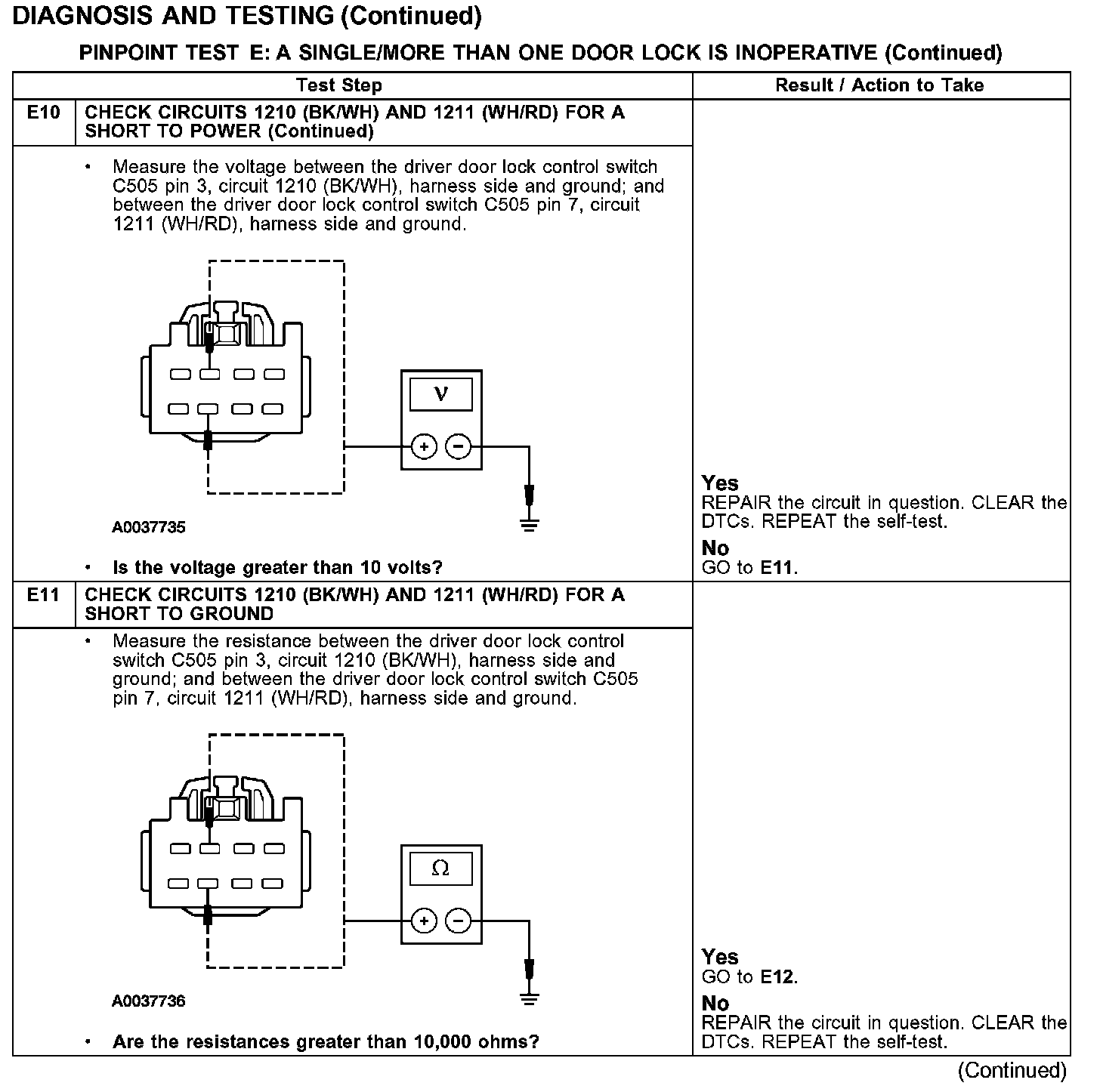

Test E10-E11:

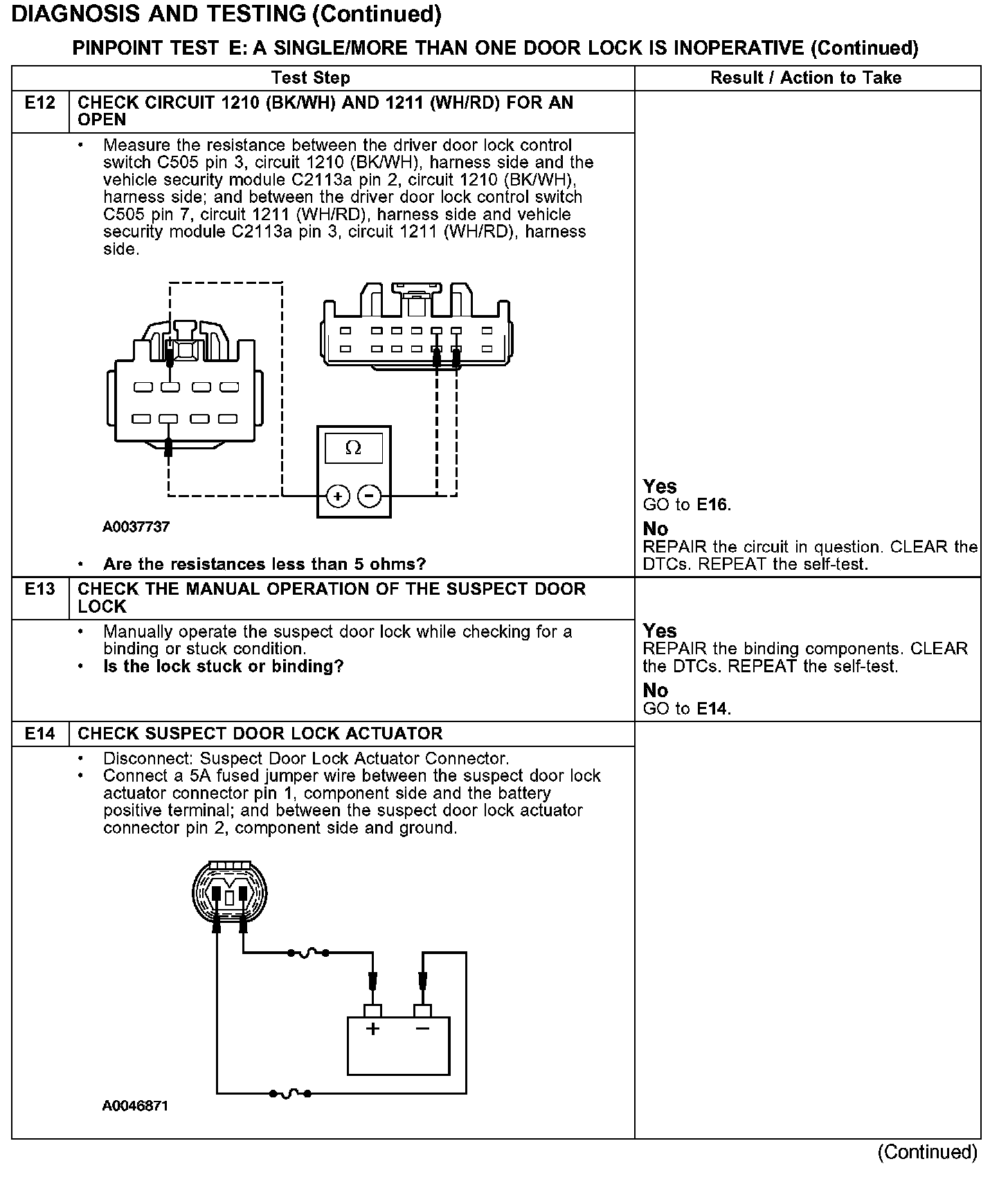

Test E12-E14:

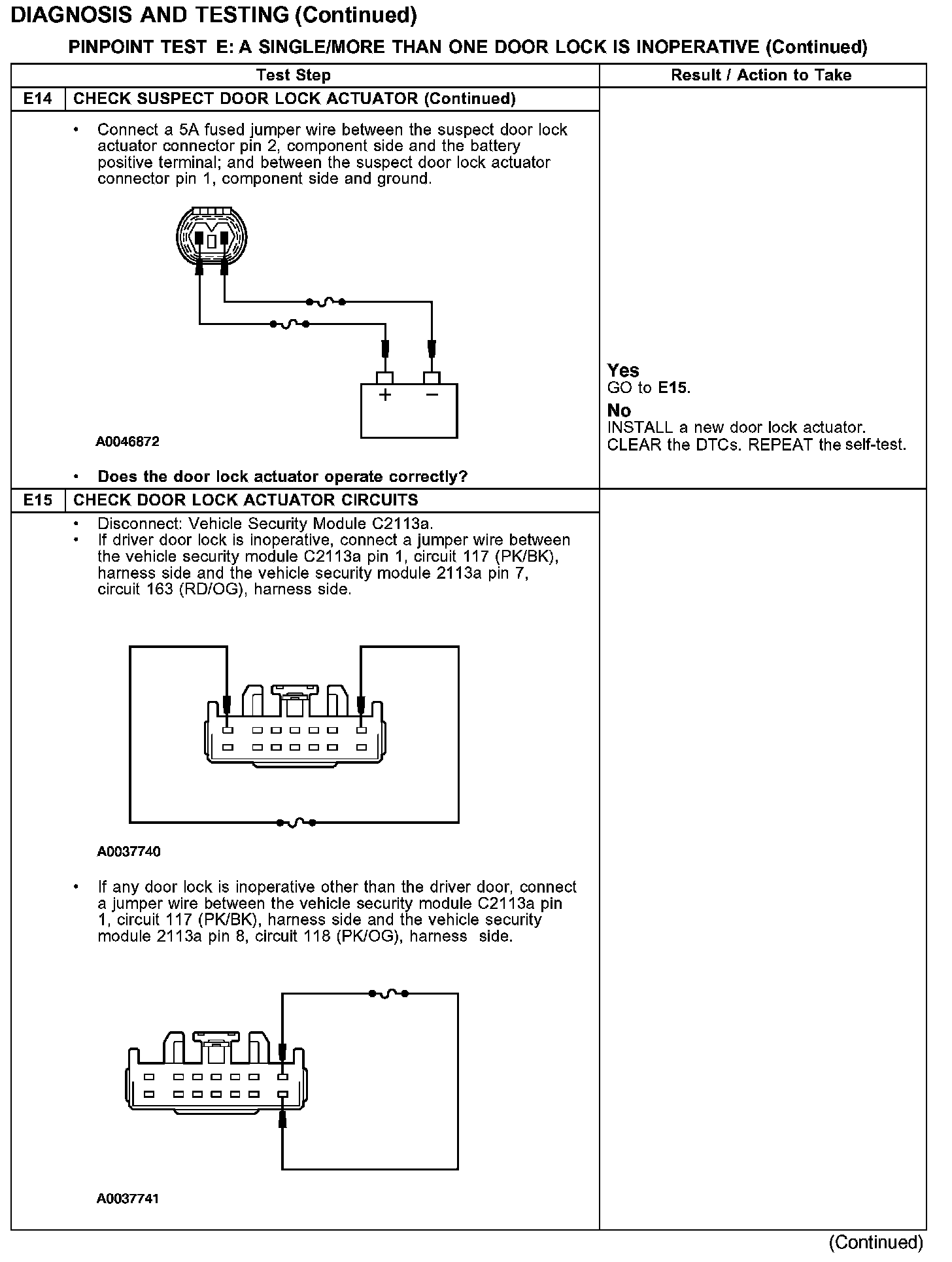

Test E14-E15:

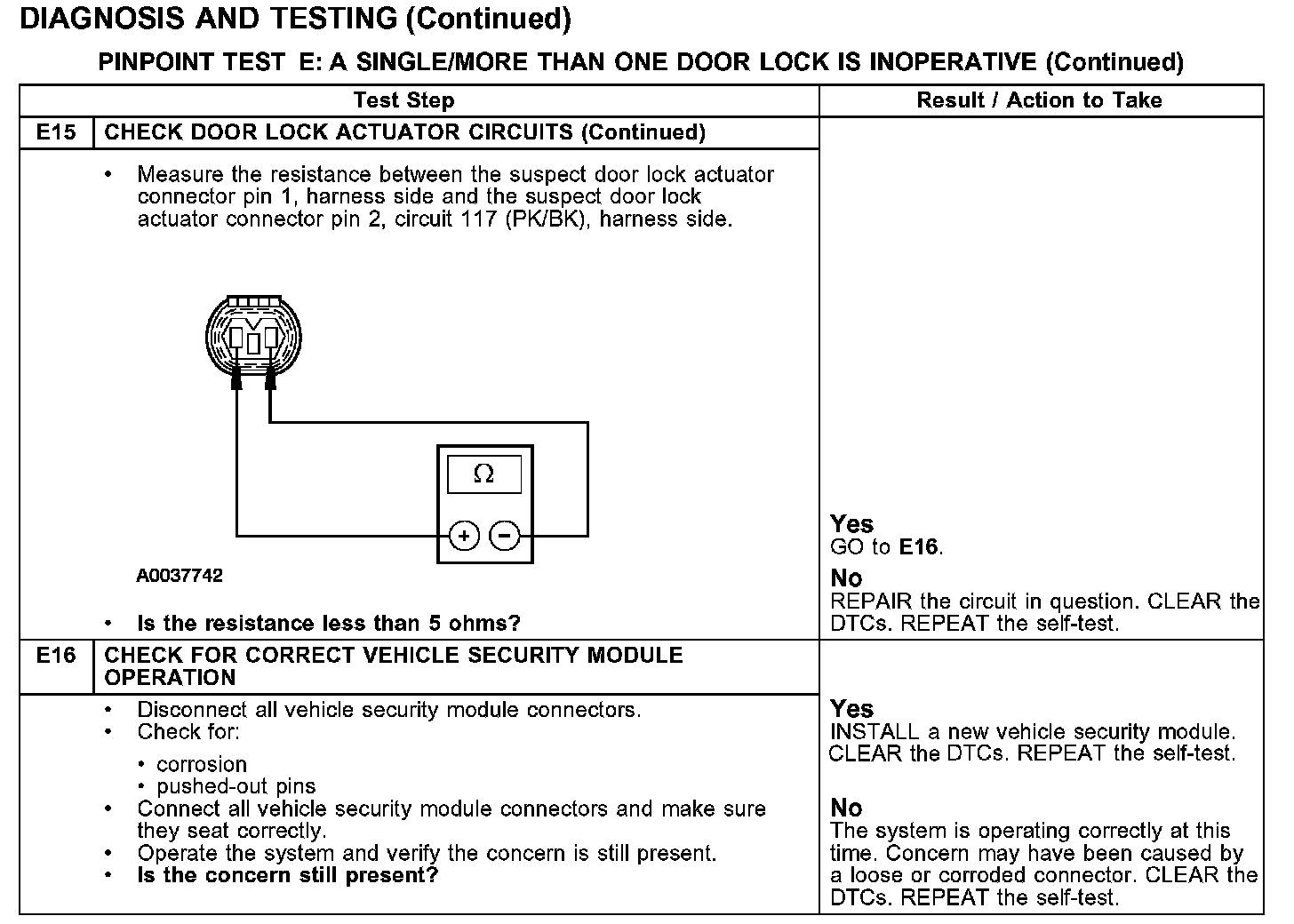

Test E15-E16:
