Test F
PINPOINT TEST F: THE DOORS DO NOT LOCK/UNLOCK USING THE
KEYLESS ENTRY
KEYPAD (ALL EXCURSION AND F-SUPER DUTY VEHICLES BUILT AFTER 12/03)

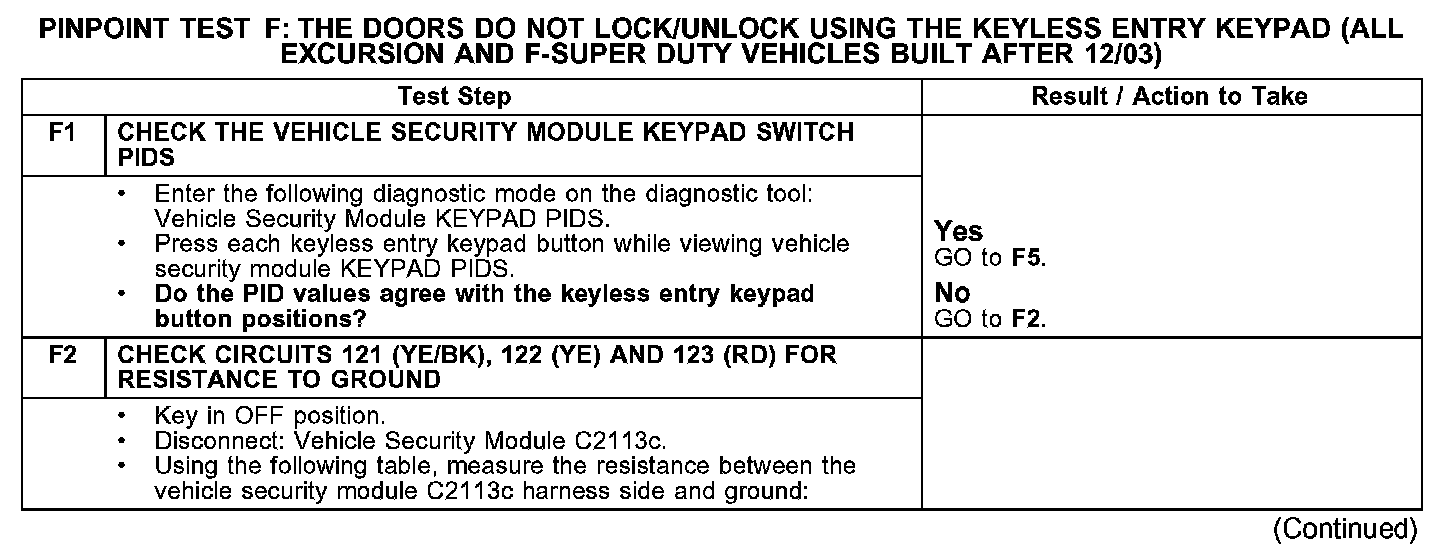

Test F1-F2:

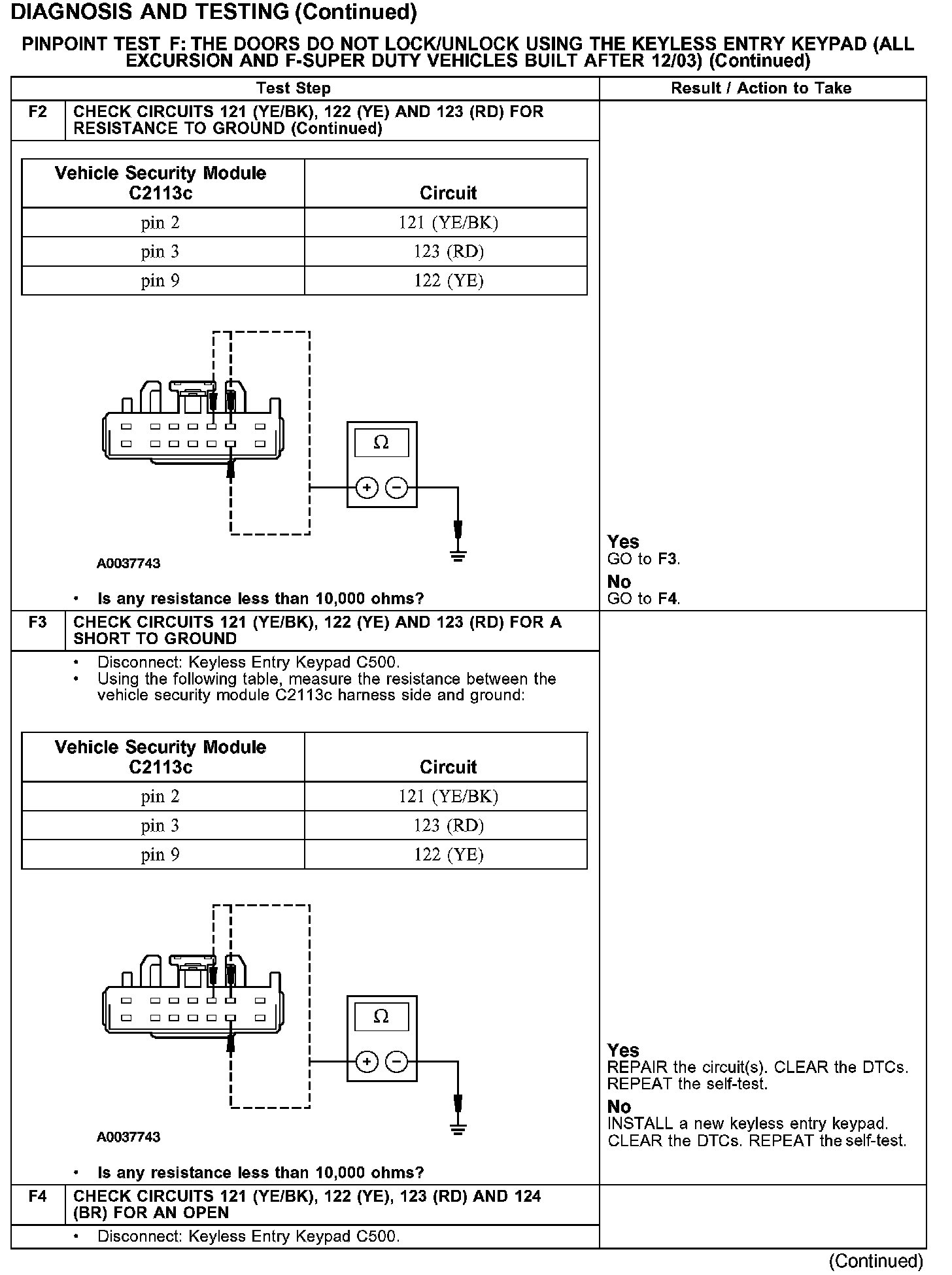

Test F2-F4:

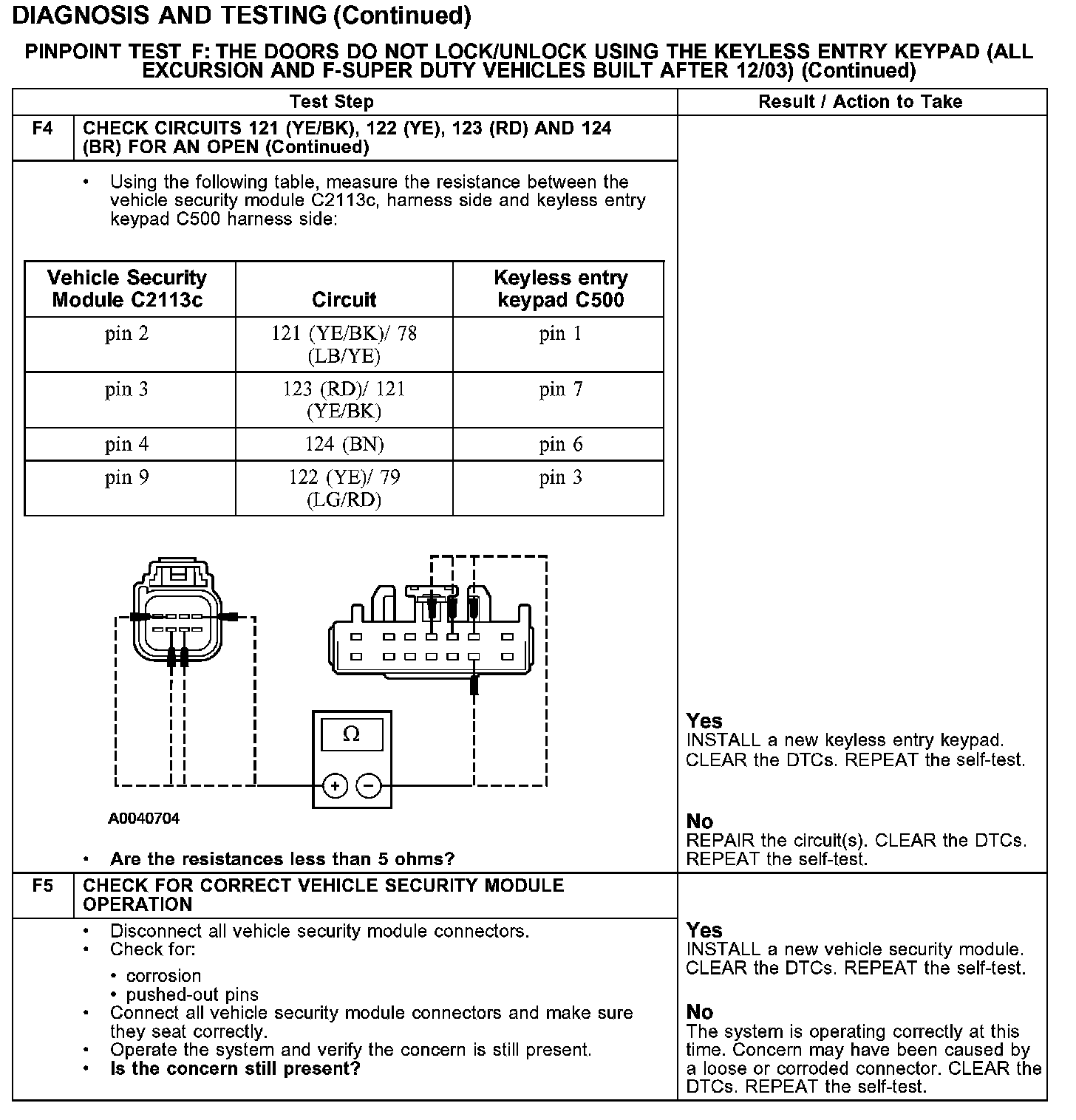

Test F4-F5:
