Test K

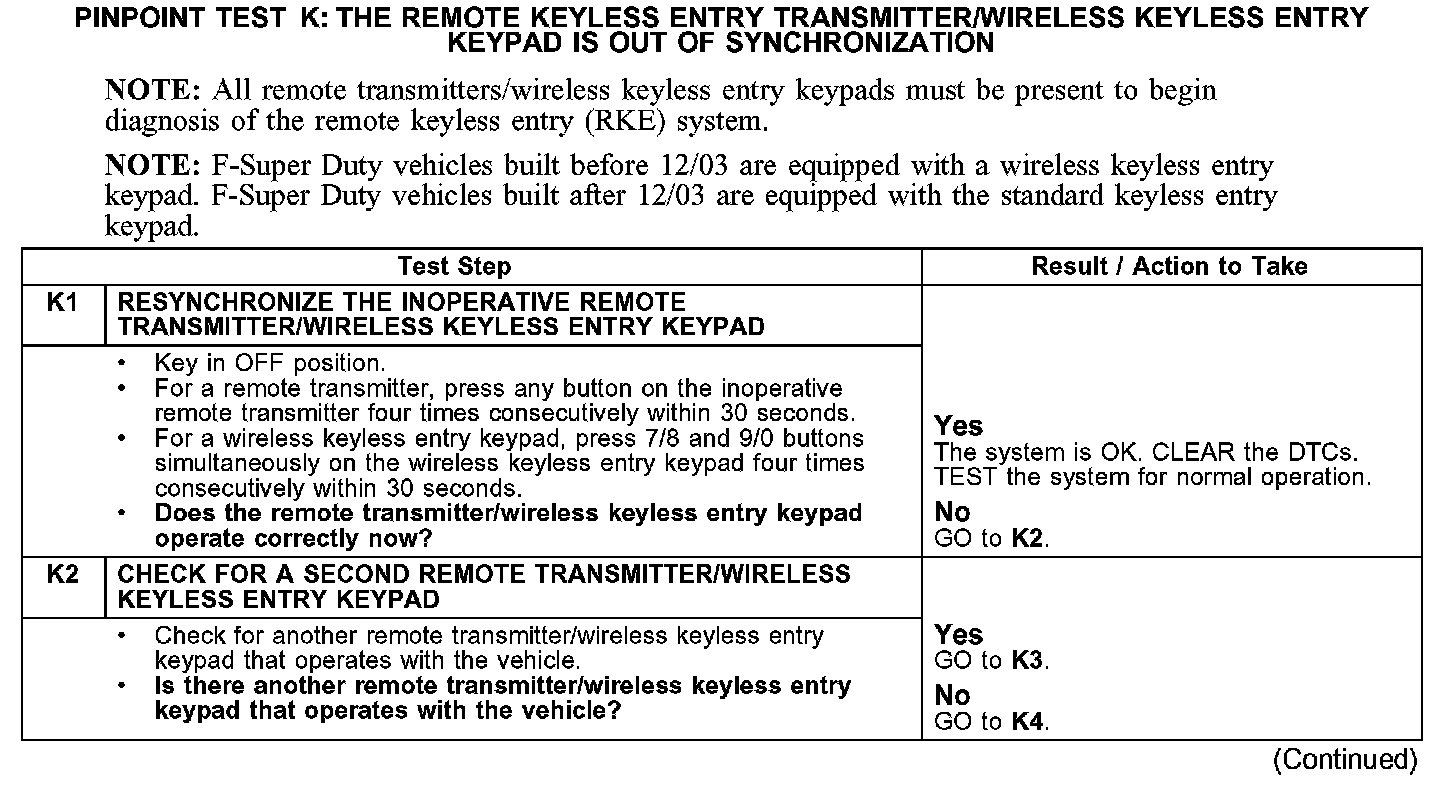

PINPOINT TEST K: THE REMOTE KEYLESS ENTRY TRANSMITTER/WIRELESS KEYLESS ENTRY KEYPAD IS OUT OF SYNCHRONIZATION


Test K1-K2:

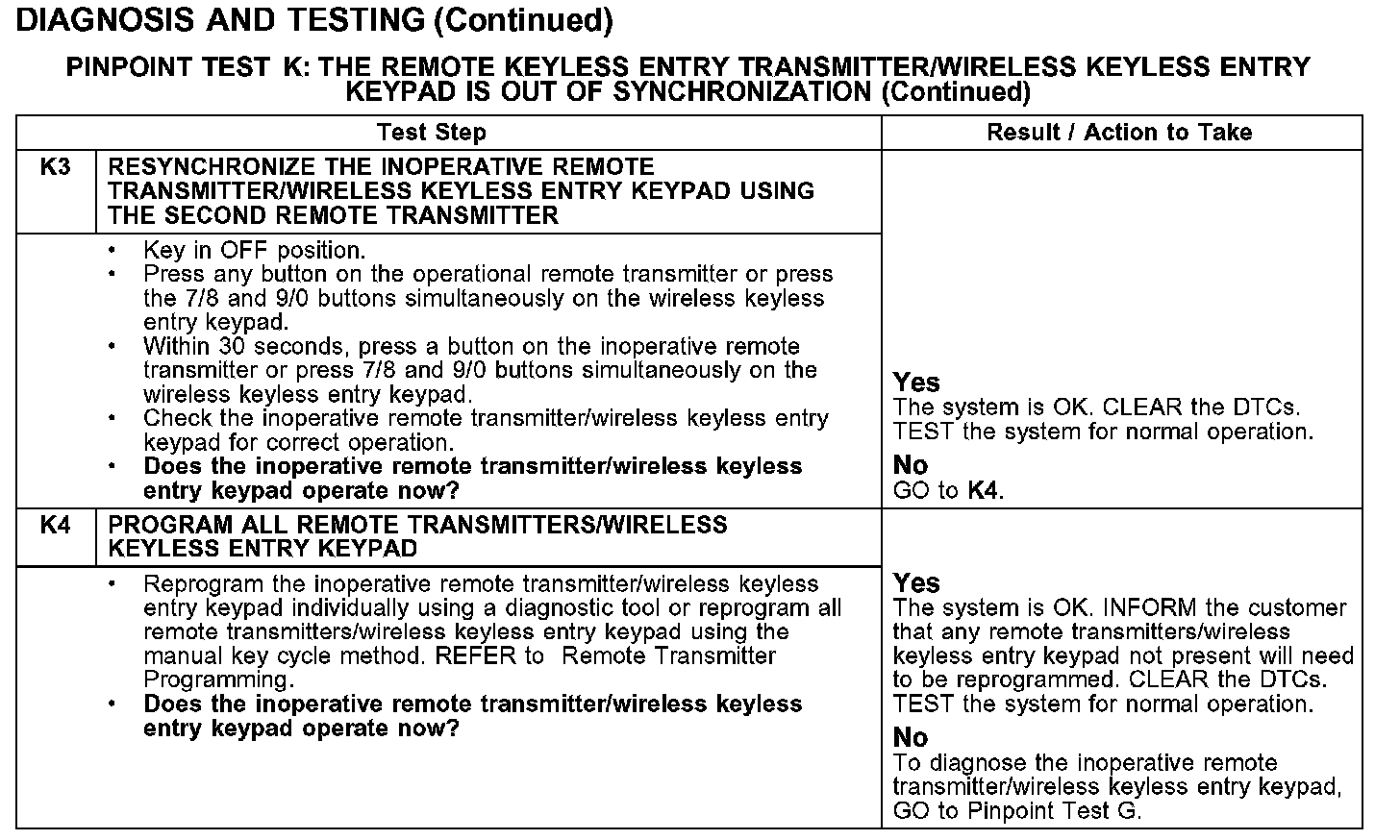

Test K3-K4:
