Dana 80

Rear Drive Axle and Differential

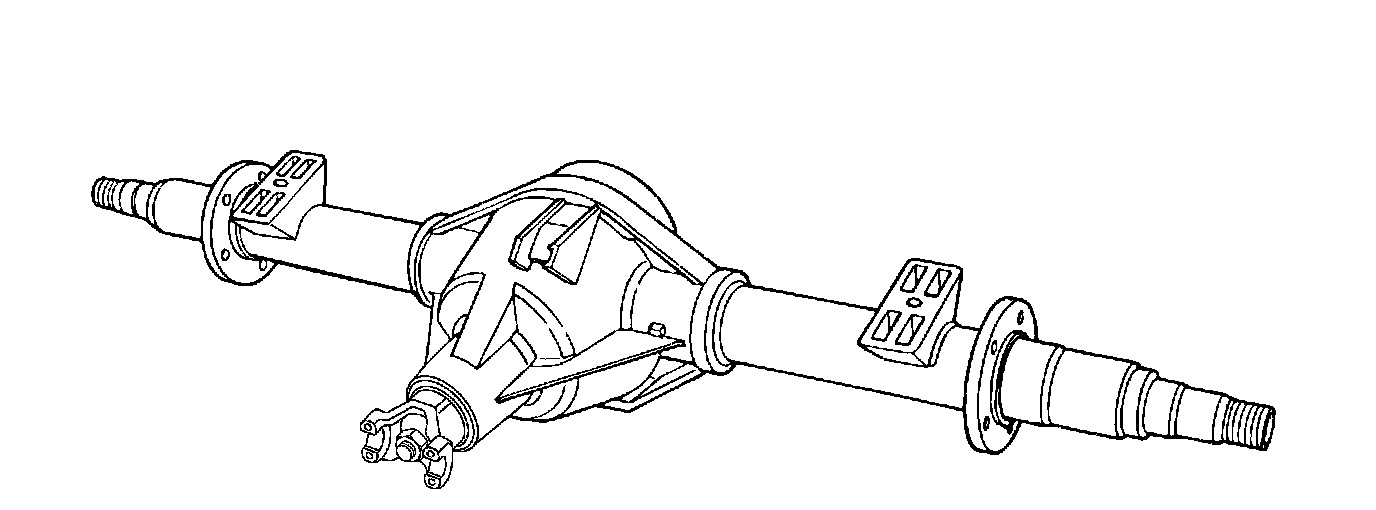

Dana Model 80 Full-Floating Rear Drive Axle

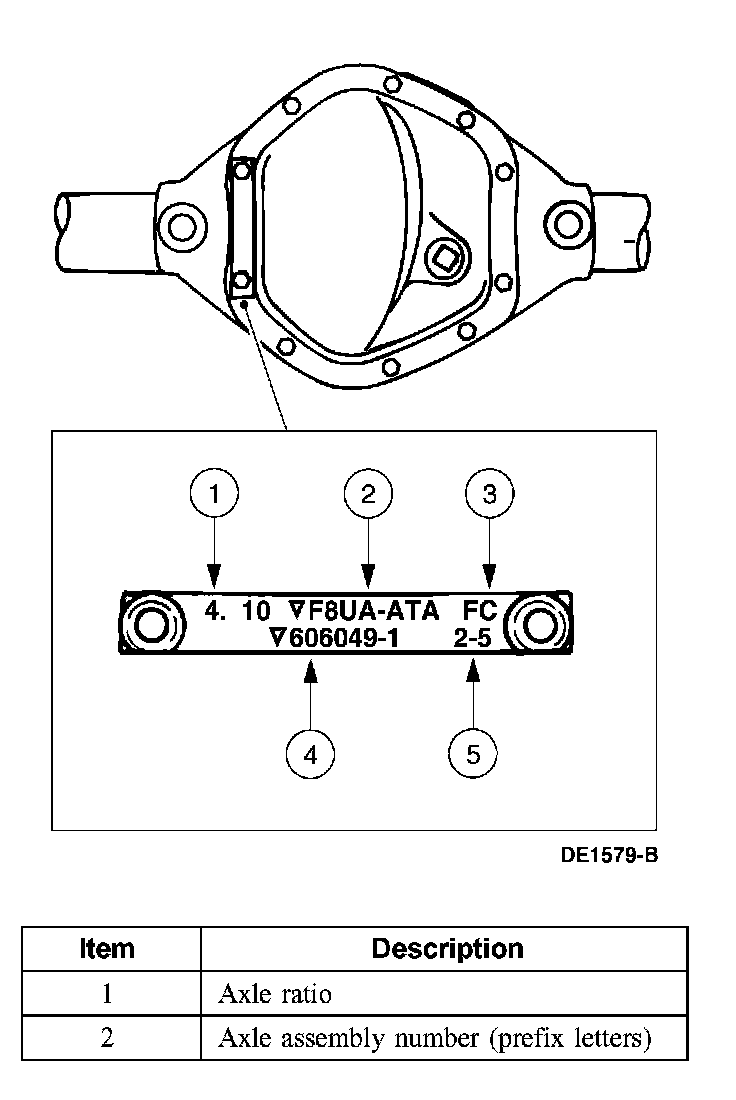

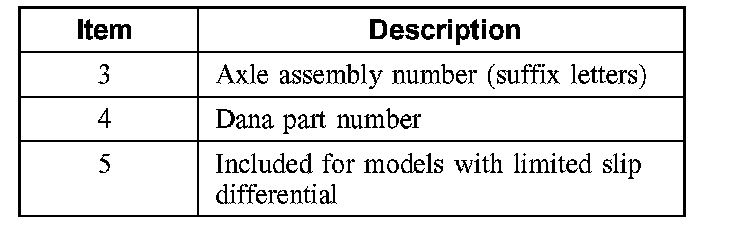

Identification Tag

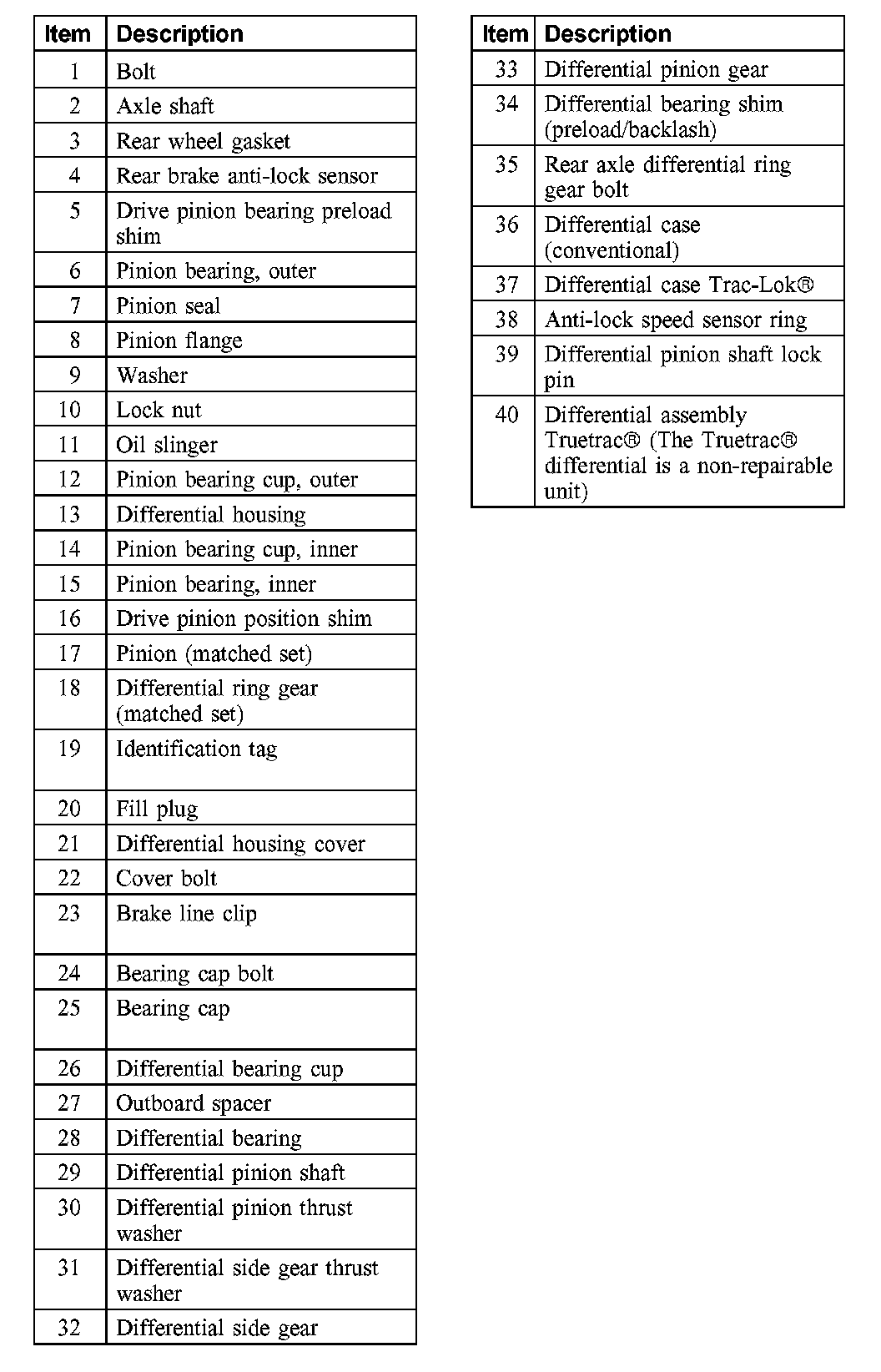

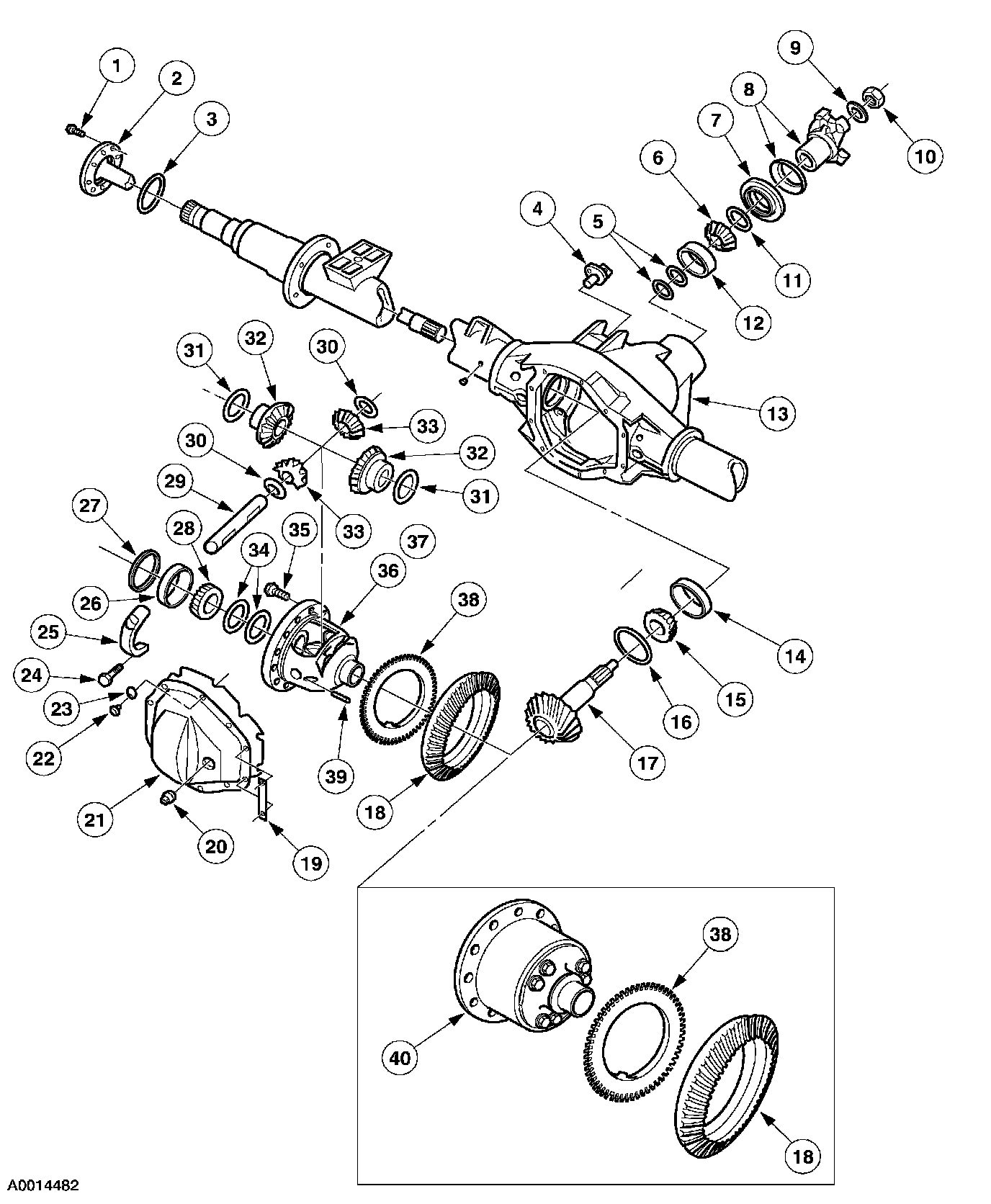

Dana Model 80, Full-Floating Rear Axle, Disassembled View
