Dana S135

Exploded Views

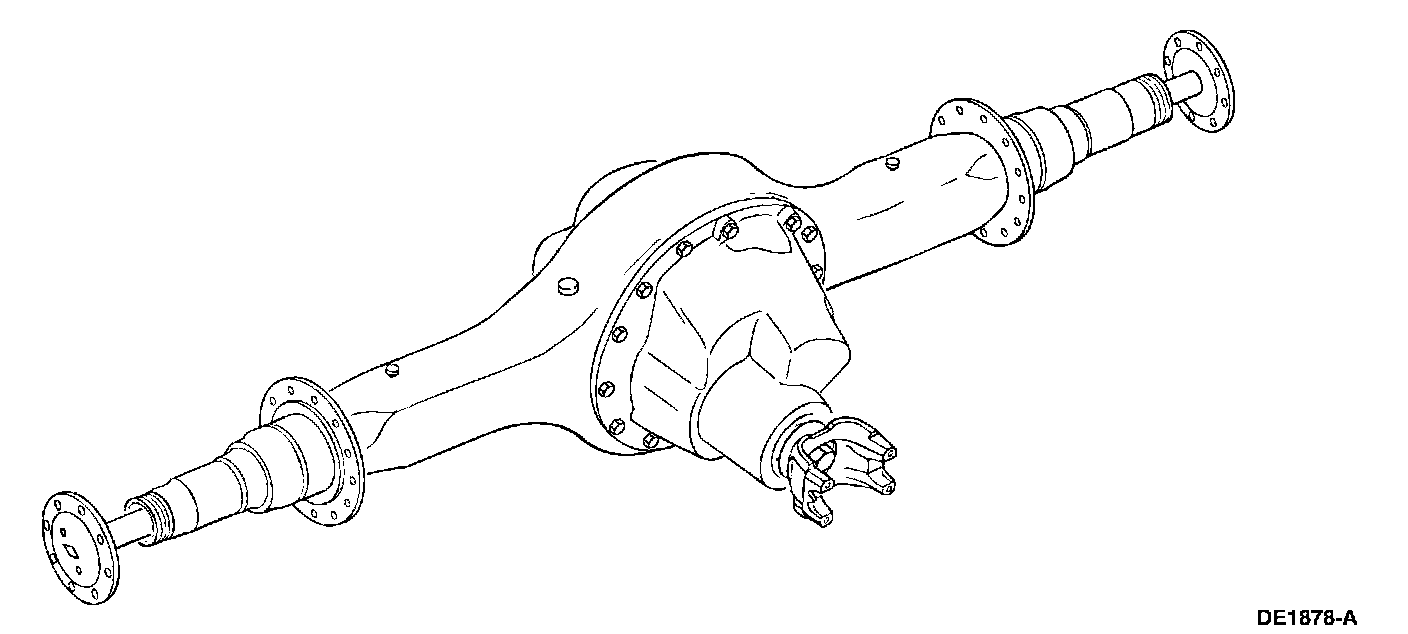

Dana Model S135 Full-Floating Rear Drive Axle

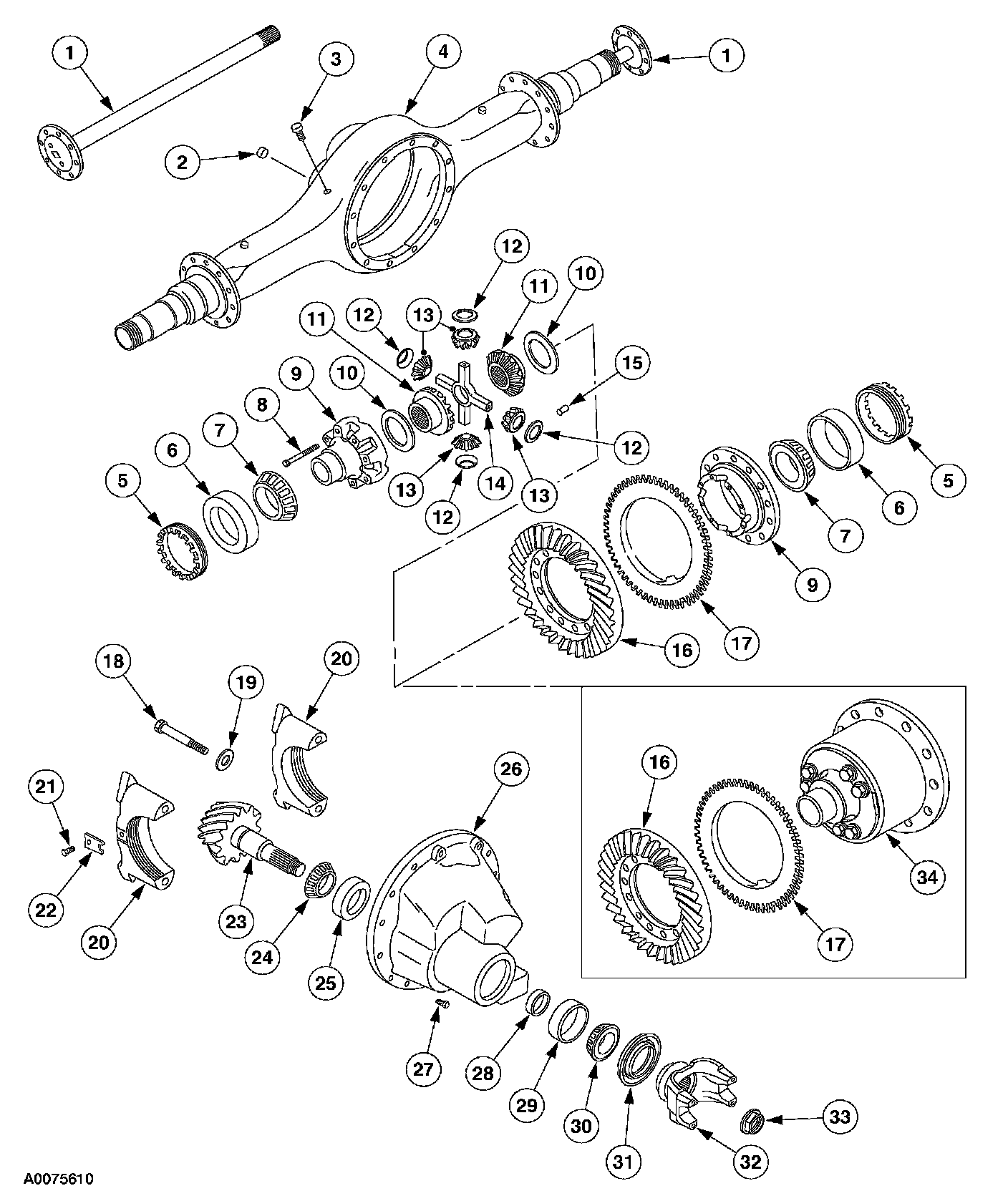

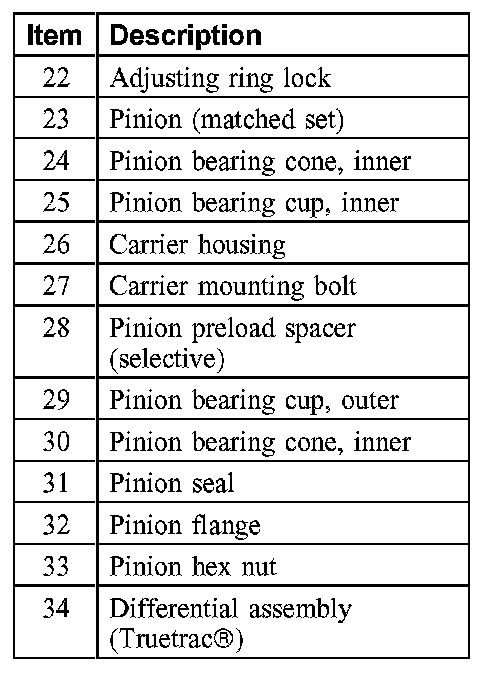

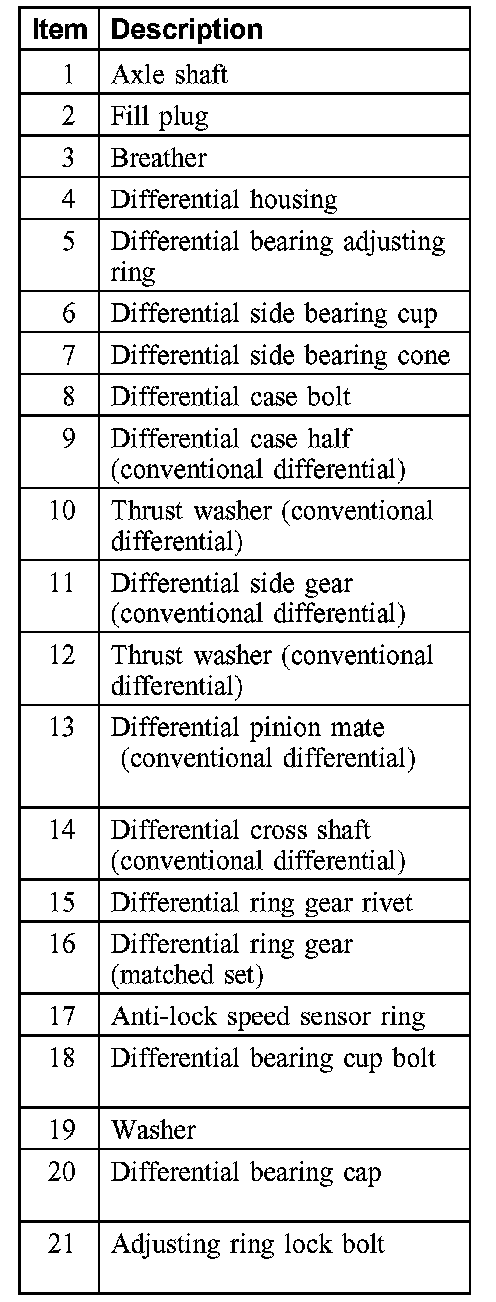

Dana Model S135 Full-Floating Rear Axle, Disassembled View
