Rear

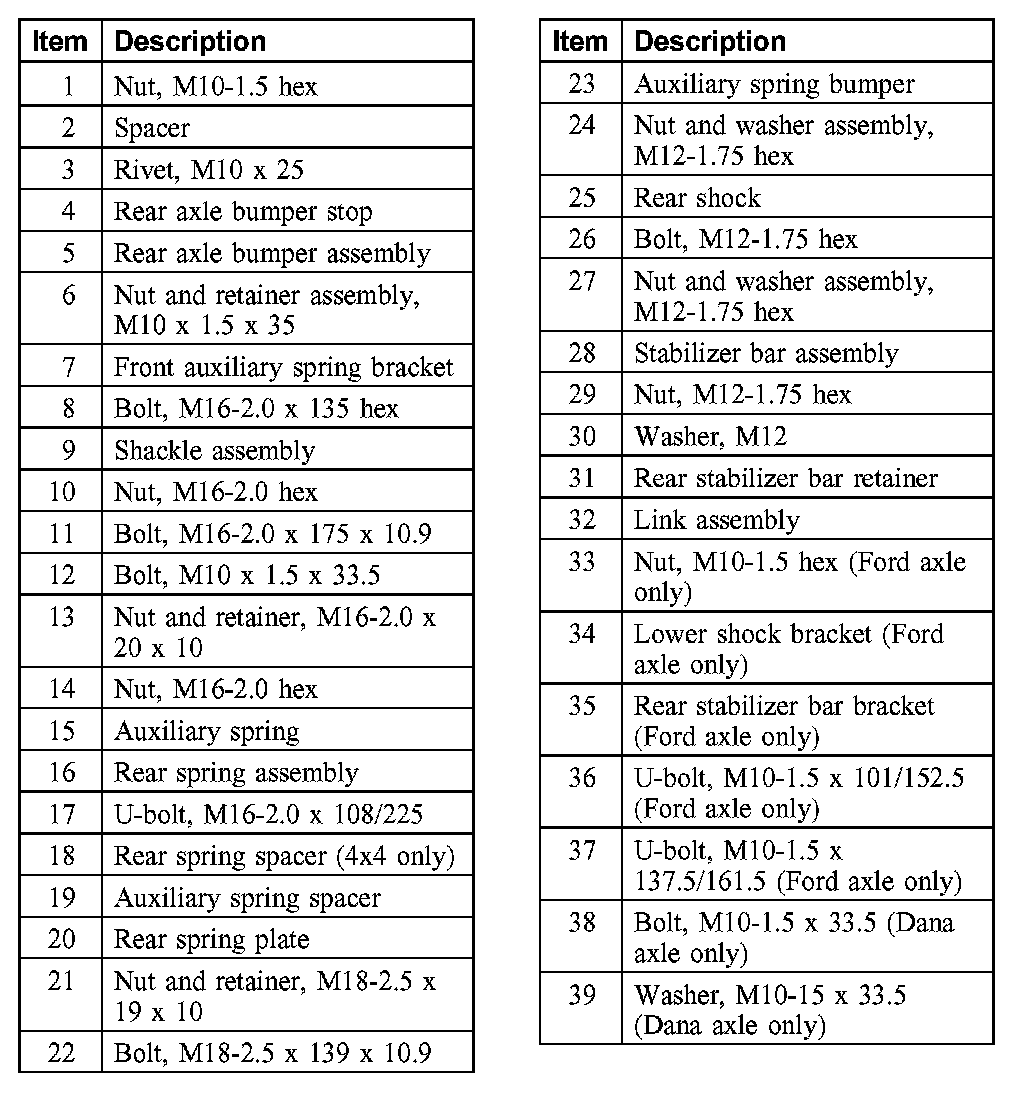

Rear Suspension

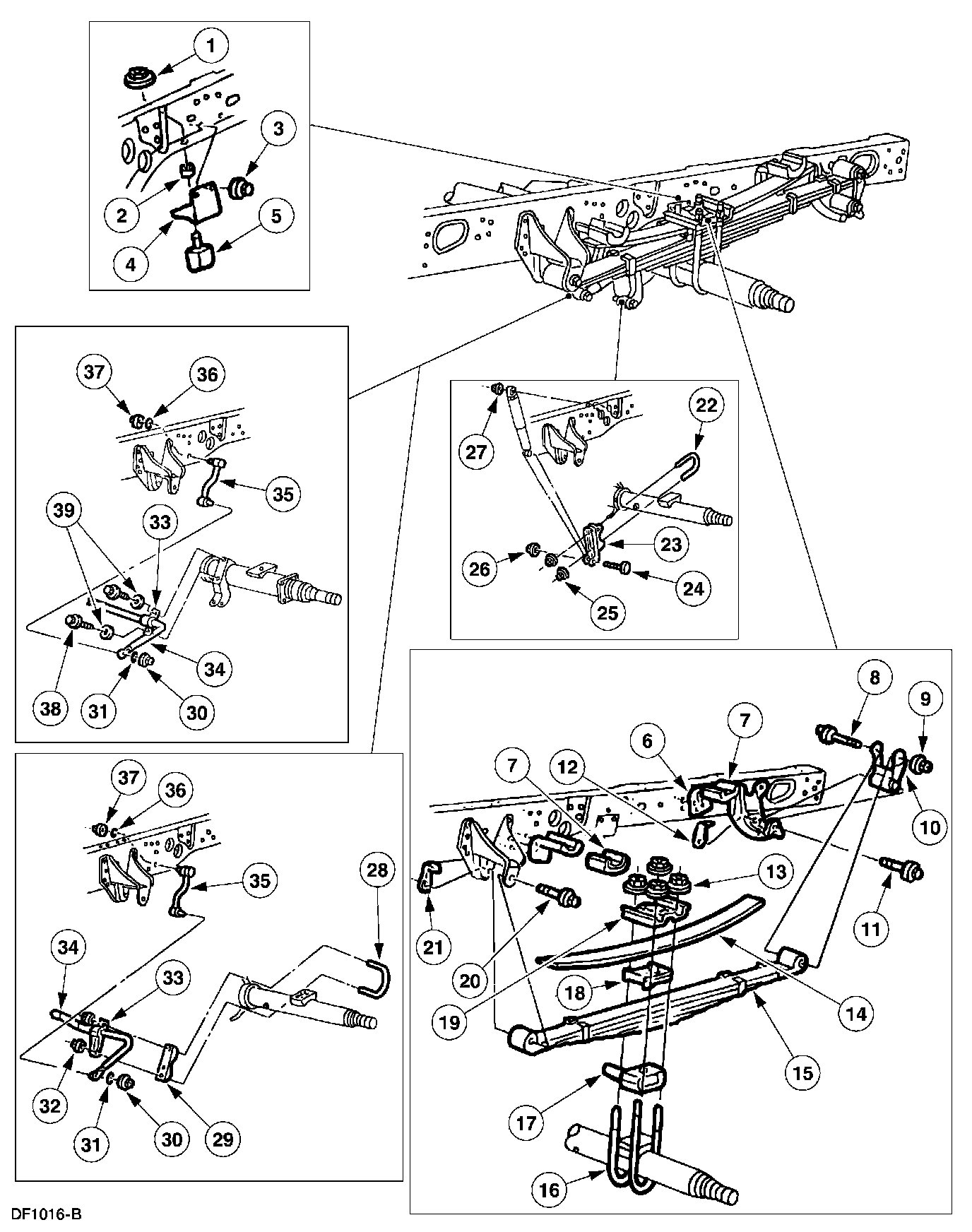

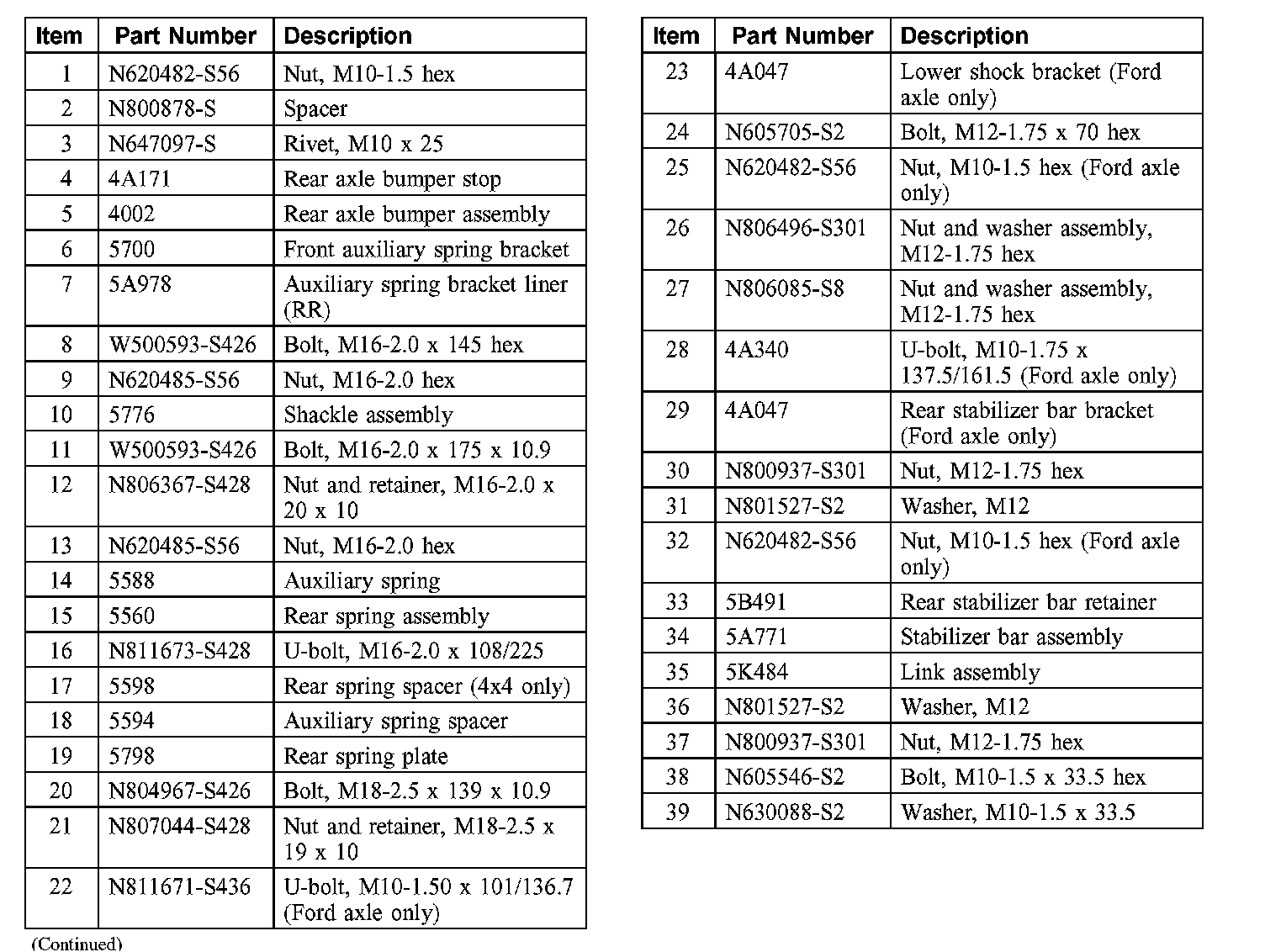

Super Duty F-250, F-350 Wide Frame

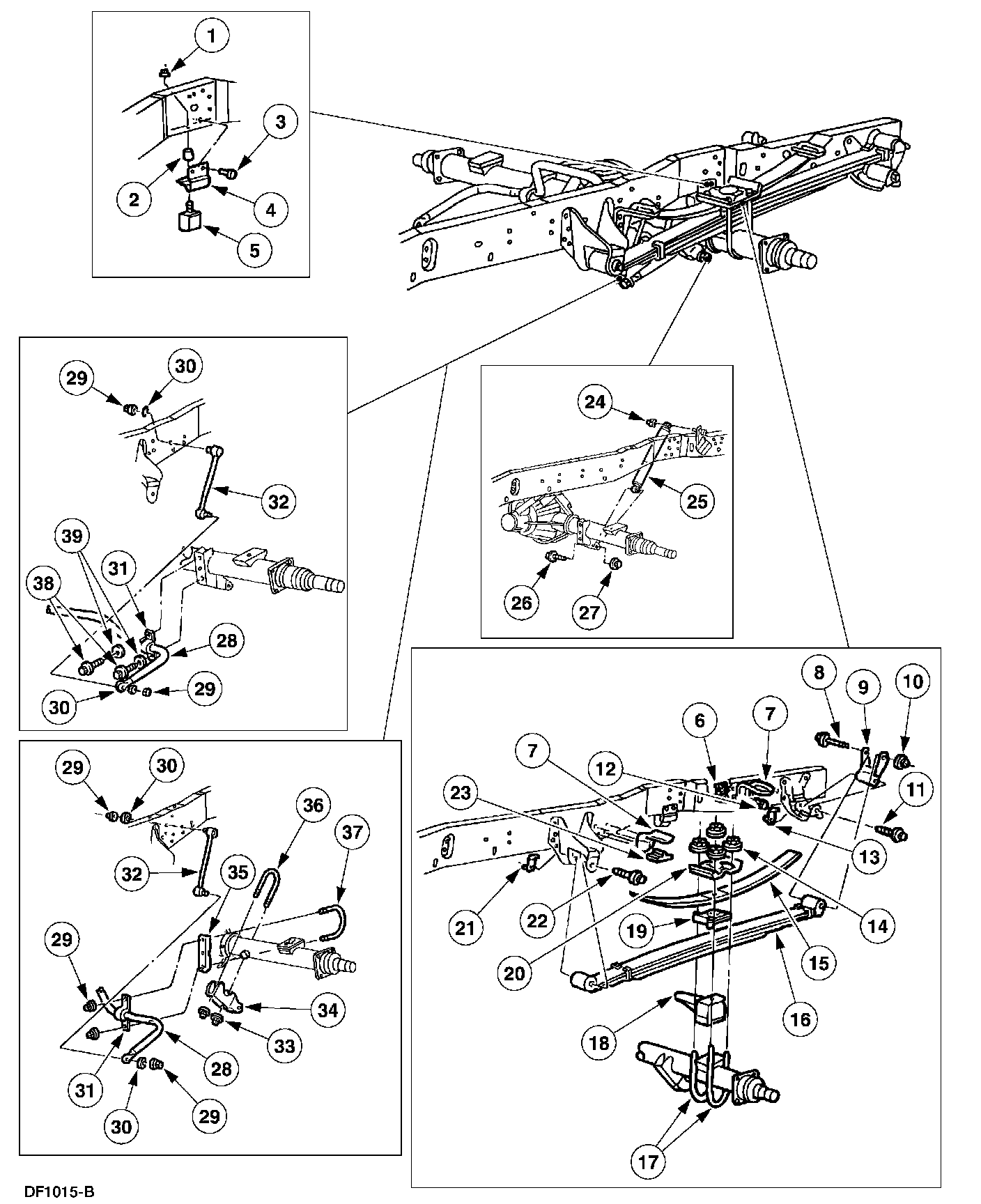

Super Duty F-350 Narrow Frame

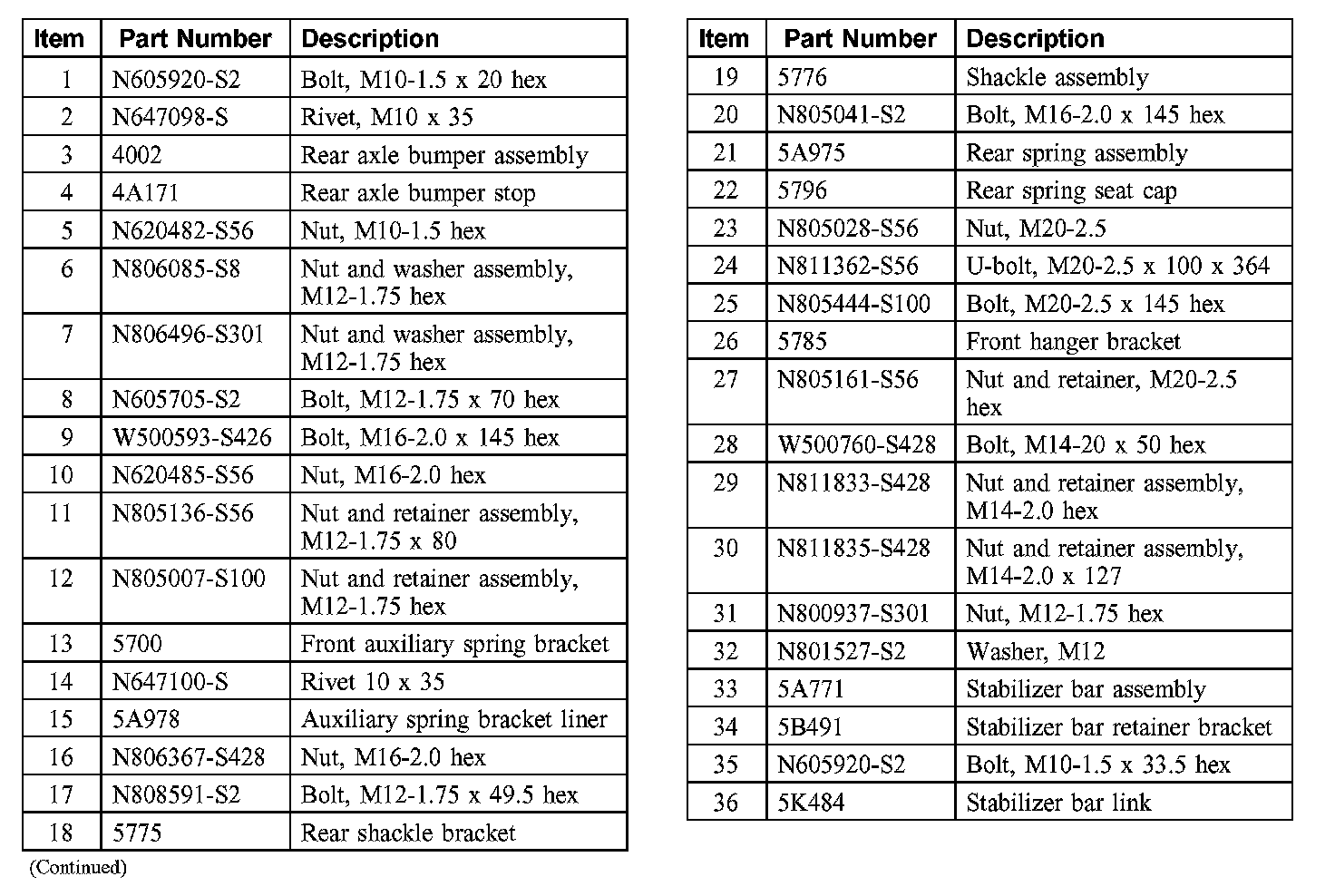

Super Duty F-550 Shown, F-450 Similar

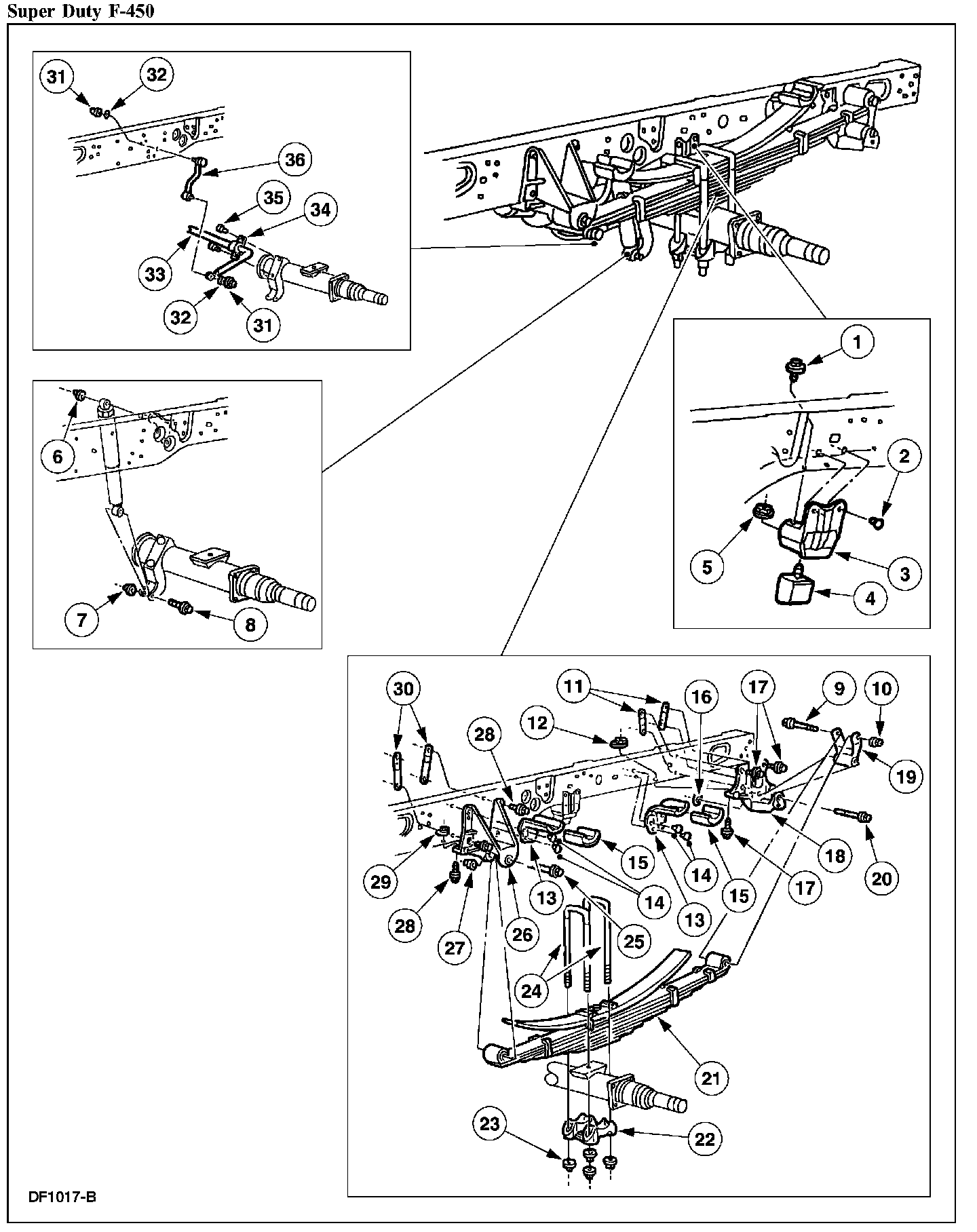

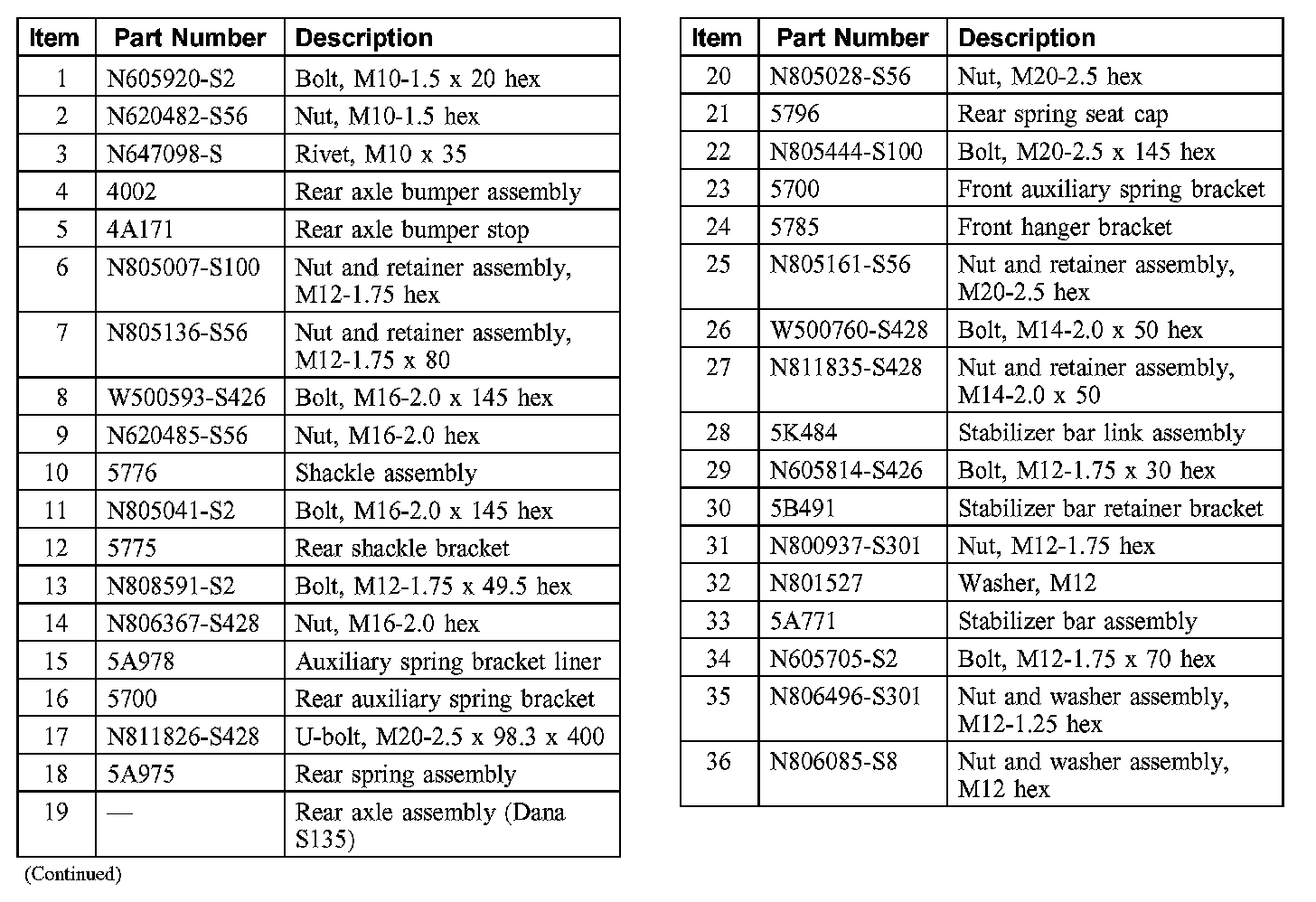

Super Duty F-450

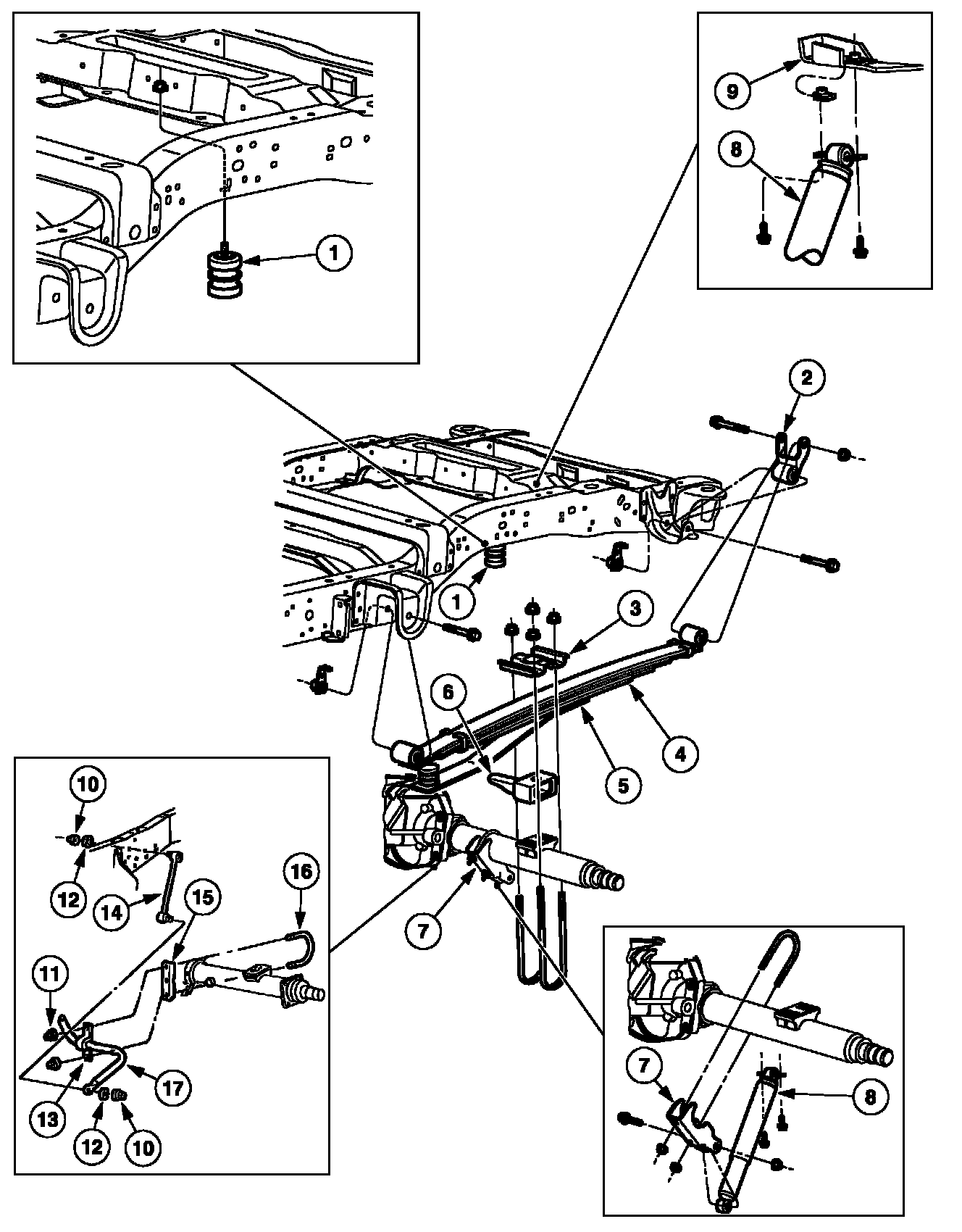

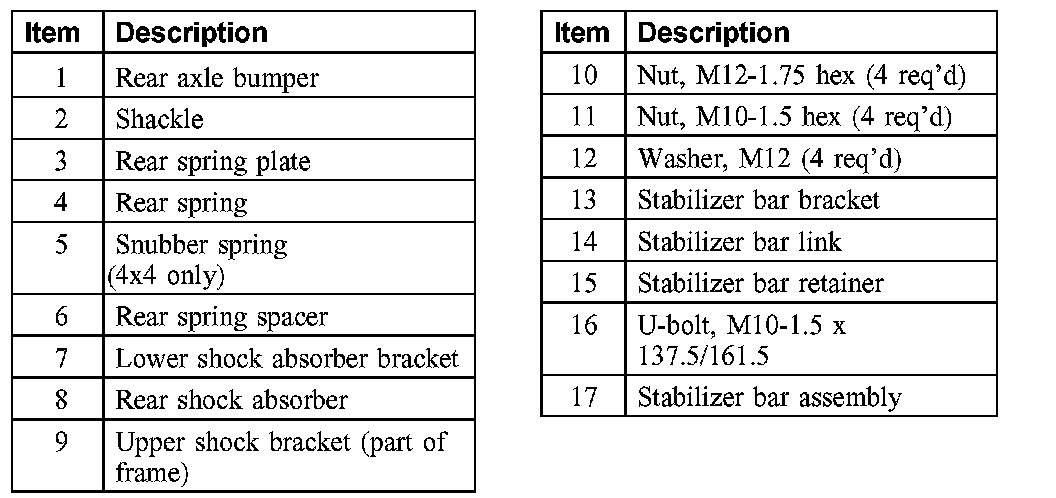

Excursion
