Electronic Automatic Temperature Control

CLIMATE CONTROL ASSEMBLY - ELECTRONIC AUTOMATIC TEMPERATURE CONTROL

REMOVAL
1. Remove the audio unit.

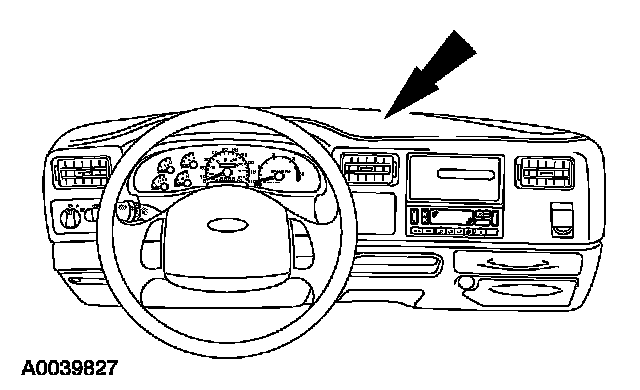

2. Disengage the retaining clips and position aside the instrument cluster finish panel.

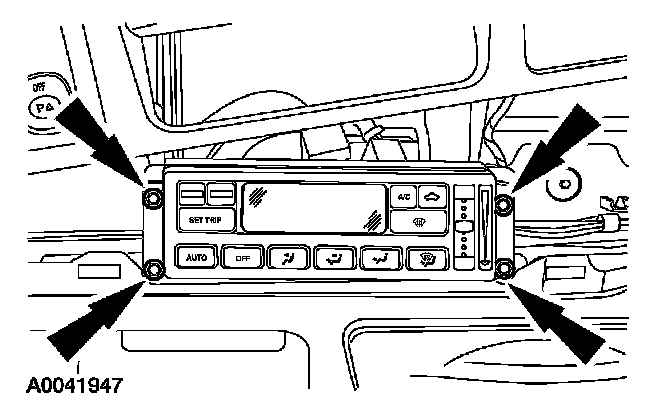

3. Remove the screws.

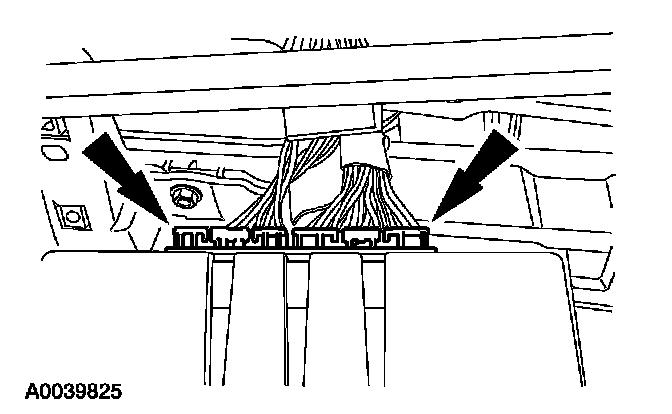

4. Disconnect the electrical connectors and remove the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
