Test B

PINPOINT TEST B: DTC B1251 OR DTC1253 - A/C IN-CAR TEMPERATURE SENSOR OPEN CIRCUIT OR SHORT TO GROUND

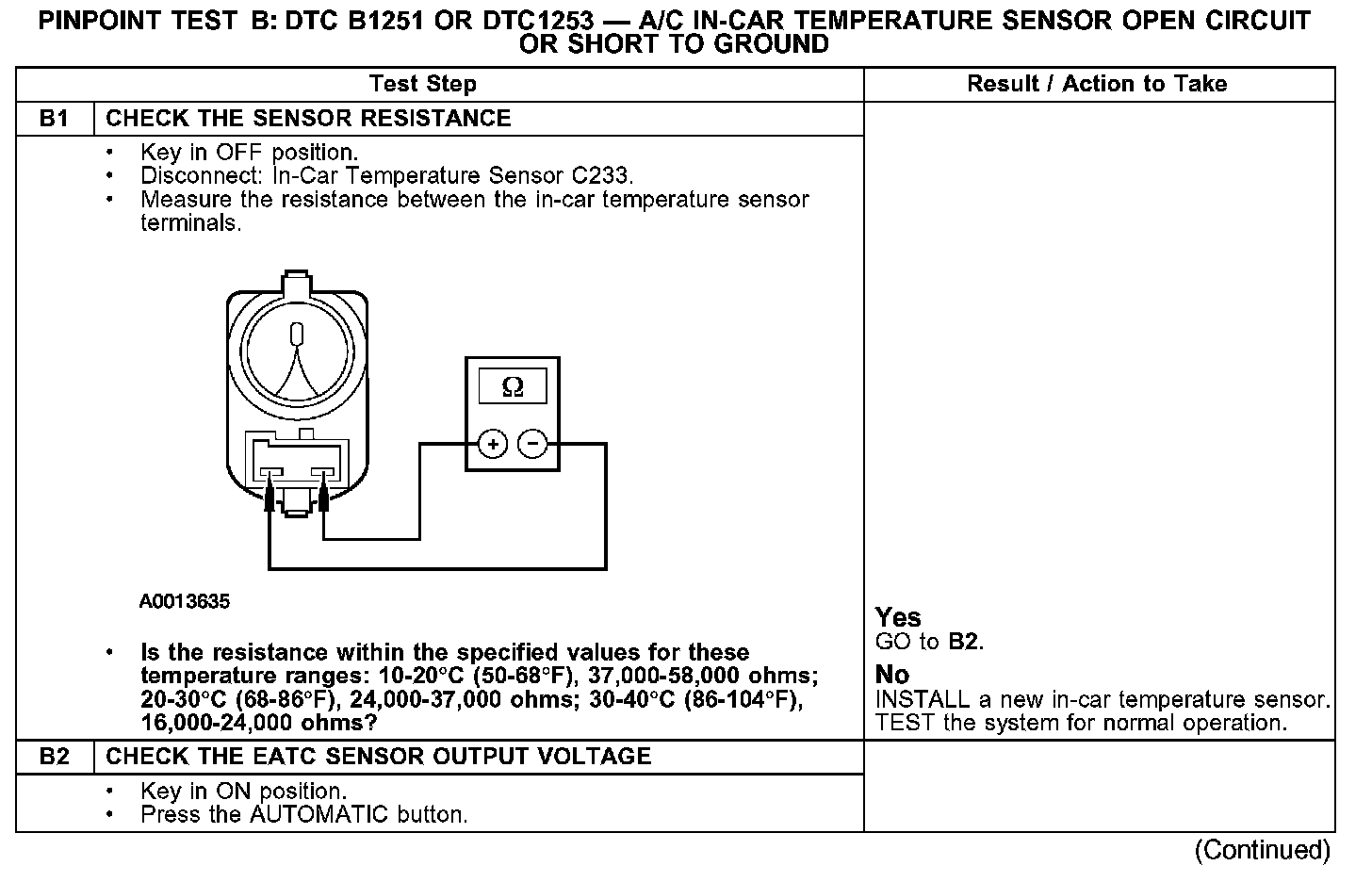

Test B1-B2:

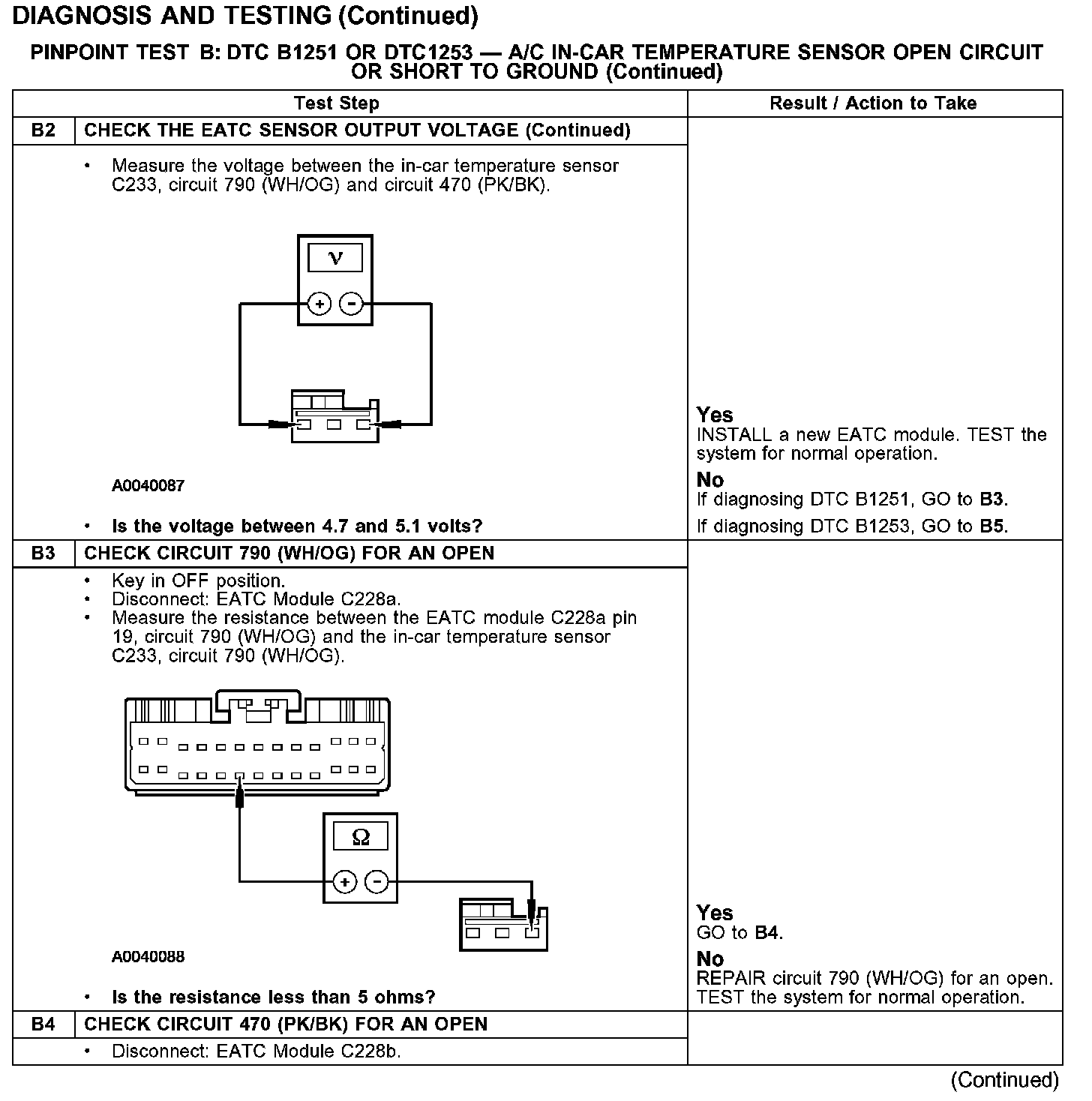

Test B2-B4:

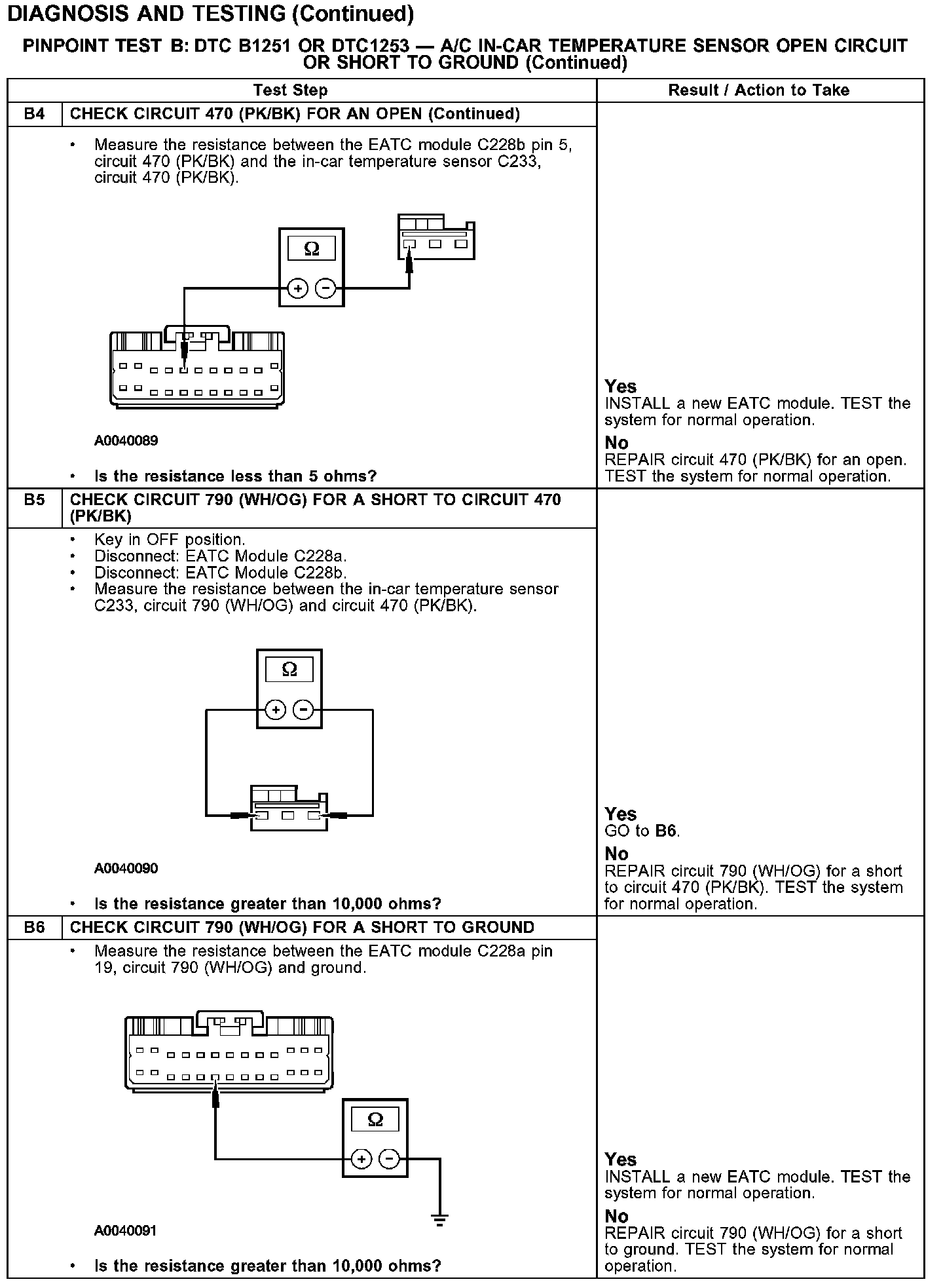

Test B4-B6:
