Test R

PINPOINT TEST R: THE BLOWER MOTOR DOES NOT OPERATE CORRECTLY - EATC

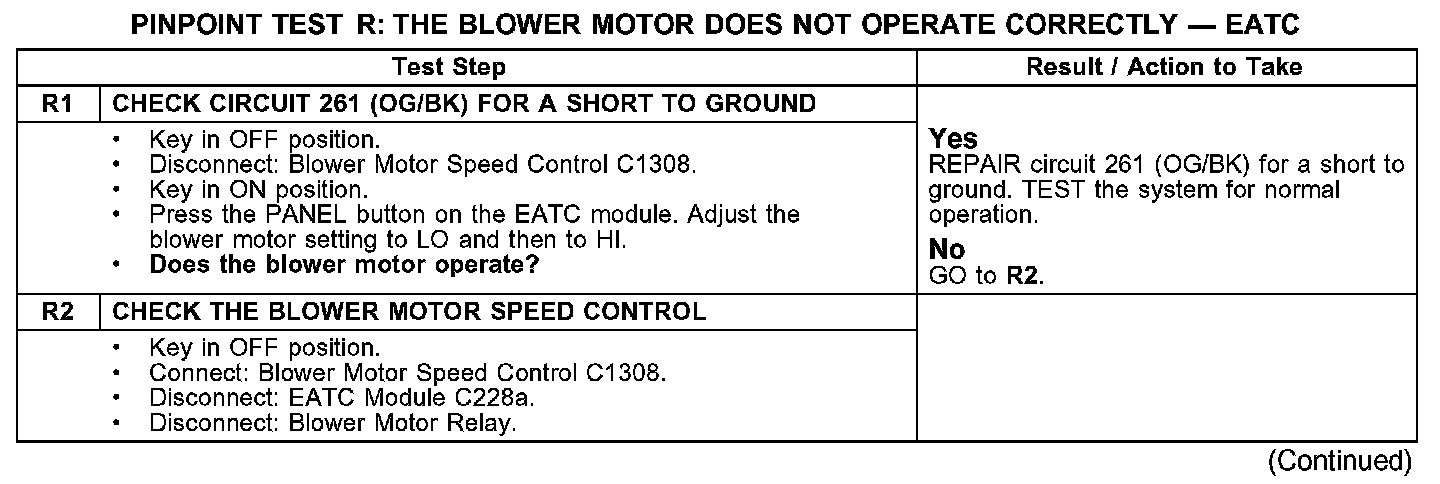

Test R1-R2:

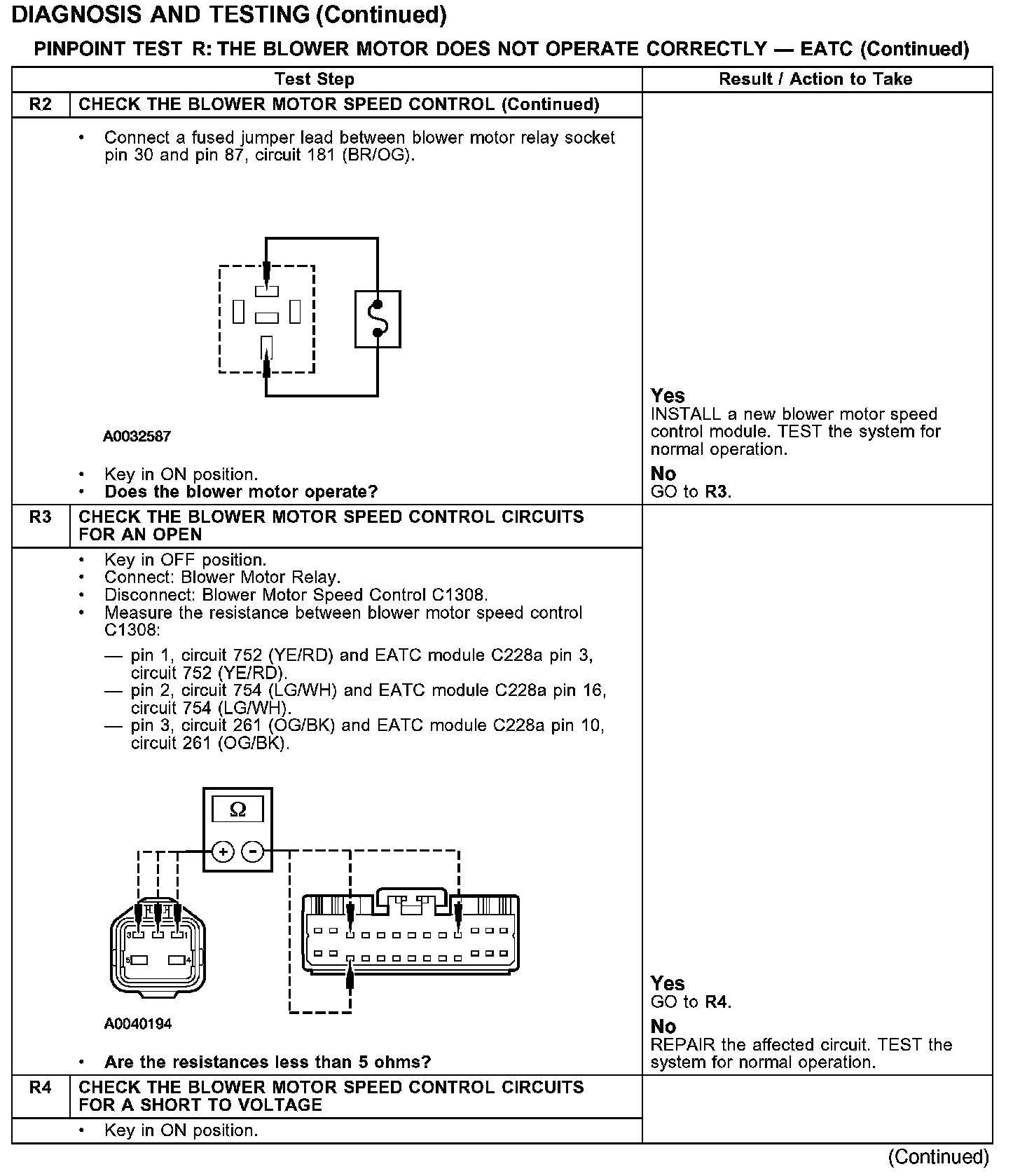

Test R2-R4:

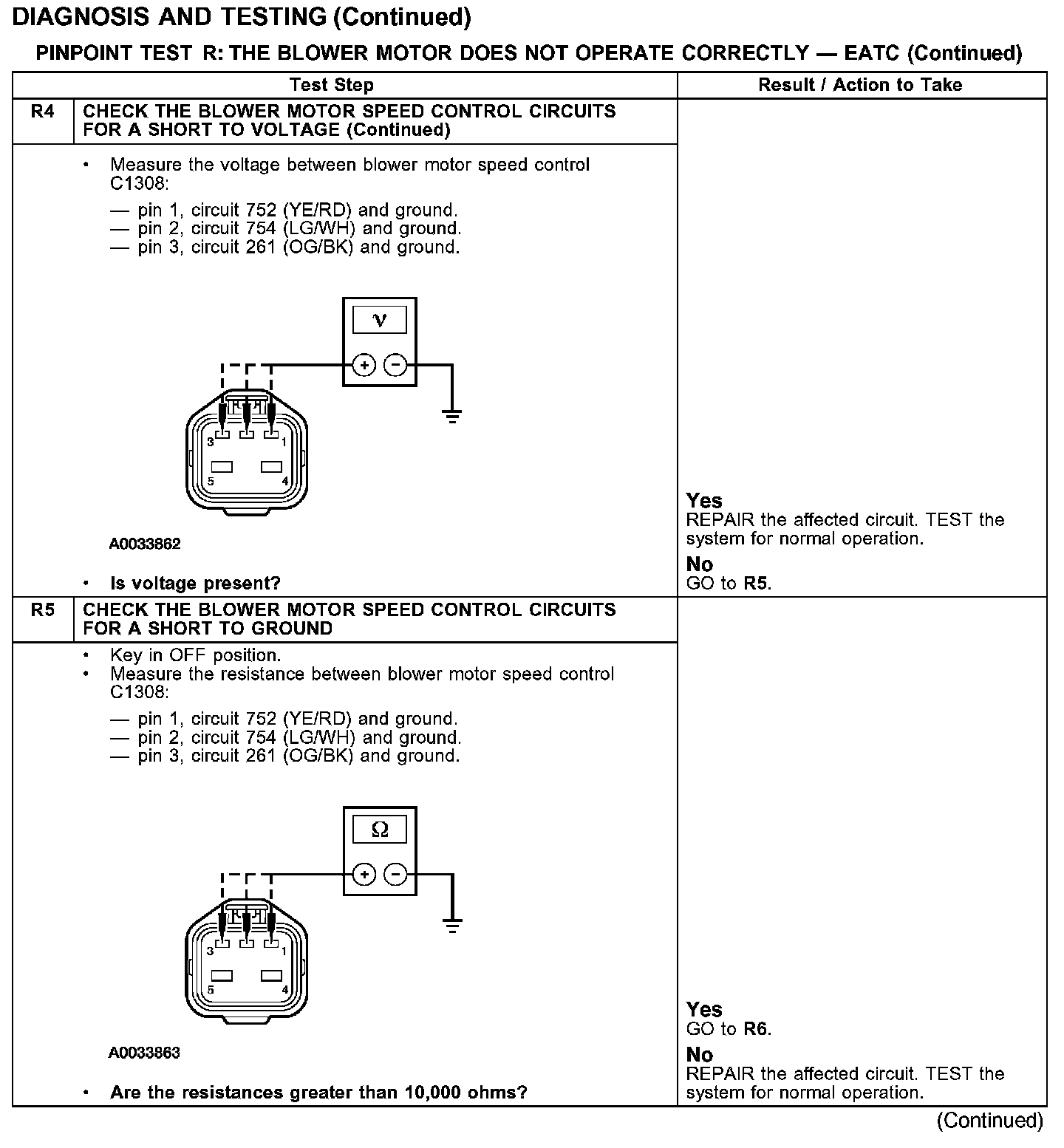

Test R4-R5:

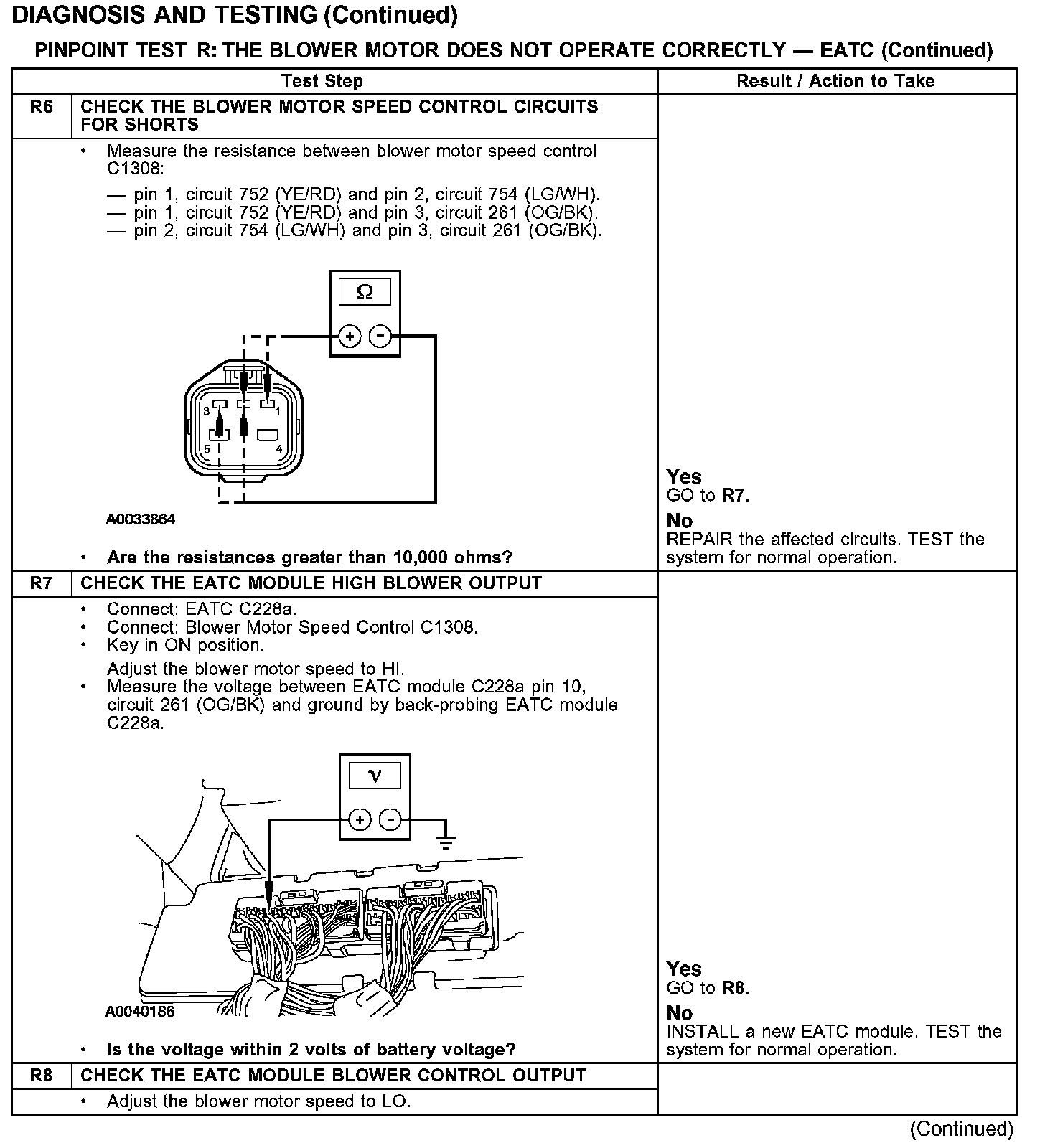

Test R6-R8:

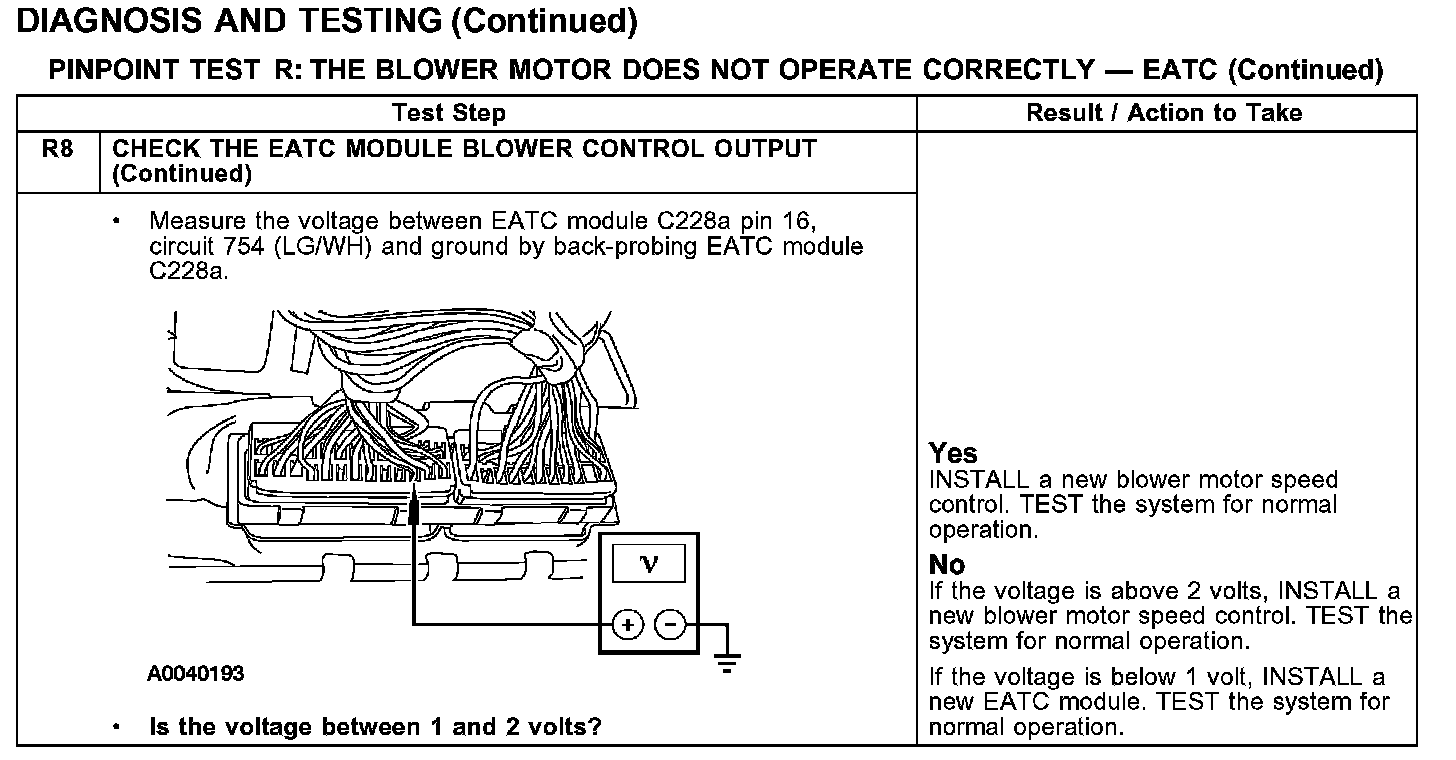

Test R8 Continued:
