Test X

PINPOINT TEST X: THE PANEL/FLOOR AND COOL/WARM CONTROLS DO NOT OPERATE ON THE FRONT/REAR AUXILIARY CONTROLS

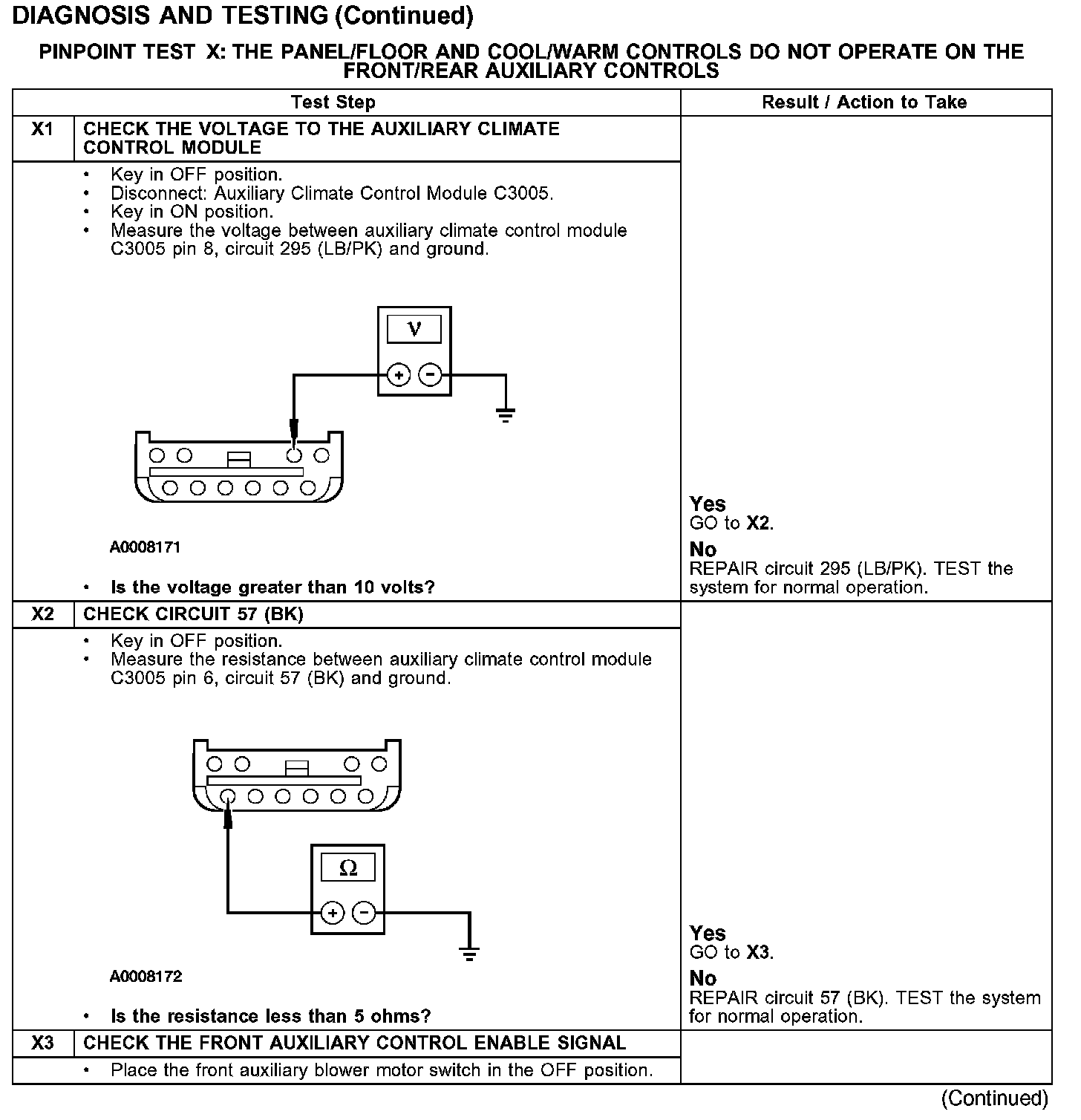

Test X1-X3:






Test X3-X5:

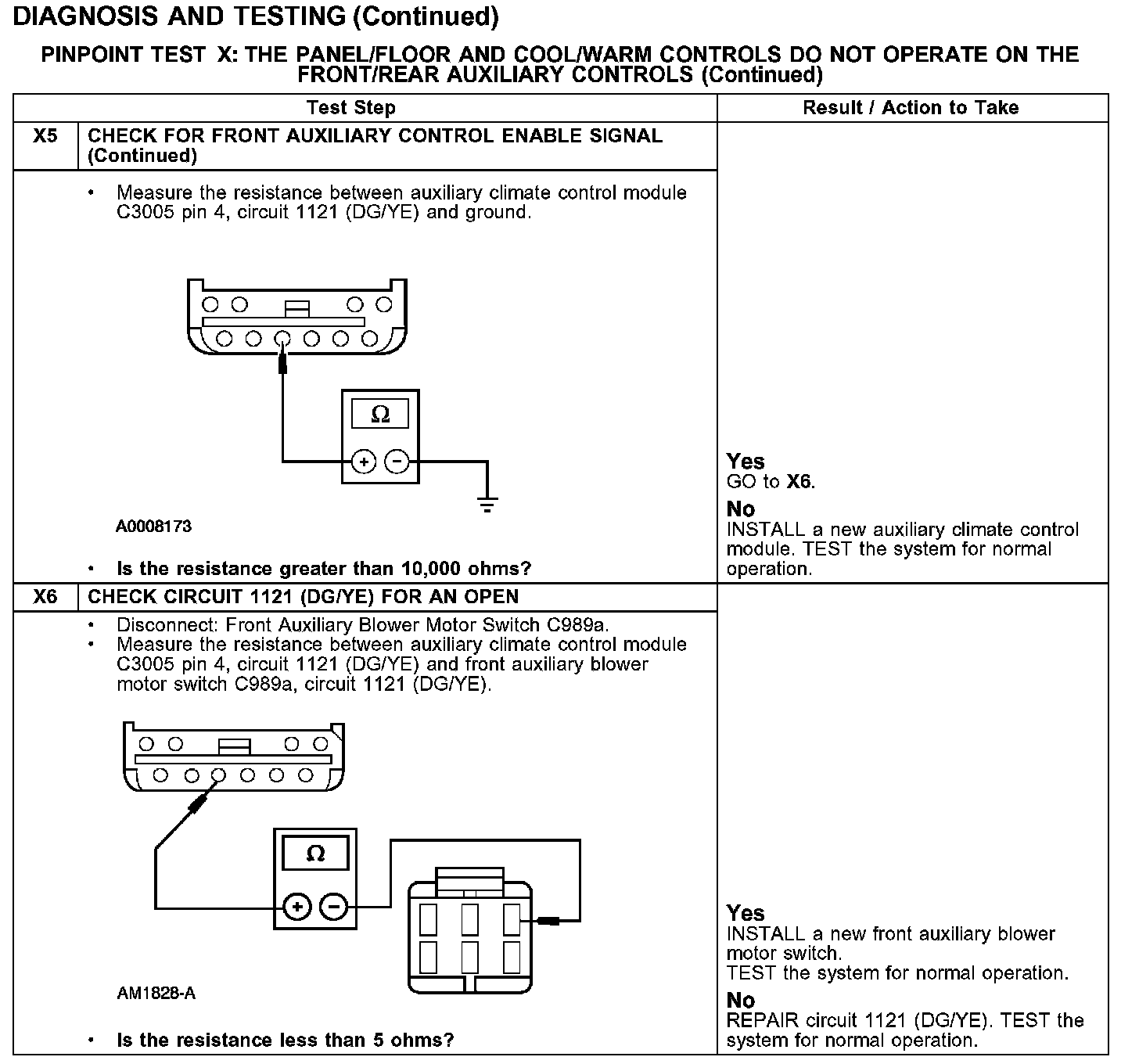

Test X5-X6:
