Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

REMOVAL
1. Disconnect the battery ground cable.

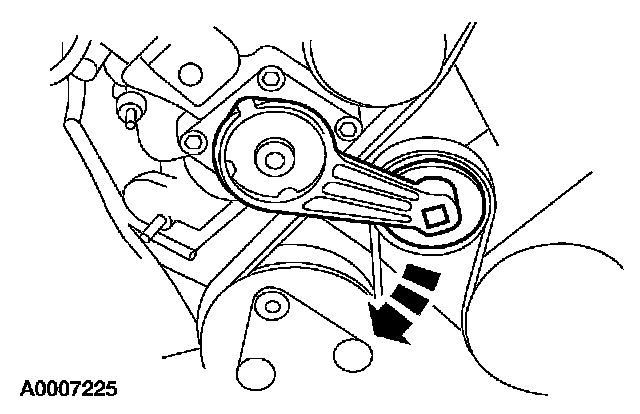

2. Remove the accessory drive belt from the A/C compressor pulley.
3. Raise and support the vehicle.

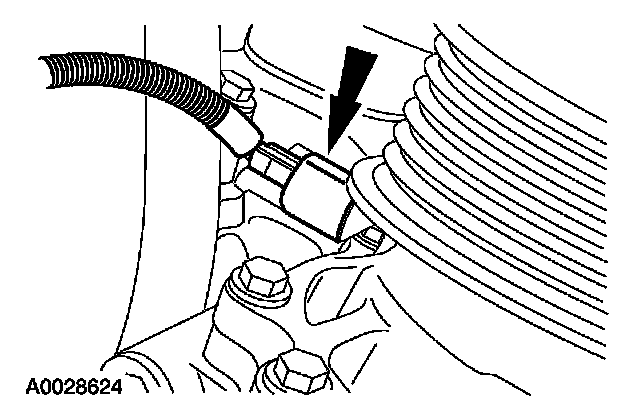

4. Disconnect the wiring harness connector from the crankshaft position sensor.

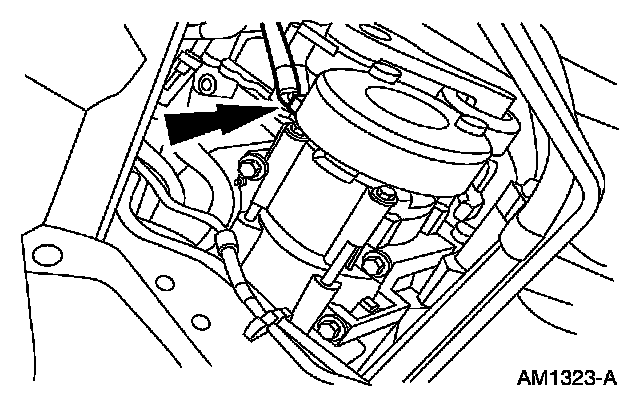

5. Disconnect the A/C compressor field coil electrical connector.

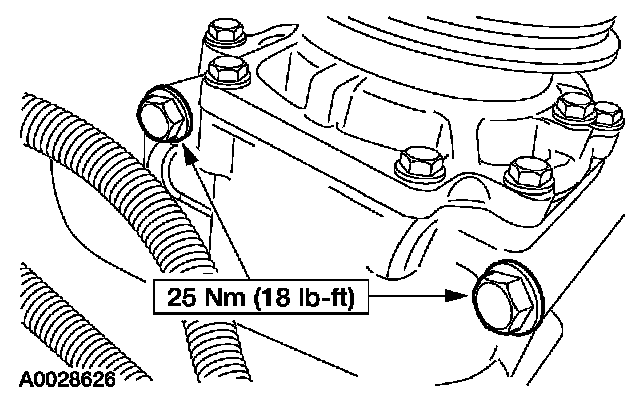

6. NOTE: It is not necessary to remove the A/C compressor bolts.

Loosen the bolts enough for the compressor to slide down one inch, allowing access for crankshaft position (CKP) sensor removal.







7. Remove the bolt and the CKP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
