Intake Manifold

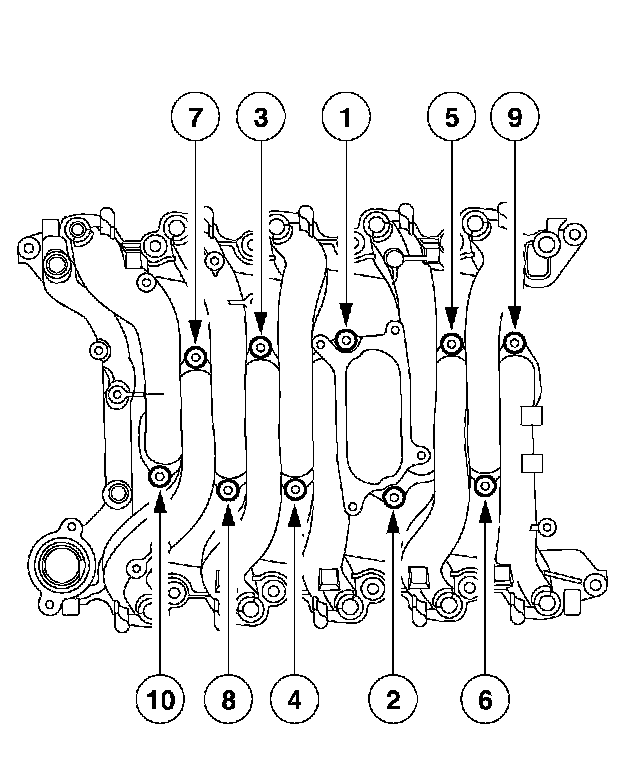

Lower Intake manifold
Install the 10 bolts.





Tighten the bolts in two stages.
Tighten the bolts in the sequence shown.
^ Stage 1: Tighten to 2 Nm (18 inch lbs.).
^ Stage 2: Tighten to 10 Nm (89 inch lbs.).

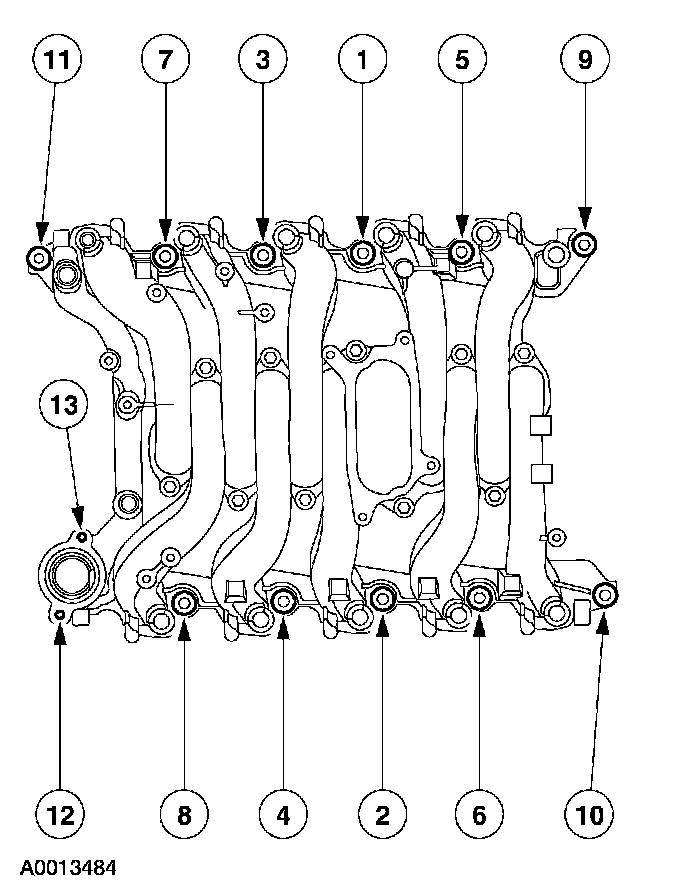

Upper Intake manifold





Tighten the bolts in two stages, in the sequence shown.
^ Stage 1: Tighten to 2 Nm (18 inch lbs.).
^ Stage 2: Tighten to 25 Nm (18 ft. lbs.).





Throttle Body adapter
Install the four bolts in two stages:
^ Stage 1: Tighten to 9 Nm (80 inch lbs.)
^ Stage 2: Tighten an additional 90°.
