System Specifications

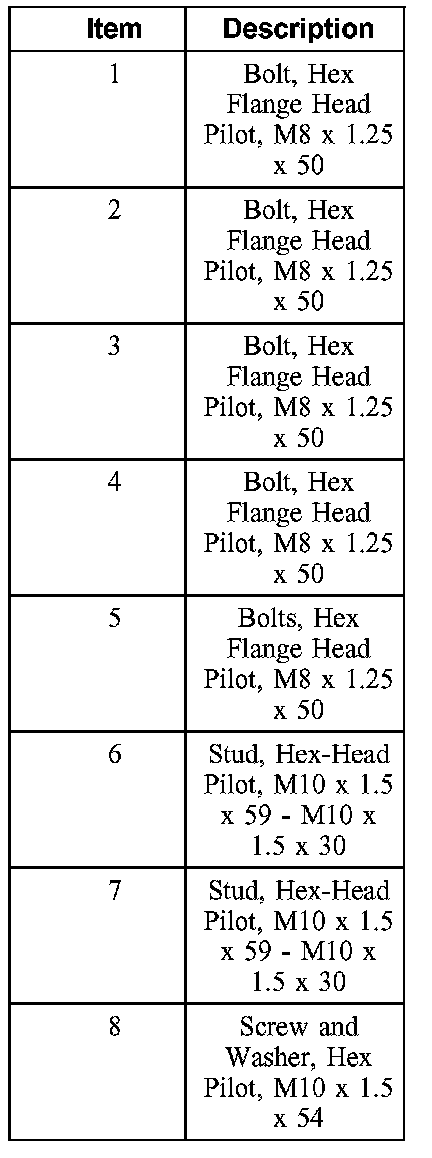

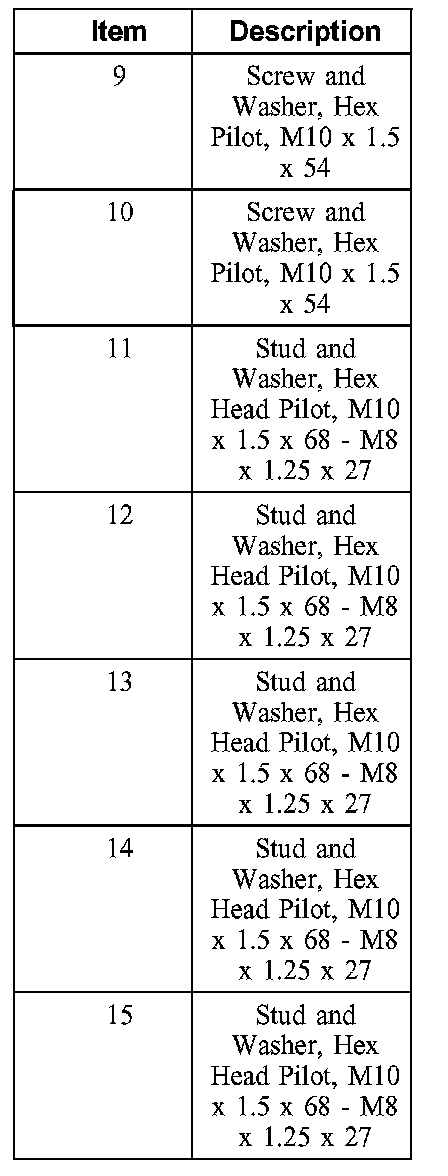

Engine front cover bolts

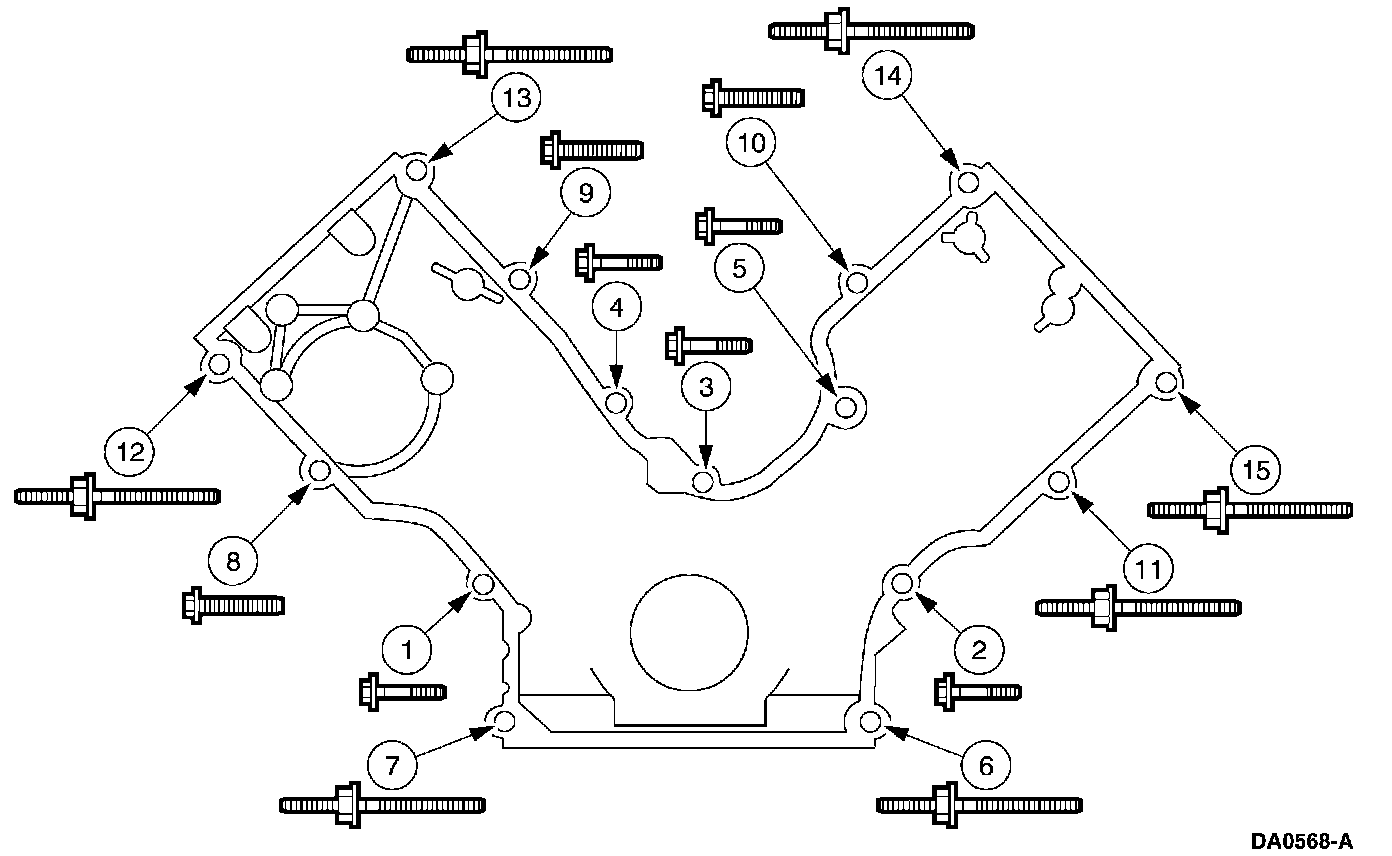

Tighten the engine front cover fasteners in sequence in two stages.
^ Stage 1: Tighten fasteners 1 through 7 to 25 Nm (18 ft. lbs.).
^ Stage 2: Tighten fasteners 6 through 15 to 48 Nm (35 ft. lbs.).





Camshaft sprocket
Engines equipped with bolt-on sprockets
Install the camshaft sprocket (2).
Install the bolt (1).
Tighten the bolt.
^ M10 bolt: Tighten in two stages.
^ Stage 1: Tighten to 40 Nm (30 ft. lbs.).
^ Stage 2: Tighten an additional 90°.
^ M12 bolt: Tighten to 120 Nm (90 ft. lbs.).
