High-Pressure

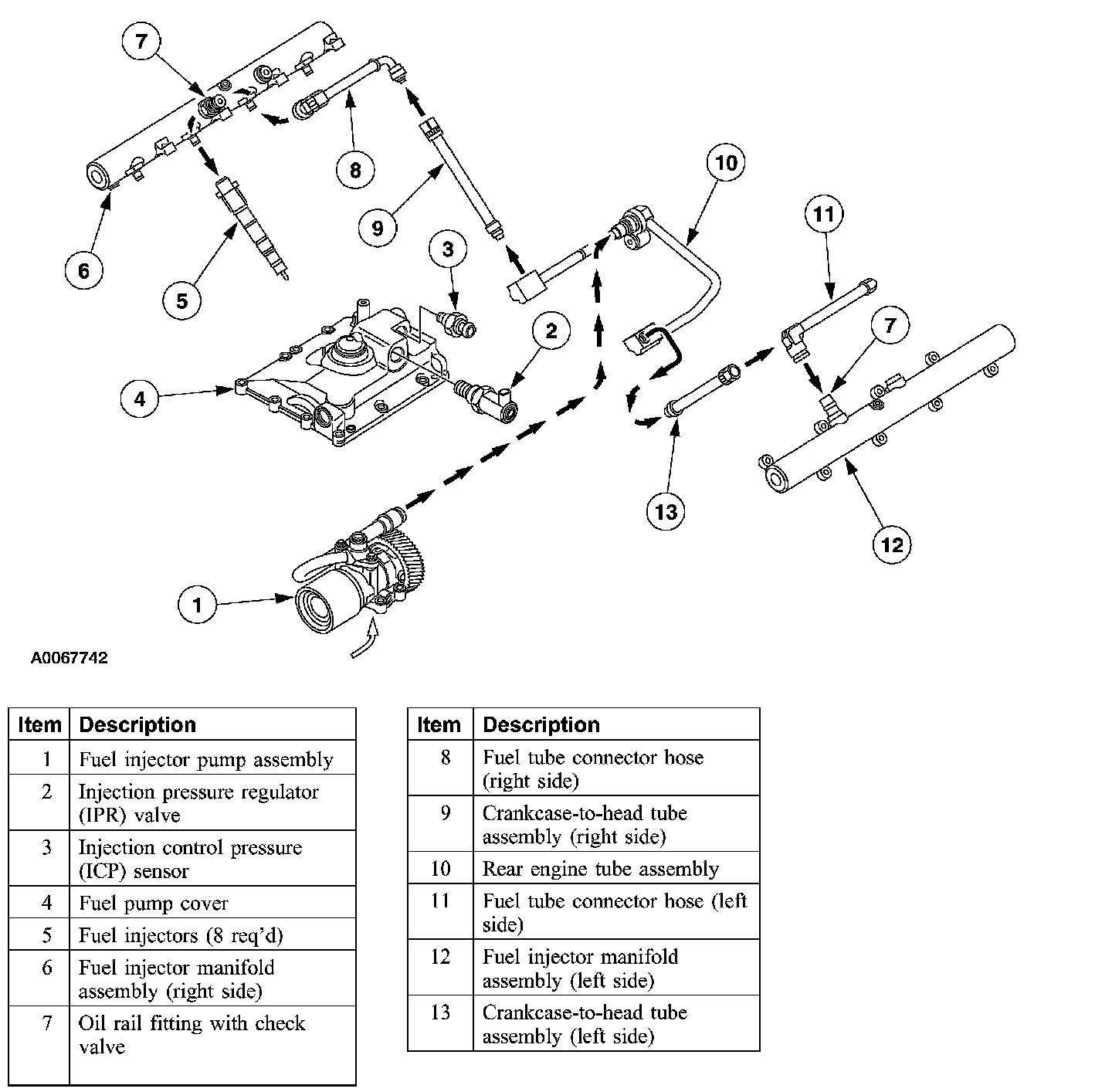

Lubrication System - High-Pressure - Early Build





High-Pressure Oil Flow

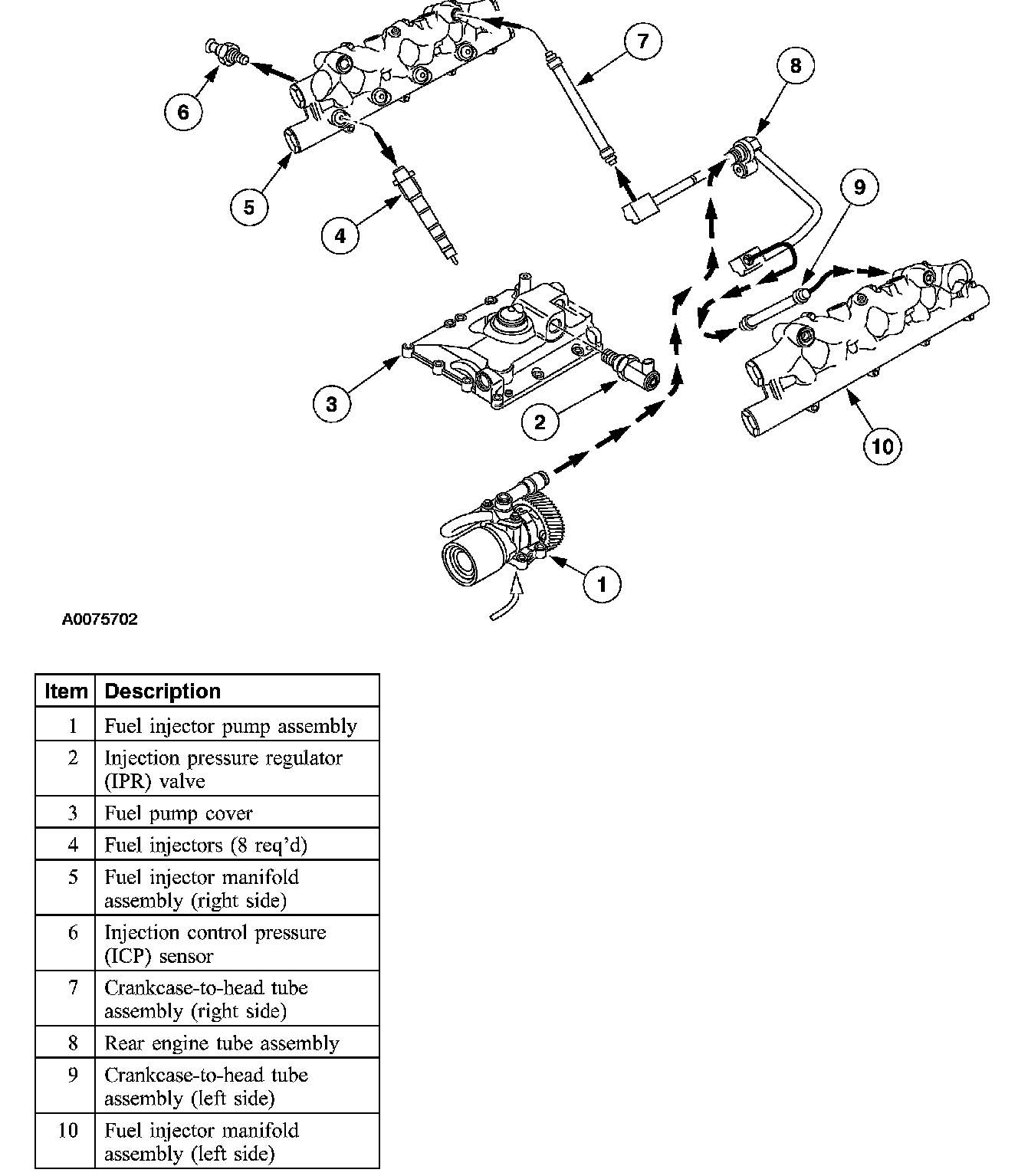

Lubrication System - High-Pressure - Late Build





High-Pressure Oil Flow
