Test Q: Injection Control Pressure (ICP) Sensor






PINPOINT TEST Q: INJECTION CONTROL PRESSURE ( ICP ) SENSOR

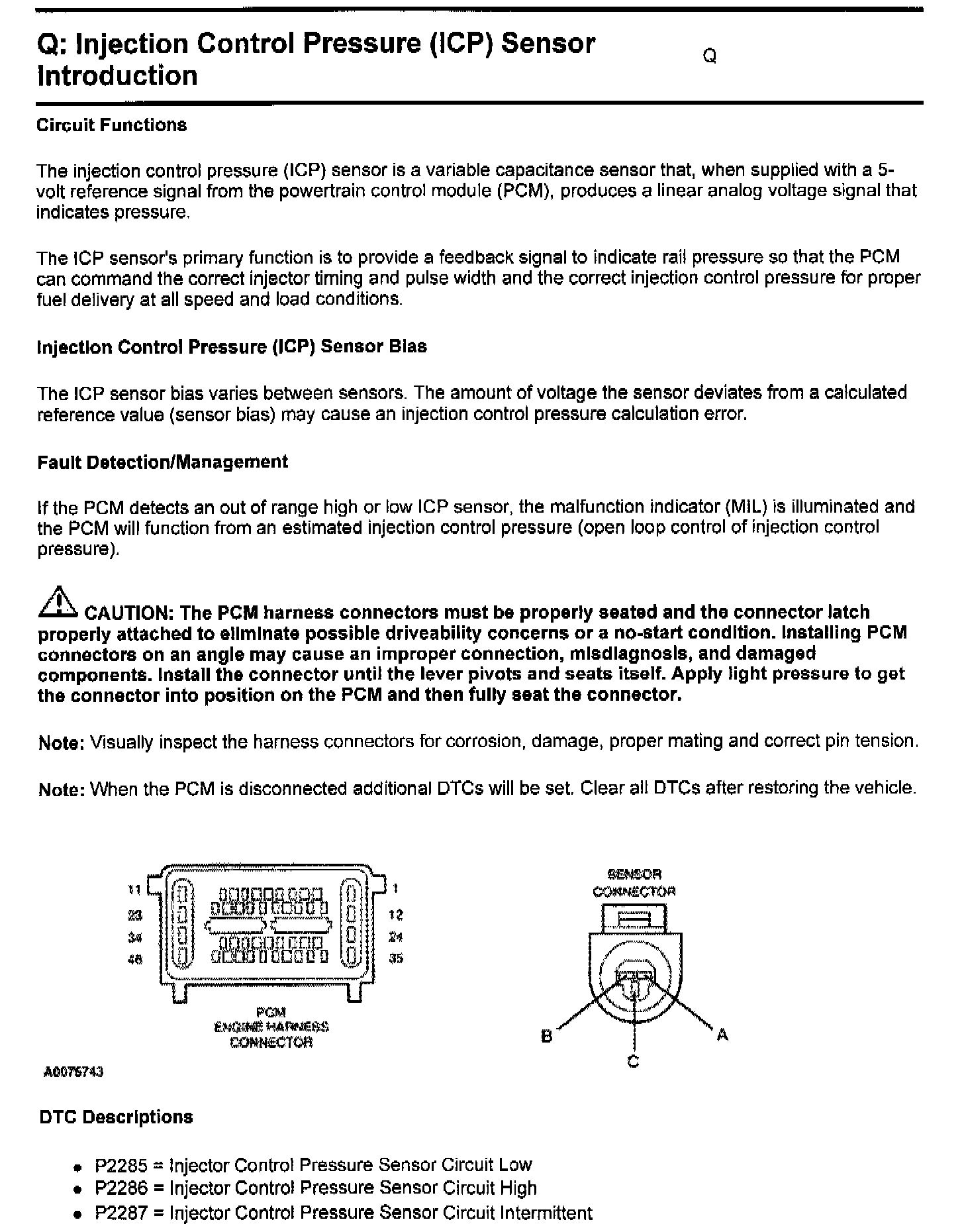

Injection Control Pressure (ICP) Sensor Introduction:

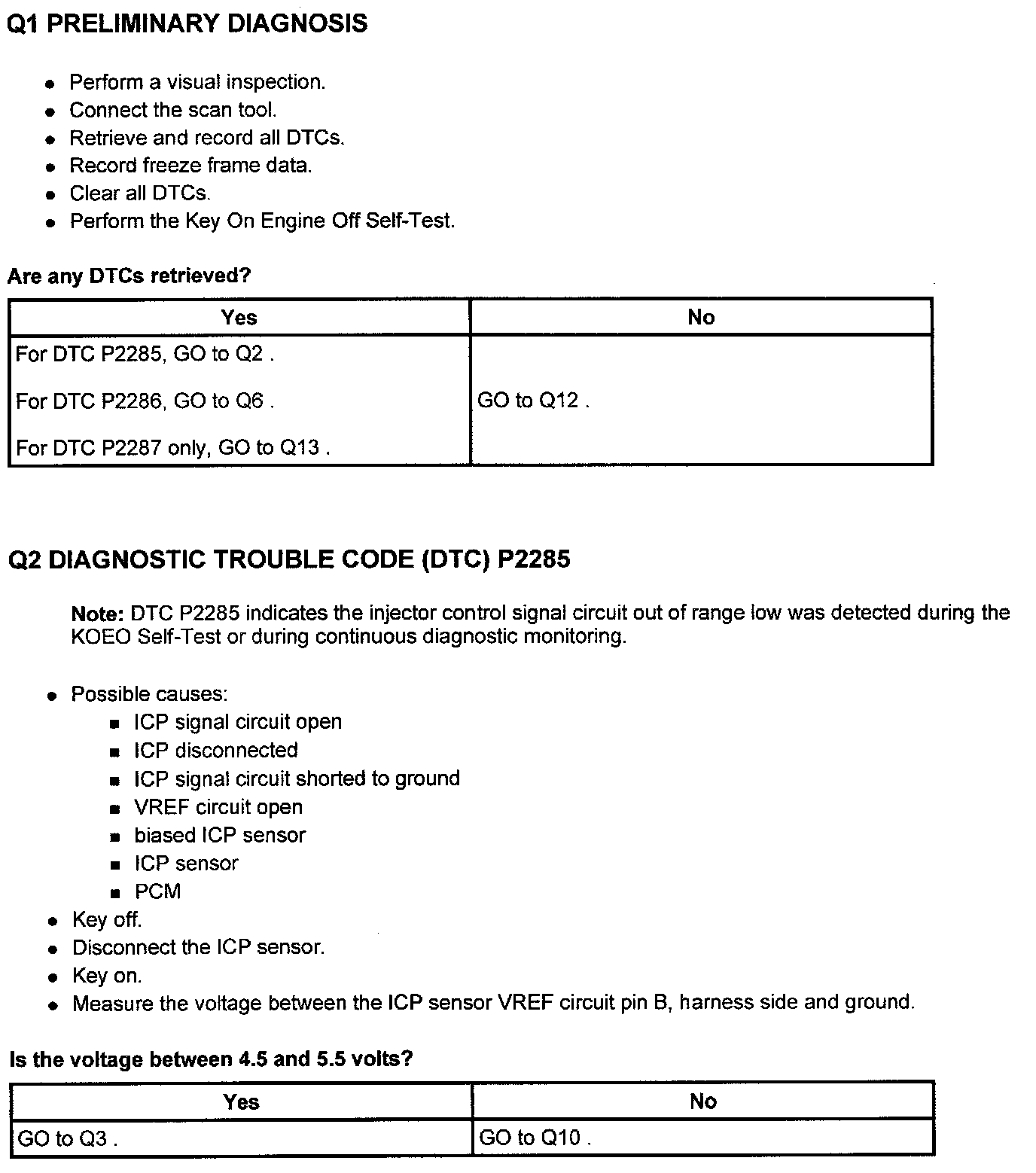

Test Q1 - Q2:

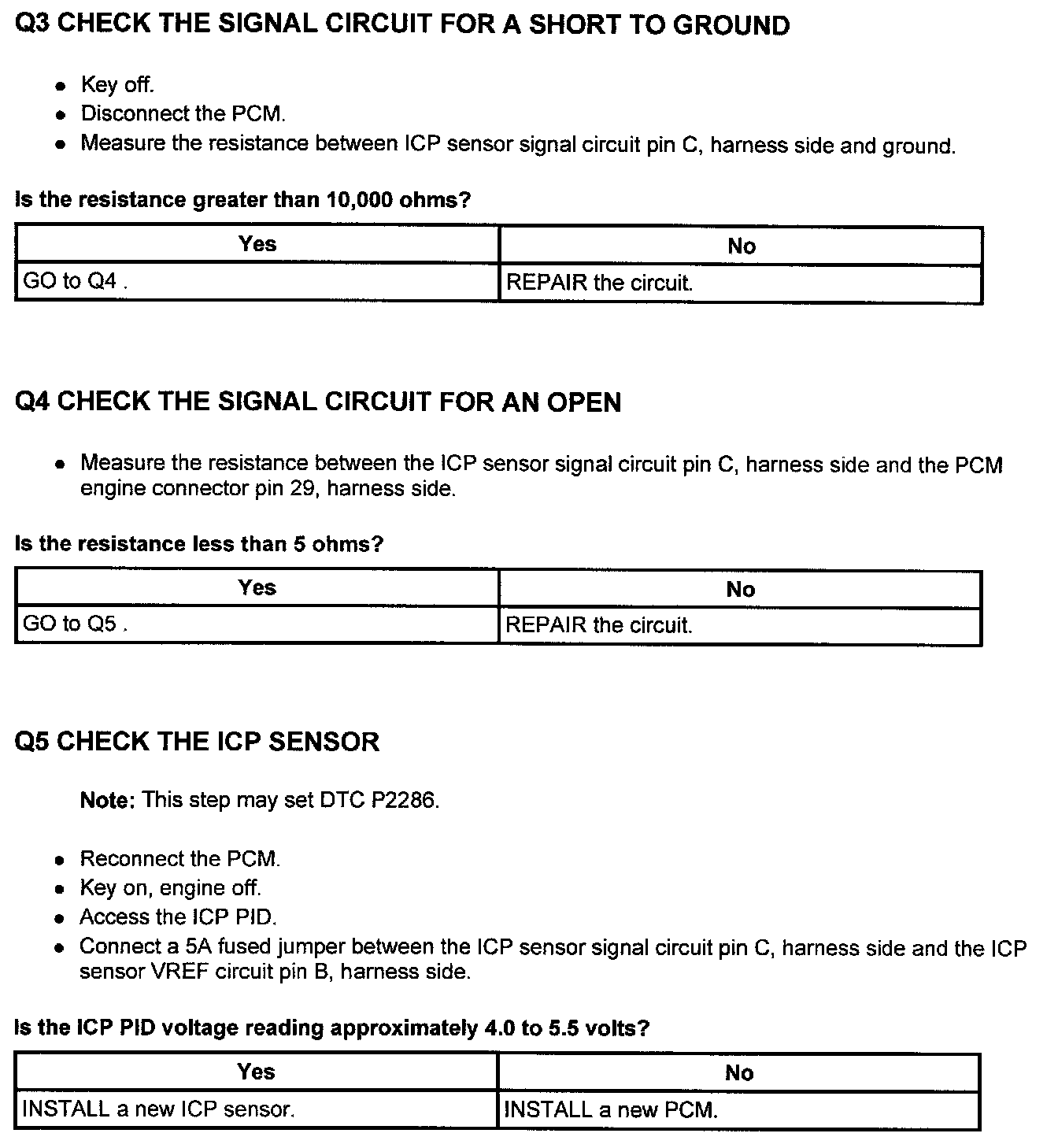

Test Q3 - Q5:

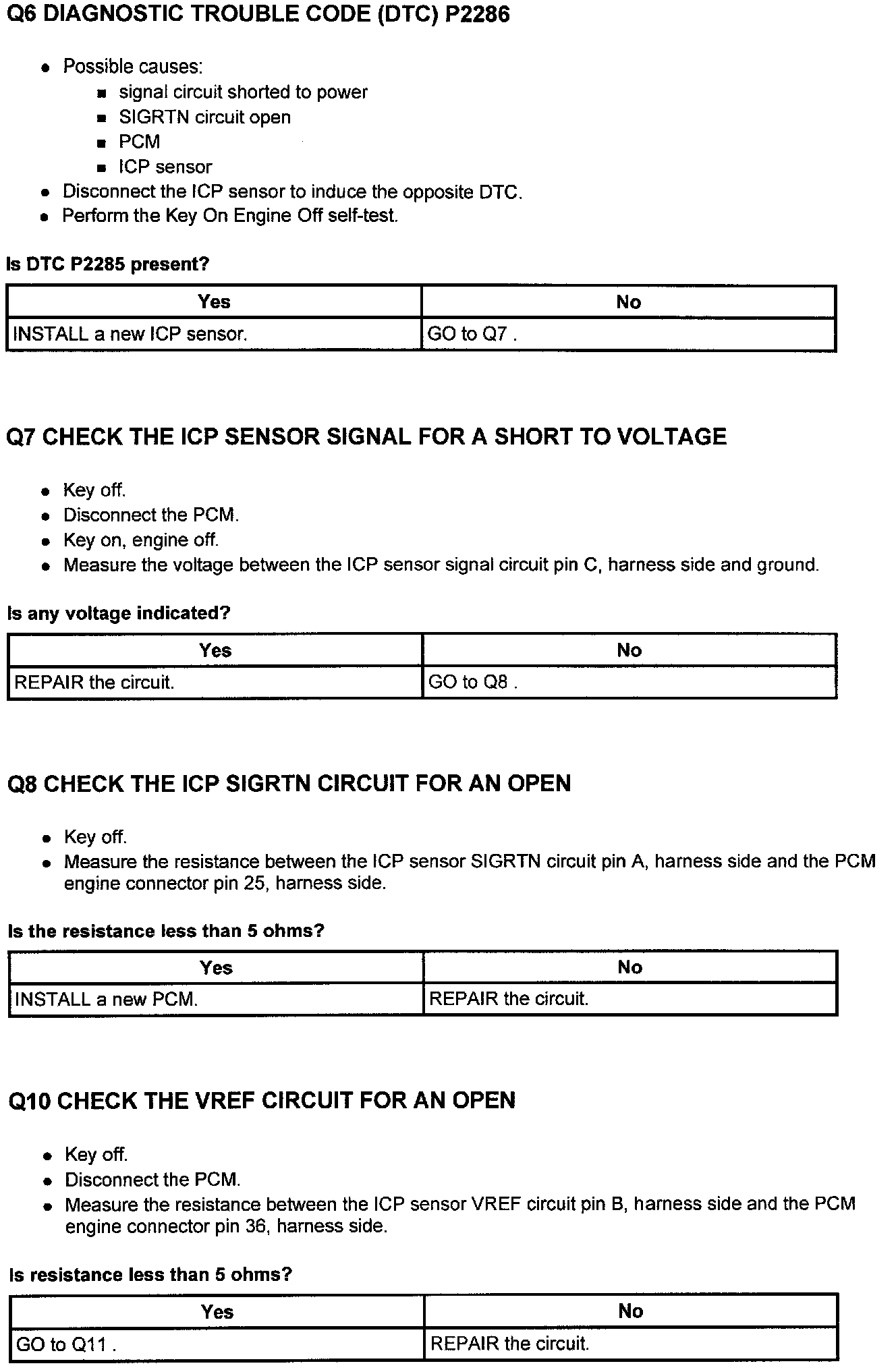

Test Q6 - Q10:

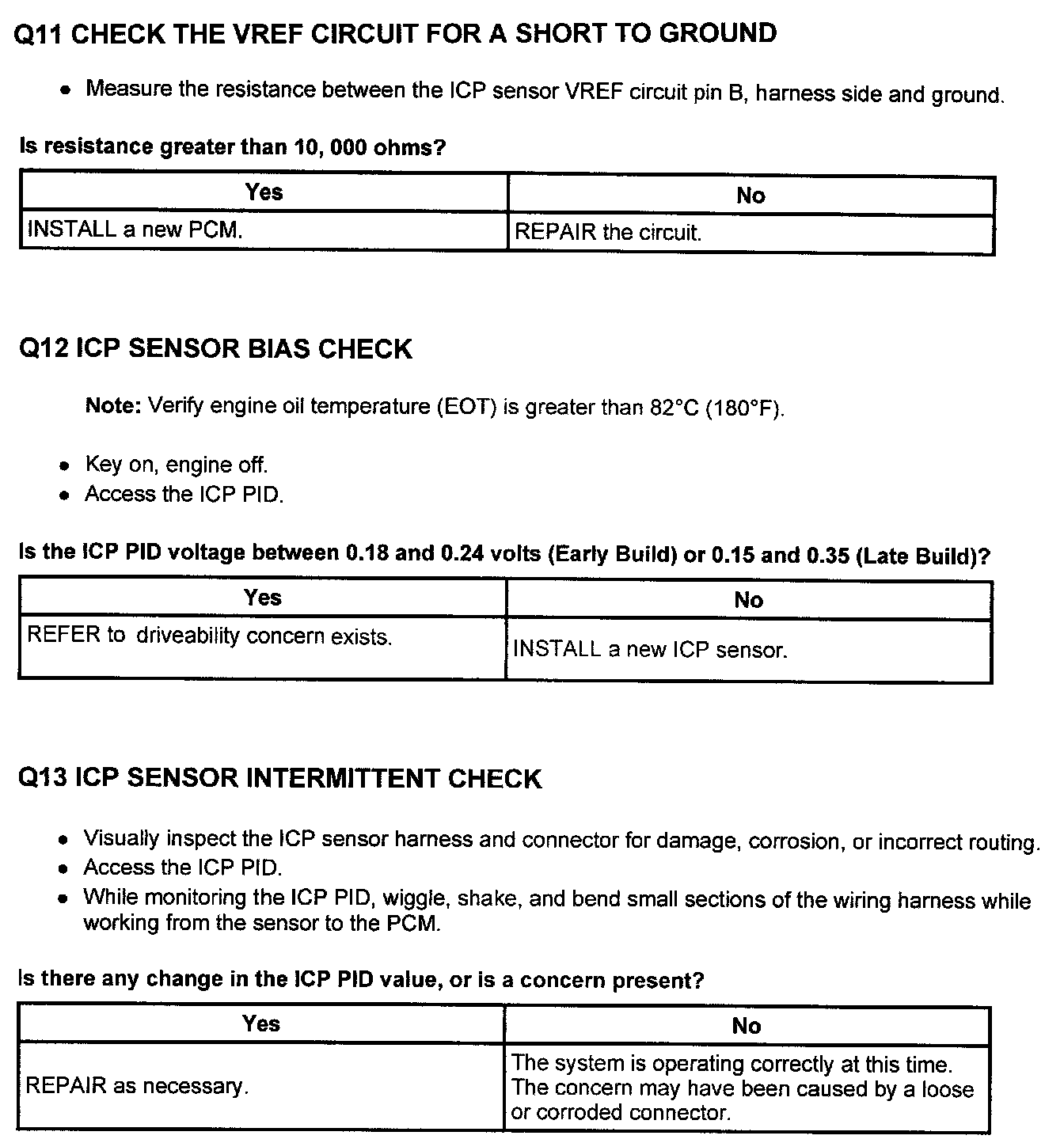

Test Q11 - Q13:
