Test Y: Speed Control Command Switch (SCCS)

PINPOINT TEST Y: SPEED CONTROL COMMAND SWITCH (SCCS)

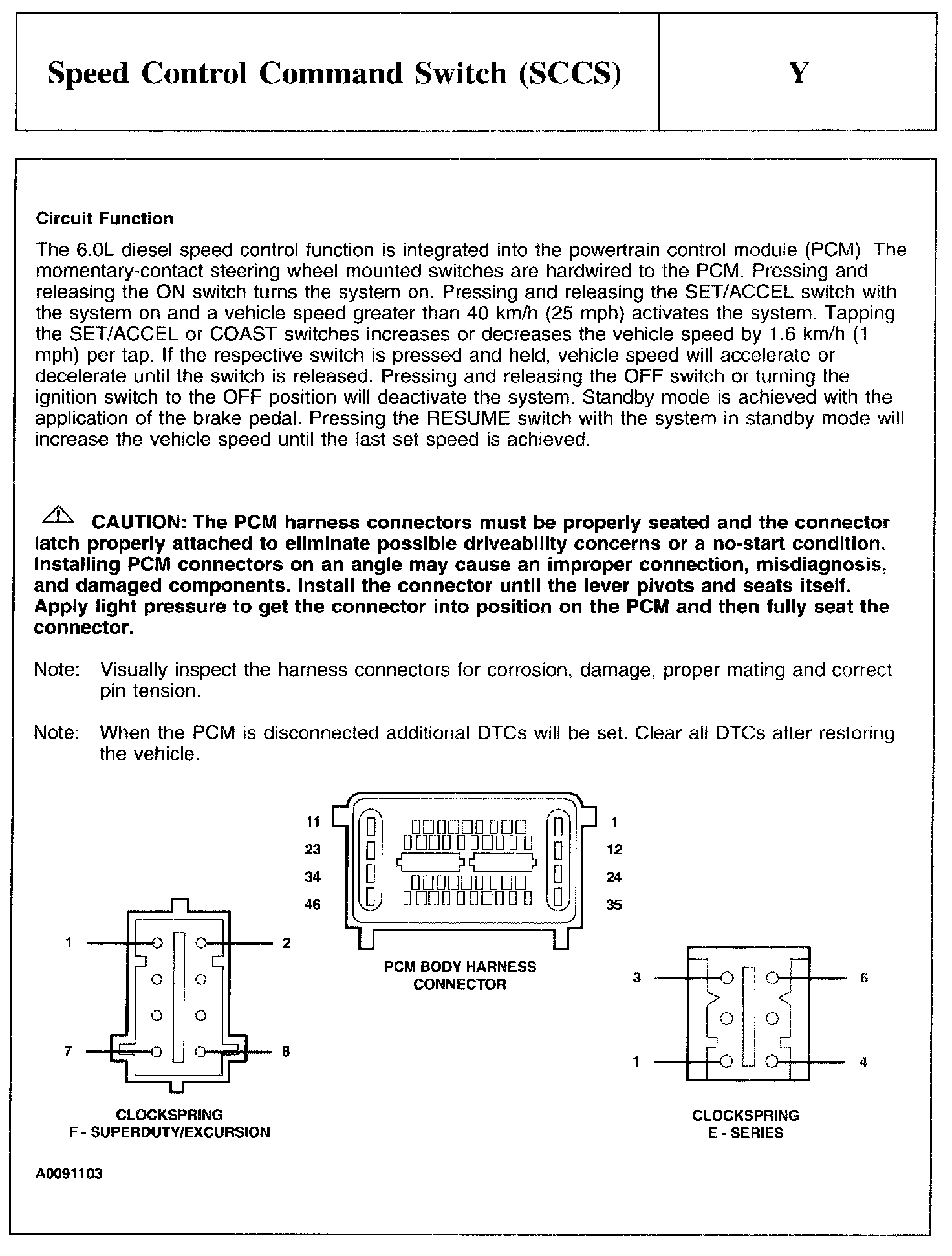

Description, Caution And Schematic:

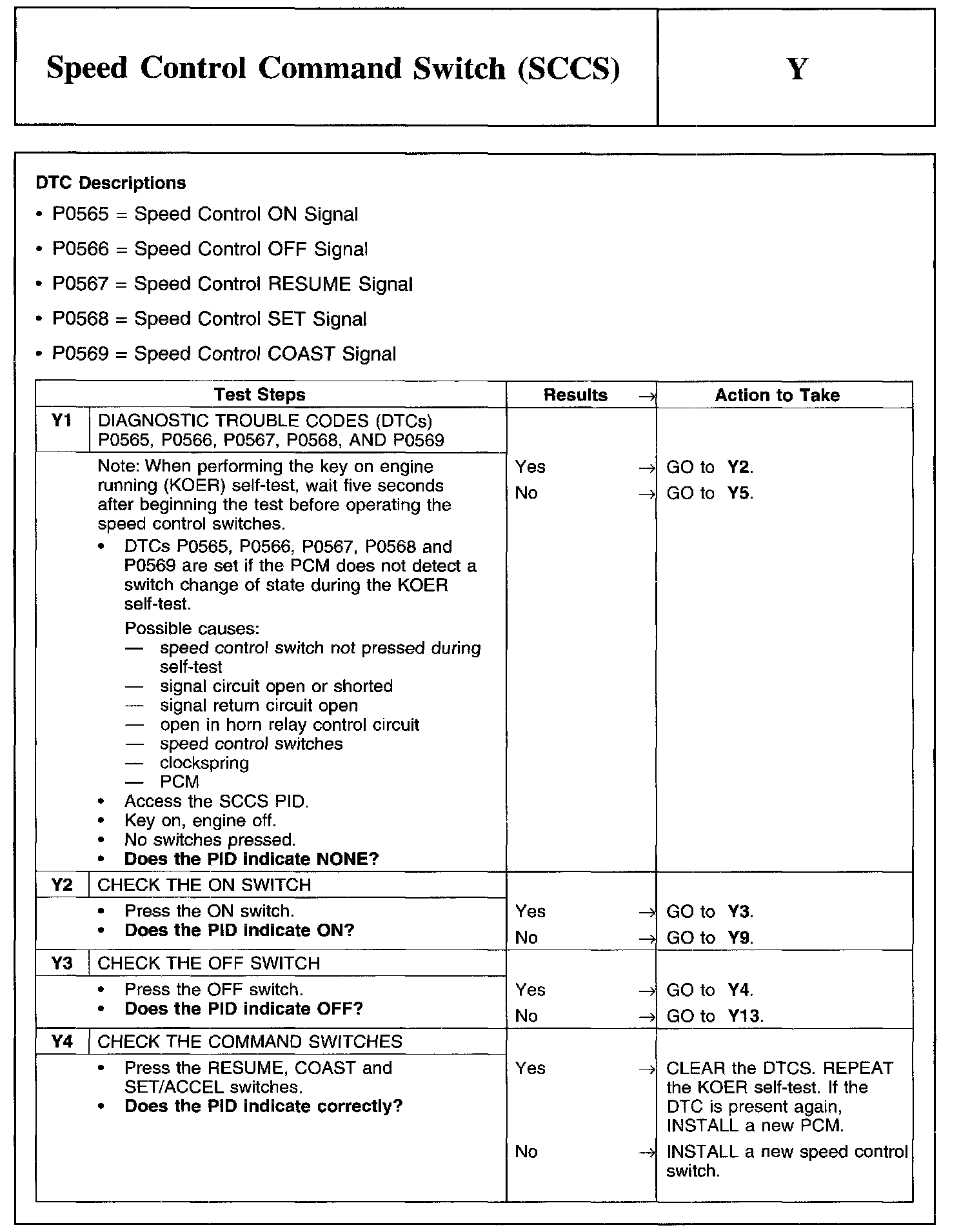

Description, Test Y1-Y4:

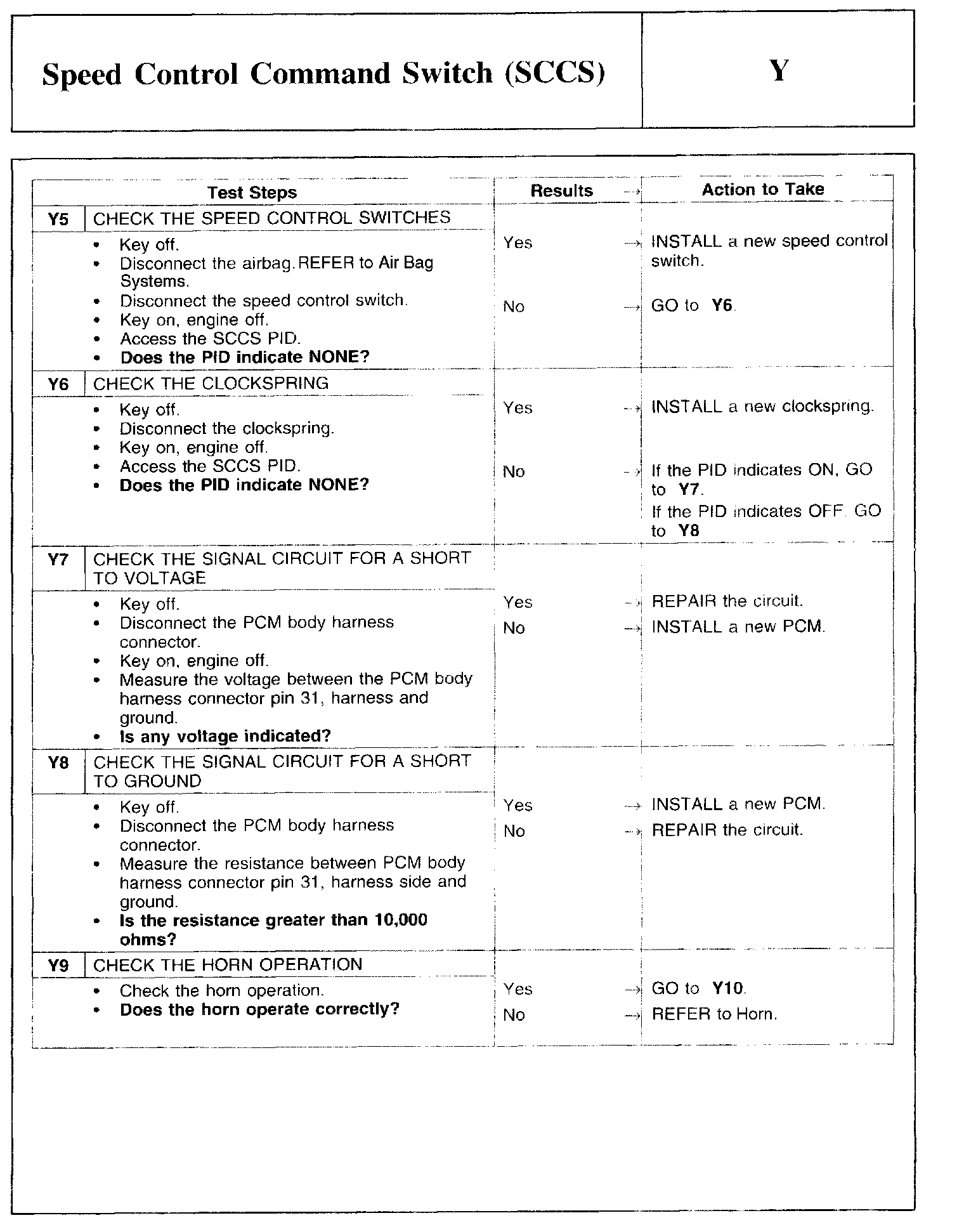

Test Y5-Y9:

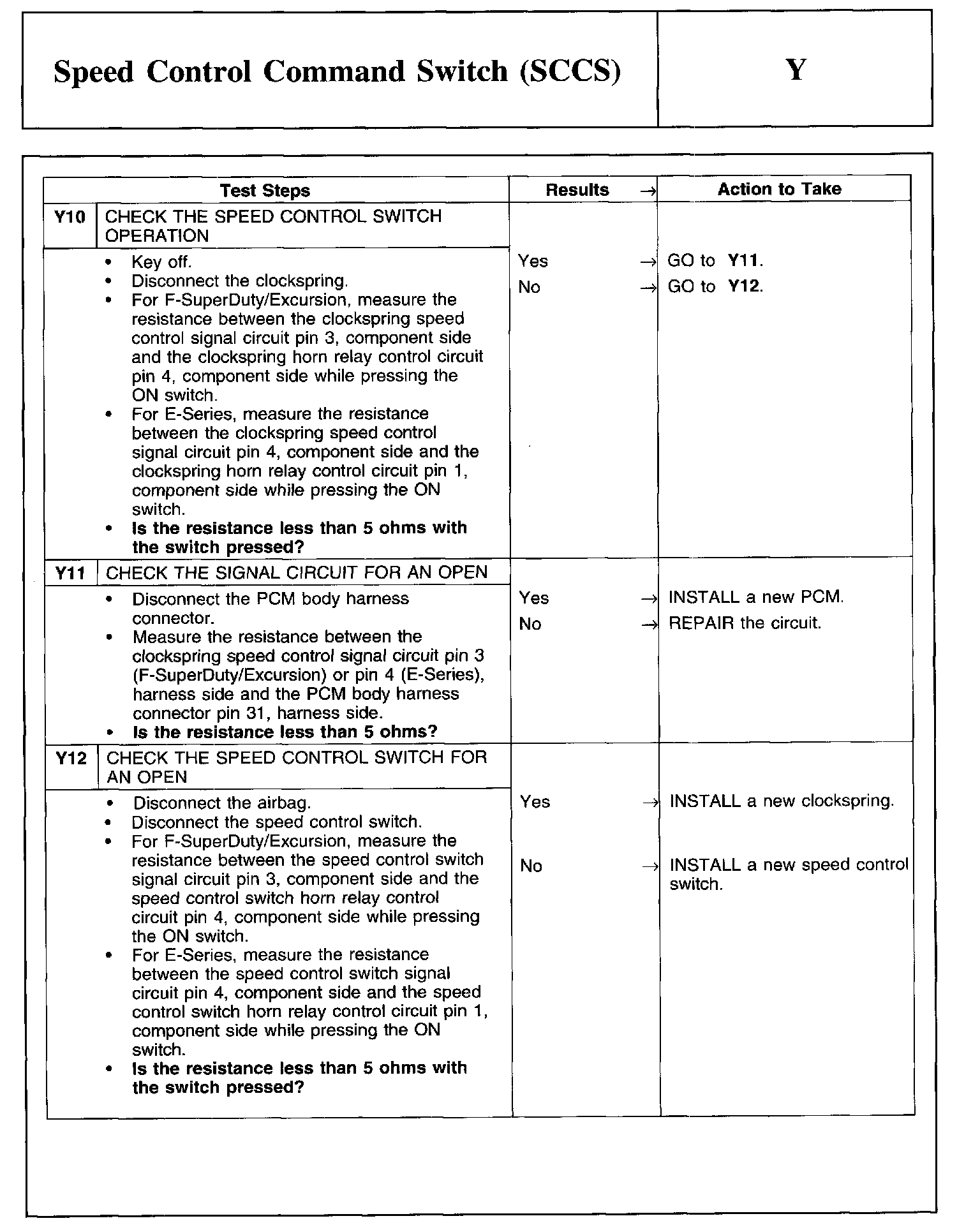

Test Y10-Y12:

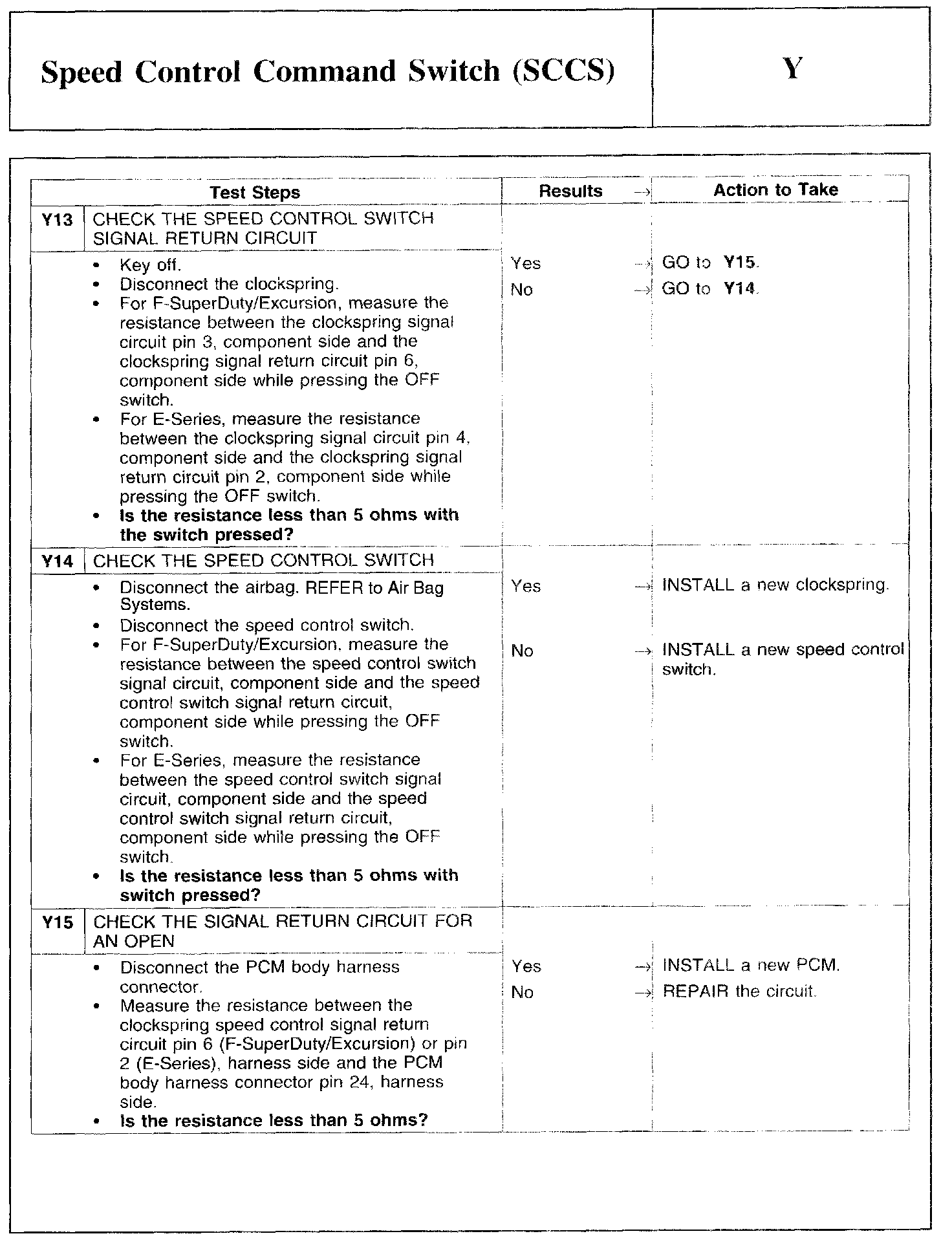

Test Y13-Y15:
