Tests AN: Auxiliary Powertrain Control System

PINPOINT TEST AN: AUXILIARY POWERTRAIN CONTROL SYSTEM

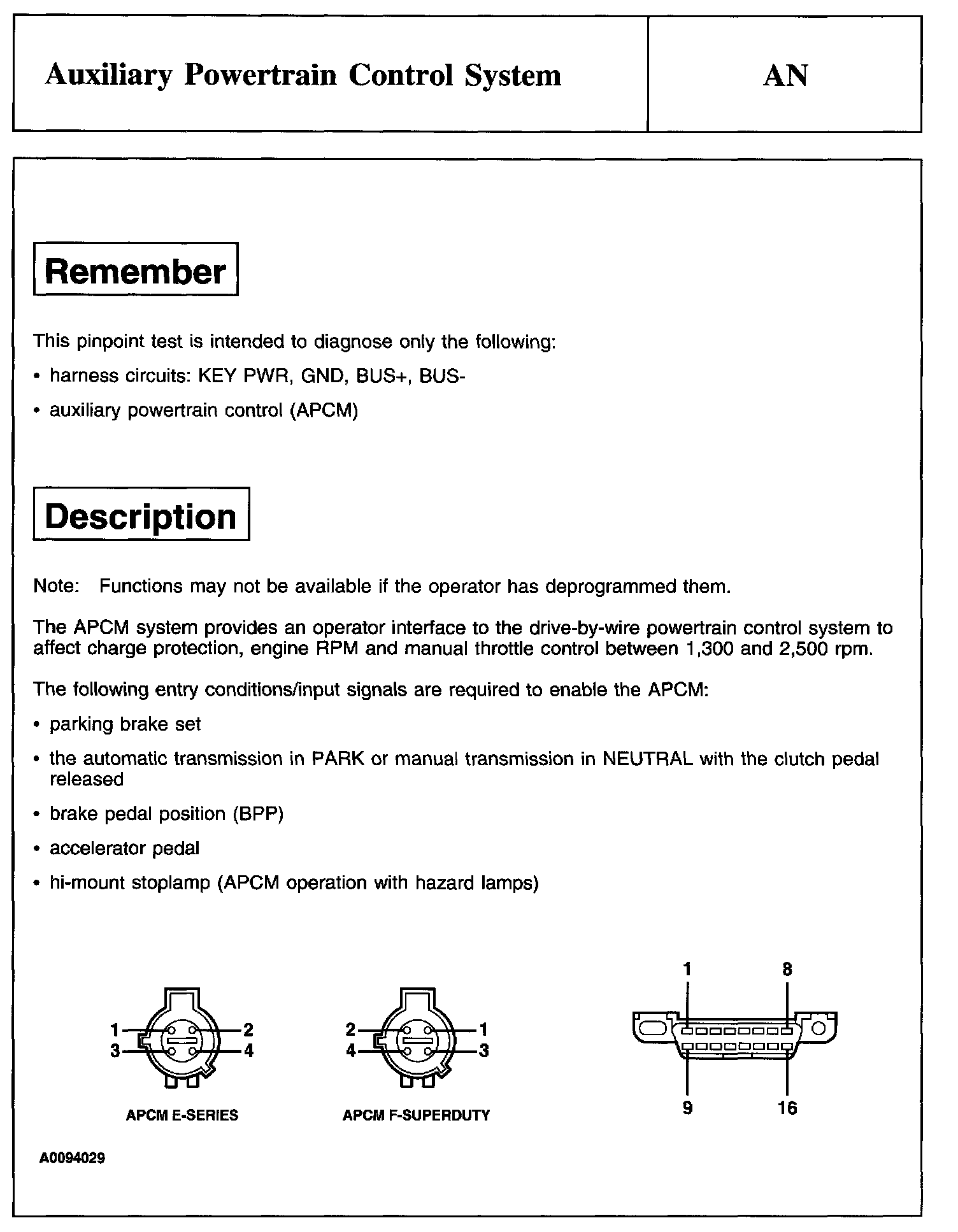

Remember, Description And Schematic:

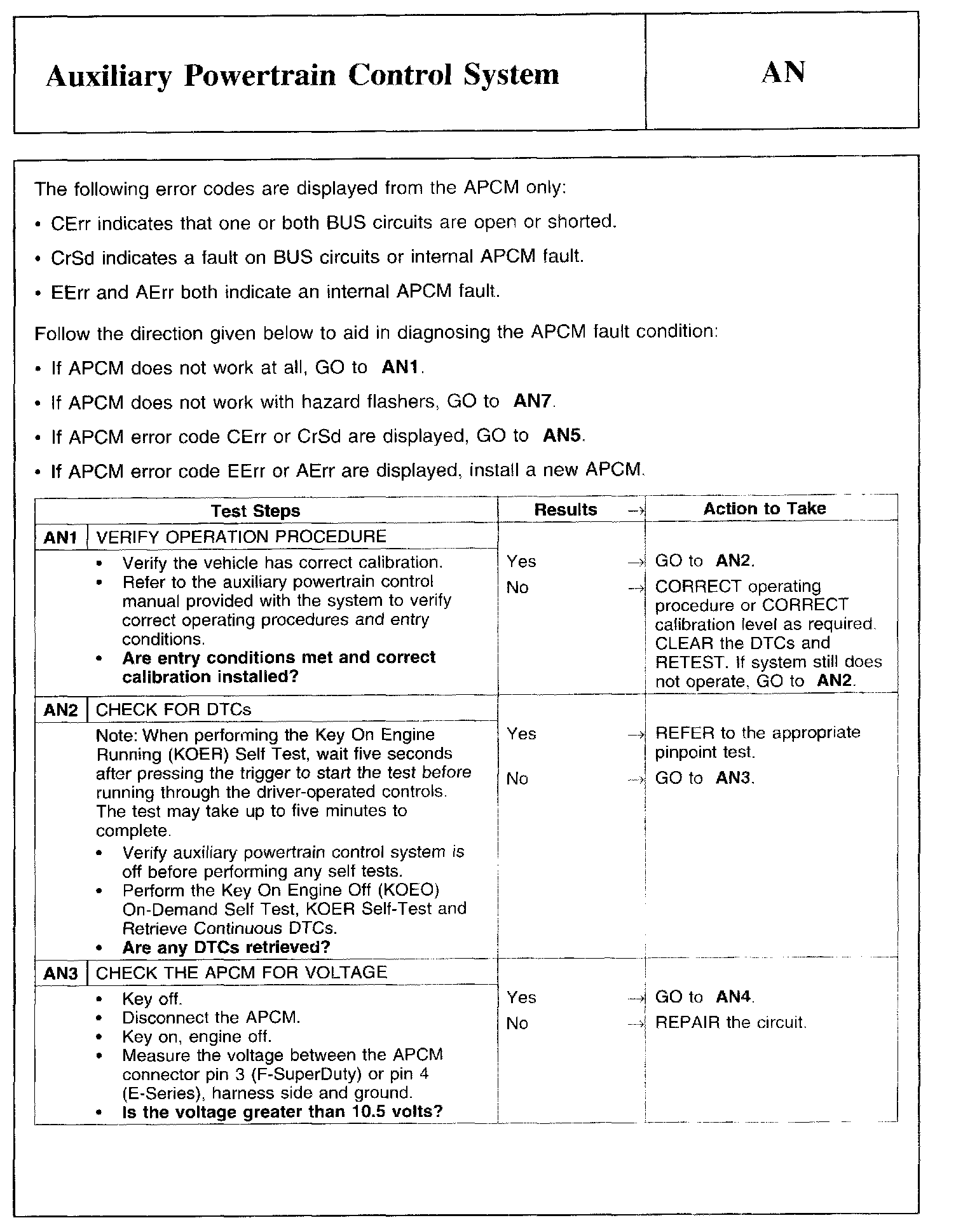

Description, Test AN1-AN3:

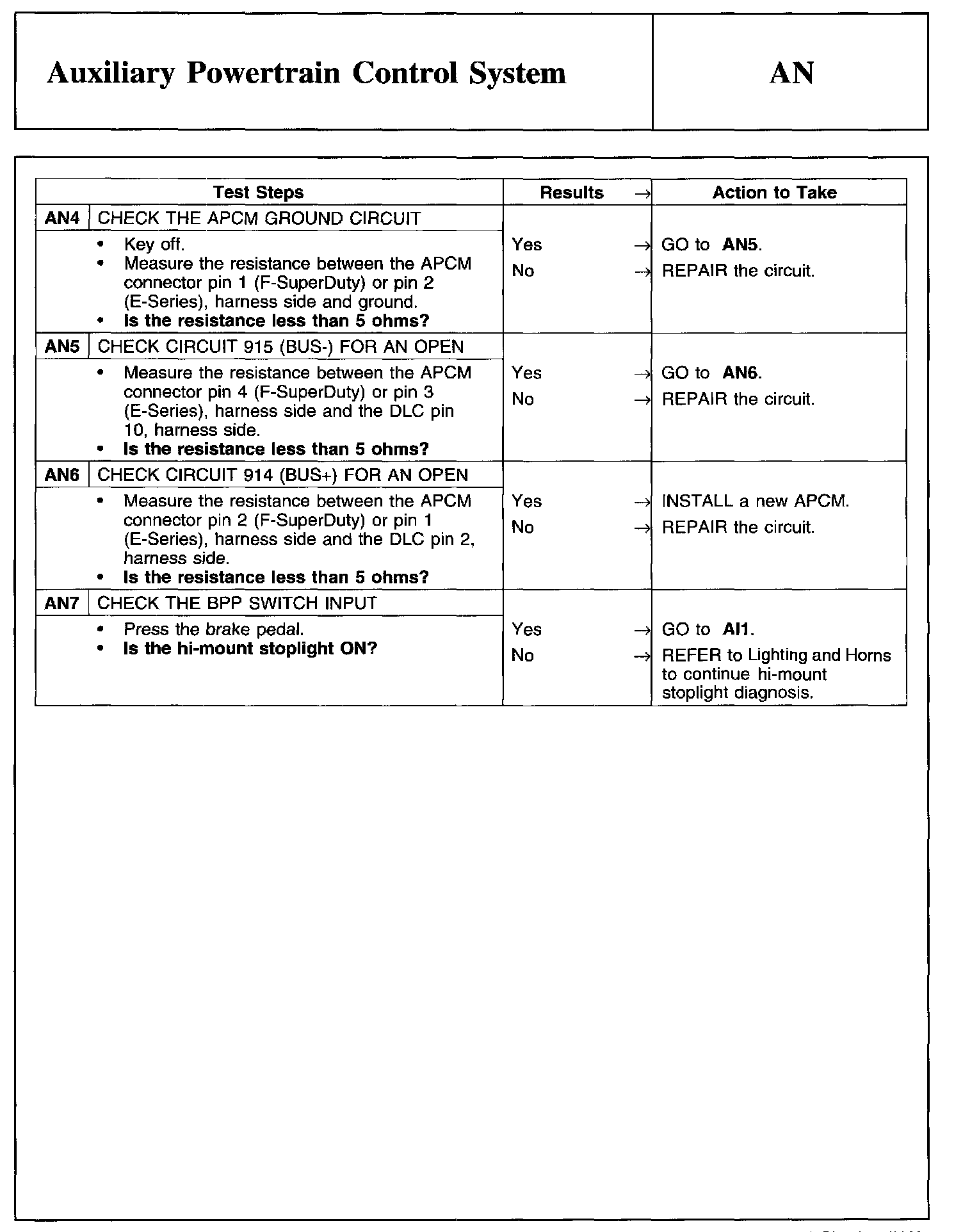

Test AN4-AN7:
