Symptom Chart Index

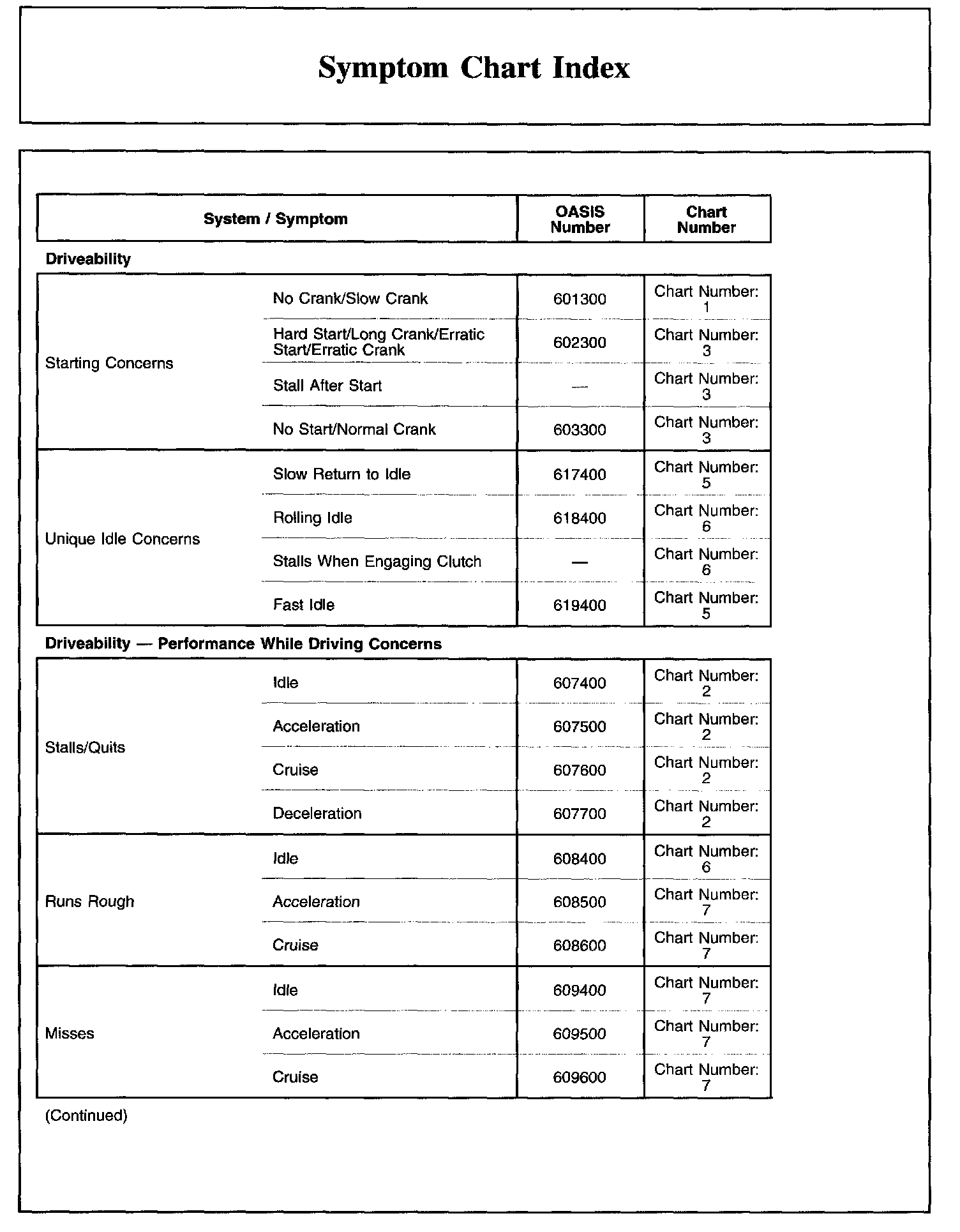

Symptom Chart Index, Part 1:

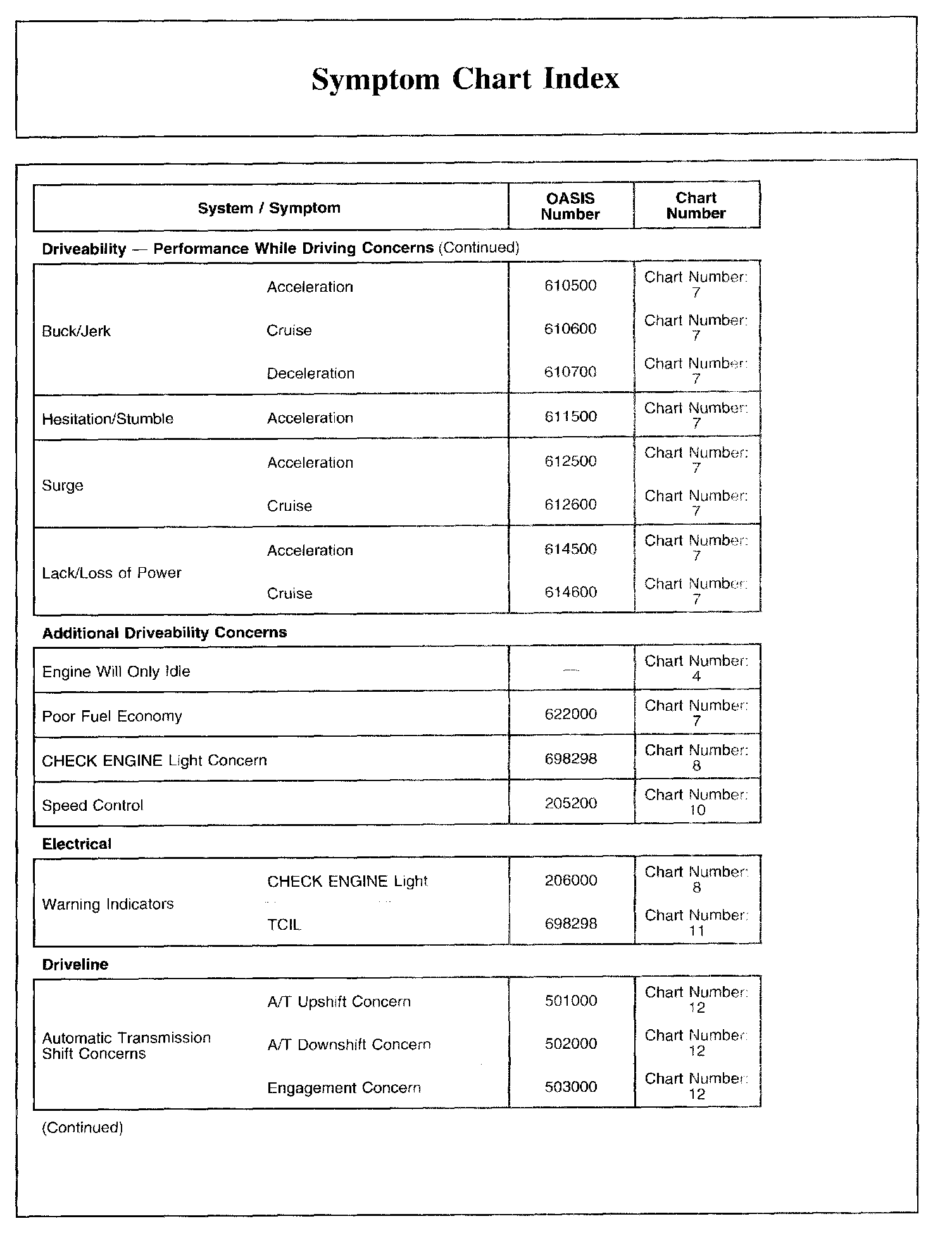

Symptom Chart Index, Part 2:

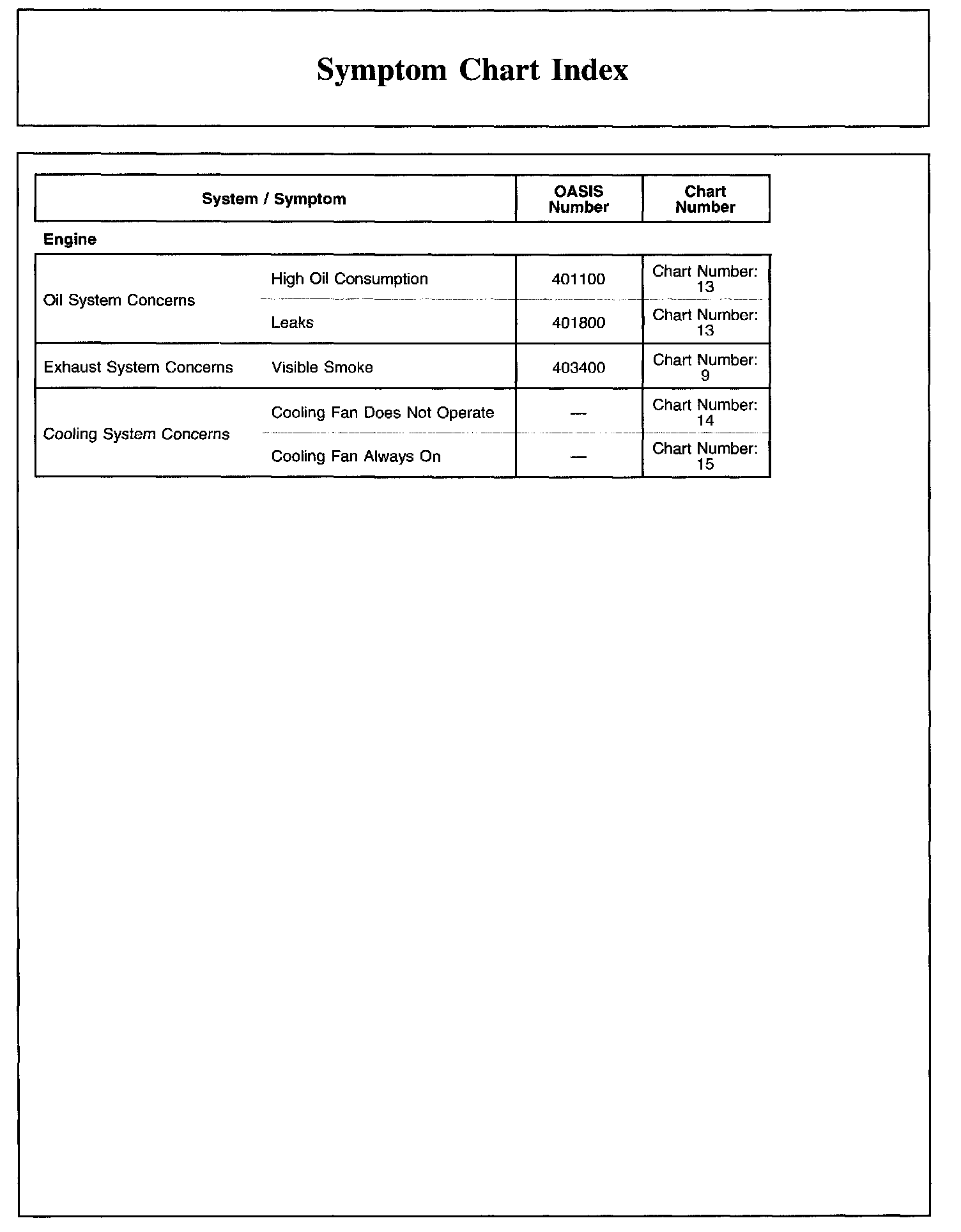

Symptom Chart Index, Part 3:
