Glow Plug Control Module: Service and Repair

GLOW PLUG MODULE

REMOVAL
1. Disconnect the battery ground cable. On vehicles equipped with dual batteries, refer to Battery.

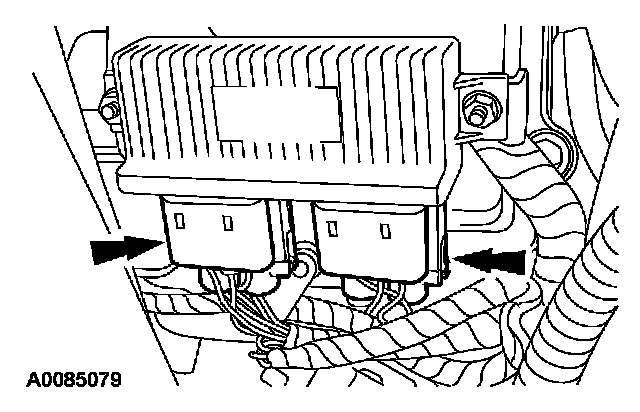

2. NOTE: Late production shown, early production similar.

Disconnect the glow plug electrical connectors.

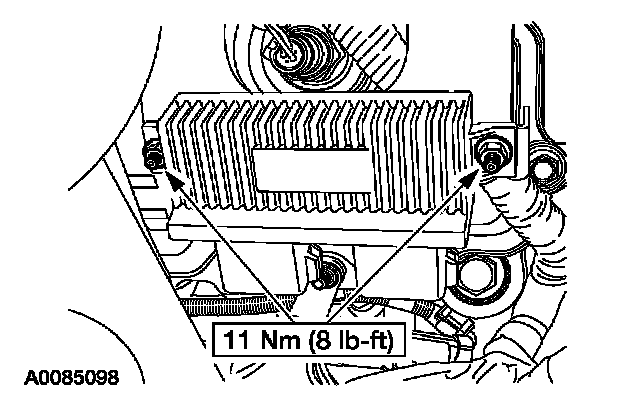

3. NOTE: Late production shown, early production similar.

Remove the nuts and the glow plug relay.

INSTALLATION
1. To install, reverse the removal procedure.
