Oil Pan, Engine

Early Build

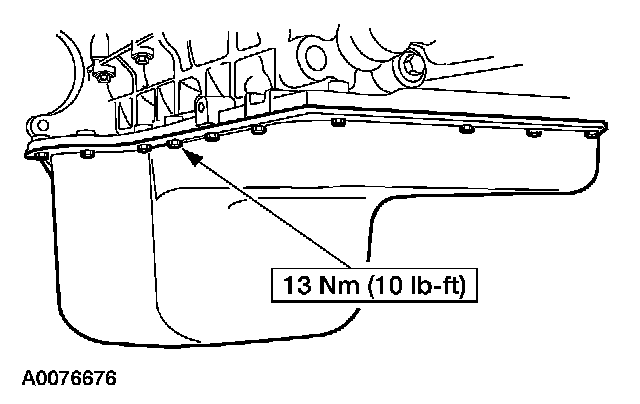

Lower oil pan bolt 13 Nm (10 ft. lbs.)

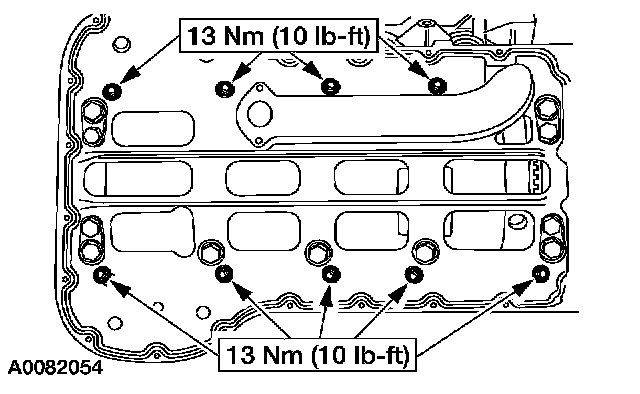

Upper oil pan bolts (M6) 13 Nm (10 ft. lbs.)
Upper oil pan bolts (M8) 31 Nm (23 ft. lbs.)

Late Build

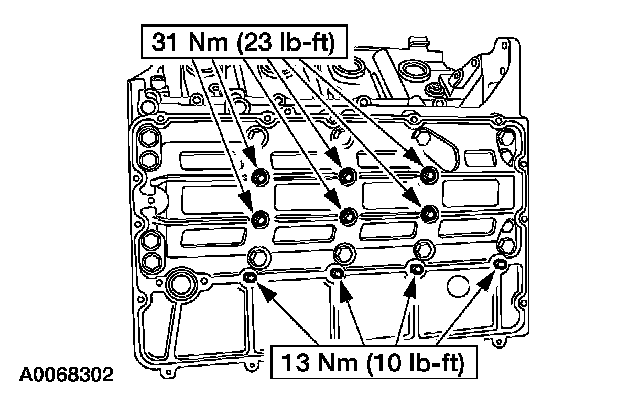

Upper oil pan bolts (M6) 13 Nm (10 ft. lbs.)
Upper oil pan bolts (M8) 31 Nm (23 ft. lbs.)

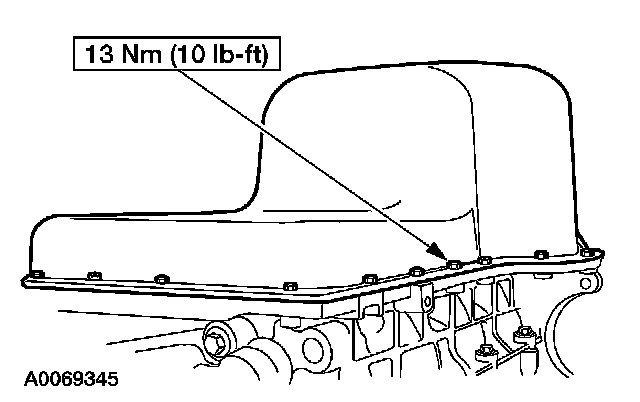

Oil pan bolt 13 Nm (10 ft. lbs.)
