System Specifications

Crankshaft pulley bolts

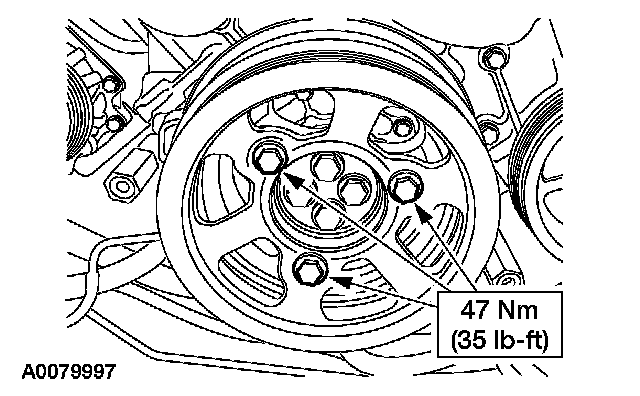

Install the dual generator pulley and bolts.
(dual alternators) 47 Nm (35 ft. lbs.)

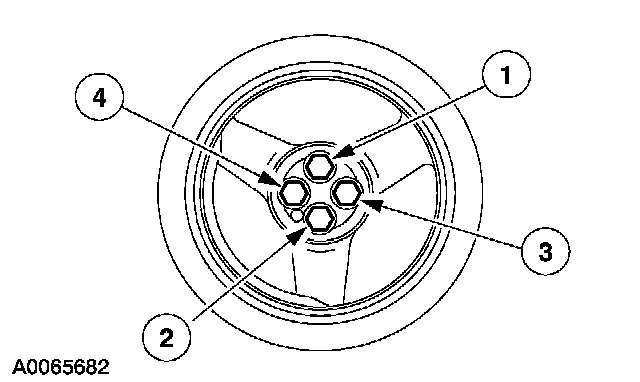

Install the Crankshaft vibration damper and bolts.
^ Tighten the bolts in the sequence shown.
^ Tighten the bolts to 68 Nm (50 ft. lbs.).
^ Tighten the bolts an additional 90 degrees.

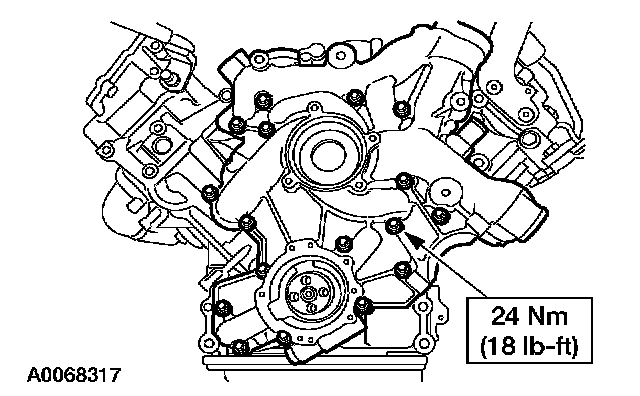

Front cover module bolts 24 Nm (18 ft. lbs.)
