Test D

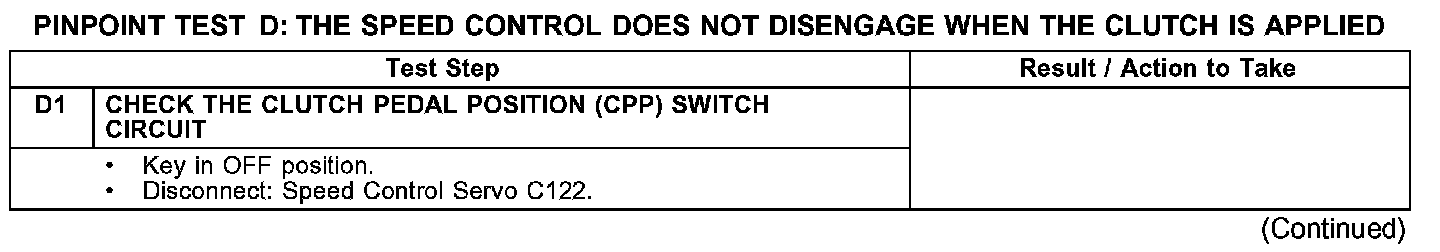

PINPOINT TEST D: THE SPEED CONTROL DOES NOT DISENGAGE WHEN THE CLUTCH IS APPLIED

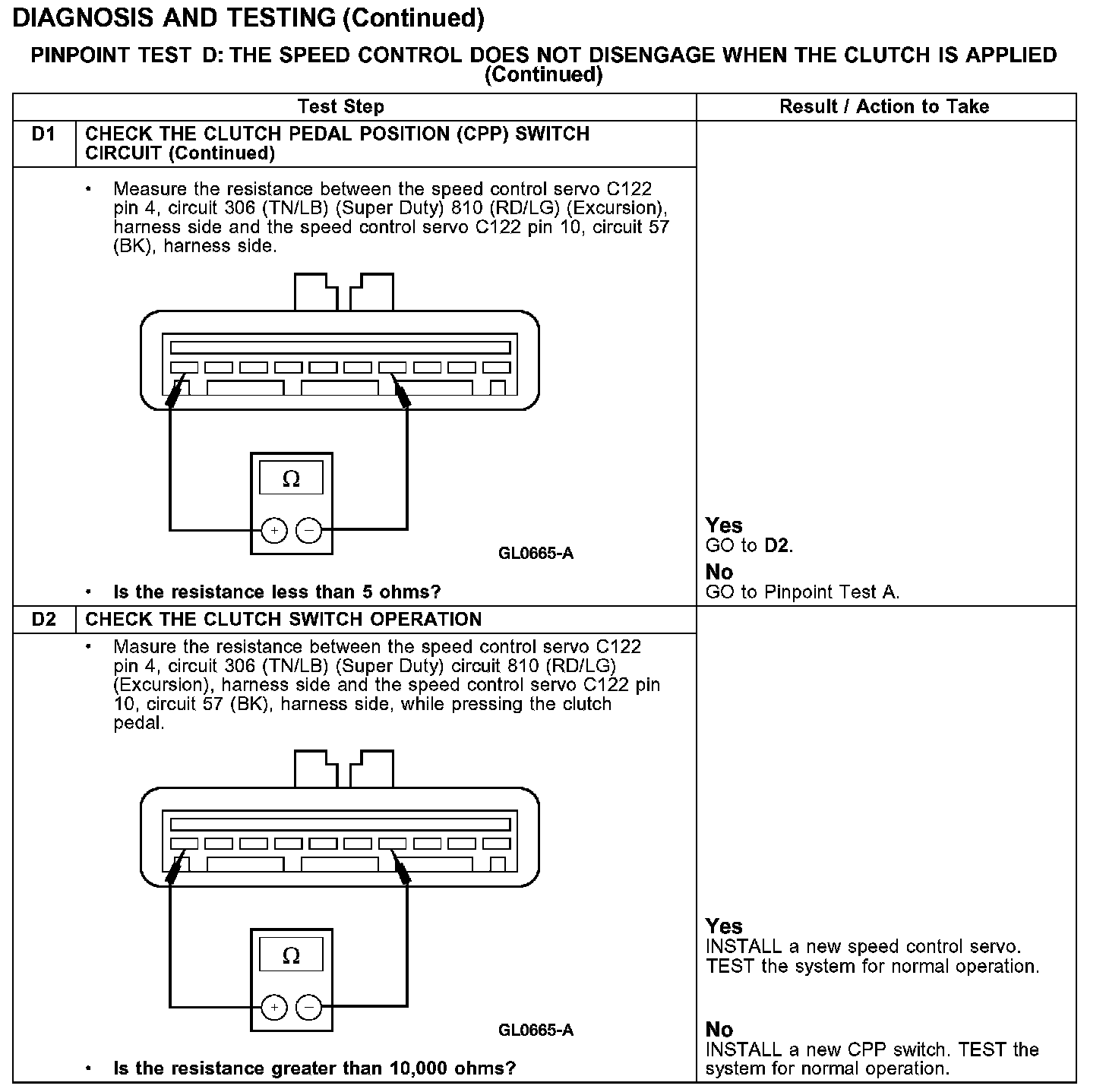

Test D1:






Test D1-D2:
