Front Drive Axle/Differential

Front Drive Axle and Differential

Front Drive Axle

Part 1 Of 2:

Part 2 Of 2:

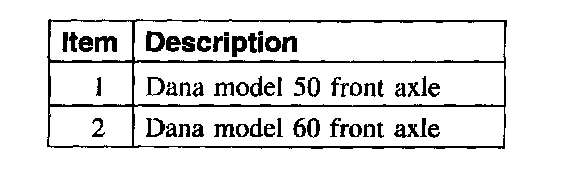

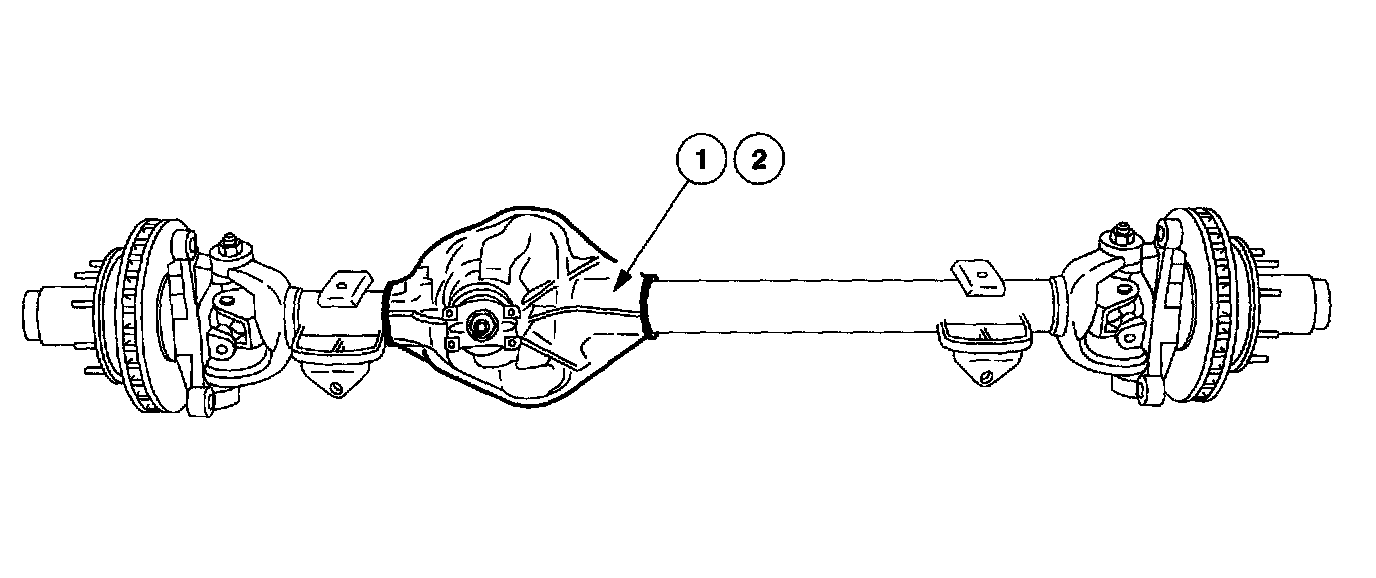

The Dana model 50 and model 60 front drive axles feature the following:
^ a hypoid gear design with the centerline of the pinion set below the centerline of the ring gear
^ a conventional differential case
^ full-floating axle shafts
^ a cast center section with two steel tubes
^ a stamped differential housing cover

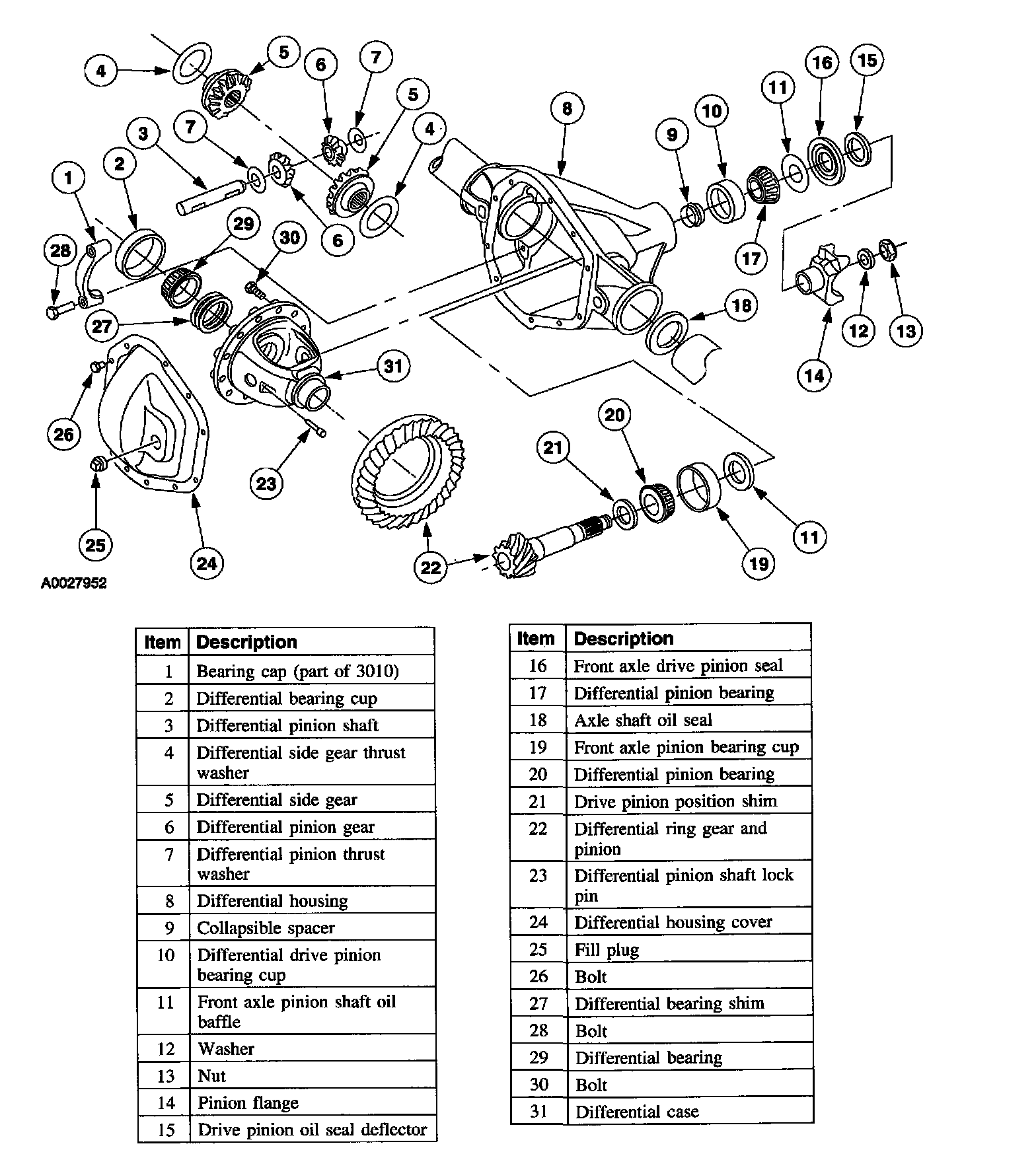

Front Drive Axle, Disassembled View
