Test G

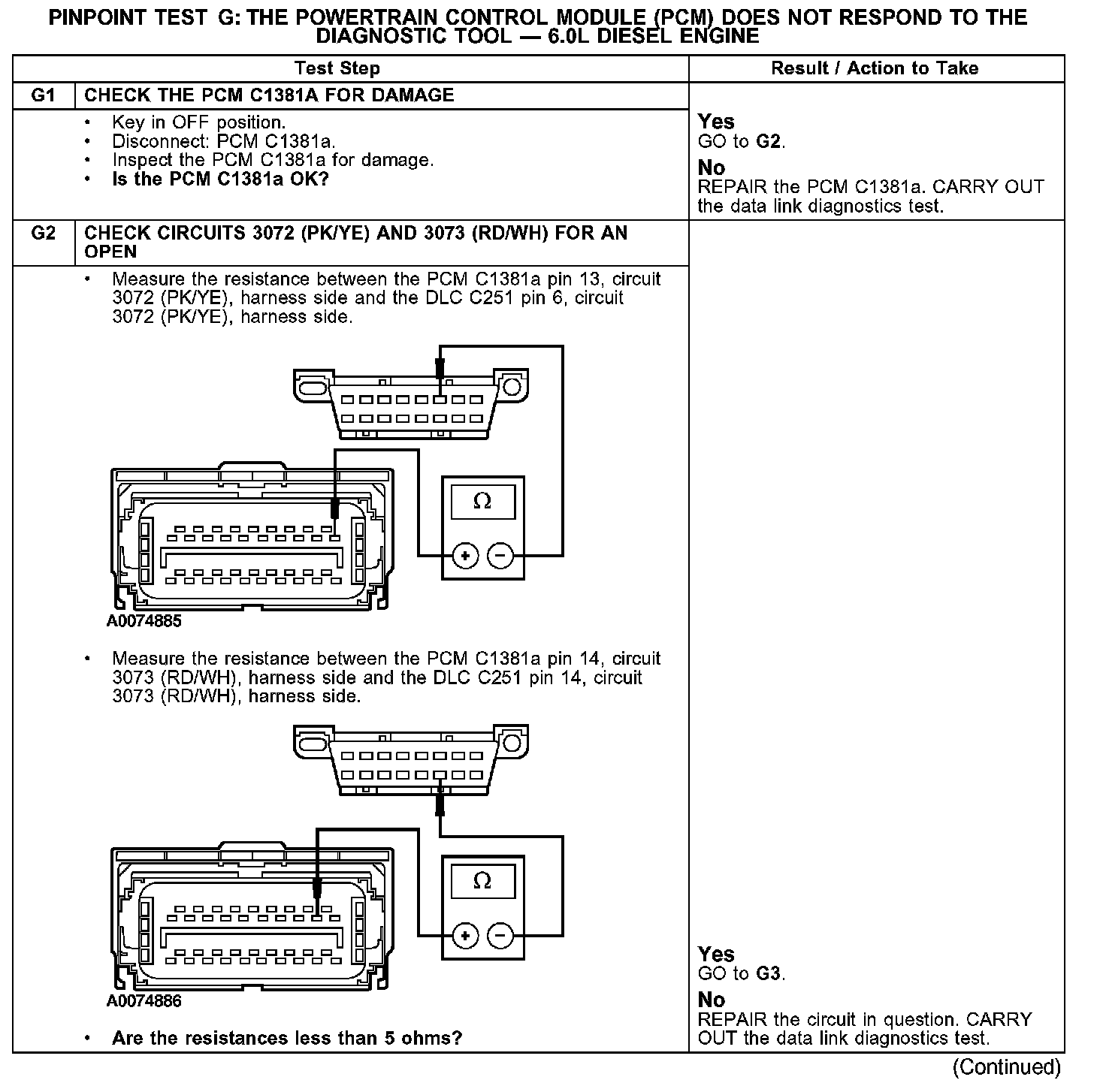

PINPOINT TEST G: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - 6.0L DIESEL ENGINE


Test G1-G2:






Test G3-G5:
