Tests FD: Brake Pedal Inputs



PINPOINT TEST FD: BRAKE PEDAL INPUTS

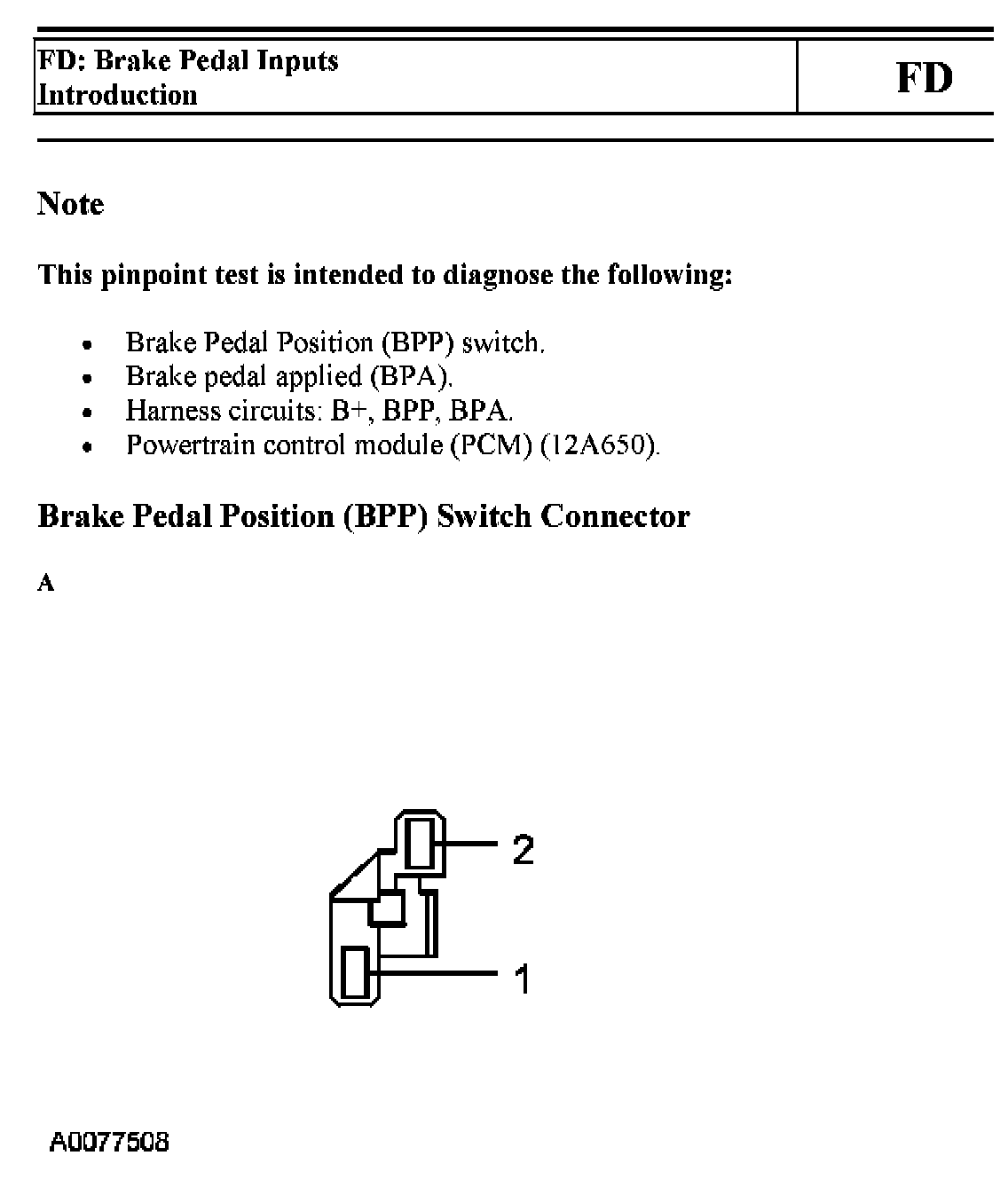

FD Introduction 1 Of 7:





FD Introduction 2 Of 7:





FD Introduction 3 Of 7:





FD Introduction 4 Of 7:





FD Introduction 5 Of 7:





FD Introduction 6 Of 7:





FD Introduction 7 Of 7:

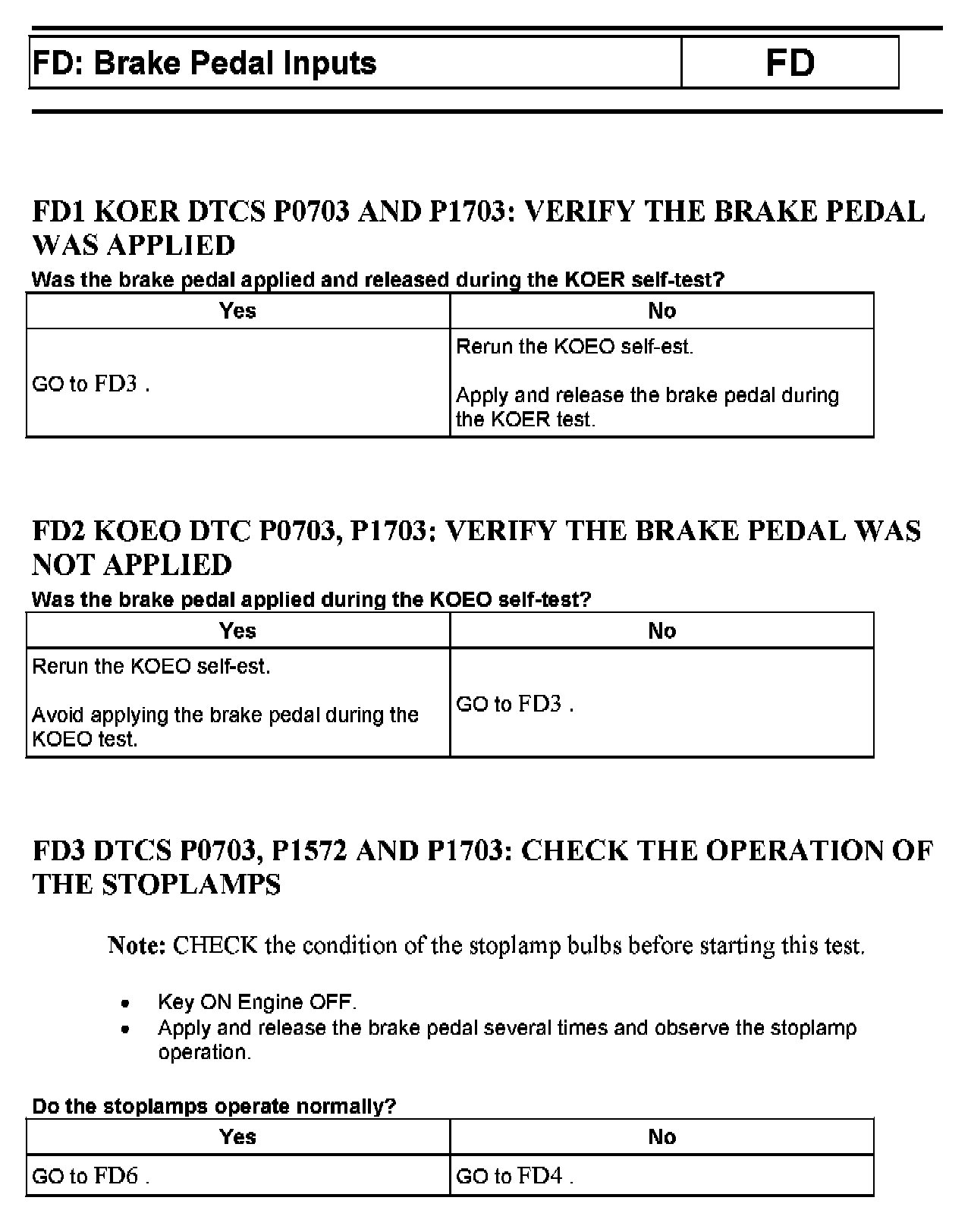

FD1 - FD3:

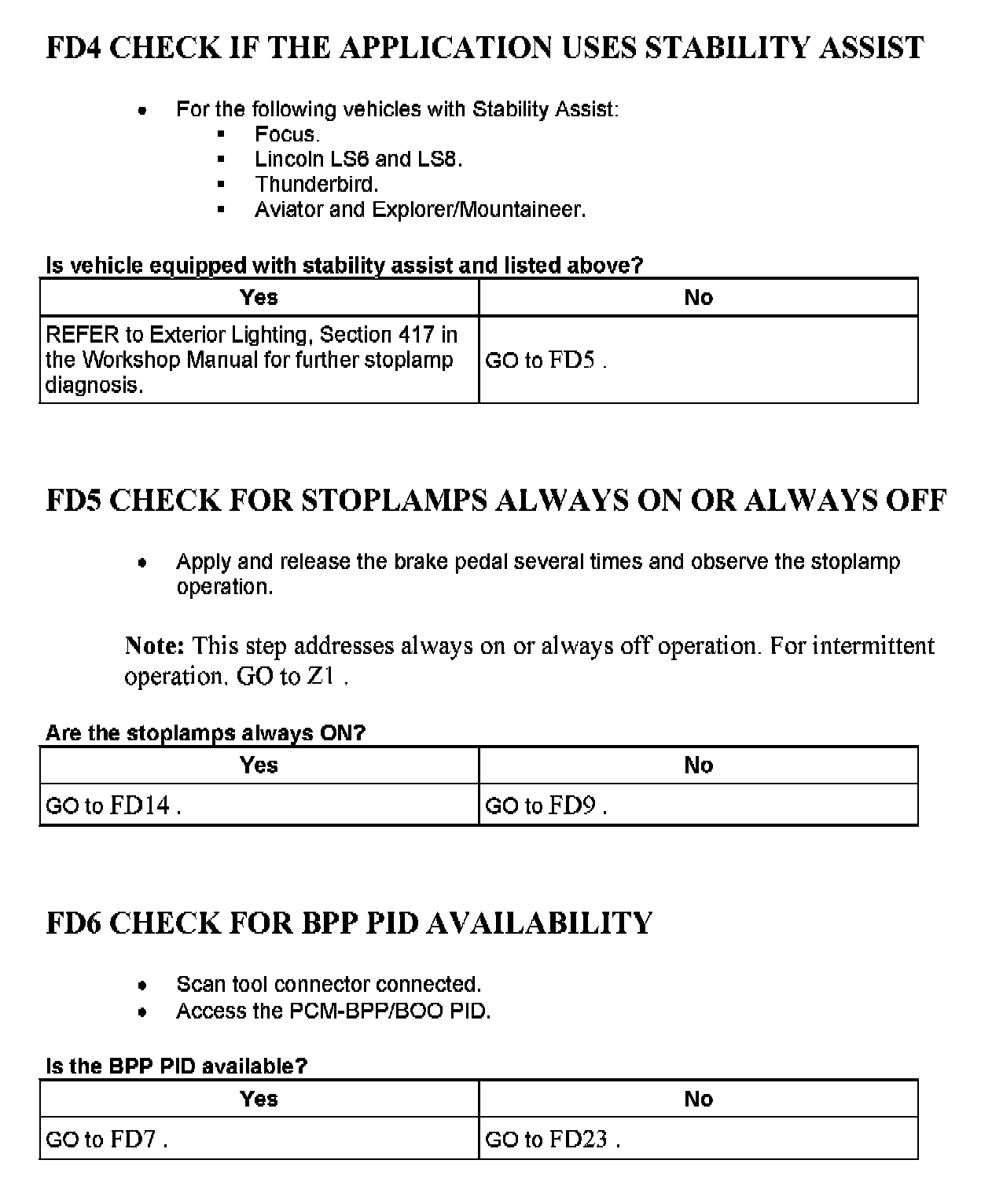

FD4 - FD6:

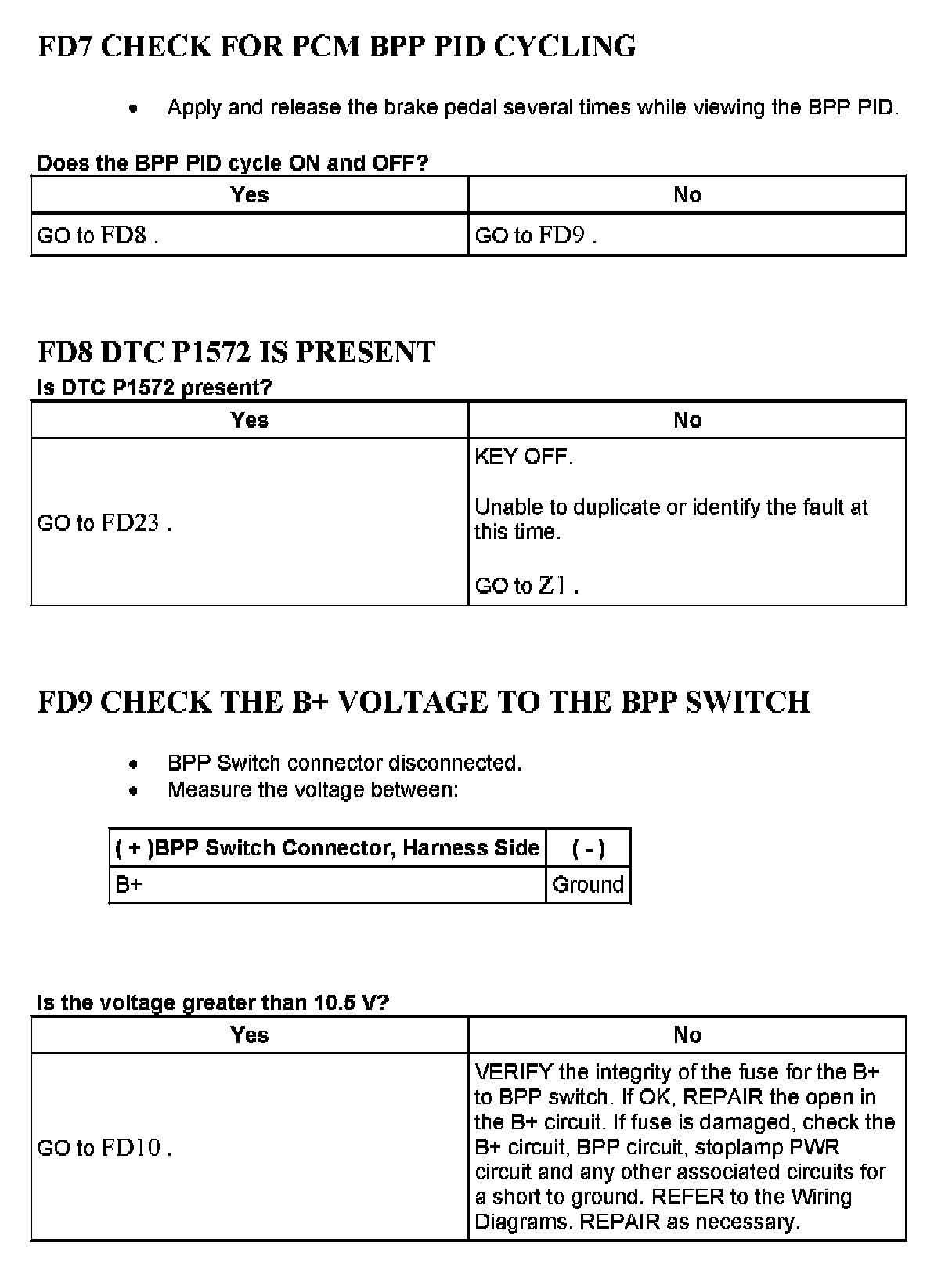

FD7 - FD9:

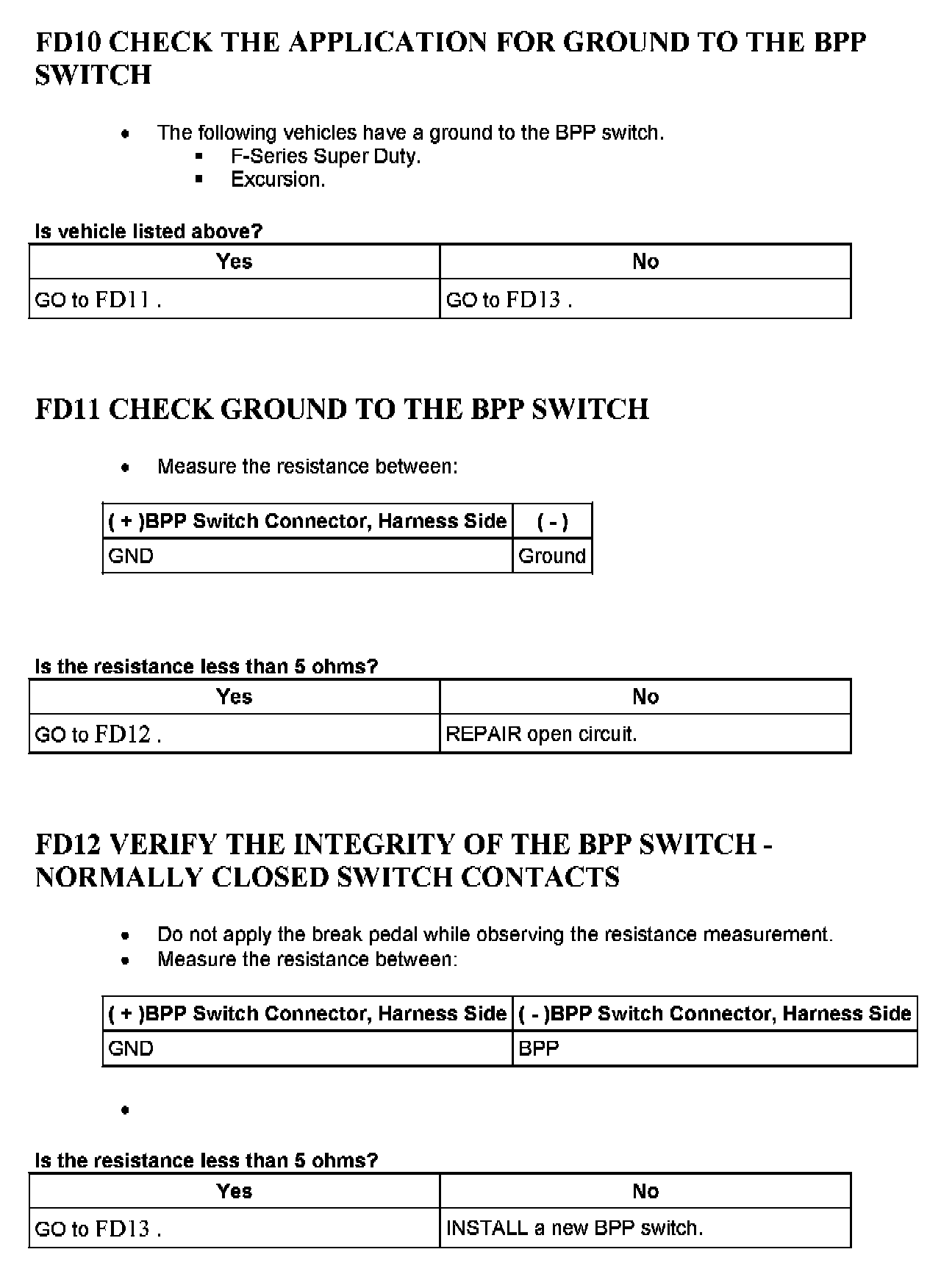

FD10 - FD12:

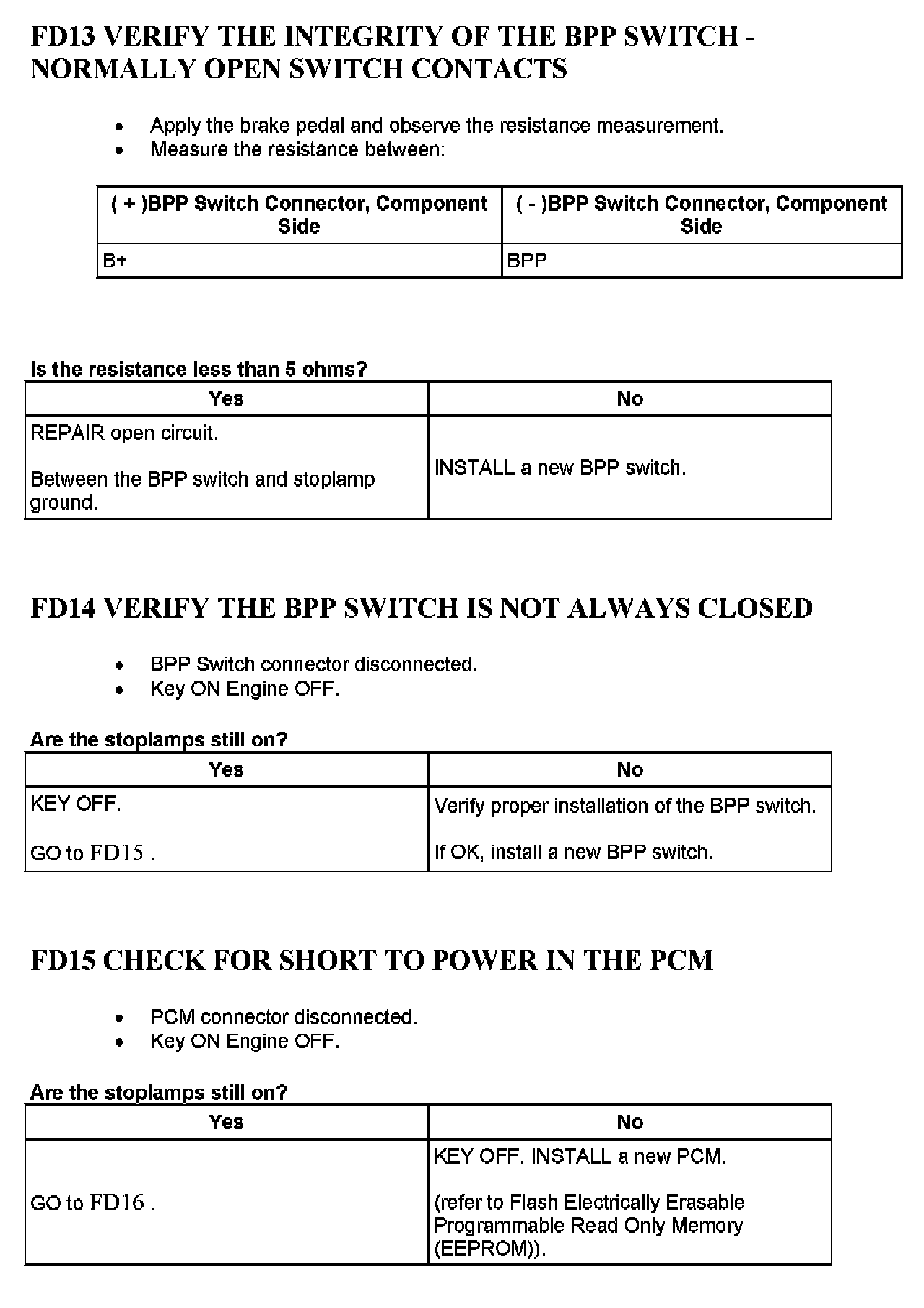

FD13 - FD15:

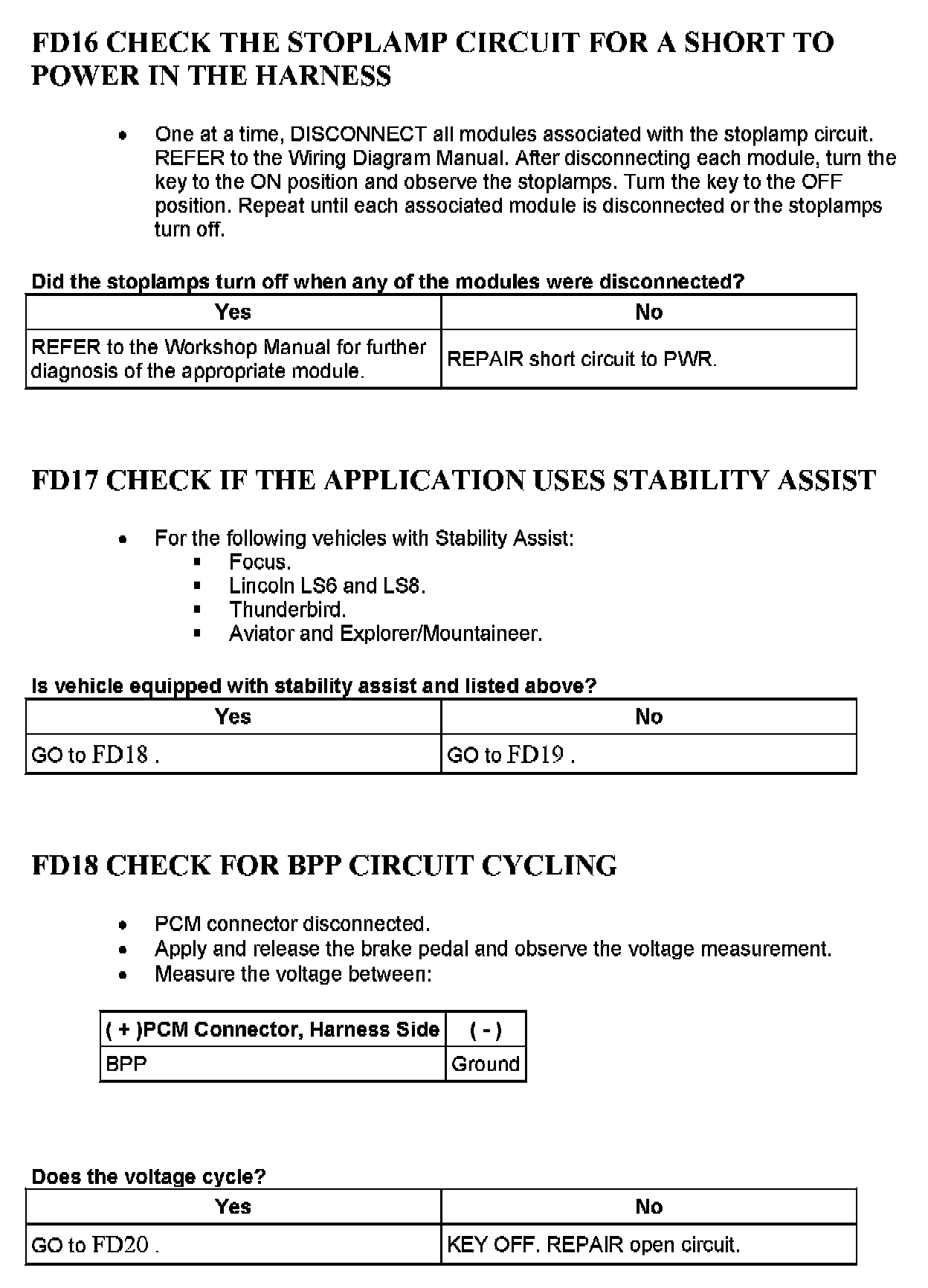

FD16 - FD18:

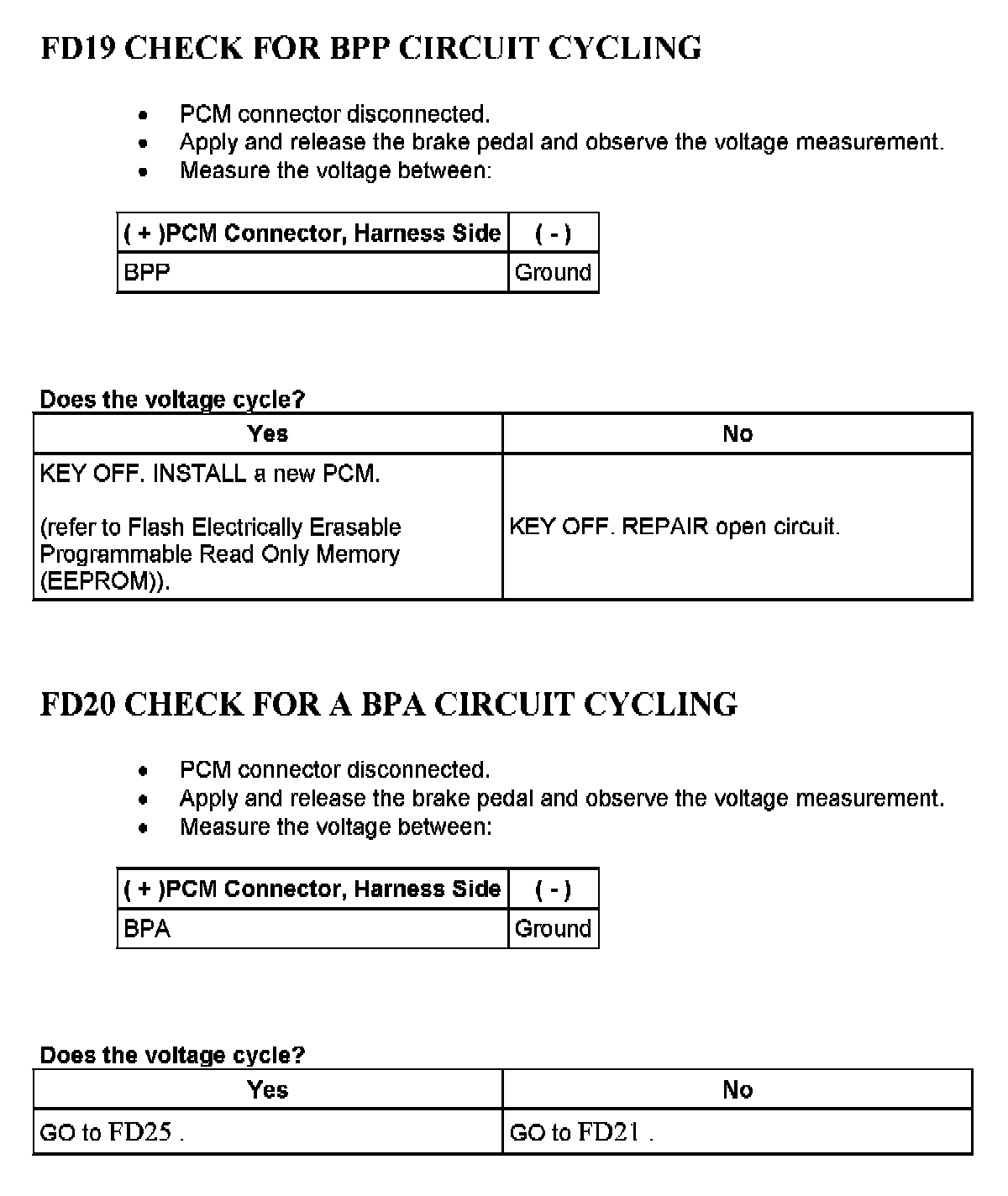

FD19 - FD20:

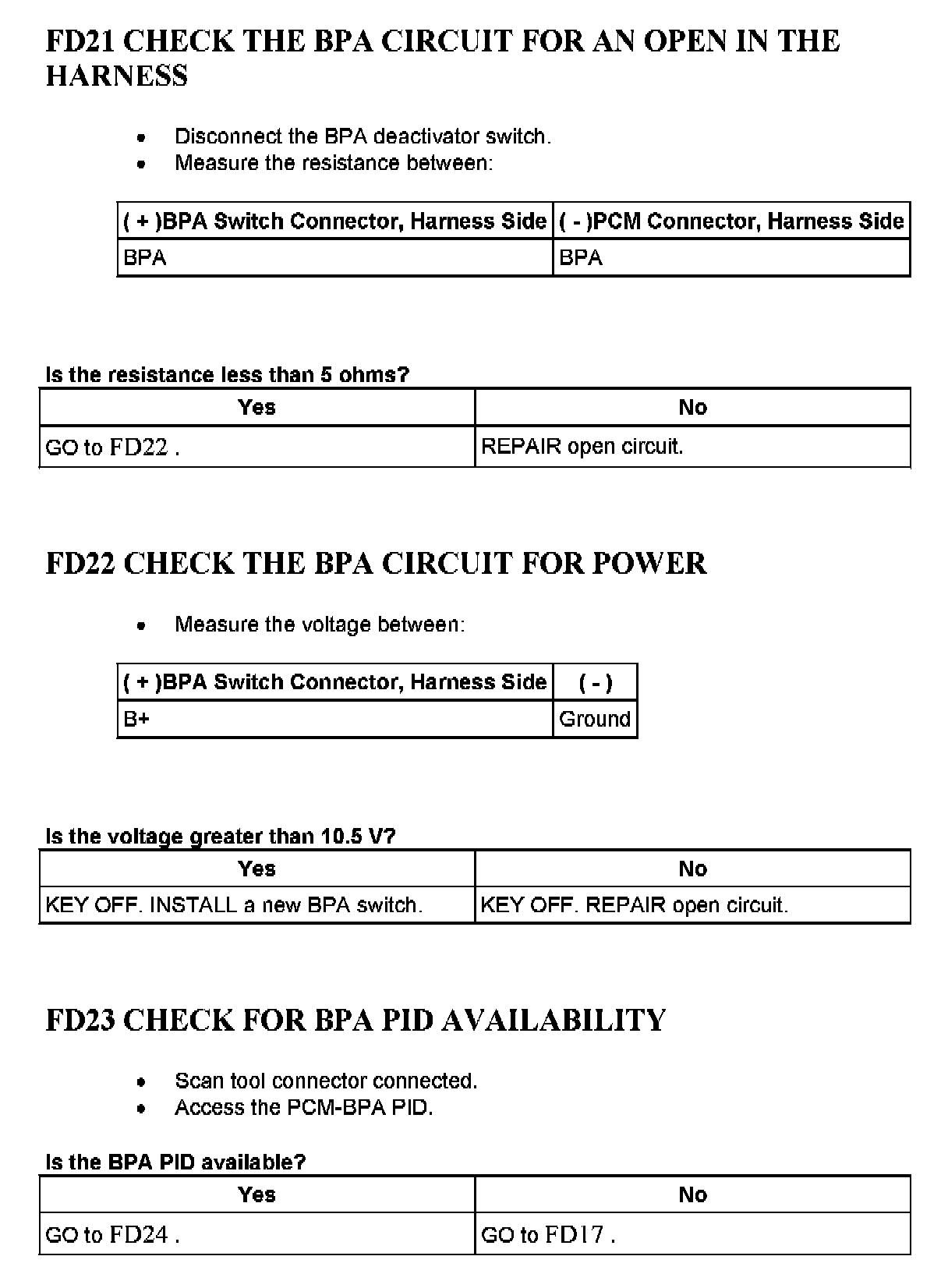

FD21 - FD23:

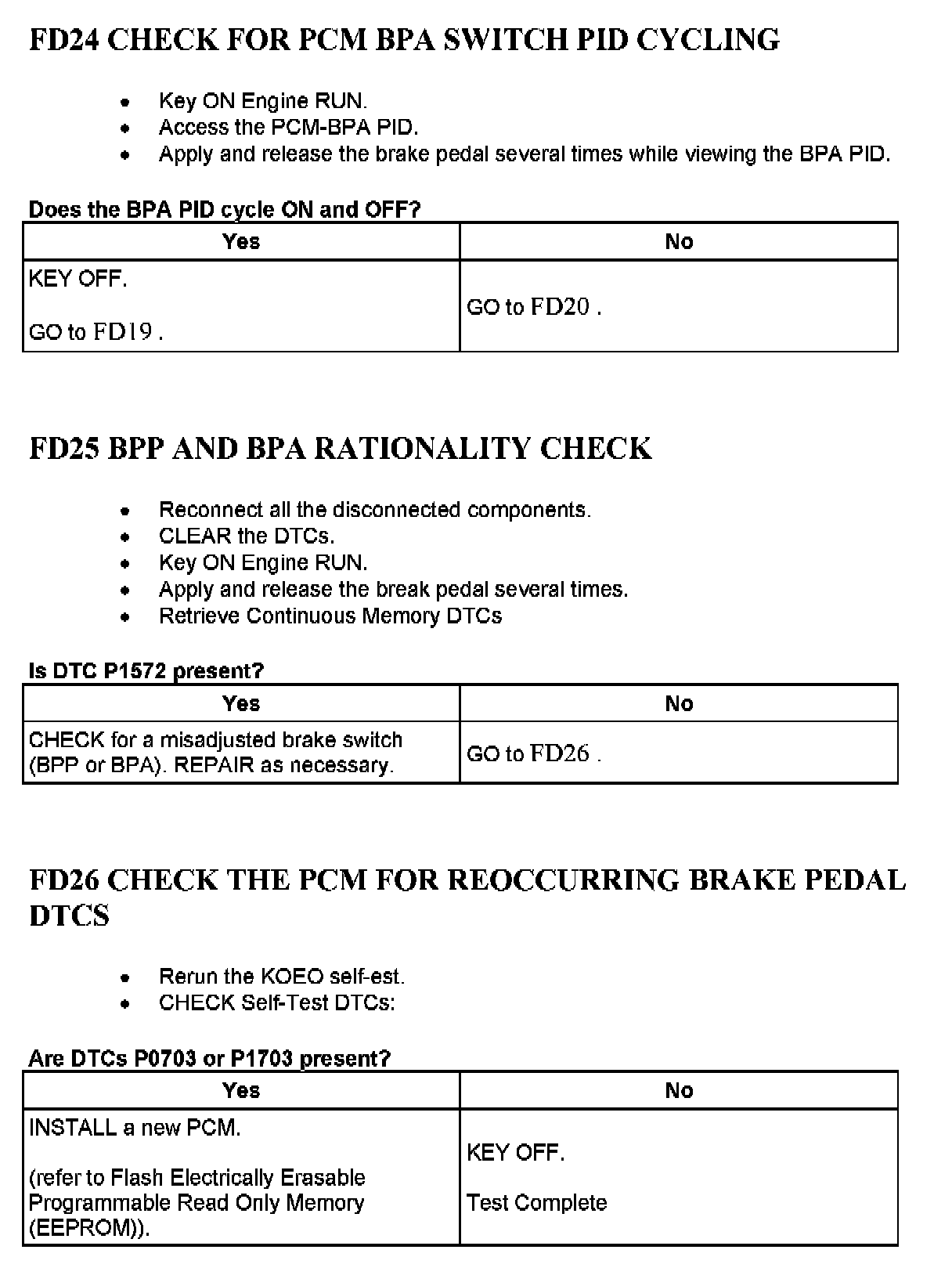

FD24 - FD26:
