Removal and Installation

If equipped, turn the air suspension switch to the OFF position.

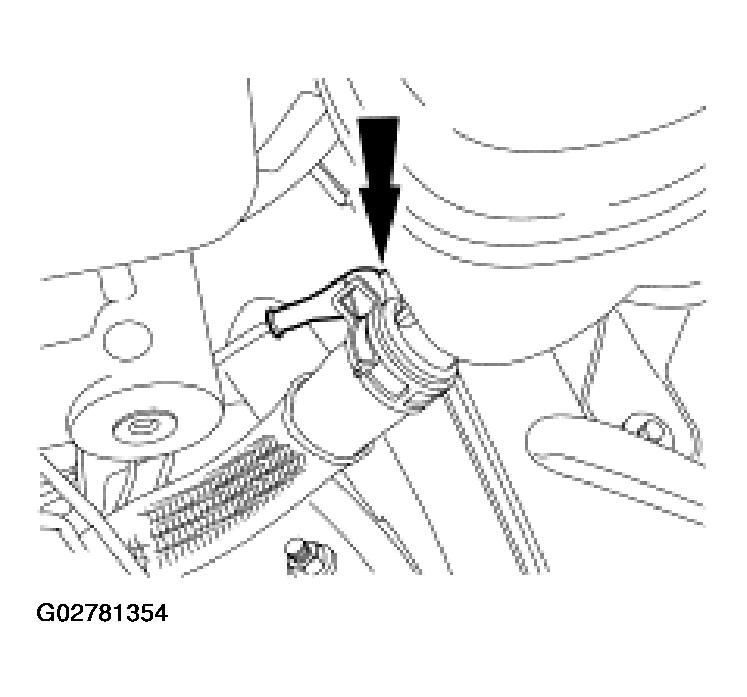

Disconnect the wheel speed sensor connector.

Fig 1: Disconnecting Wheel Speed Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .

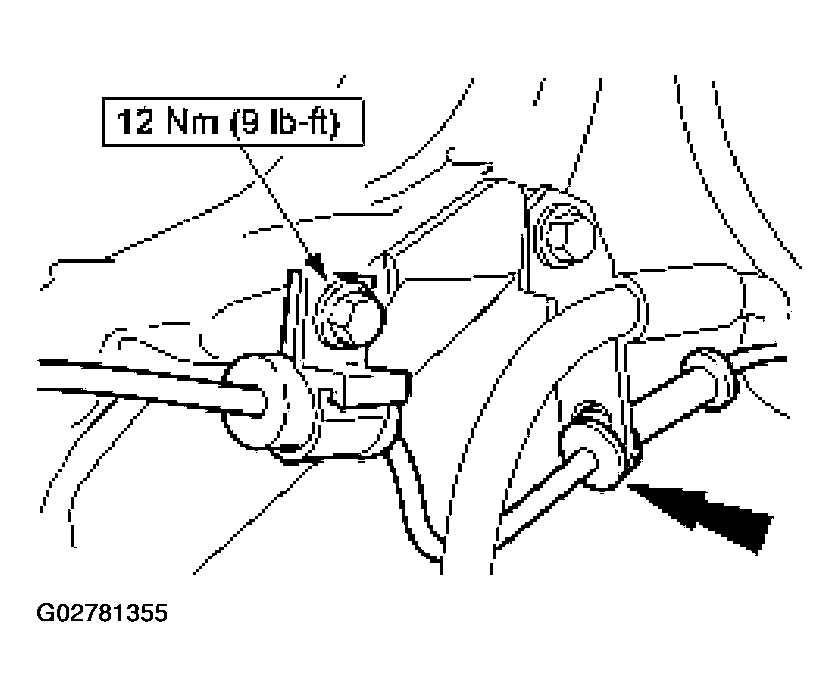

Remove the bolt and detach the retainers.

Fig 2: Removing Bolt And Detaching Retainers
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the caliper to hang from the brake hose or damage to the hose can result.

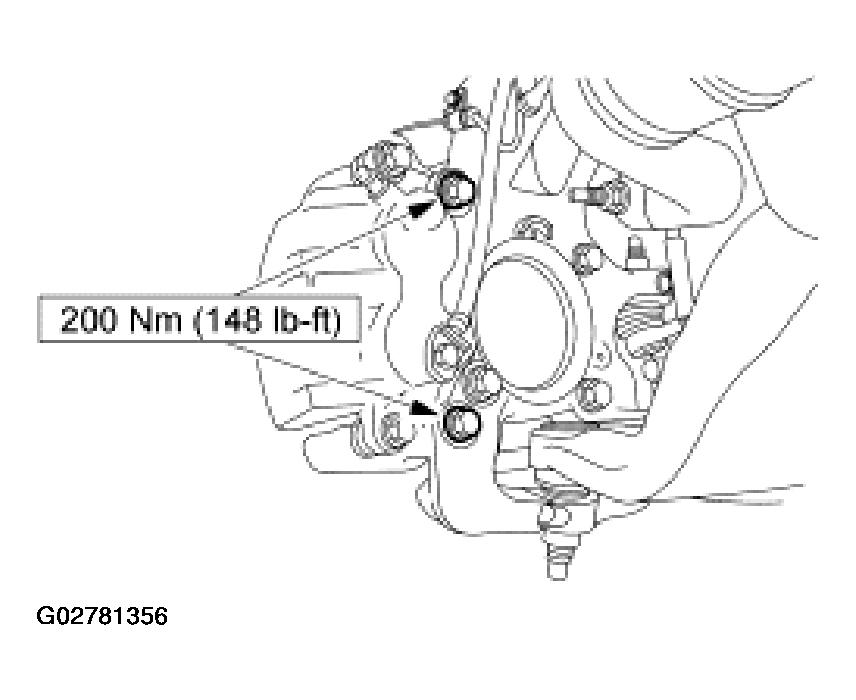

Fig 3: Removing Bolts

G02781356

Courtesy of FORD MOTOR CO.

Remove the bolts, and position the caliper, pads and anchor plate aside.

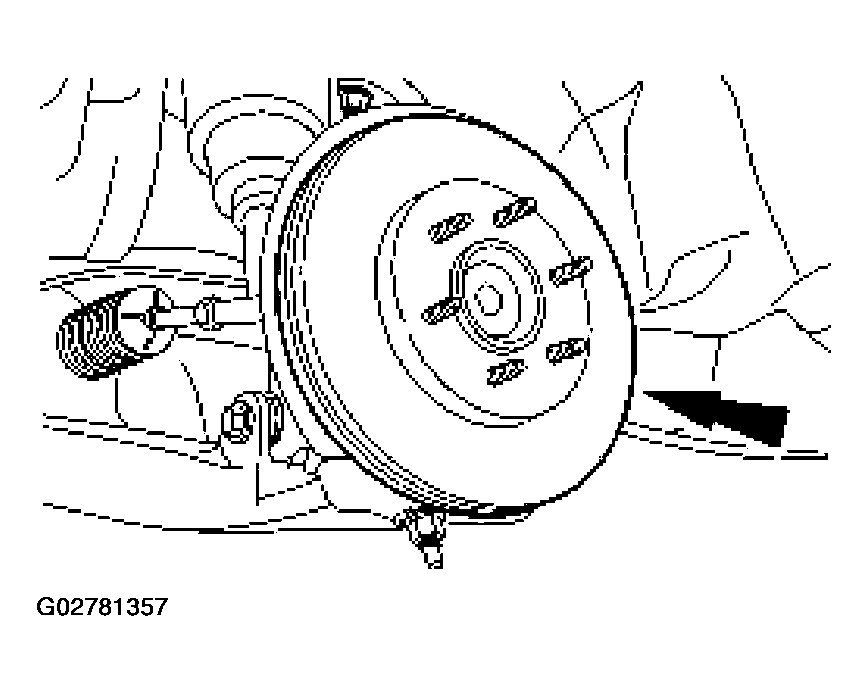

Remove the brake disc.

Fig 4: Removing Brake Disc
Courtesy of FORD MOTOR CO.

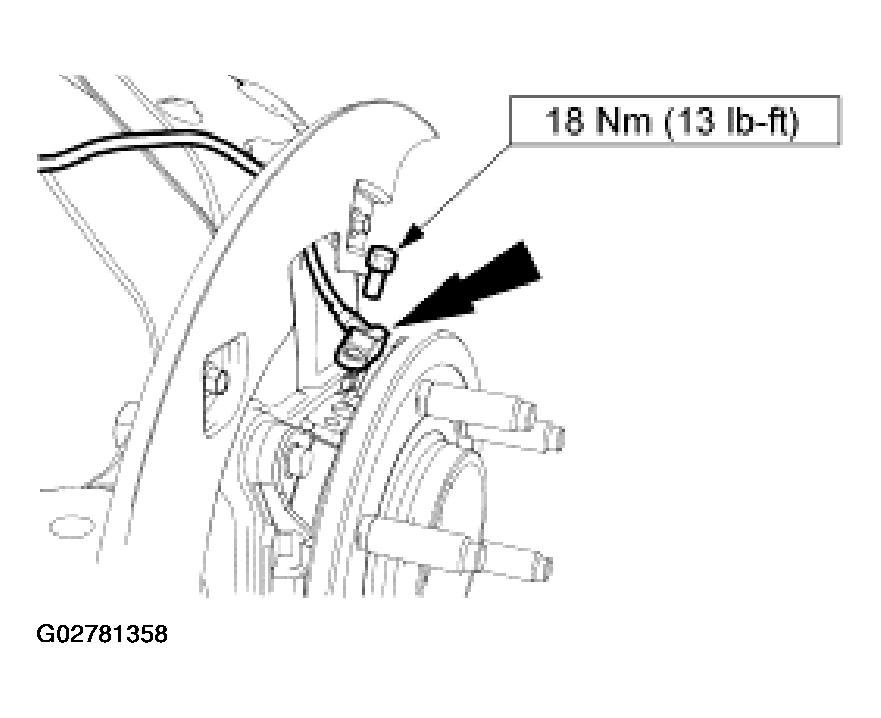

Remove the bolt and the front wheel speed sensor.

Fig 5: Removing Bolt And Front Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
