Removal and Installation
WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When installing a new module, it must be calibrated and reconfigured (either by download/upload or uploading the as-built database method).
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

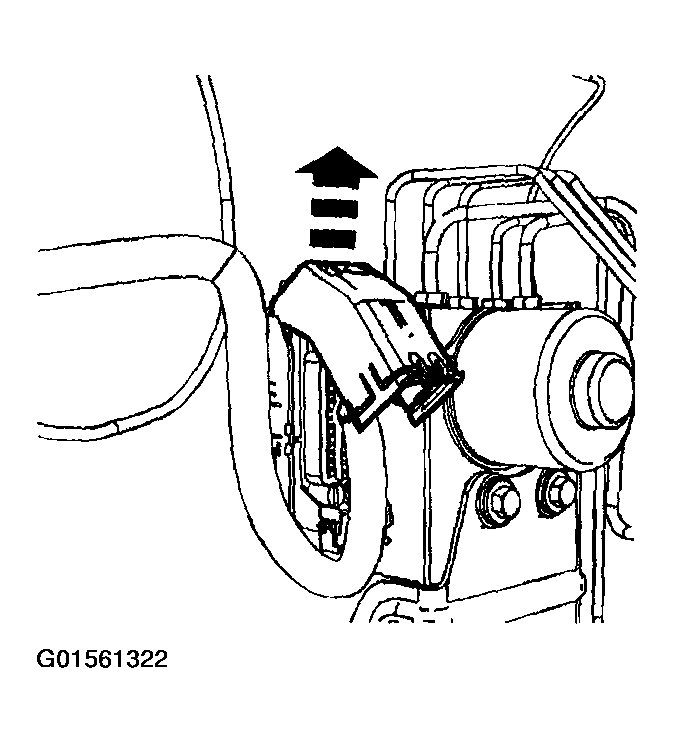

- Disconnect the anti-lock brake control module electrical connector.

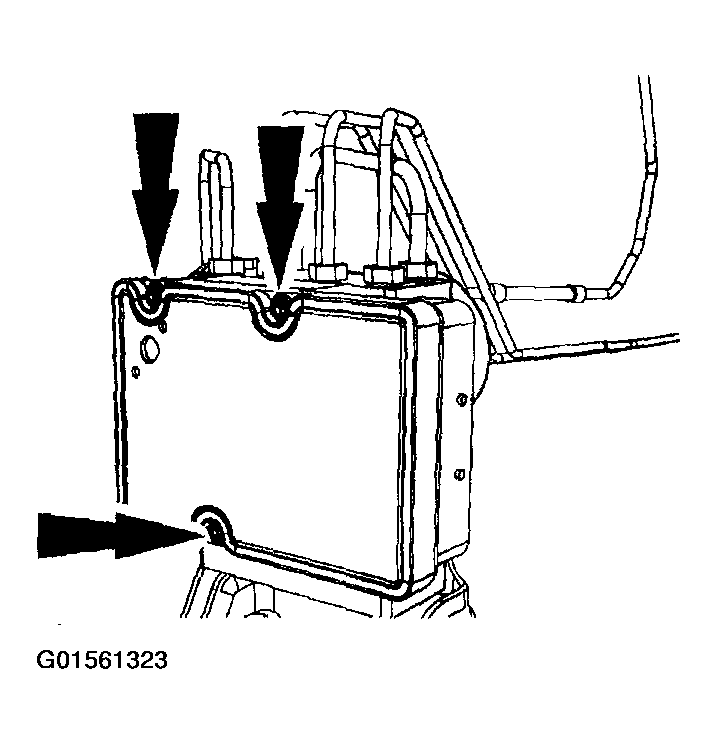

- Remove the screws and the anti-lock brake control module.
- To install, reverse the removal procedure
CAUTION:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
