Windshield Glass: Notes

SPECIAL TOOLS DESCRIPTION

G03946068
Interior Auto Glass Cut-Out Knife Kit (Electric) 164-R2450 or equivalent

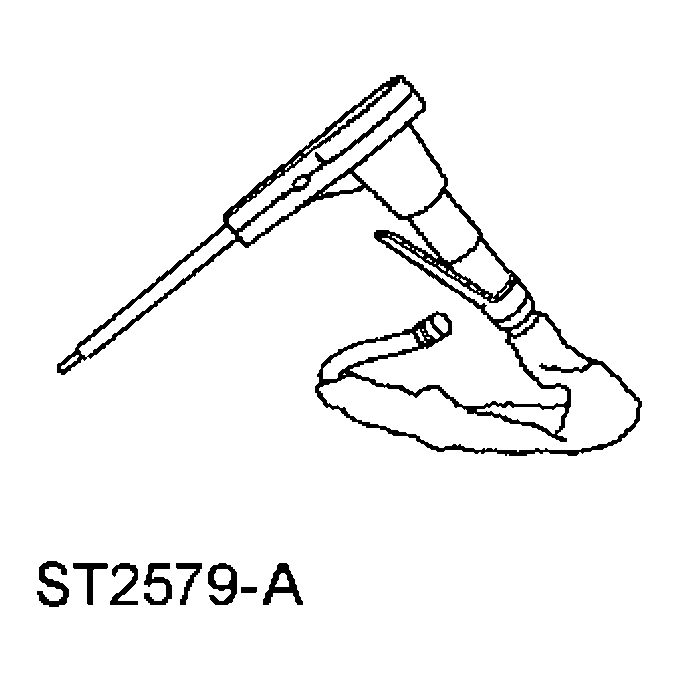

G03999683
Interior Auto Glass Cut-Out Knife Kit (Air Powered) 164-R2451 or equivalent
G03916930
The Pumper 164-R2459 or equivalent
MATERIAL SPECIFICATION

Item Specification
DOW AUTOMOTIVE 2-HOUR CURE
Urethane Adhesive Betaseal® Express -
Urethane One Step Glass Primer Betaprime® 5500/5500 A/5500SA -
SIKA 2-HOUR CURE
Urethane Adhesive Sika Tack ASAP -
Urethane Metal and Glass Primer Sika 206 G+P -

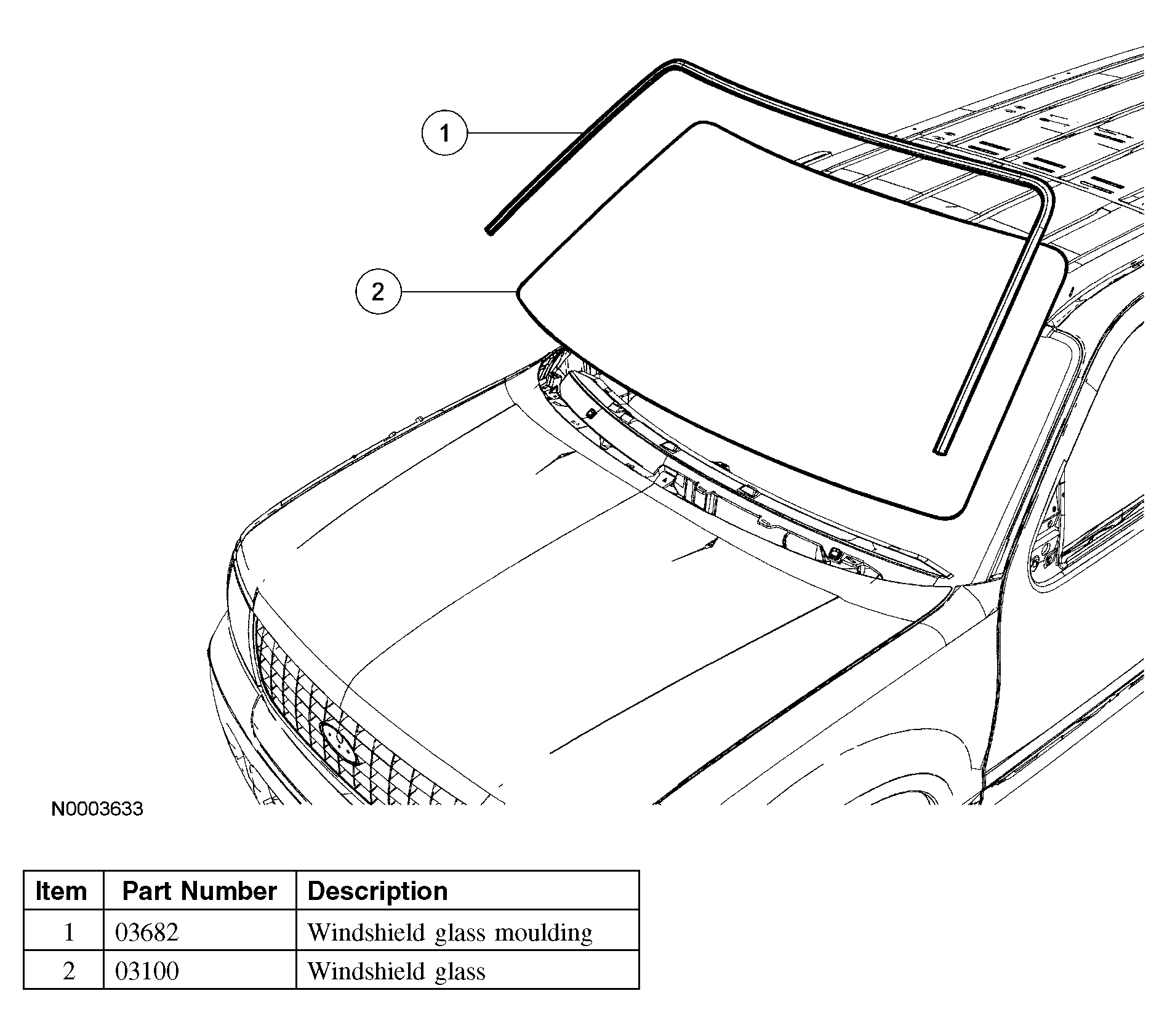

Fig 1: Identifying Windshield Glass And Windshield Glass Moulding
G03946051Courtesy of FORD MOTOR CO.
