Primary Brake Pressure Transducer C147

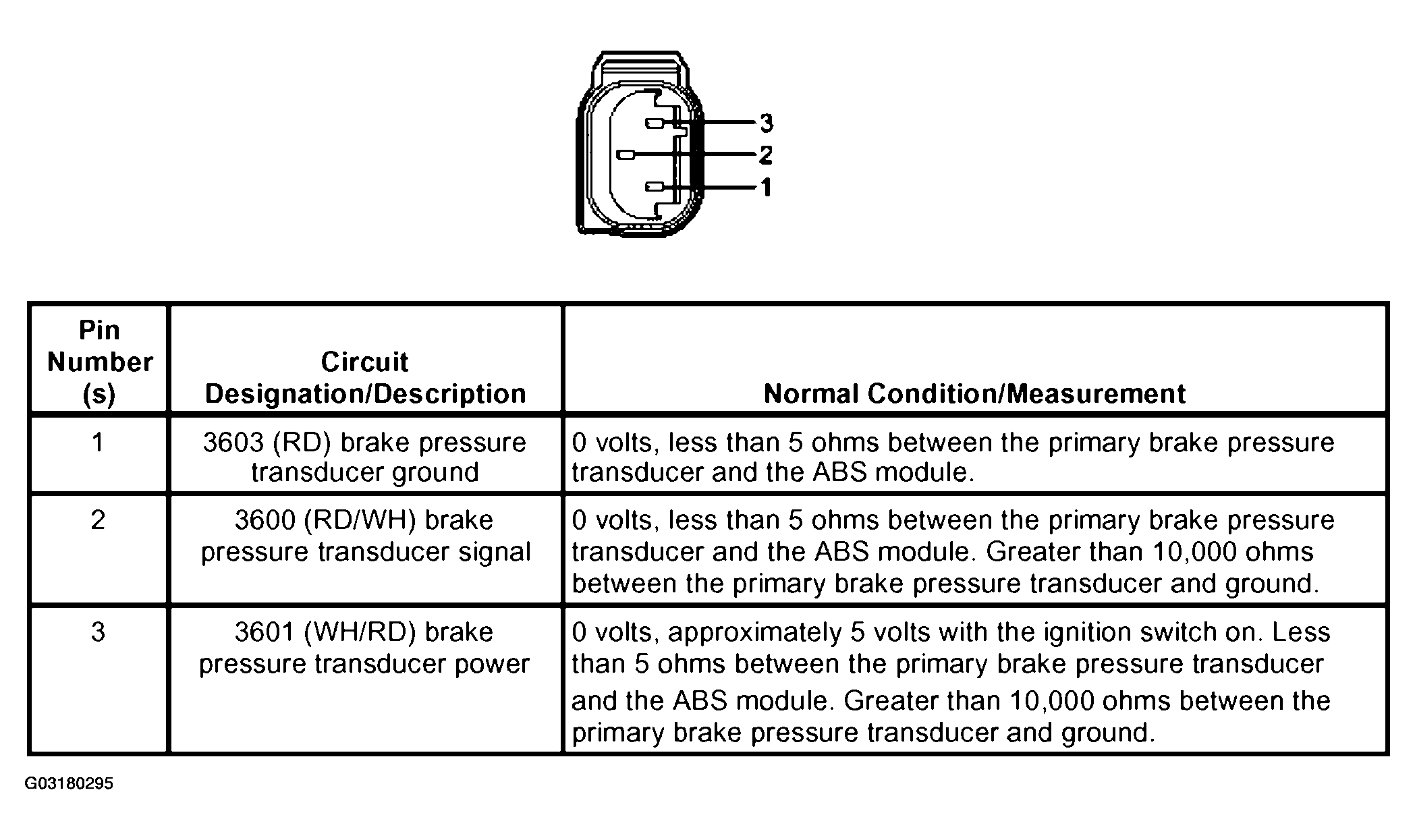

Fig 1: Identifying Primary Brake Pressure Transducer C147
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
