Stability Assist Switch C280

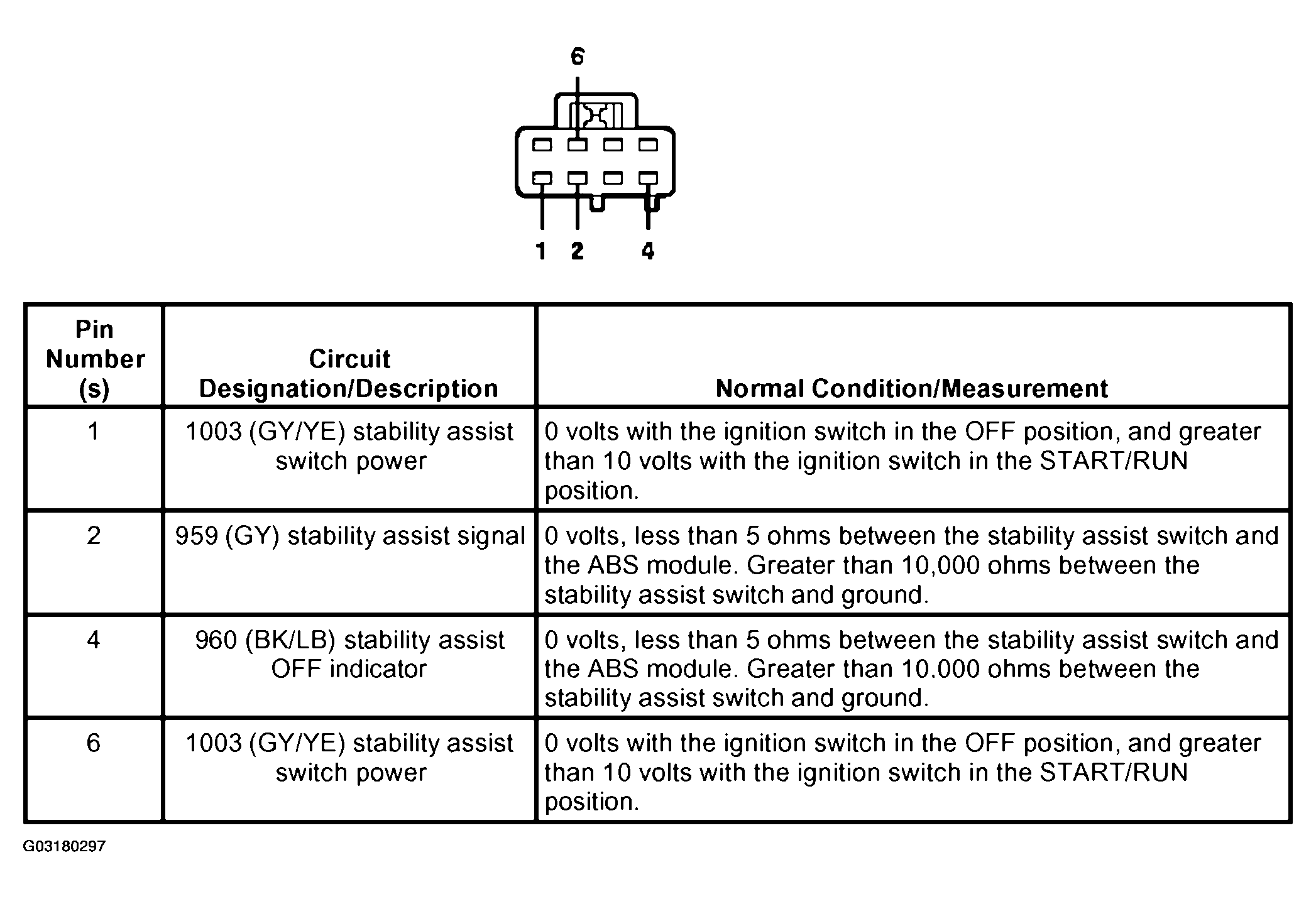

Fig 1: Identifying Stability Assist Switch C280
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
