Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left front of engine compartment. See Figure. |
| Daytime Running Lamps (DRL) Module | Left side of engine compartment, on inner fenderwell. See Figure. |

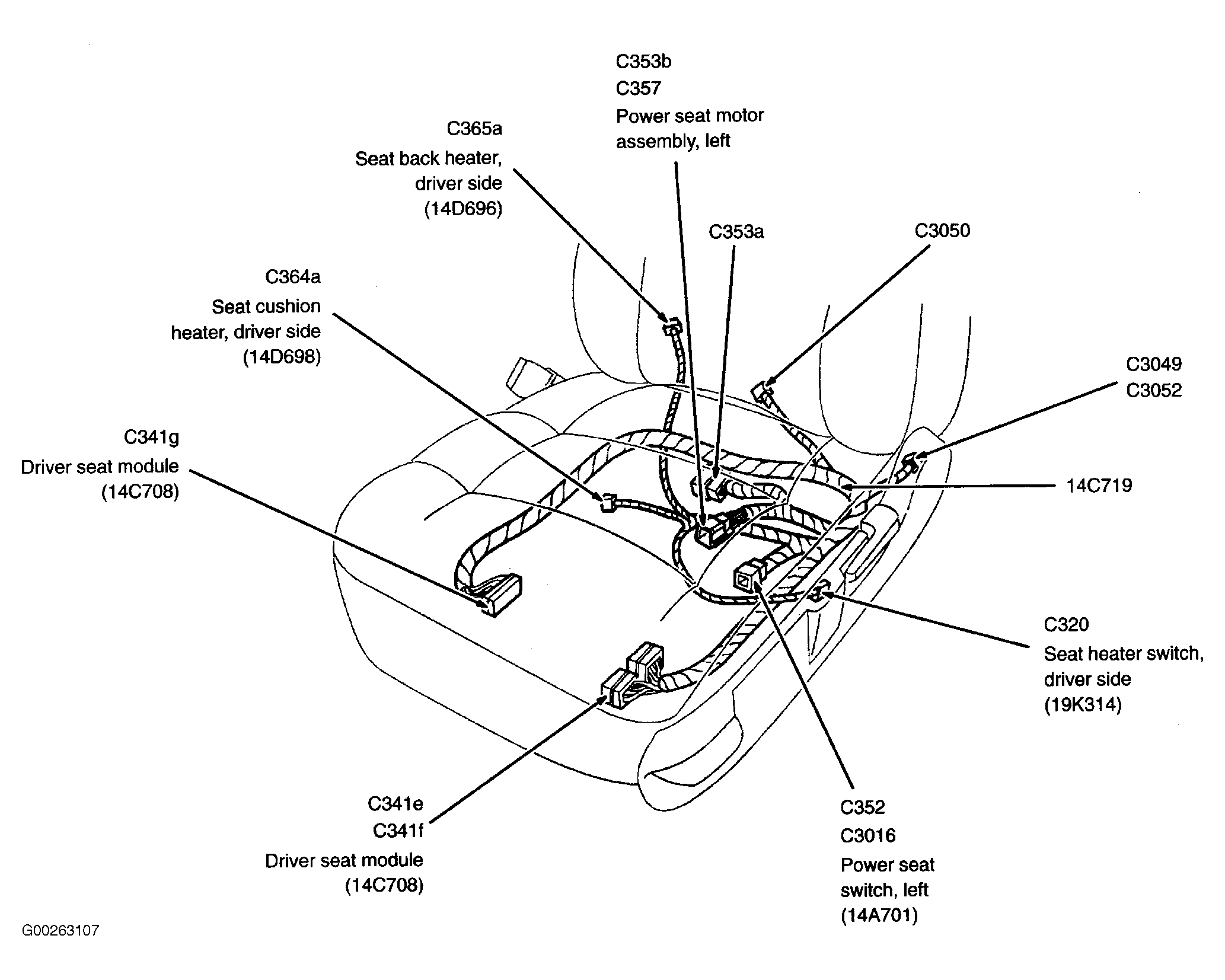

| Driver Seat Module | In driver's seat. See Figure. |

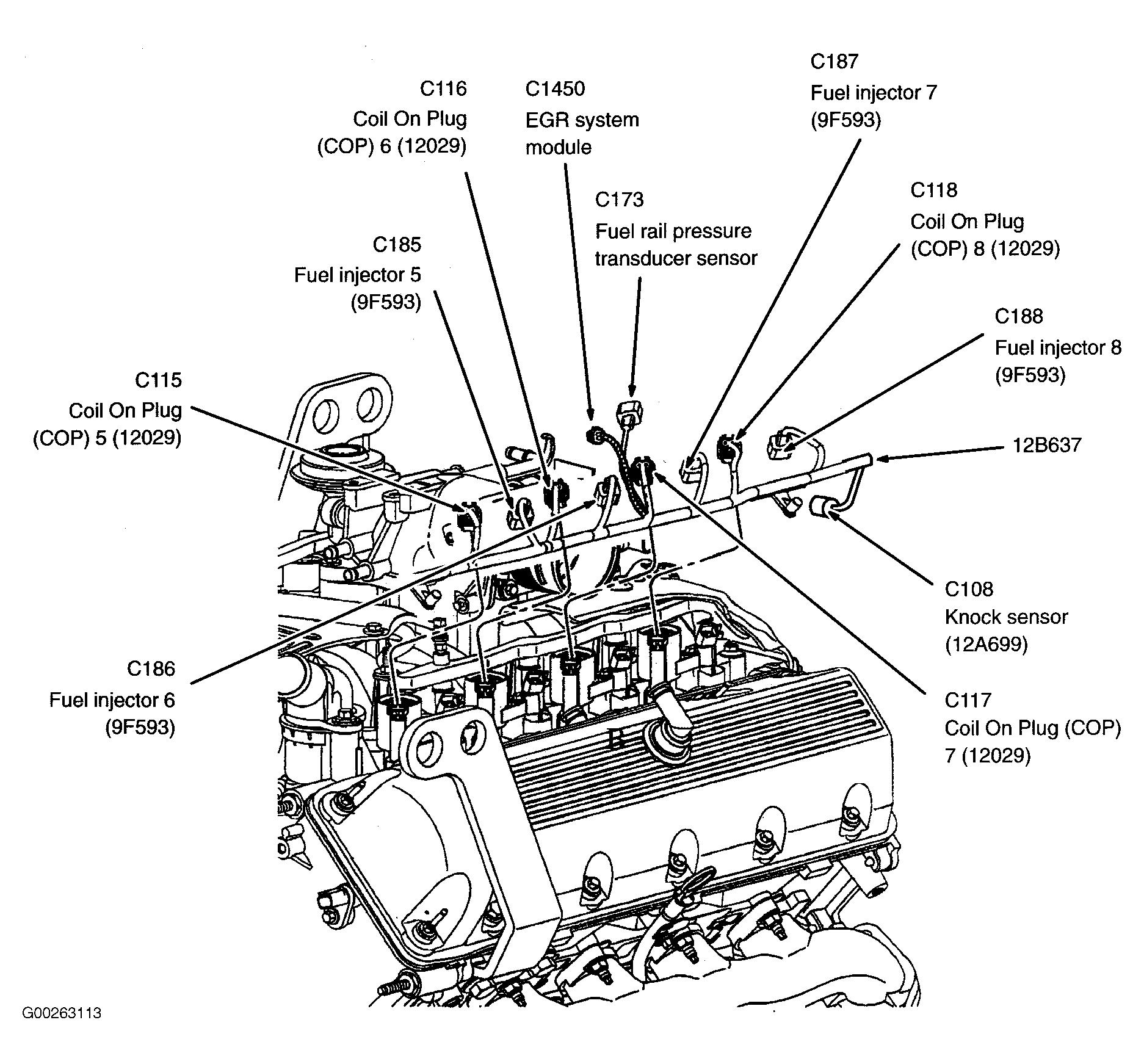

| EGR System Module (4.6L) | At top of engine. See Figure. |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |
| Front Blower Motor Speed Controller | Behind center of dash. |

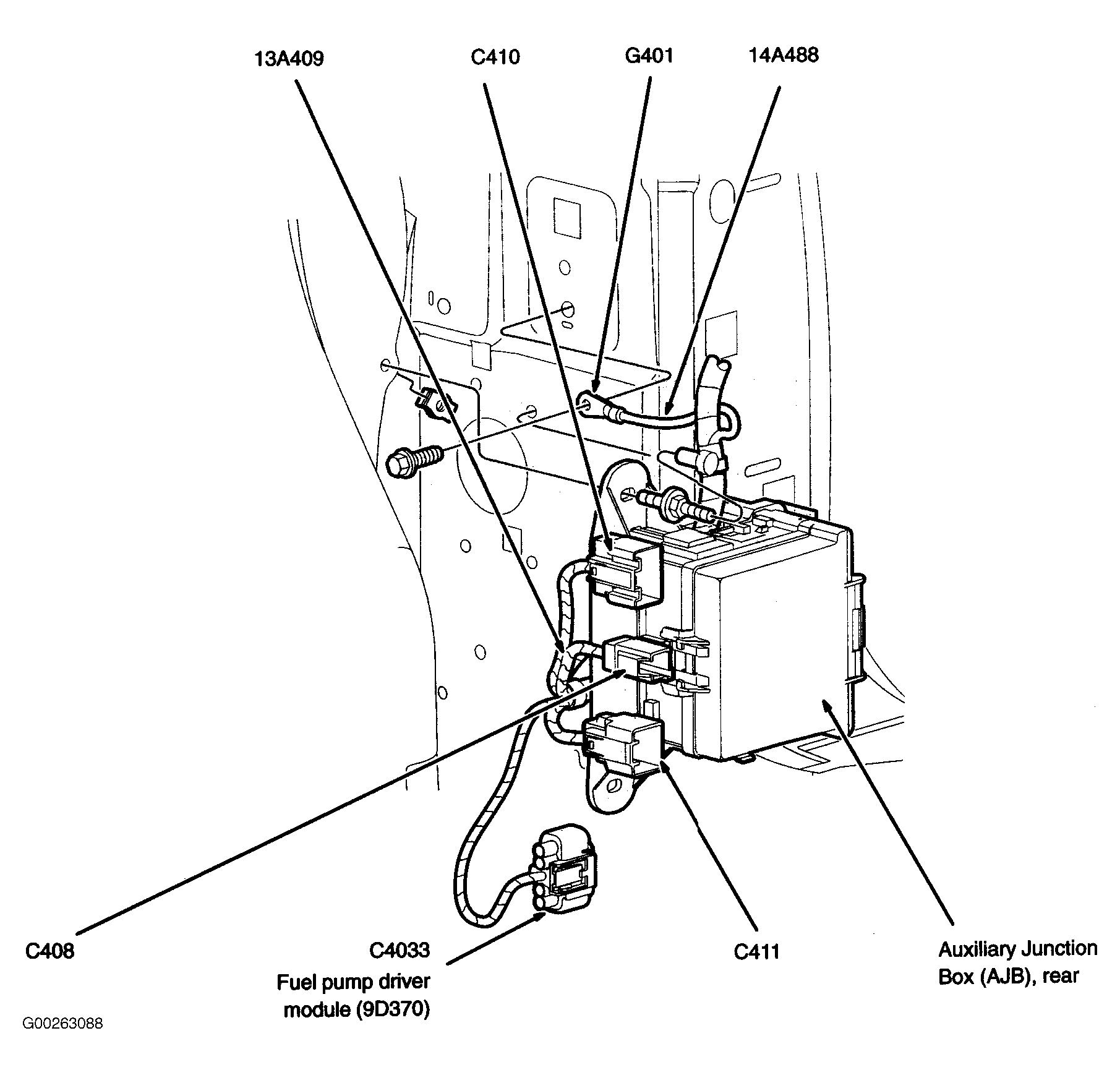

| Fuel Pump Driver Module | At right "D" pillar. See Figure. |
| Low Tire Pressure Module | At right "C" pillar. See Figure. |

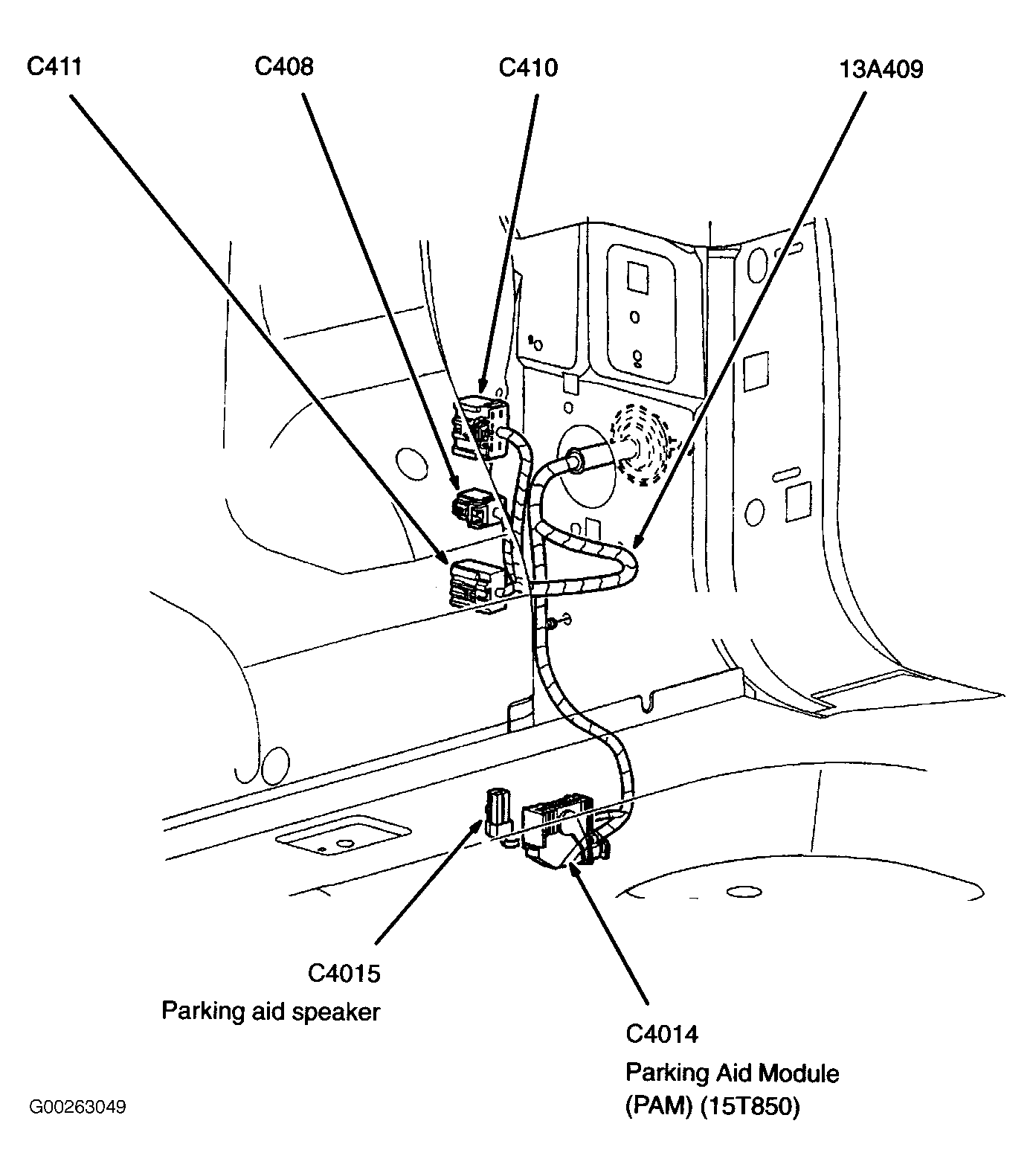

| Parking Aid Module (PAM) | At right "D" pillar. See Figure. |
| Passenger Air Bag Module | Behind right side of dash. See Figure. |

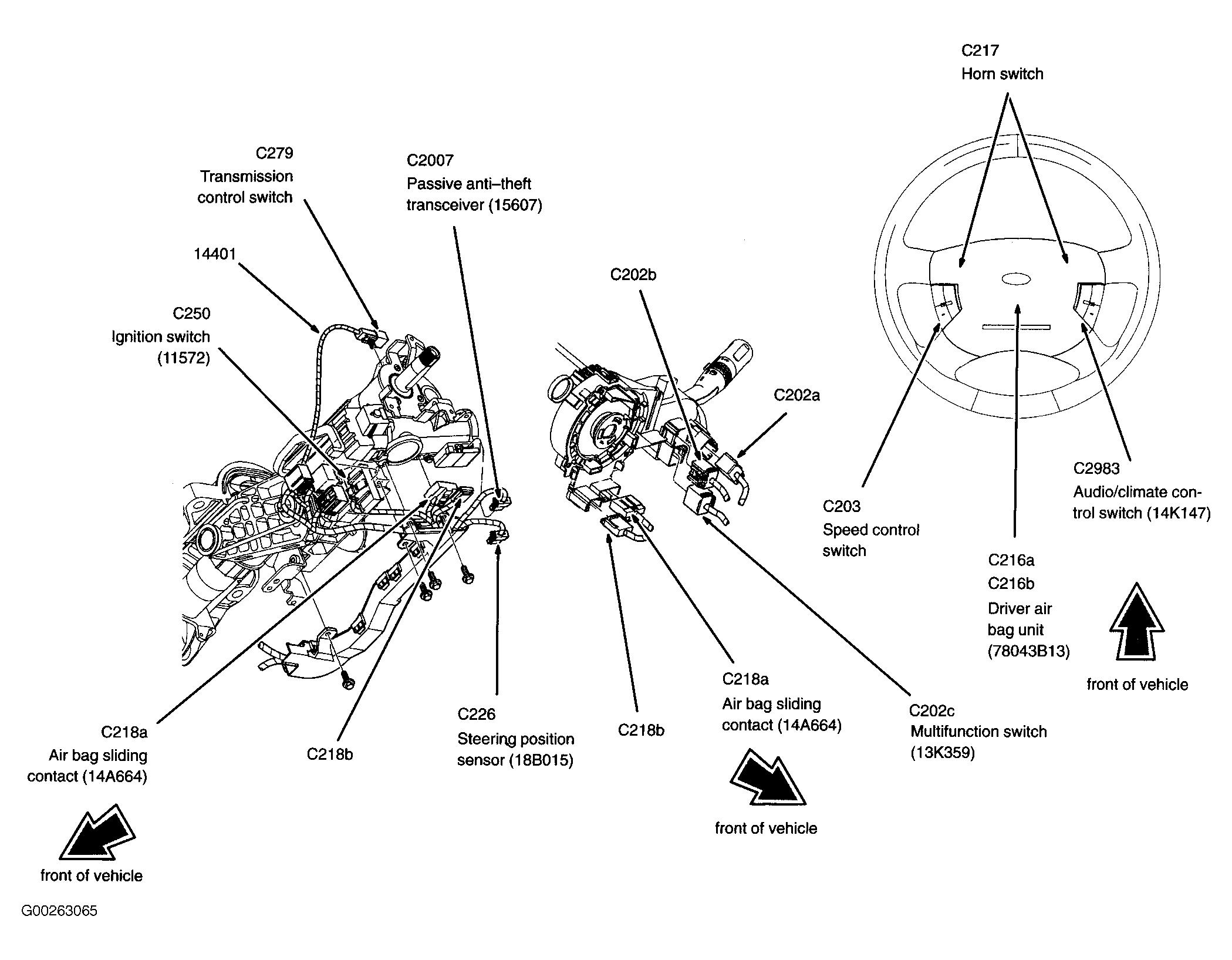

| Passive Anti-Theft Transceiver | On steering column. See Figure. |
| Powertrain Control Module (PCM) | At right side engine bulkhead. See Figure. |

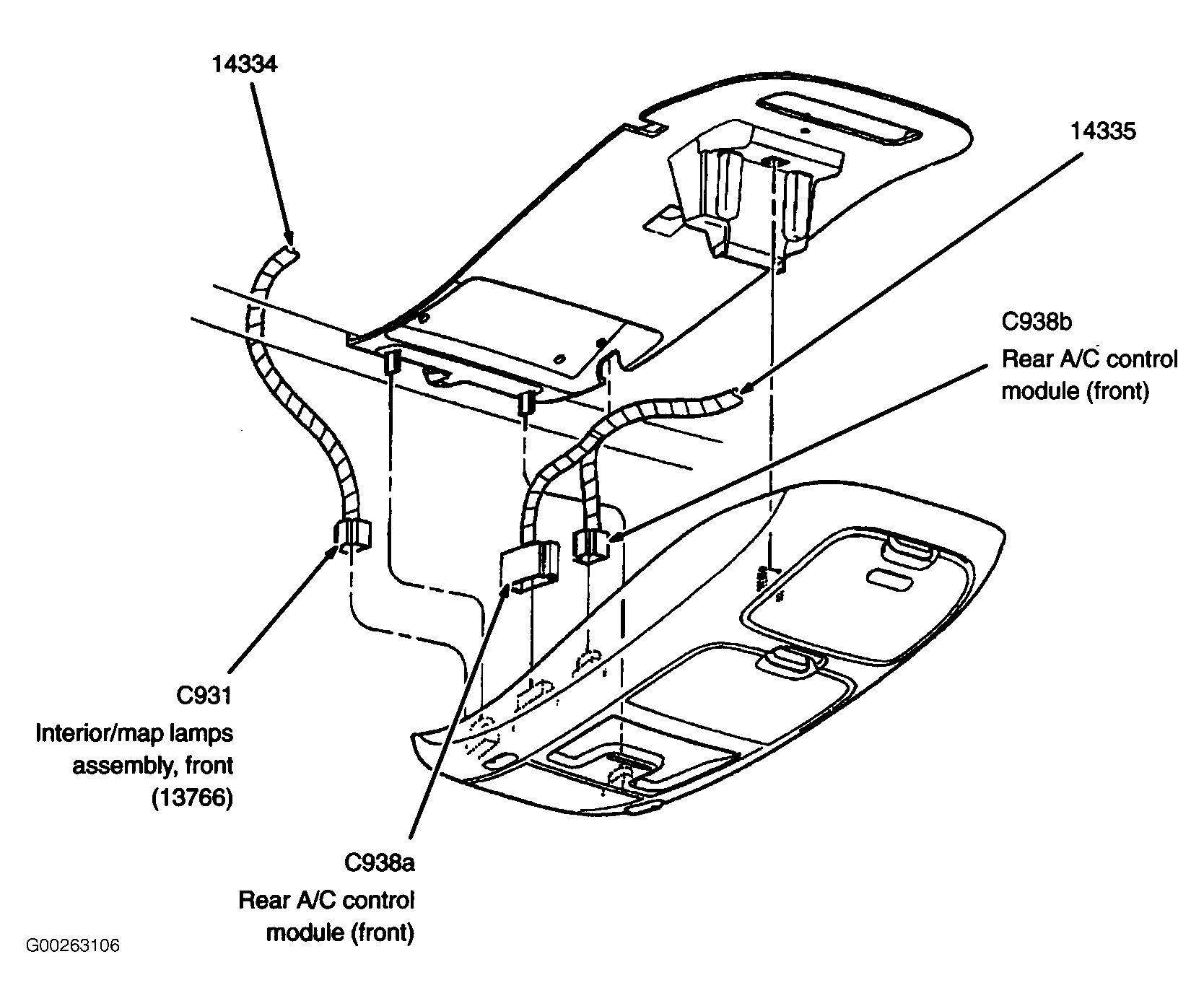

| Rear A/C Control Module | In roof panel. See Figure. |

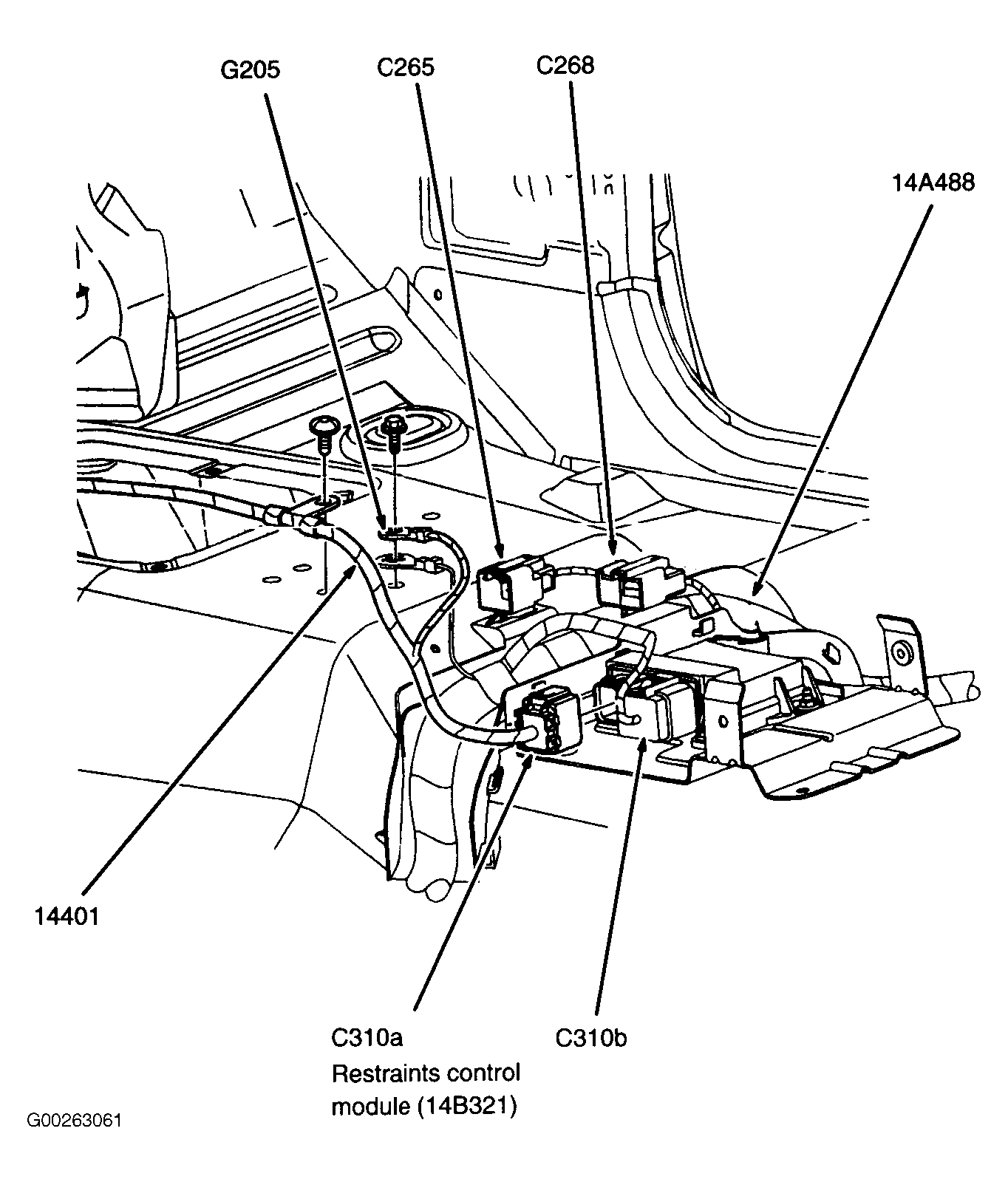

| Restraints Control Module | Below center console. See Figure. |

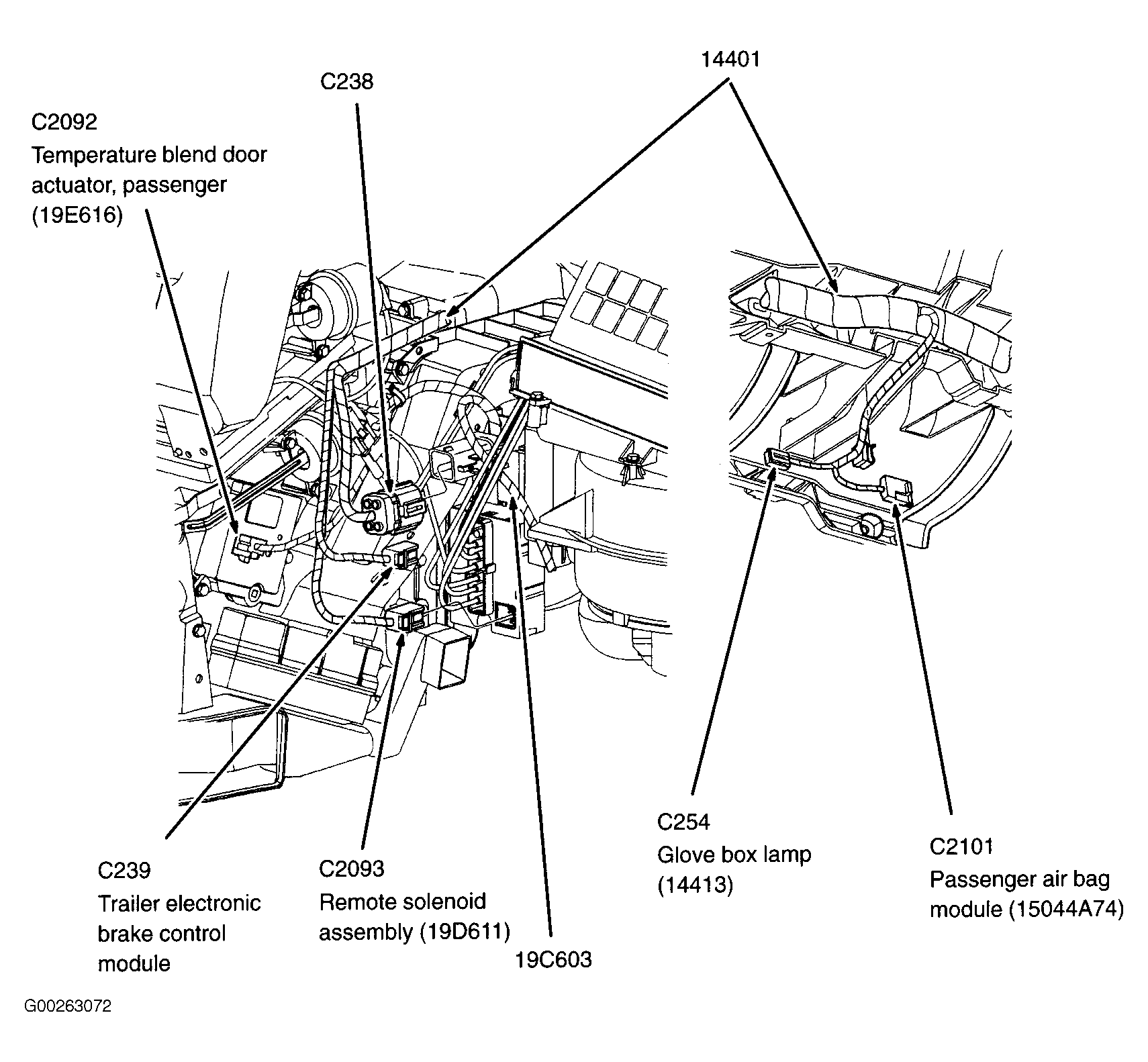

| Trailer Electronic Brake Control Module | Behind right side of dash. See Figure. |
| Vehicle Security Module (VSM) | Above right rear wheelwell. See Figure. |
