Reverse Servo Assembly: Notes

NOTE: Inspect the reverse servo piston seal for damage. If damaged, a new piston and seal assembly will need to be installed.
  1. Disassemble the parts in the order indicated in the following illustration and table.

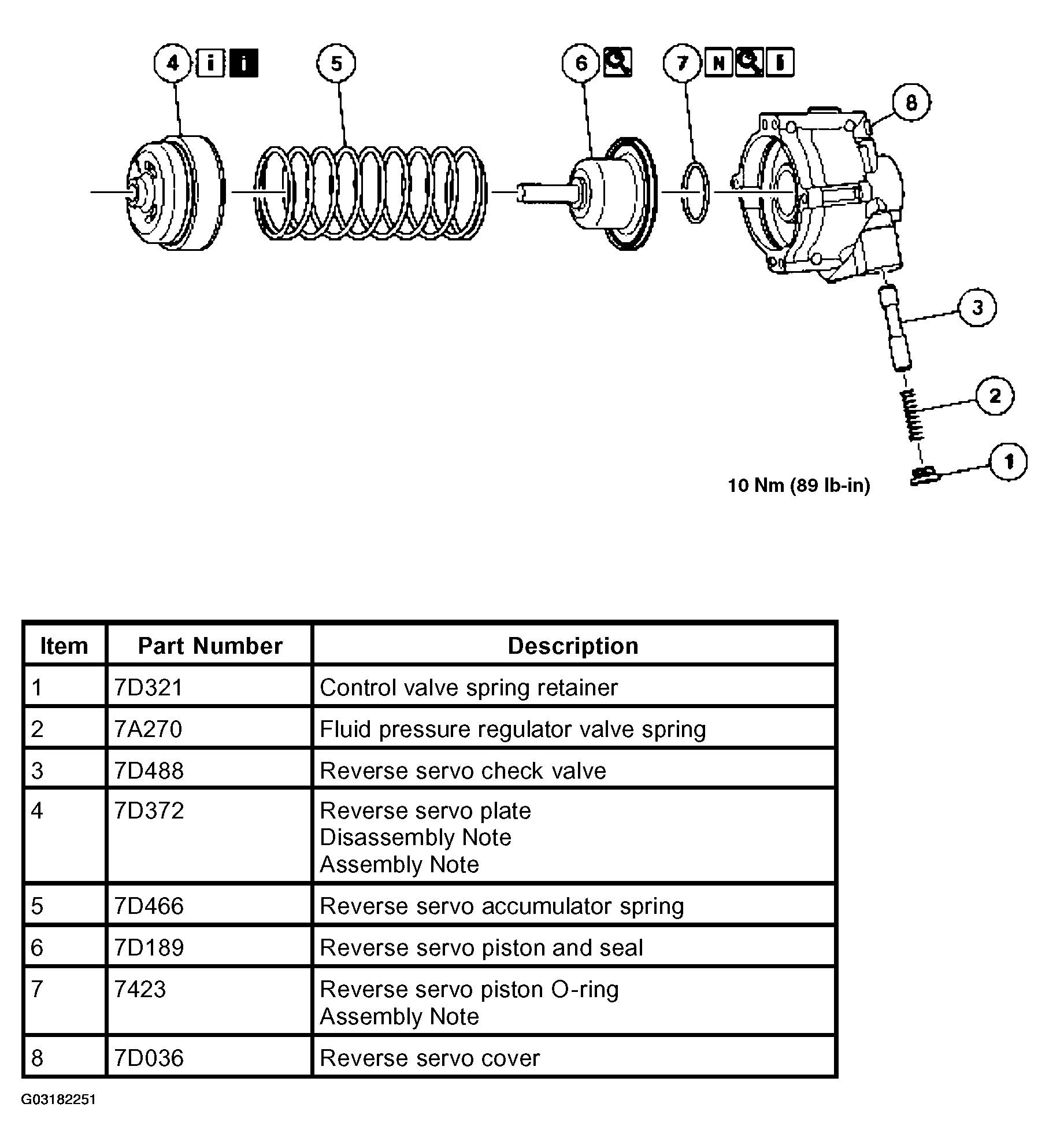

    Fig 1: Identifying Disassemble Order Of Reverse Servo Assembly
    G03182251Courtesy of FORD MOTOR CO.
  2. To assemble, reverse the disassembly procedure.
