Transmission Support Insulator - 4x2: Notes

  1. With the vehicle in PARK, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the components in the order indicated in the following illustration and table.
  4. To install, reverse the removal procedure.

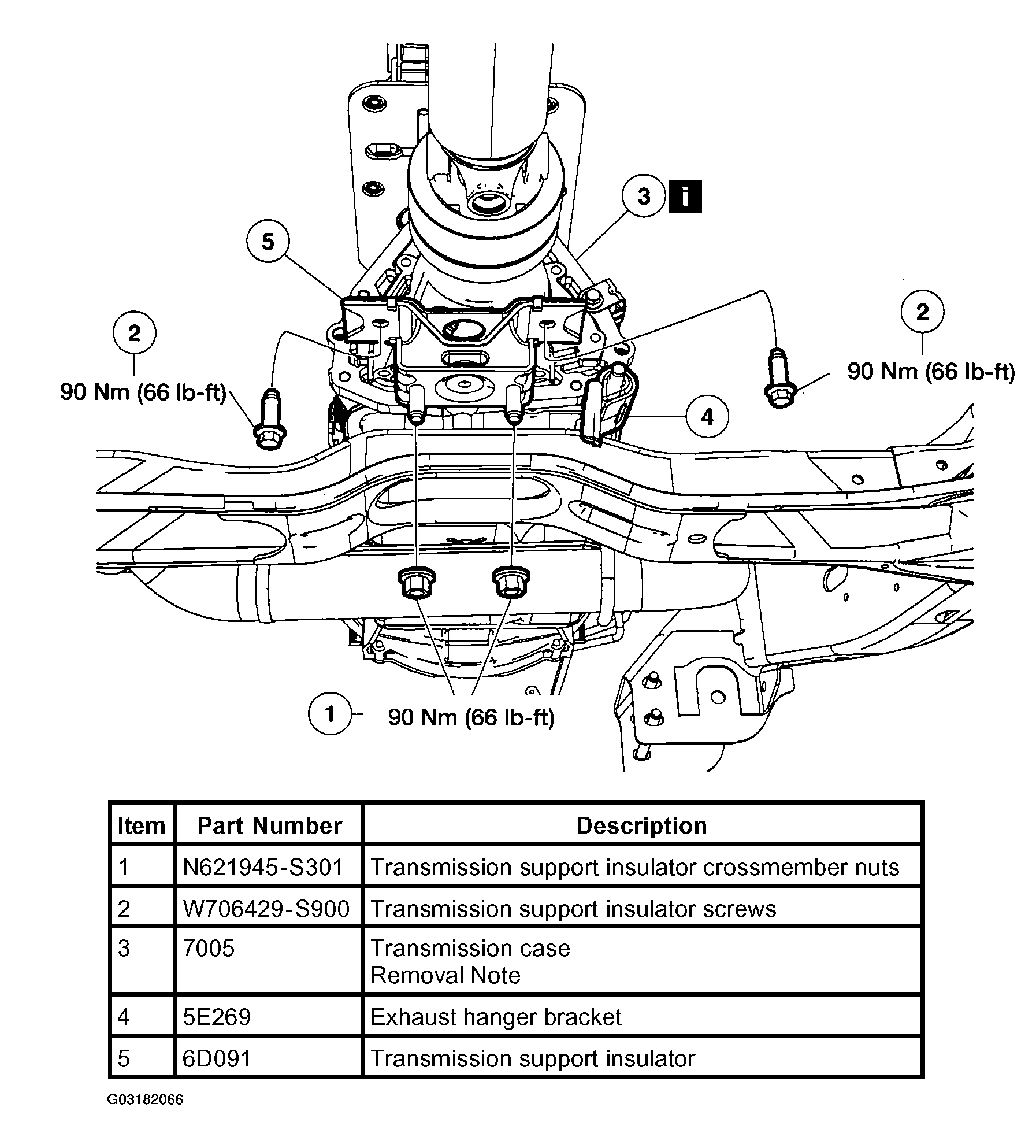

    Fig 1: Identifying Removal Order Of Transmission Support Insulator - 4X2
    G03182066Courtesy of FORD MOTOR CO.
