Active Brake Booster C149

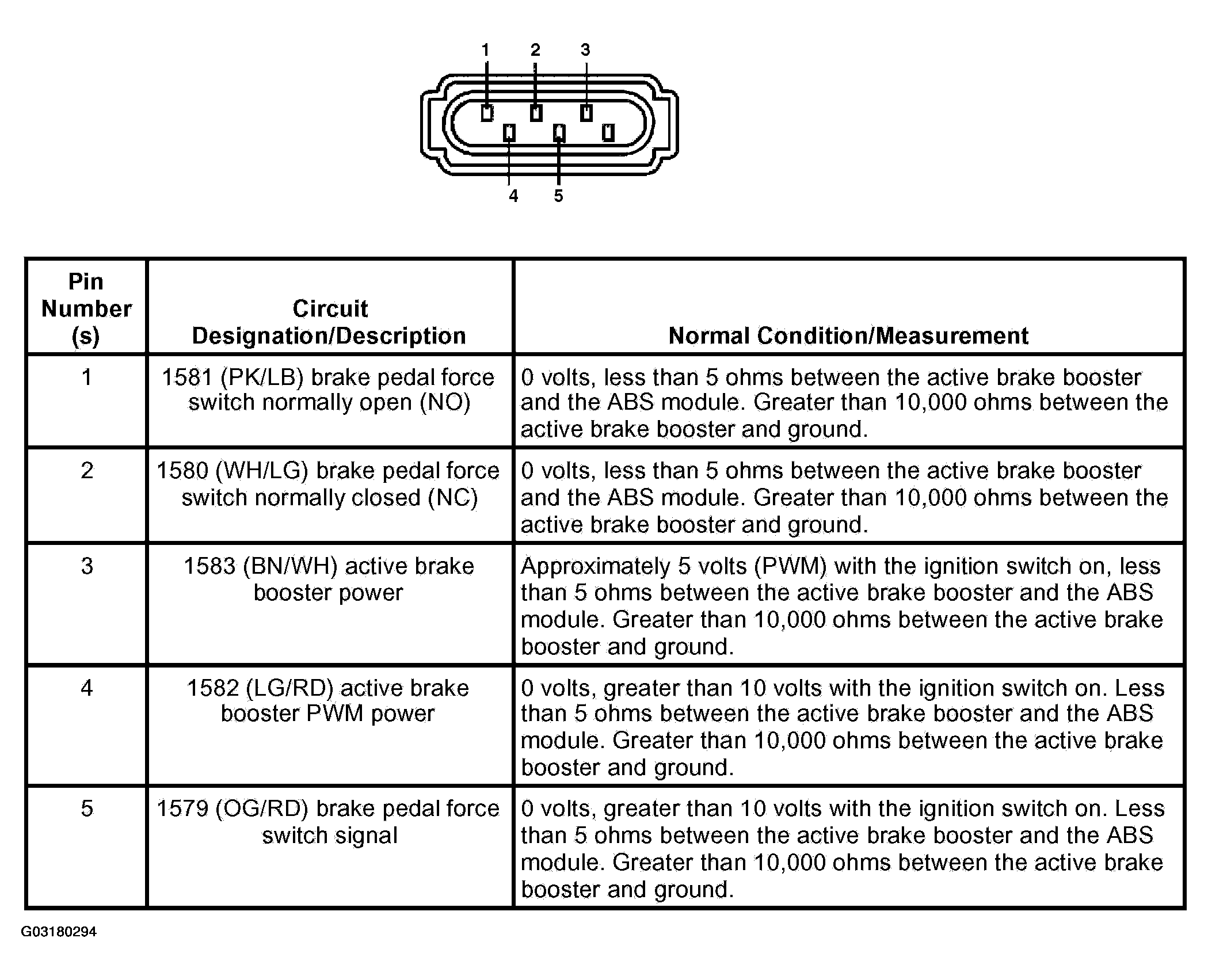

Fig 1: Identifying Active Brake Booster C149
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
