Module Component Location Index - Universal Asynchronous Receiver - Transmitter - (UART) Based Protocol (UBP) Network

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

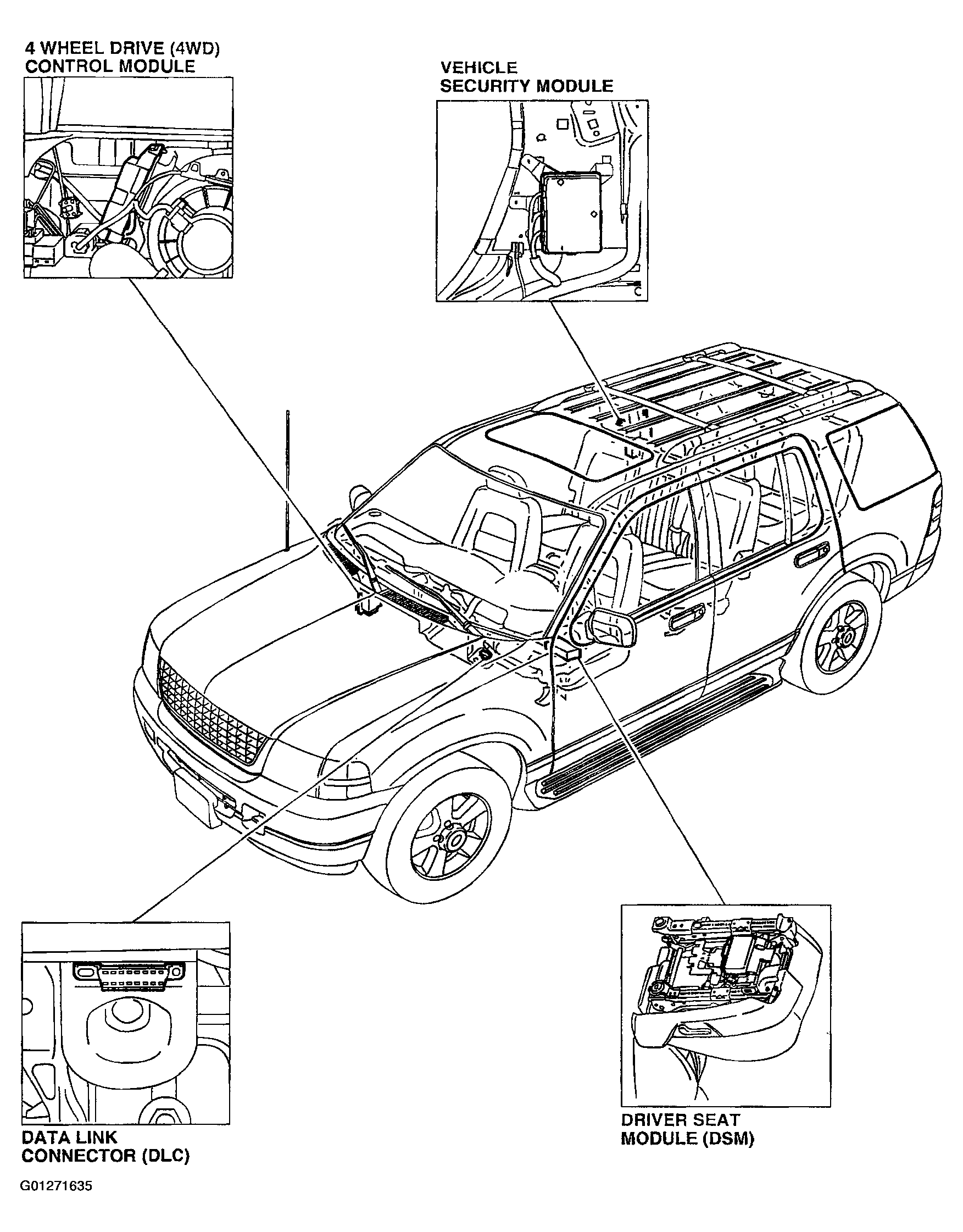

Fig 1: Module Component Location Index - Universal Asynchronous Receiver - Transmitter - (UART) Based Protocol (UBP) Network
G01271635Courtesy of FORD MOTOR CO.
