Item 35: Intermediate Servo Retaining Ring Assembly Note

  1. Using the special tool, install the retaining ring.

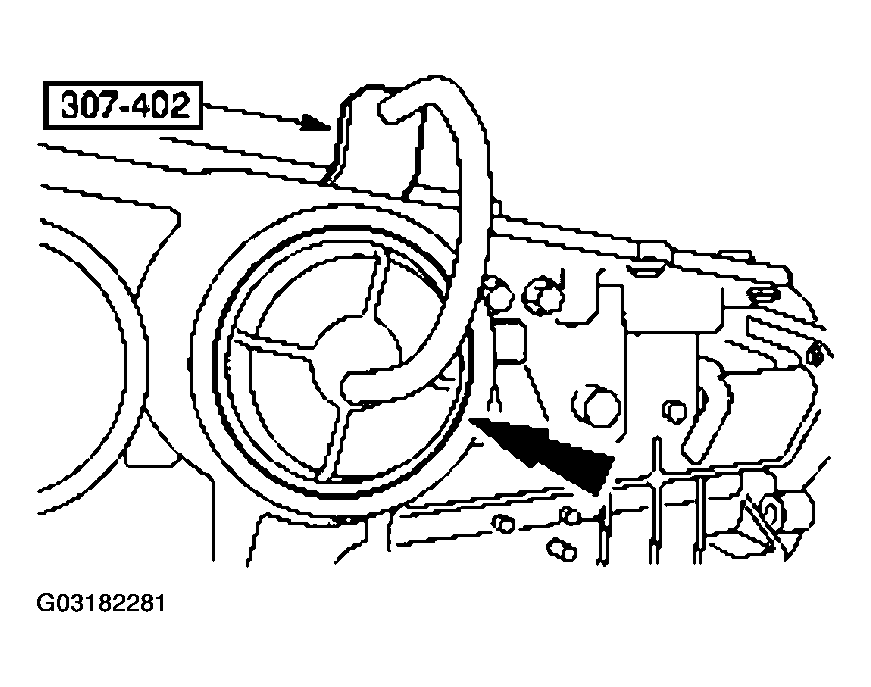

    Fig 1: Installing Retaining Ring
    G03182281Courtesy of FORD MOTOR CO.
