Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C110 (Black, 12 Pin) | Right side of firewall. See Figure. |
| C126 (Gray, 12 Pin) | Left side of engine compartment. See Figure. |
| C133 (Black, 2 Pin) | At right side of engine compartment. |
| C139 (Black, 12 Pin) | Left front of engine compartment. See Figure. |
| C140 (Gray, 6 Pin) | Left front of engine compartment. See Figure. |
| C144 (Gray, 6 Pin) | Right front of engine compartment. See Figure. |
| C210 (Gray, 16 Pin) | Behind left side of dash. See Figure. |
| C211 (Black, 16 Pin) | Behind center of dash. See Figure. |
| C212 (Black, 20 Pin) | Behind center of dash. See Figure. |
| C215 (Black, 12 Pin) | Behind left side of dash. See Figure. |
| C237 (Gray, 2 Pin) | Under center console. See Figure. |
| C238 (Gray, 12 Pin) | Behind center of dash. See Figure. |
| C260 (Gray, 6 Pin) | At right "A" pillar. See Figure. |

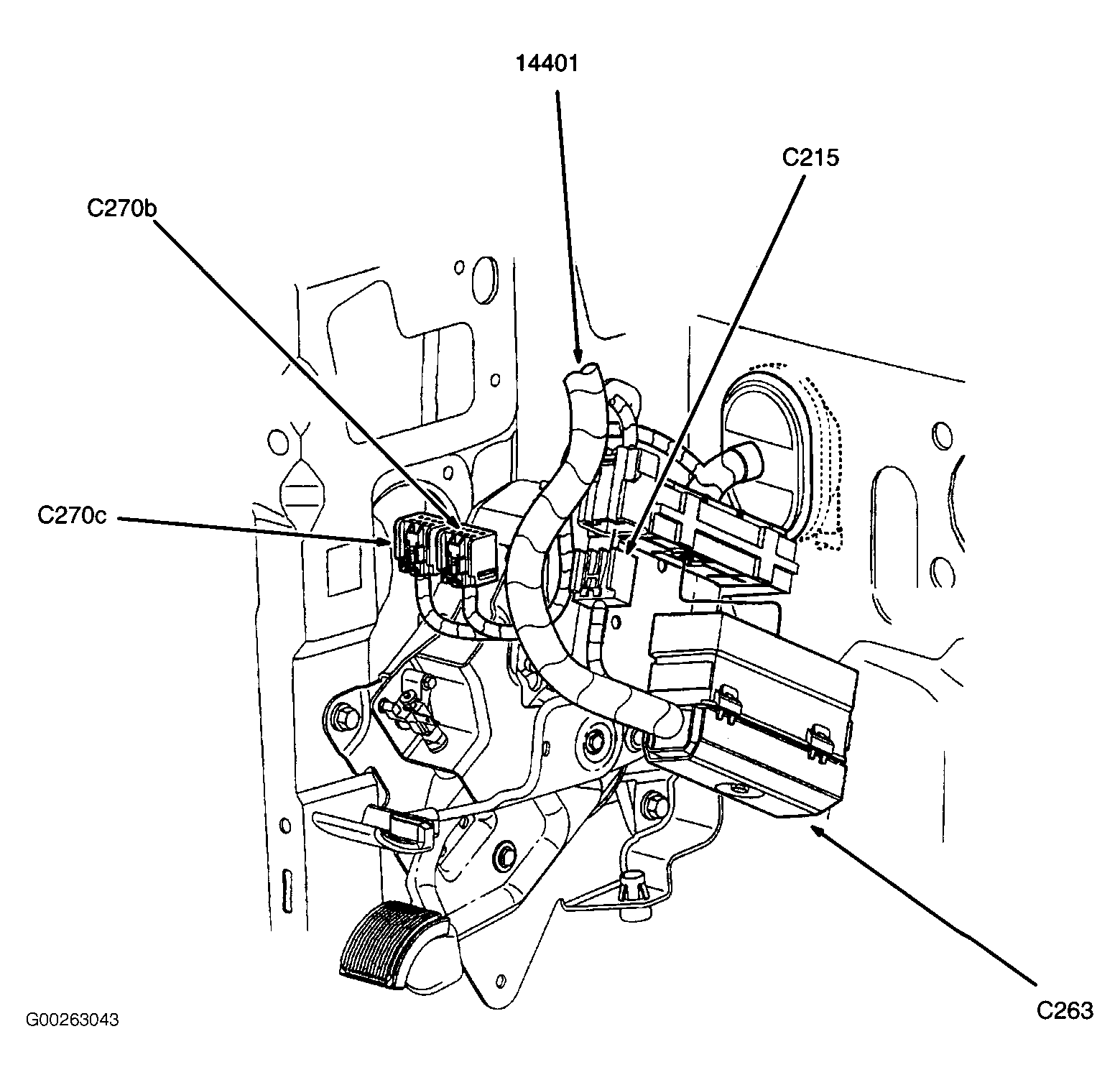

| C263 (Gray, 74 Pin) | Behind left side of dash. See Figure. |
| C264 (Green, 14 Pin) | On left "A" pillar. See Figure. |
| C265 (Gray, 13 Pin) | Under center console. See Figure. |
| C268 (Gray, 20 Pin) | Behind left side of dash. See Figure. |
| C275 (Gray, 4 Pin) | Under center console. See Figure. |

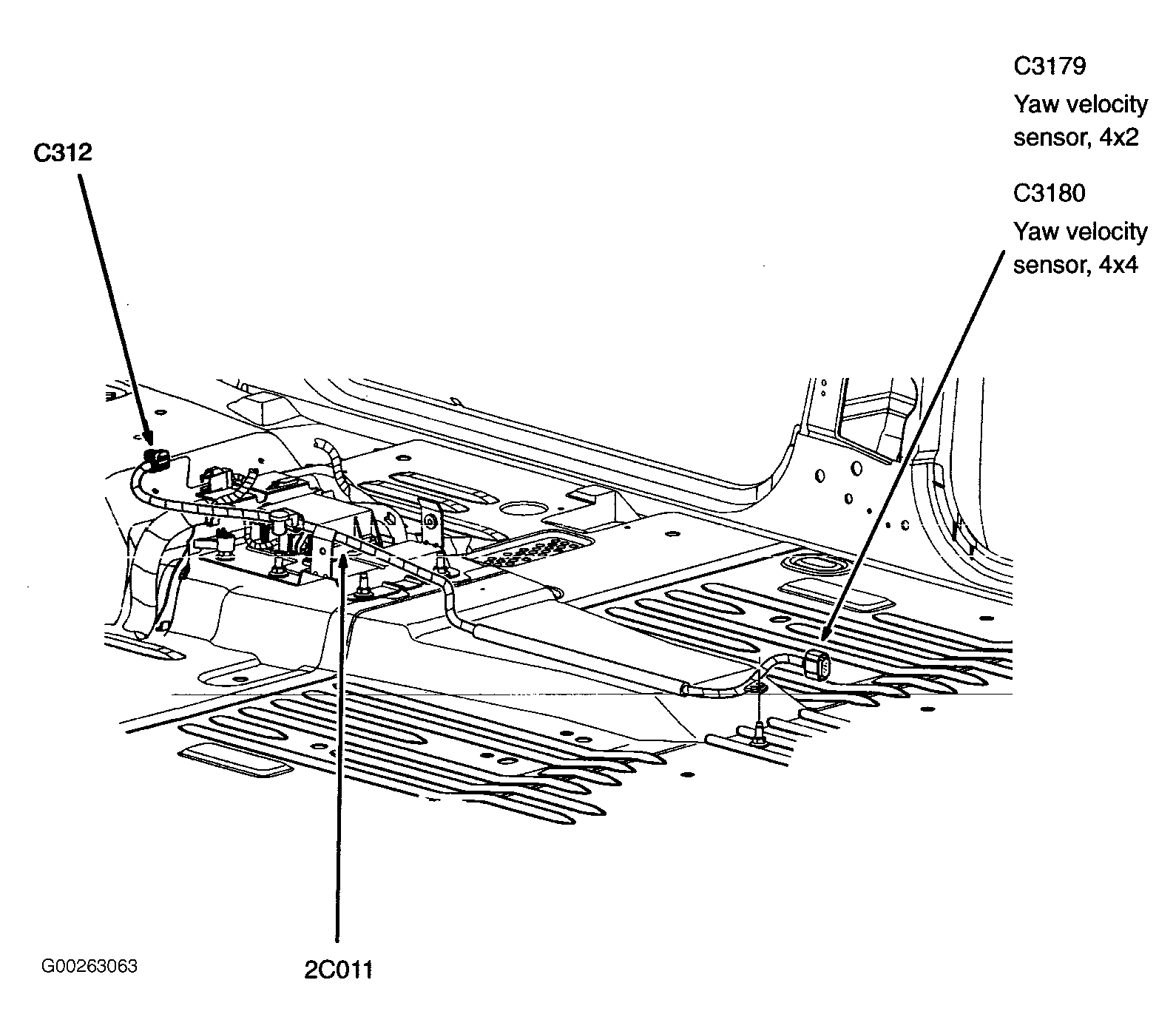

| C312 (Gray, 4 Pin) | Under center console. See Figure. |
| C340 (Gray, 12 Pin) | Behind left side of rear seats. See Figure. |
| C405 (Gray, 8 Pin) | At right "D" pillar. See Figure. |
| C406 (Gray, 6 Pin) | At right "D" pillar. See Figure. |
| C408 (Gray, 6 Pin) | At right "D" pillar. See Figure. |
| C410 (Gray, 10 Pin) | At right "D" pillar. See Figure. |
| C411 (Gray, 4 Pin) | At right "D" pillar. See Figure. |
| C421 (Gray, 8 Pin) | Left rear of vehicle. See Figure. |
| C422 (Gray, 3 Pin) | At right "D" pillar. See Figure. |
| C432 (Gray, 8 Pin) | At left rear corner of vehicle, in roof panel. See Figure. |
| C494 (Black, 10 Pin) | At left rear corner of vehicle, in roof panel. See Figure. |
| C510 (Black, 6 Pin) | In left front door. See Figure. |
| C511 (Gray, 8 Pin) | In left front door. See Figure. |
| C610 (Black, 6 Pin) | In right front door. See Figure. |
| C700 (Gray, 2 Pin) | In rear door. See Figure. |
| C800 (Gray, 2 Pin) | In rear door. See Figure. |
| C919 (Gray, 3 Pin) | In roof panel. |
| C922 (Gray, 6 Pin) | In roof panel. |
| C925 (Black, 8 Pin) | In roof panel. |
| C1168 (Black, 12 Pin) | Right side of firewall. See Figure. |
| C1220 (Black, 3 Pin) | At left rear of engine compartment. See Figure. |
| C2026 (Gray, 6 Pin) | In center console. See Figure. |
| C2095 (Gray, 74 Pin) | Behind right side of dash. See Figure. |
| C2237 (Green, 16 Pin) | At right "A" pillar. See Figure. |
| C2239 (Gray, 16 Pin) | Behind center of dash. See Figure. |
| C3007 (Black, 12 Pin) | Behind left side of rear seats. See Figure. |
| C3047 (Black, 14 Pin) | On right frame rail. See Figure. |
| C3049 (Gray, 8 Pin) | Under driver's seat. See Figure. |
| C3050 (Gray, 12 Pin) | Under driver's seat. See Figure. |
| C3051 (Gray, 8 Pin) | Under passenger's seat. See Figure. |
| C3052 (Green, 14 Pin) | Under driver's seat. See Figure. |
| C3053 (Blue, 16 Pin) | At right "C" pillar. See Figure. |
| C3133 (Yellow, 2 Pin) | Under driver's seat. See Figure. |
| C3134 (Yellow, 2 Pin) | Under passenger's seat. See Figure. |
| C4131 (Gray, 8 Pin) | Under left side of roof. See Figure. |
