Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

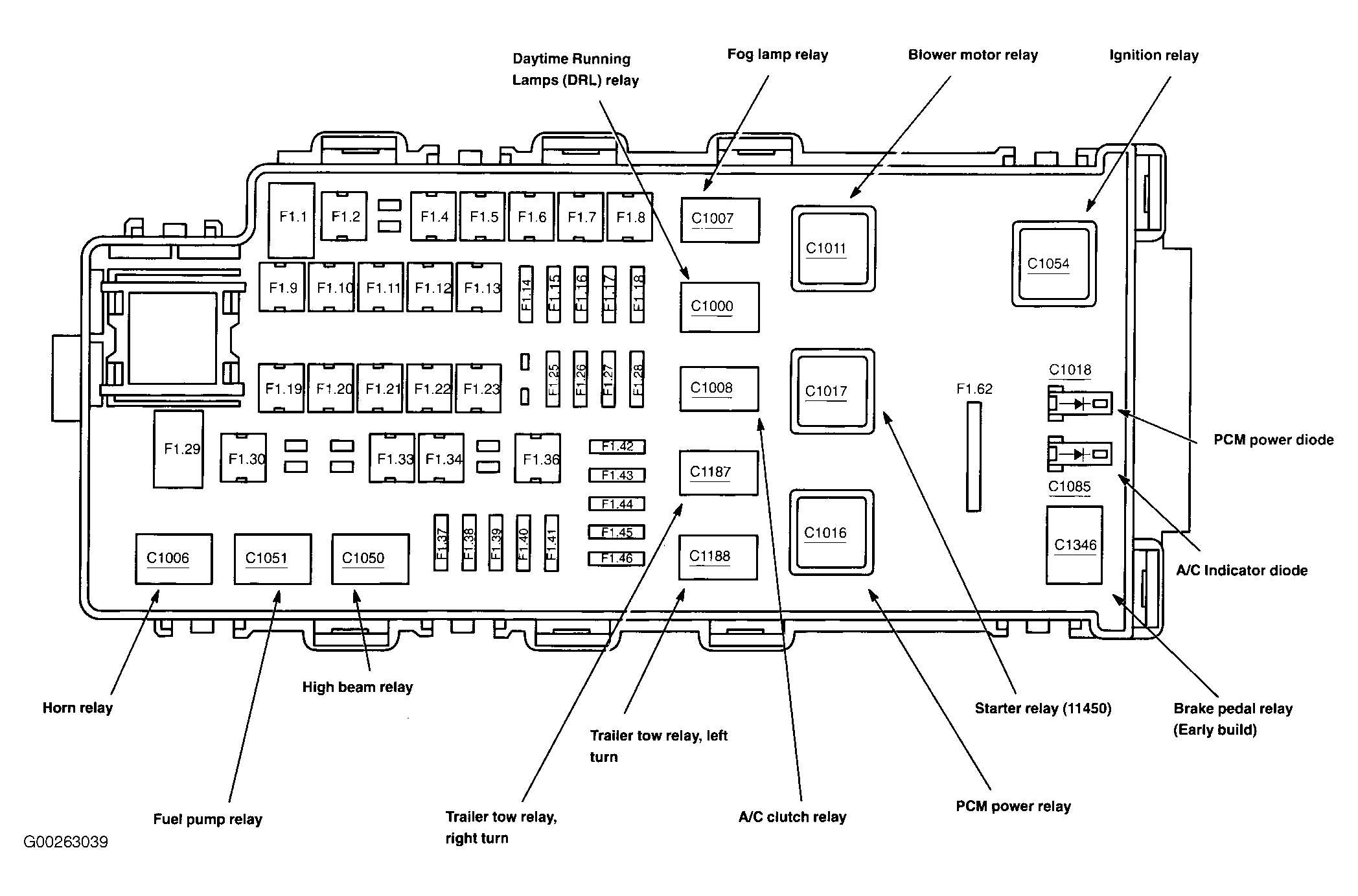

A/C Indicator Diode In battery junction box (BJB). See Figure.

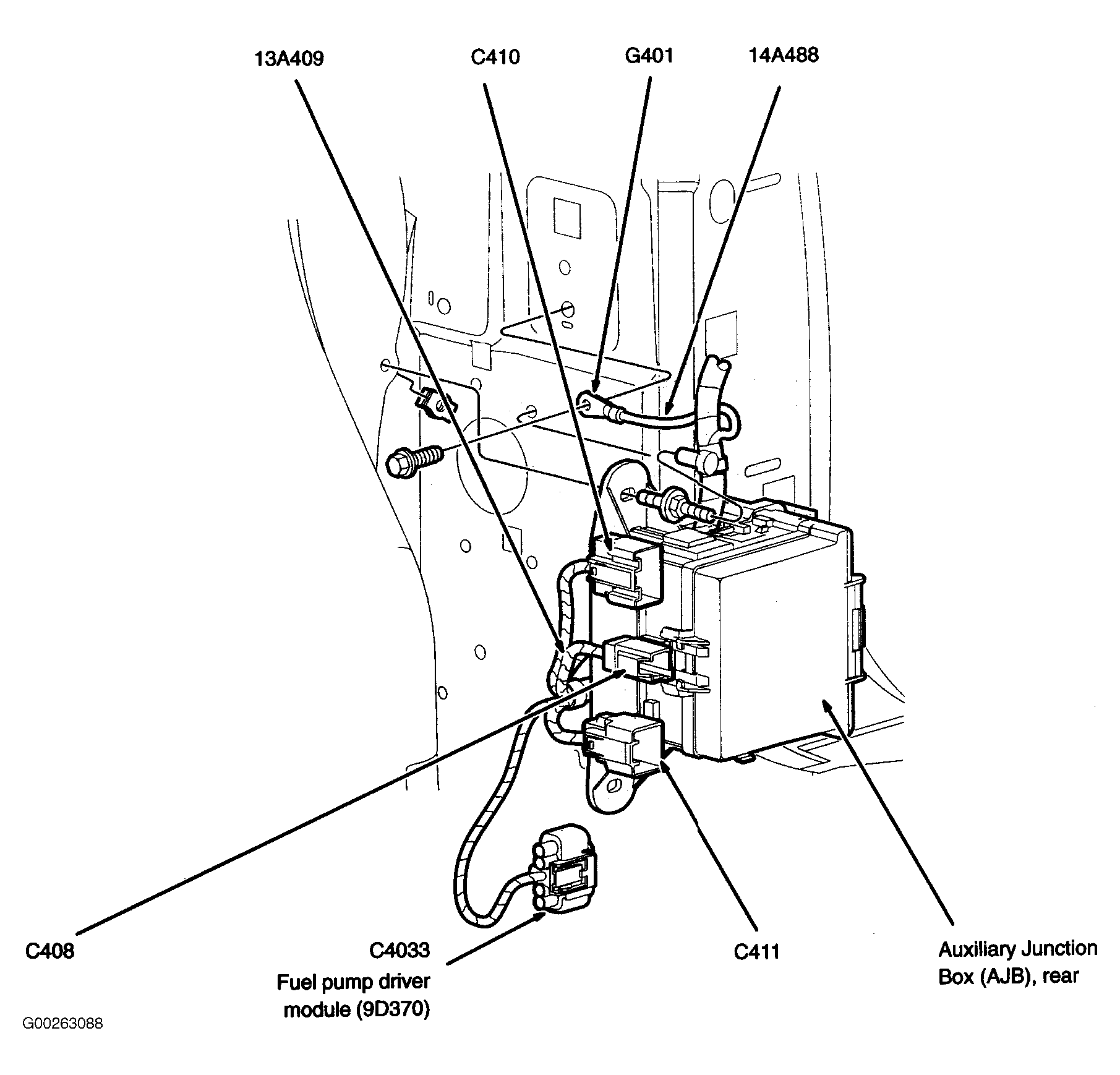

Auxiliary Junction Box (AJB), Rear At right "D" pillar. See Figure.

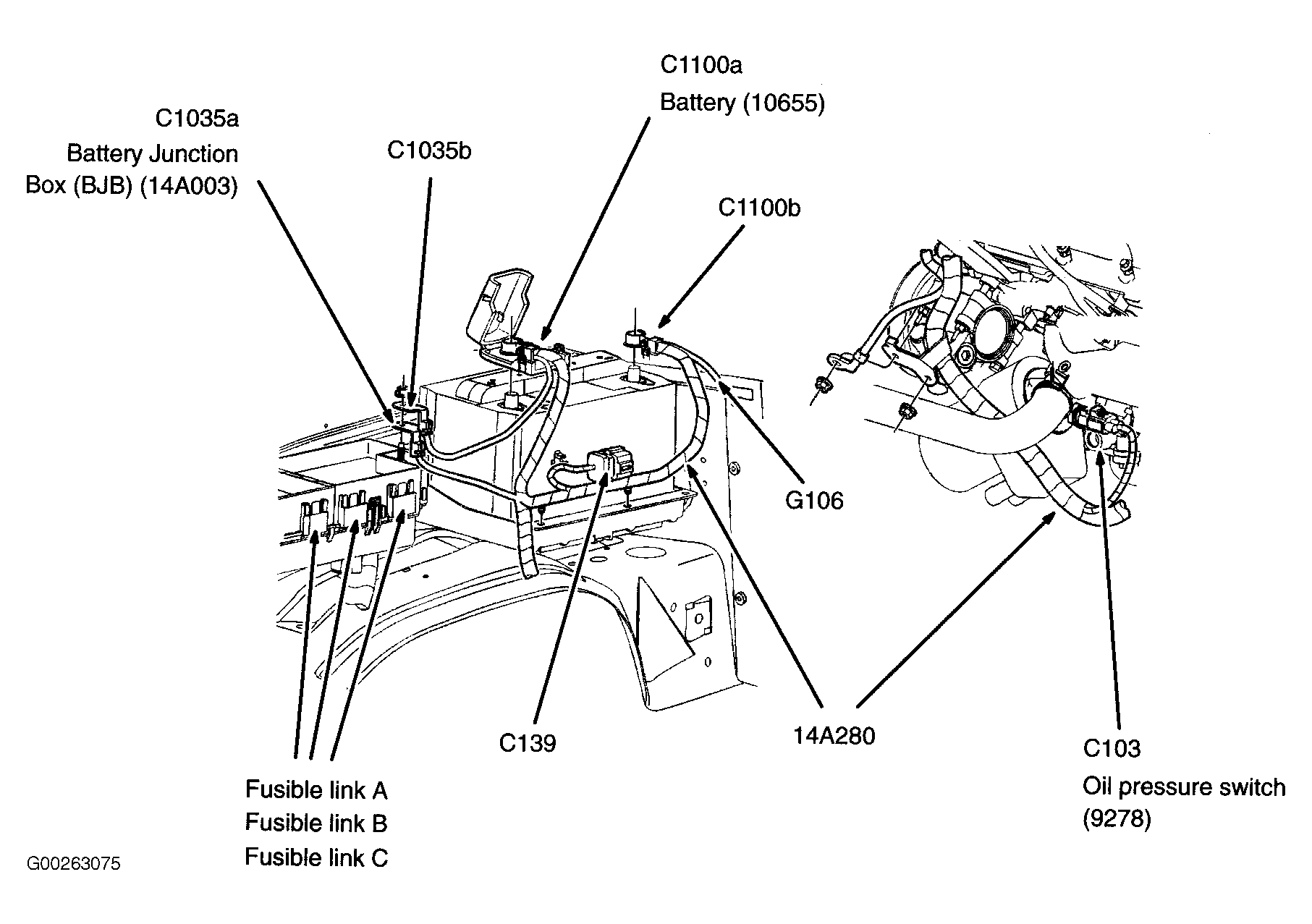

Battery Junction Box (BJB) Left side of engine compartment, at fender apron. See Figure.

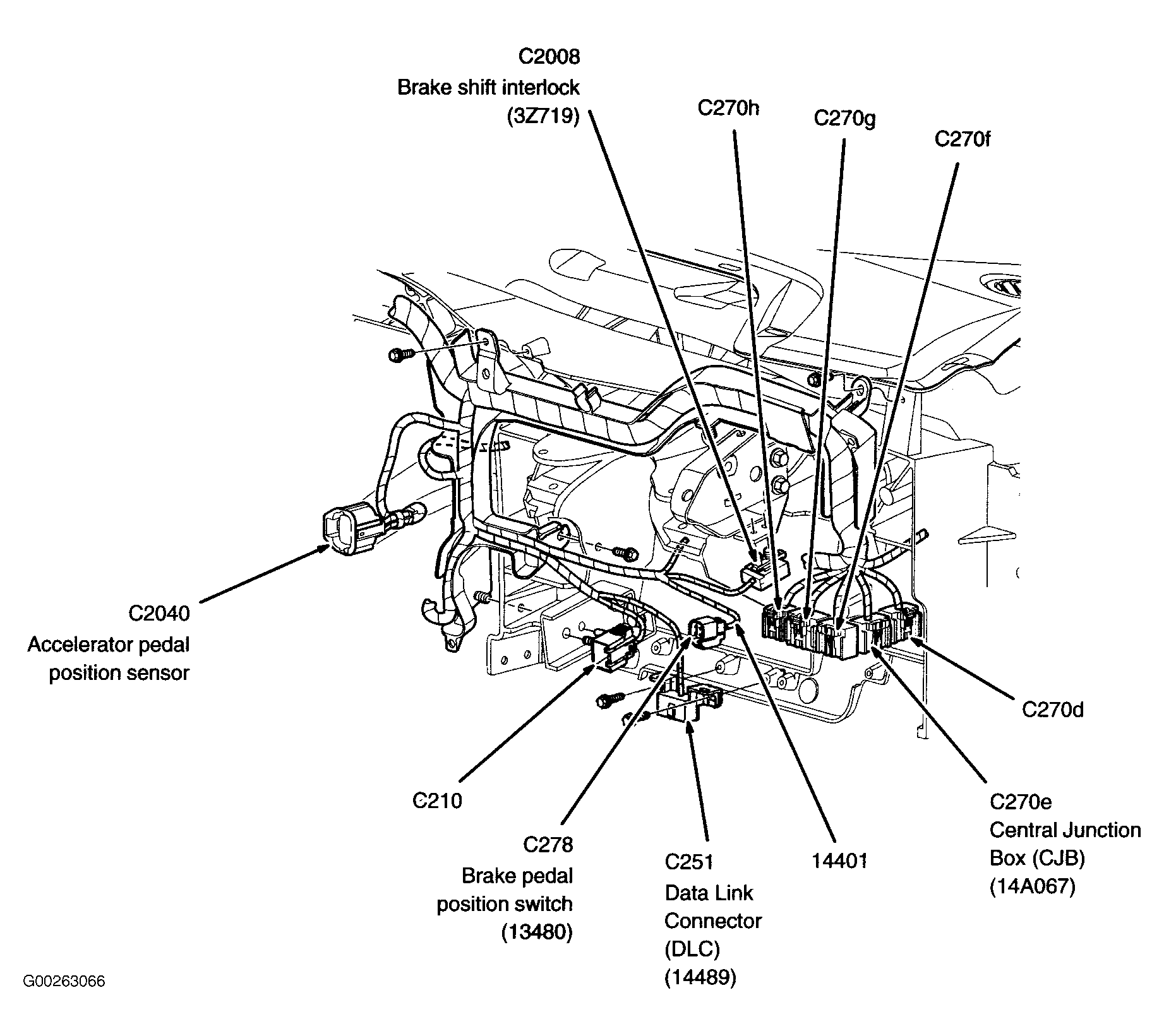

Central Junction Box (CJB) Behind left side of dash. See Figure.

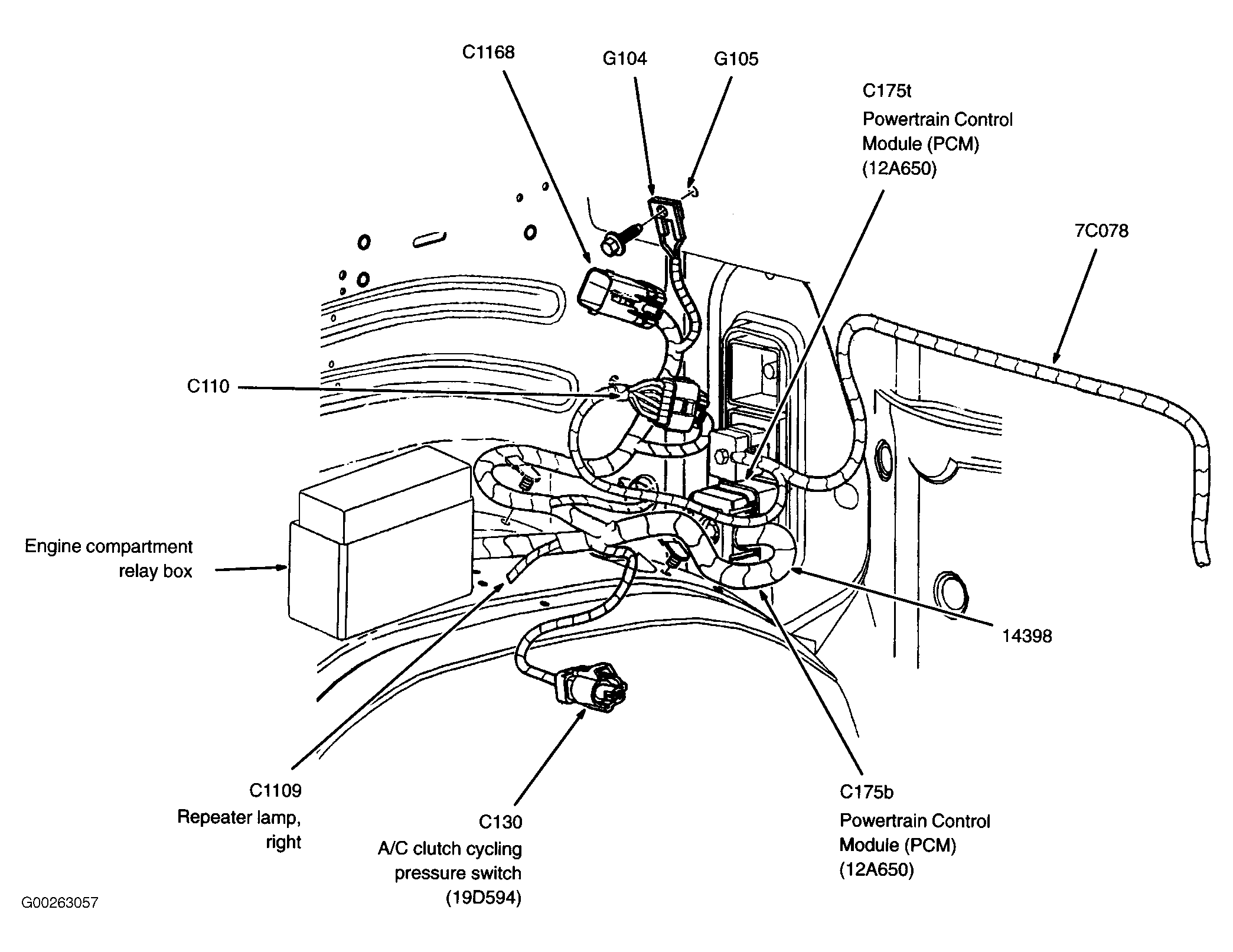

Engine Compartment Relay Box At right side of engine compartment. See Figure.
Fusible Link A On left side of engine compartment. See Figure.
Fusible Link B On left side of engine compartment. See Figure.
Fusible Link C On left side of engine compartment. See Figure.
PCM Power Diode In battery junction box (BJB). See Figure.
