Child Safety Seat Tether Anchor

MATERIAL SPECIFICATION

Item	Specification
Clear Silicone Rubber D6AZ-19562-AA	ESB-M4G92-A

WARNING: All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), shoulder belt height adjusters (if so equipped), child safety seat tether attachments and attaching hardware should be inspected after any collision. All belt assemblies should be replaced unless a qualified technician finds the assemblies show no damage and operate properly. Belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

NOTE: Sealant must be applied to the tether anchor bolts when installed.

To access the second row tether anchors, remove the third row seat cushion and position aside the carpet.
To access the third row tether anchors, remove the rear hatch scuff plate. For additional information, refer to INTERIOR TRIM PANELS .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
Second Row Tether Anchors	1-6
Third Row Tether Anchors	7-10

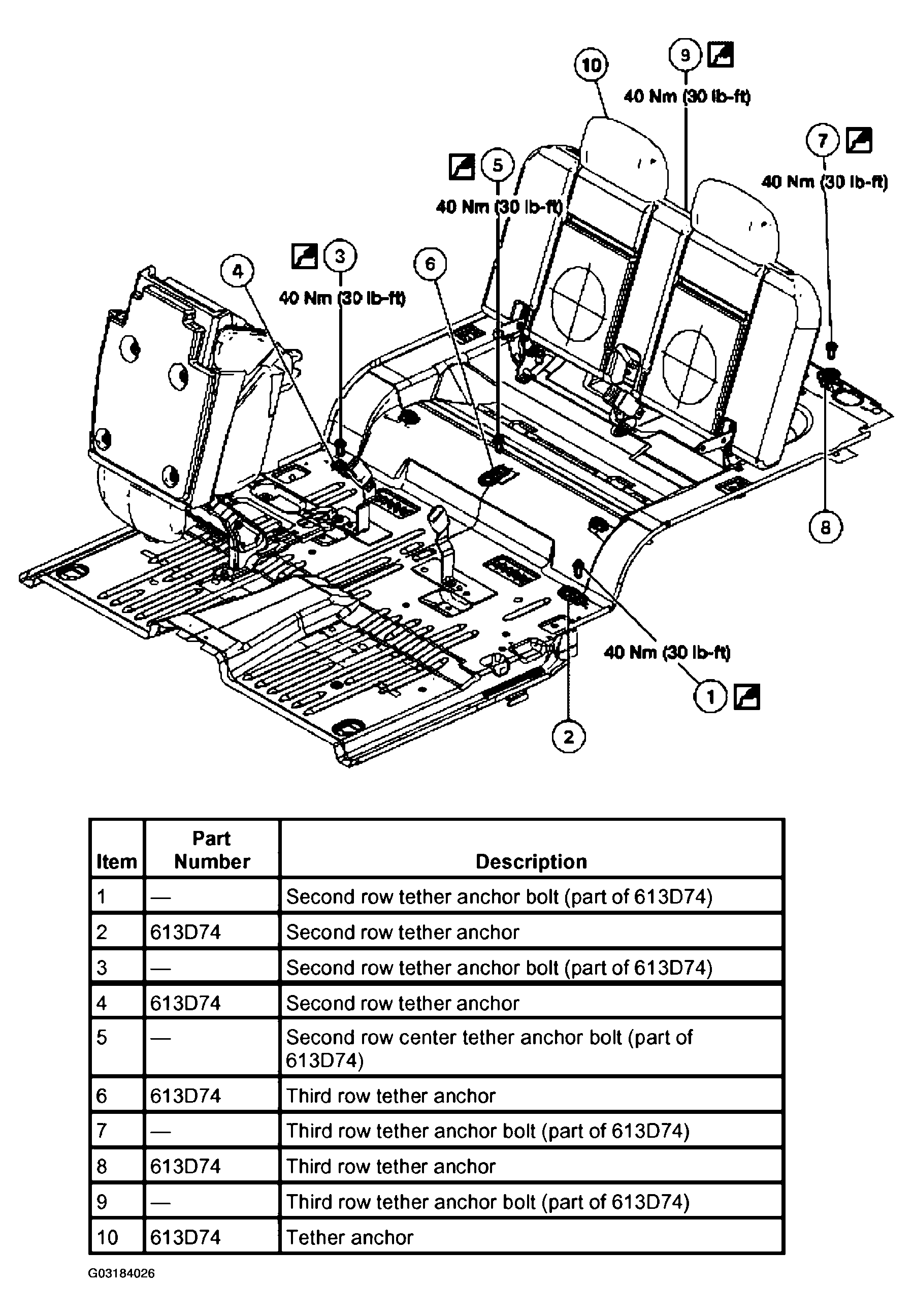

Fig 1: Removing Child Safety Seat Tether Anchor

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
