Disassembled Views

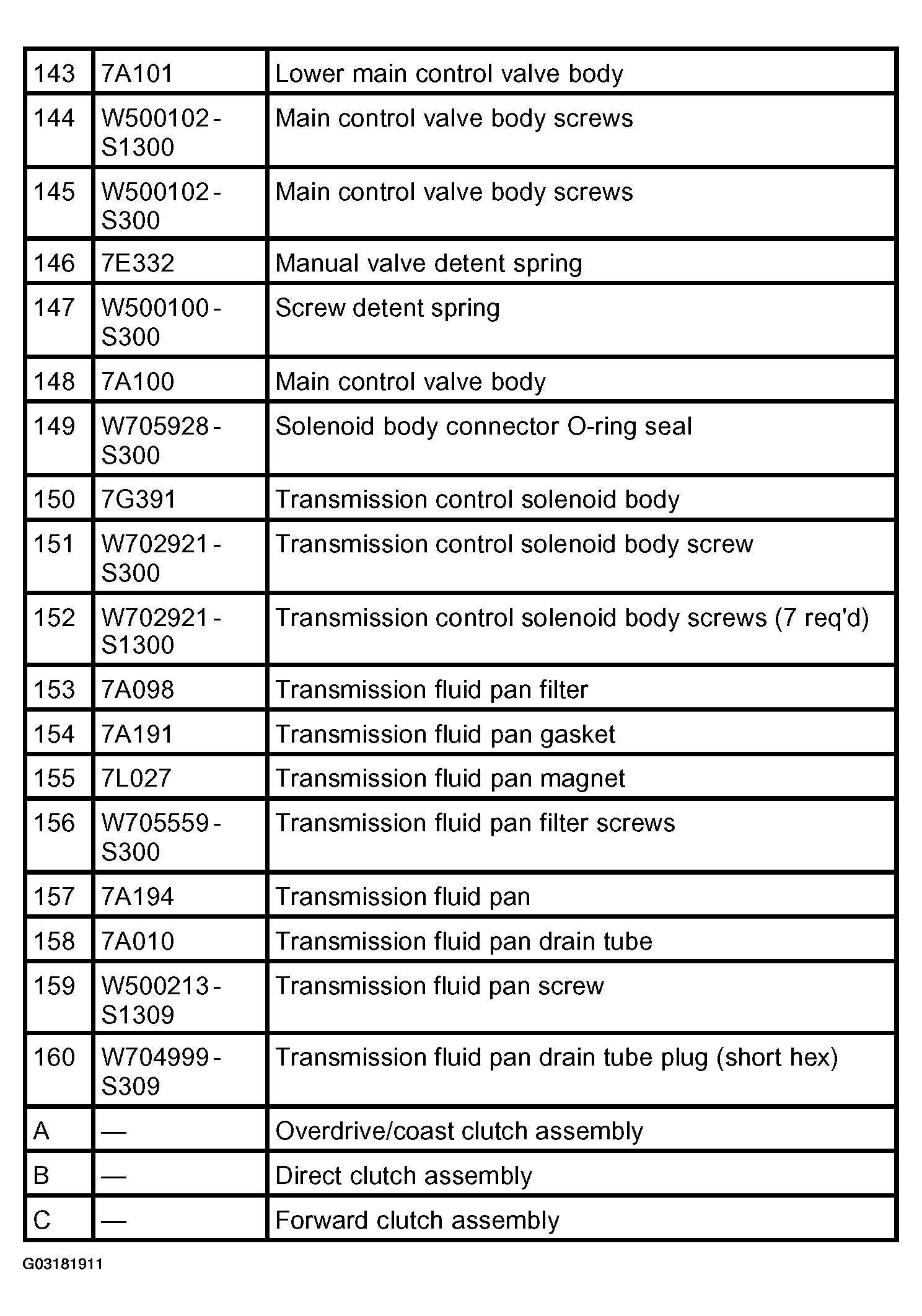

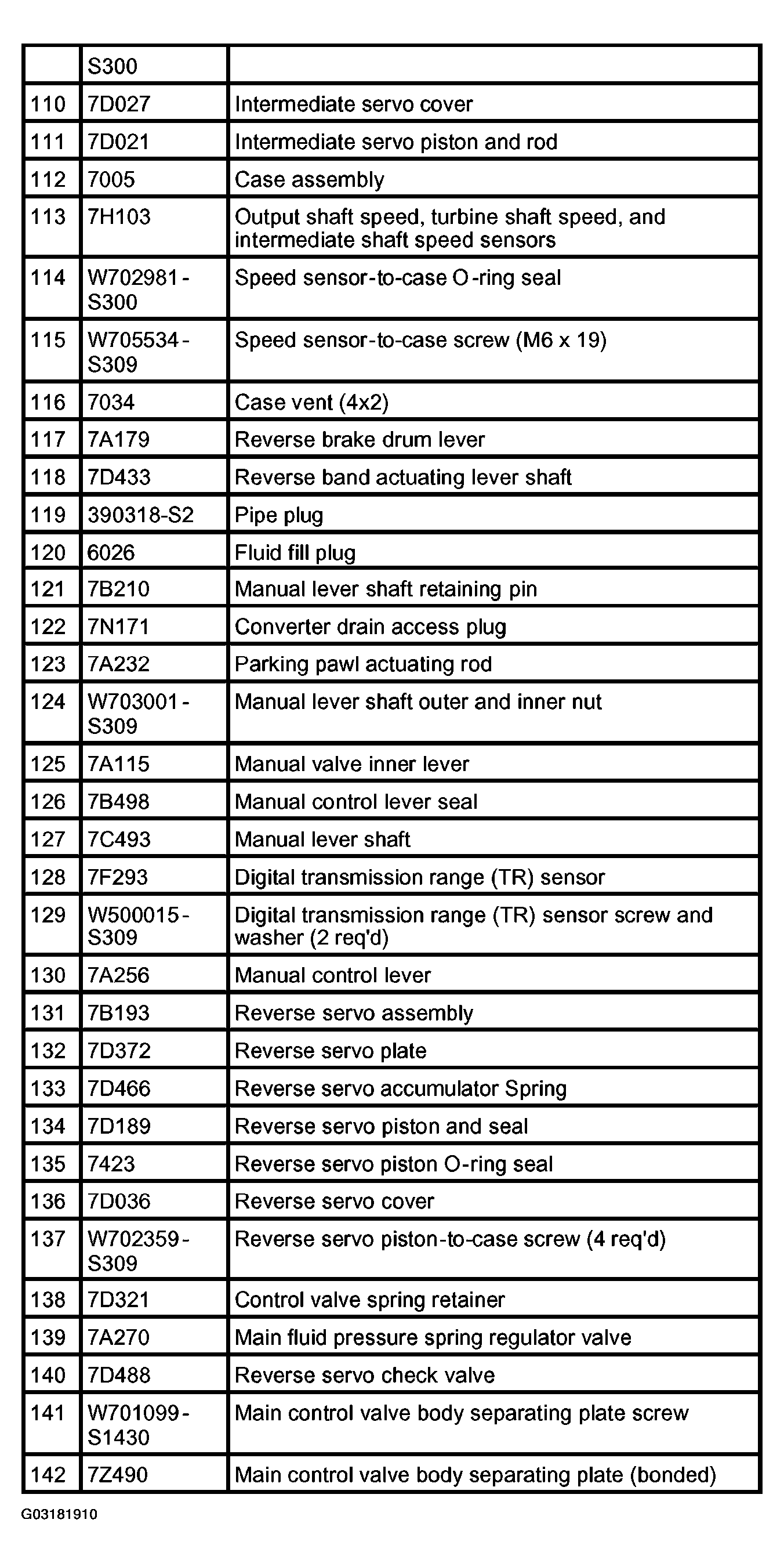

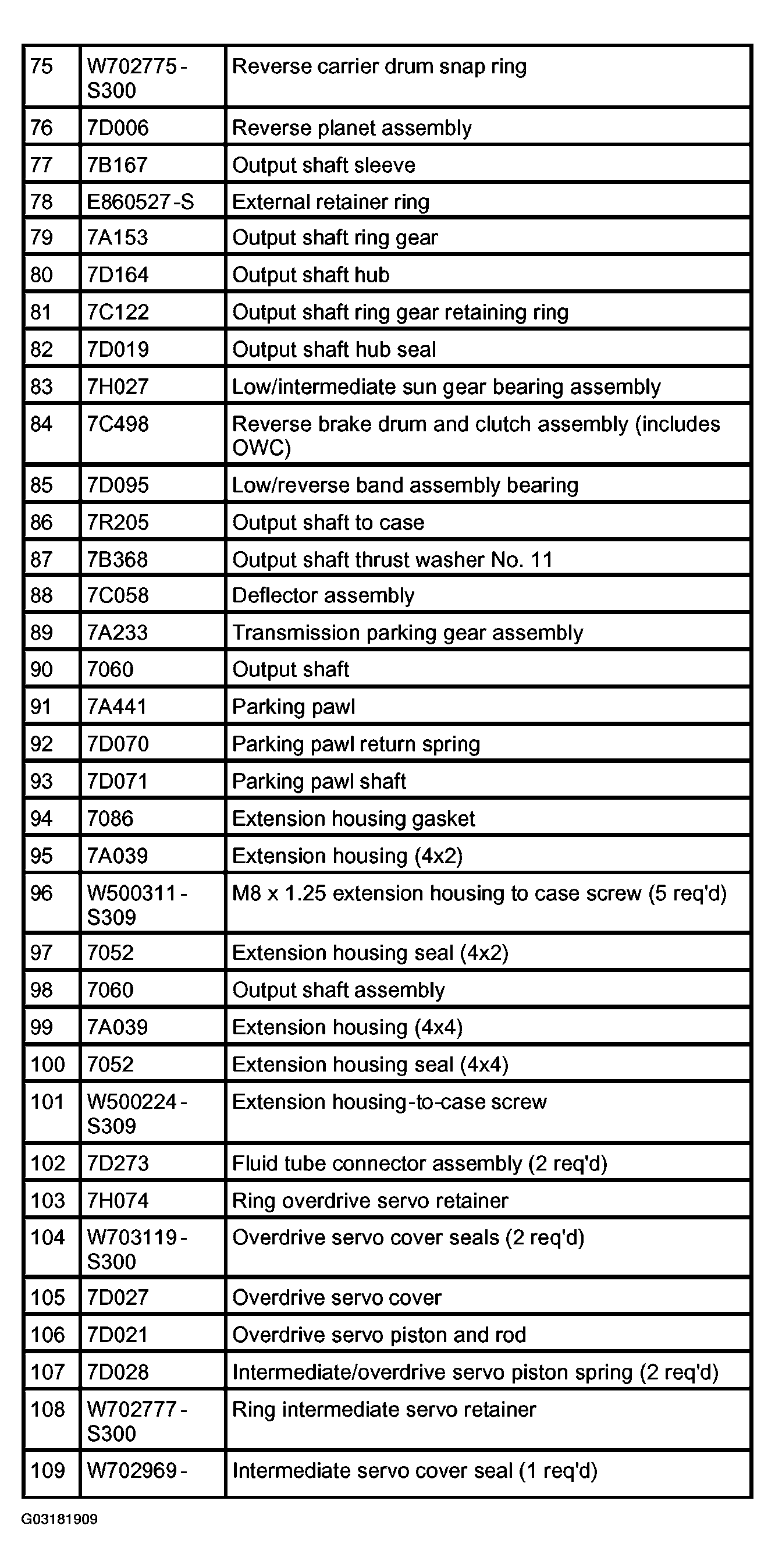

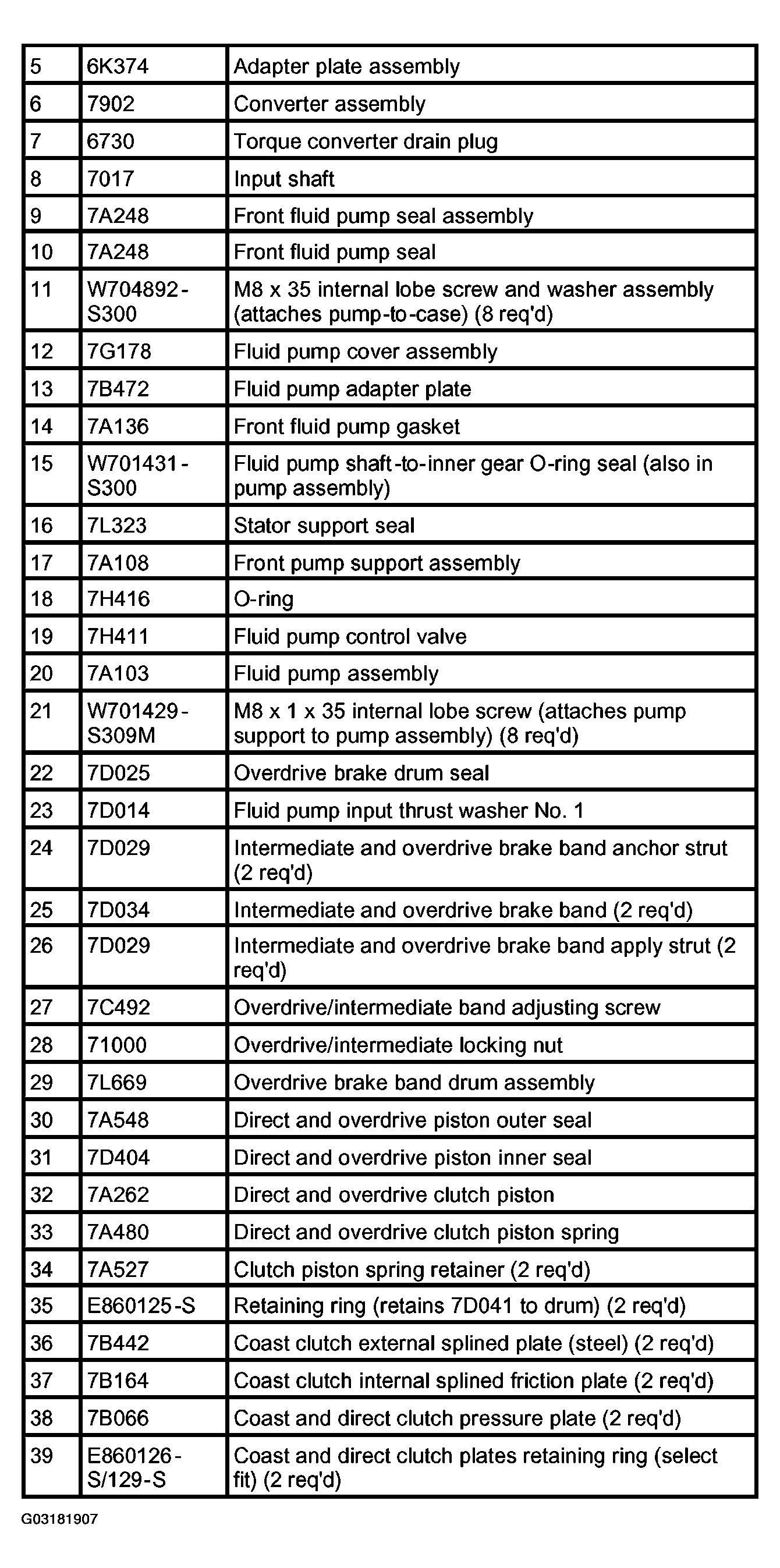

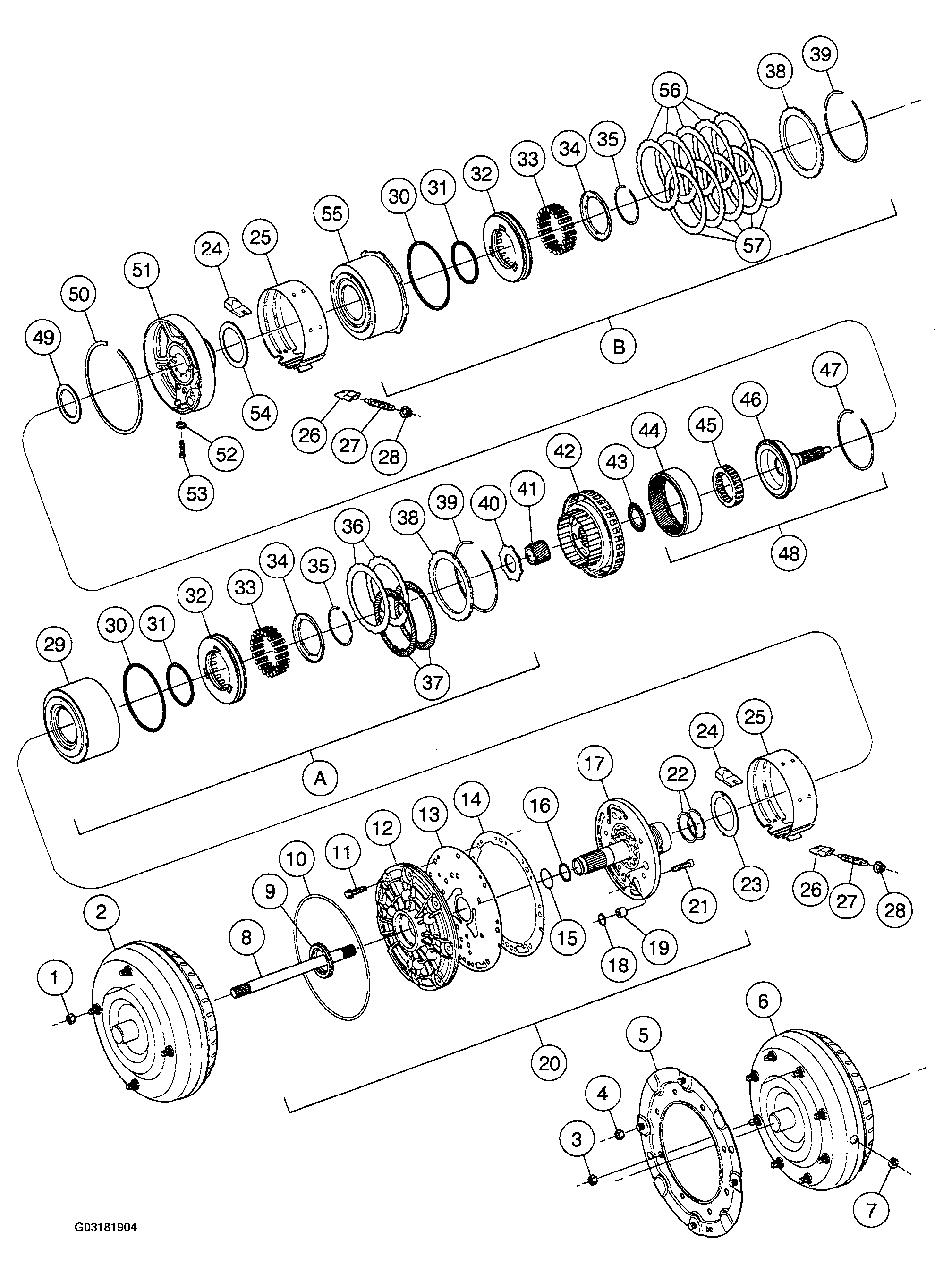

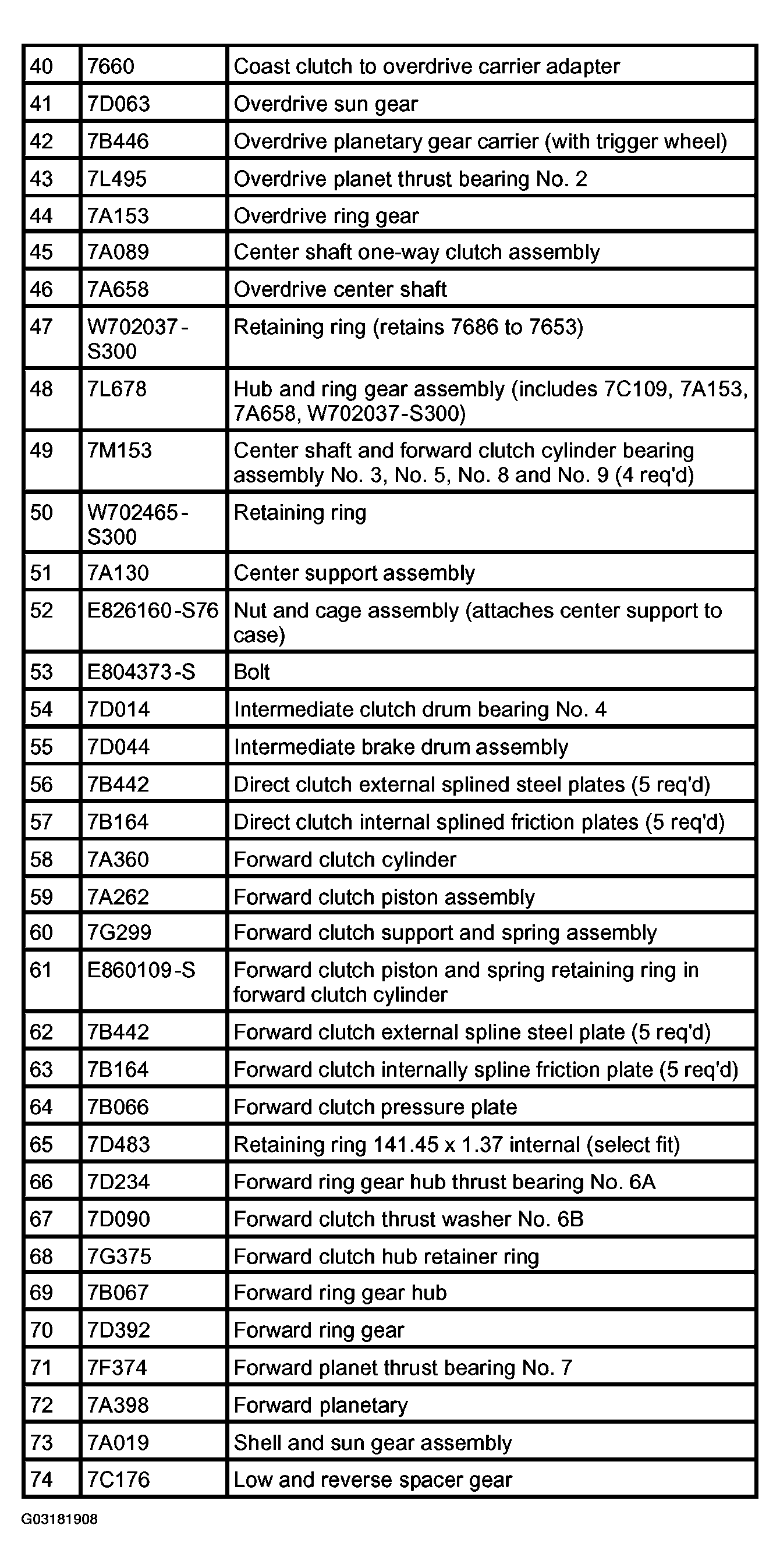

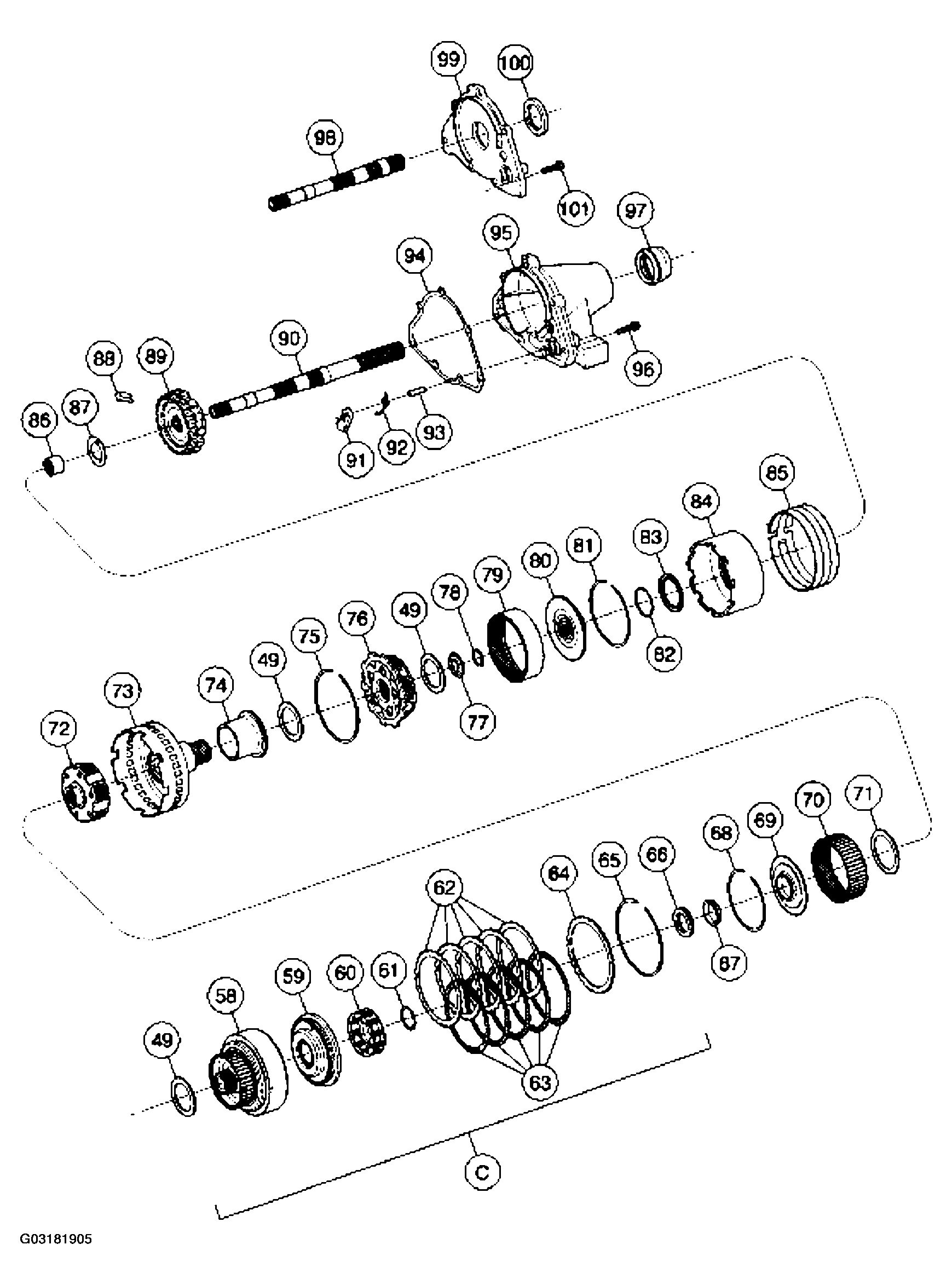

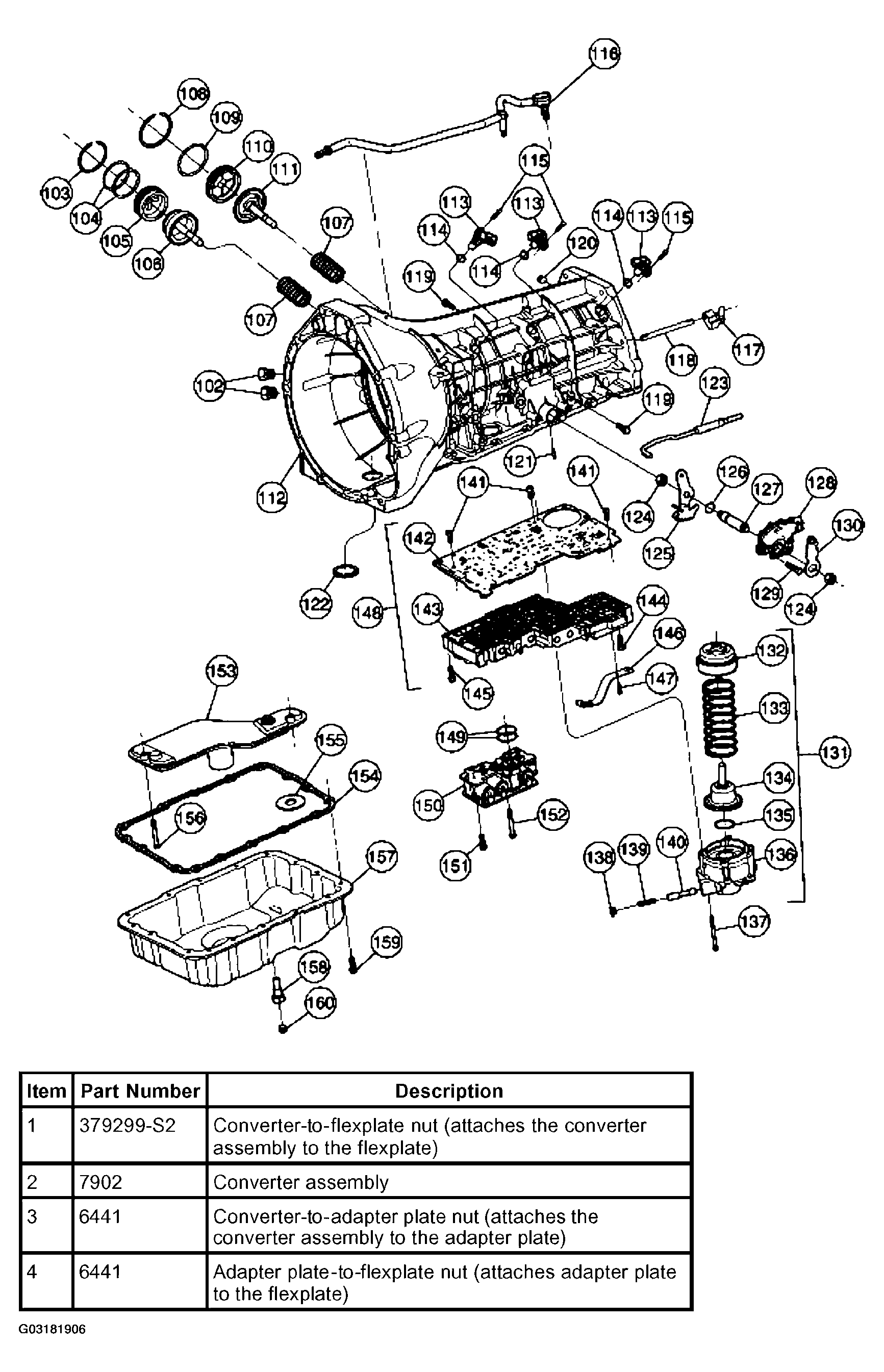

Fig 1: Exploded View Of Transmission Case (1 Of 8)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Transmission Case (2 Of 8)

Courtesy of FORD MOTOR CO.

Fig 3: Exploded View Of Transmission Case (3 Of 8)

Courtesy of FORD MOTOR CO.

Fig 4: Exploded View Of Transmission Case (4 Of 8)

Courtesy of FORD MOTOR CO.

Fig 5: Exploded View Of Transmission Case (5 Of 8)

Courtesy of FORD MOTOR CO.

Fig 6: Exploded View Of Transmission Case (6 Of 8)

Courtesy of FORD MOTOR CO.

Fig 7: Exploded View Of Transmission Case (7 Of 8)

Courtesy of FORD MOTOR CO.

Fig 8: Exploded View Of Transmission Case (8 Of 8)

Courtesy of FORD MOTOR CO.
