Main Control Valve Body: Notes

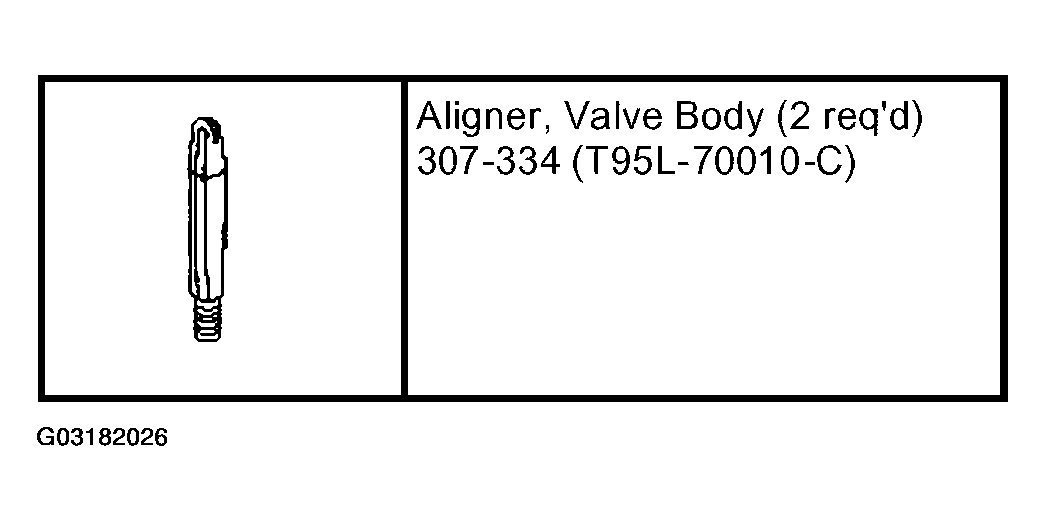

Fig 1: Special Tool Chart

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

CAUTION: Lubricate the fluid filter seals with clean automatic transmission fluid or they may be damaged.

NOTE: Make sure that the fluid filter seals are correctly seated on the filter.

NOTE: Clean the area around the connector to prevent contamination of the solenoid body connector.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

With the vehicle in PARK, position on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

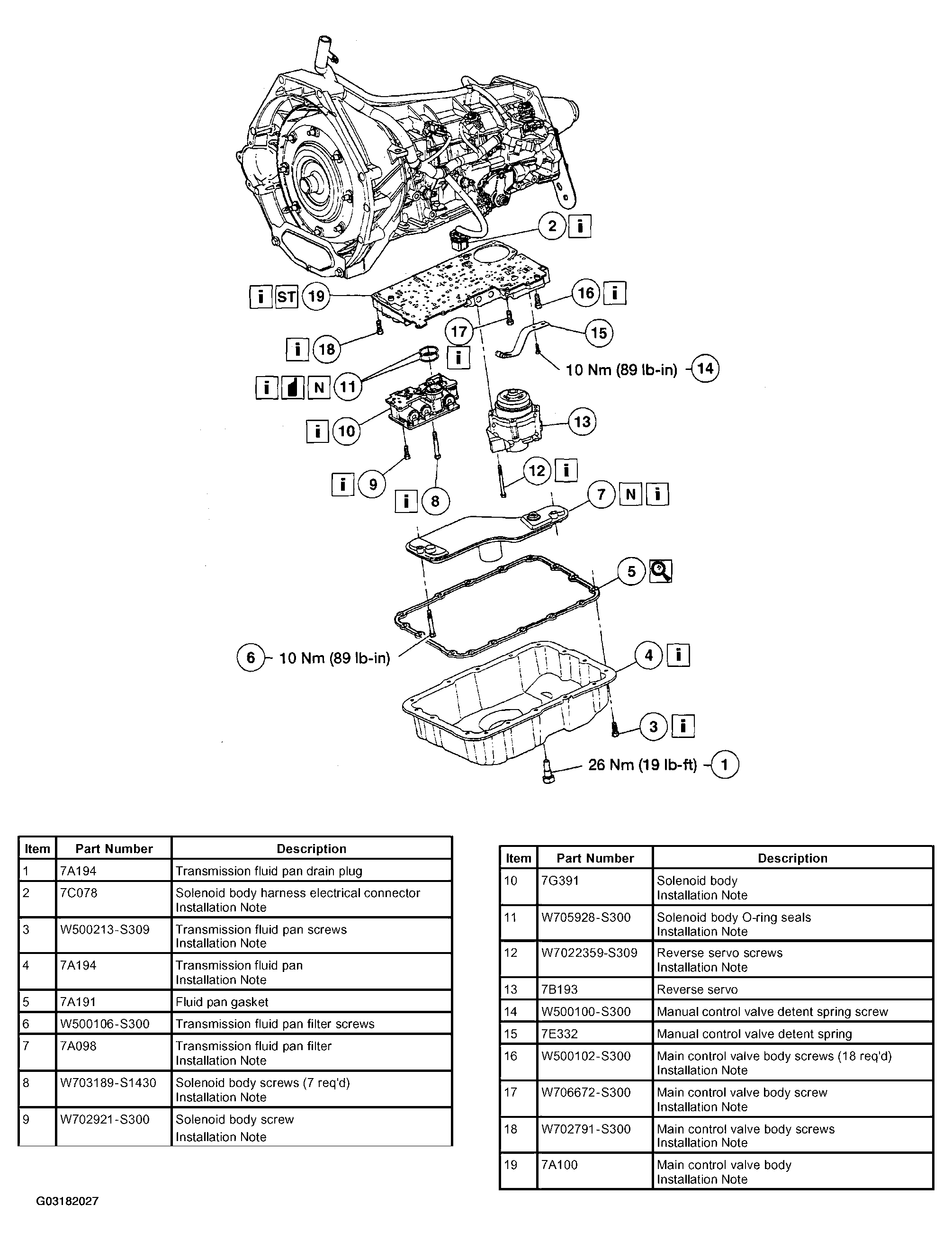

Fig 2: Identifying Main Control Valve Body Associated Parts
Courtesy of FORD MOTOR CO.
Partially fill the transmission. For additional information, refer to TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG .
